A li-ion inverter converts the direct-current electricity stored in a lithium-ion battery into alternating current that can be used by household appliances, commercial equipment and off-grid electrical loads.
However, selecting an inverter for a lithium-ion battery involves more than matching a battery to an inverter with the correct wattage. The inverter must also support the battery’s nominal voltage, charging parameters, discharge current, battery management system and intended application.
The best inverter for a lithium-ion battery is therefore not necessarily the inverter with the highest ower rating or the lowest price. It is the inverter that can operate safely and efficiently with the selected battery, solar array, electrical loads and required backup time.
How Does an Inverter With a Lithium Battery Work?
A typical lithium battery with inverter system has four main operating stages.
First, the lithium battery stores DC electricity. Its battery management system monitors cell voltage, current, temperature and operating limits.
Second, the inverter draws DC power from the battery within the permitted discharge range.
Third, the inverter converts the DC electricity into AC electricity at the voltage and frequency required by household or commercial equipment.
Finally, if the system uses an inverter-charger or hybrid solar inverter, the battery can be recharged from solar panels, the utility grid or a generator.
A hybrid inverter provides additional energy-management functions. It can coordinate electricity among solar panels, batteries, the utility grid and backup loads. RANKTOP’s guide to hybrid solar inverter working principles explains the differences between hybrid, off-grid and conventional inverters.
The battery and inverter should always be treated as one coordinated power system. Sharing the same voltage or communication connector does not automatically guarantee compatibility.
How to Choose the Best Inverter for a Lithium-Ion Battery
1. Match the battery and inverter voltage
The battery input range of the inverter must match the nominal and operating voltage of the battery bank.
Common low-voltage systems include:
12V battery systems
24V battery systems
48V or 51.2V battery systems
Larger commercial energy-storage systems may use high-voltage battery platforms.
A 12V inverter should not be connected directly to a 48V battery bank. Buyers must also compare the battery’s complete operating-voltage range rather than only its nominal voltage.
2. Check the battery chemistry and charging profile
The charging parameters of an inverter for lithium-ion battery use must match the battery chemistry.
Important settings include:
Bulk or absorption voltage
Maximum charging current
Low-voltage cut-off
Battery restart voltage
Maximum discharge limit
Equalization setting
Temperature compensation
State-of-charge reserve
Charging settings intended for lead-acid batteries should not automatically be applied to LiFePO4 batteries. In particular, lead-acid equalization should normally be disabled unless the lithium battery manufacturer provides different instructions.
3. Confirm BMS communication compatibility
The battery management system protects the lithium battery against abnormal voltage, current and temperature conditions.
In a closed-loop system, the inverter and battery exchange operating data through a supported communication protocol. CAN and RS485 are commonly used, but having the same physical port does not guarantee that two products can communicate.
Compatibility may depend on:
Communication protocol
Cable pinout
Battery address
Inverter protocol selection
Battery firmware
Inverter firmware
Maximum number of parallel battery modules
When closed-loop communication is not available, some approved systems can operate through configured voltage parameters. This should only be done when both manufacturers permit it.
4. Calculate continuous and surge power
The inverter’s continuous output must support all appliances that may operate at the same time.
Lighting, televisions and communication devices usually have relatively stable demand. Refrigerators, pumps, compressors and motors may require much more power when they start.
The inverter must therefore support both:
Continuous operating power
Short-term startup or surge power
For televisions, computers, refrigerators, communication equipment and other sensitive appliances, a pure sine wave inverter with lithium battery storage is generally recommended.
A low-frequency invertermay be suitable where strong surge capacity and transformer-based construction are priorities. RANKTOP’s low-frequency power inverter overview provides more information about this type of inverter.
5. Check the battery discharge current
A lithium battery inverter cannot deliver its full output if the battery or BMS cannot supply enough current.
6. Select the correct inverter architecture
Different applications require different inverter configurations.
An off-grid inverter is suitable when the system must operate independently from the utility grid.
A hybrid solar inverter is useful when solar, battery and utility electricity need to be coordinated.
A parallel-capable inverter is suitable when the project requires higher output, three-phase operation or future expansion.
A portable inverter with lithium-ion battery storage is more suitable for mobile power, temporary work sites, outdoor use and essential backup loads.
Lithium battery for home inverter use
A lithium battery for home inverter applications should be sized from an essential-load schedule and required backup period.
A small home system may support:
Lighting
Fans
Television
Internet equipment
Computers
Selected refrigeration
Larger systems may operate pumps, air conditioners and broader household loads, but they require higher inverter output, more battery energy and careful surge-power analysis.
Complete off-grid solar system
An off-grid solar system must be designed around a complete daily energy balance.
The solar array must supply daily consumption and restore the energy discharged from the battery. The battery must support nighttime demand and the required number of low-sun days. The inverter must support continuous and surge loads, while the MPPT input must match the PV string voltage and current.

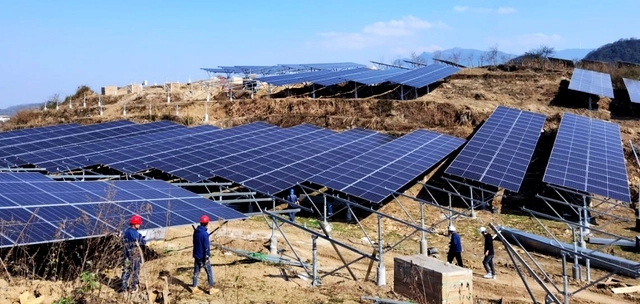

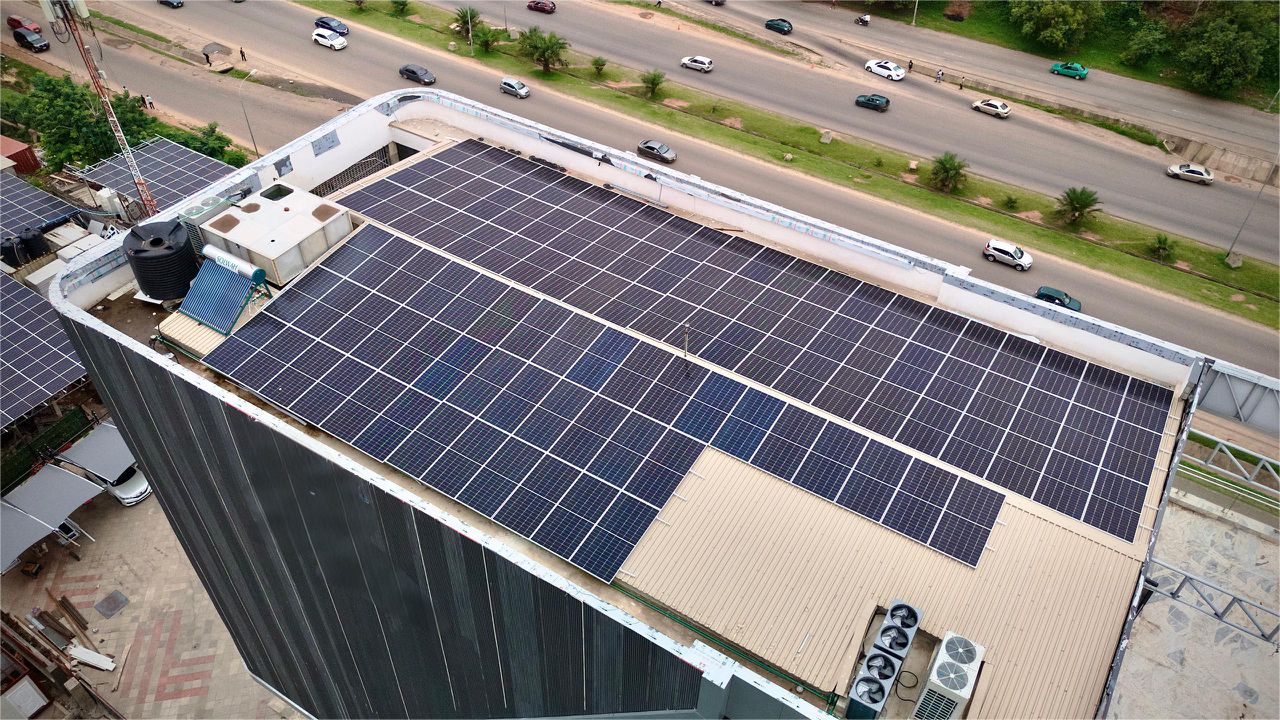

These cases demonstrate project experience at different scales, although every new system must still be designed according to its own loads, climate, grid conditions and local requirements.
Installation and Maintenance Resources
Installation should be completed by qualified personnel under applicable local electrical regulations.
Always use the technical document for the exact inverter and battery model being installed.
Frequently Asked Questions
Can any inverter work with a lithium-ion battery?
No. The inverter must match the battery voltage and operating range. An inverter-charger must also support the correct lithium charging parameters. The battery BMS must be able to supply the required continuous and surge current.
What is the best inverter for a lithium-ion battery?
The best inverter is one that is approved for the battery chemistry and voltage, supports the required continuous and surge load, and provides suitable charging, protection and BMS communication functions. For sensitive household electronics, pure sine wave output is normally recommended.
Does a lithium inverter include a battery?
Not always. “Lithium inverter” usually describes a lithium-compatible inverter sold separately. “Inverter with lithium battery” may describe a package, while a portable energy-storage product may integrate the battery and inverter in one enclosure.
Conclusion
A reliable inverter lithium battery system begins with compatibility rather than inverter wattage alone.
Buyers should match the battery voltage and chemistry, verify charging parameters and BMS communication, calculate continuous and surge power, confirm battery discharge current and size storage according to energy demand and backup time.
For a portable backup unit, a lithium-ion battery for home inverter use or a complete off-grid solar project, the same principle applies: the inverter, battery and solar array should be specified as one coordinated system.
RANKTOP supplies solar inverters, lithium batteries and complete solar power systems for residential, commercial and project applications.
