All-In-One 105KW 241KWH Battery Energy Storage Container Solar Power BankIntegrated Lifepo4 Battery
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week
241KWH ESS with 105KW PCS and Solar Charging System
Energy Storage System(ESS)
LiFePO4 Battery: 768V/314AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 105KW
Rated AC Voltage: 230/400V, 50/60Hz
AC Voltage Range: 230/400V, 50/60Hz
DC Voltage Range: 615~950V
Solar Charger
Max. PV Charge Power: 100KW
Max. PV Input Voltage: 900V
MPPT Voltage Range: 0~900V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP
Parallel and off-grid switching power off for 30-50 seconds

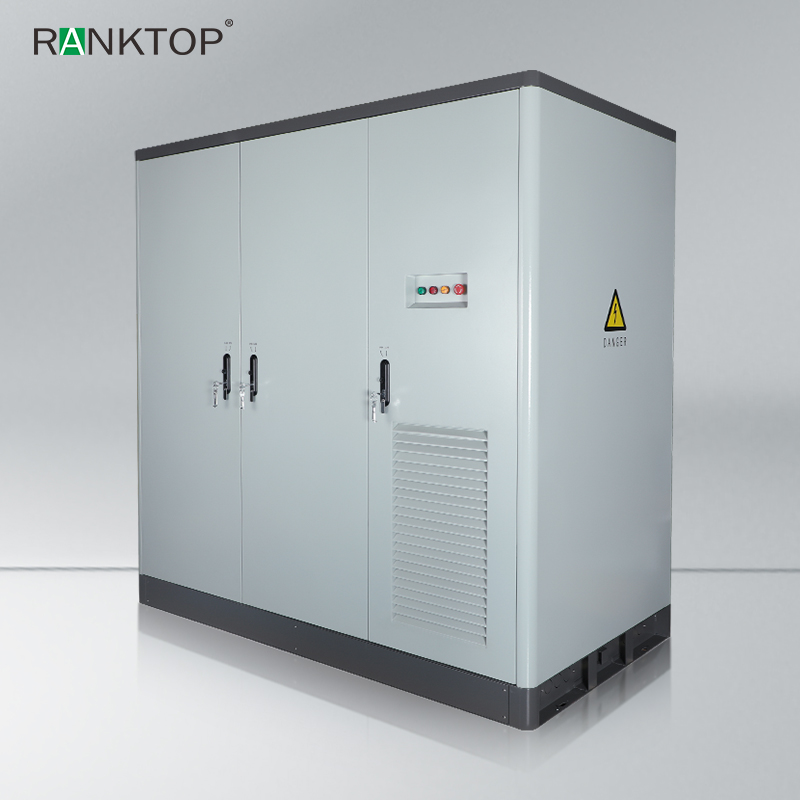

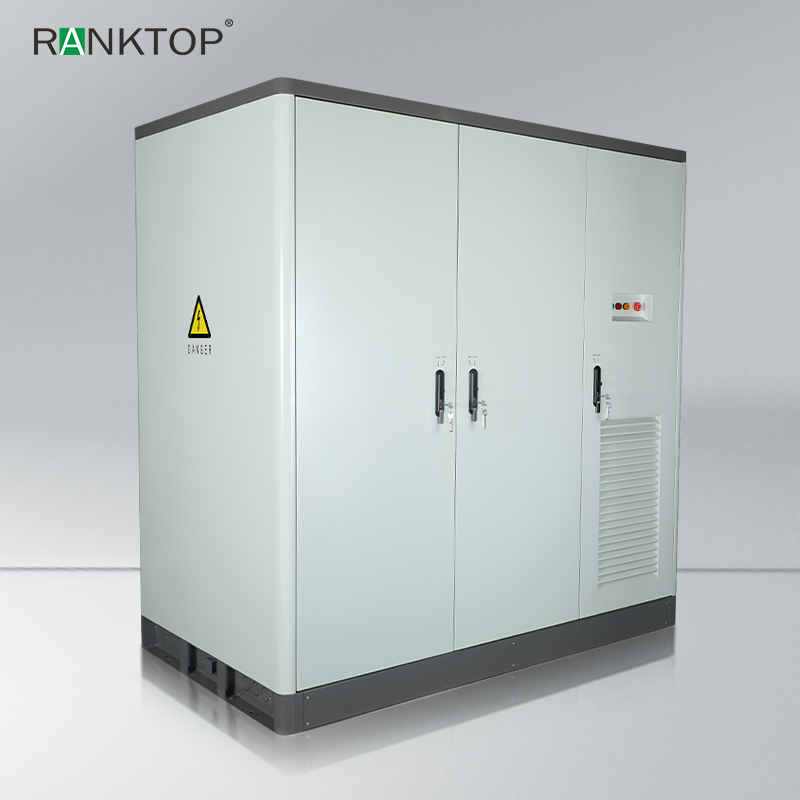

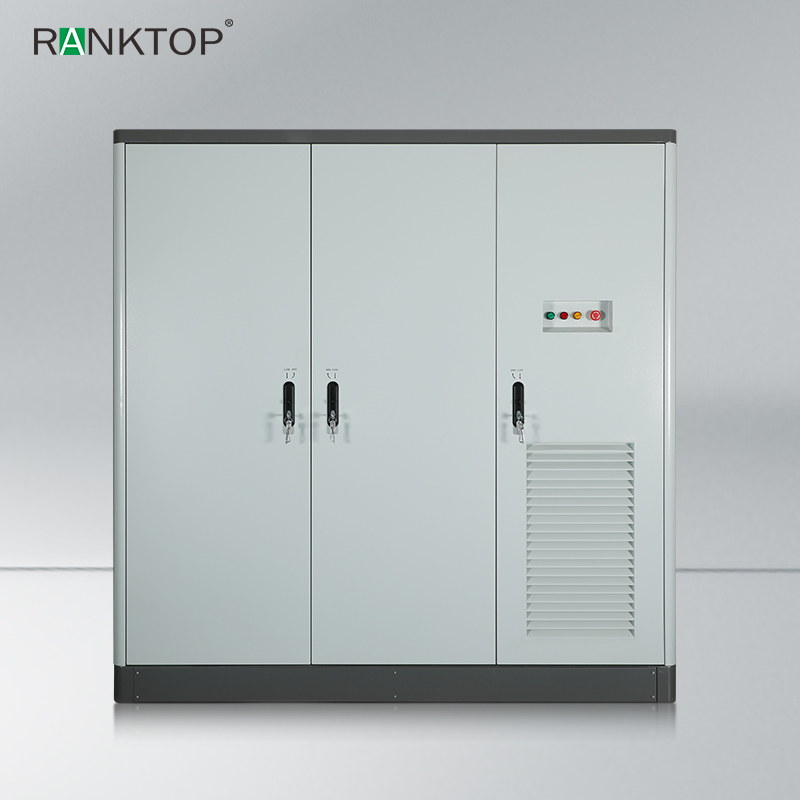

Outdoor Three-cabin Cabinet
Size: 2100*1210*2150mm
Air Conditioner, 1500W, 2 sets
Fire Fighting System
Product Advantage
Integrated Energy Solution
The 241kWh ESS integrates a high-voltage LiFePO4 battery (768V/314Ah, 672-864V range), 105kW bidirectional PCS (230/400V AC, 615-950V DC), and 100kW solar charger (900V MPPT) into a unified outdoor cabinet. Its triple-layer energy management – battery control, PV optimization, and grid interaction – enables intelligent energy shifting from low-cost periods to peak tariffs while maintaining 95% round-trip efficiency and 30-50ms grid switching.Solar Charging System,outdoor ess cabinet energy battery, Commercial Energy Storage Cabinet, Municipal Maintenance Electricity Supply system, solar battery power pack for home.
Industrial-Grade Deployment
Housed in a rugged IP54 cabinet (2.1×1.2×2.15m) with dual 1.5kW HVAC and fire suppression, this system delivers 4+ hours of 105kW backup power. Seamless transition during outages and solar smoothing capabilities make it ideal for factories and microgrids, with modular expansion to MWh-scale capacity for transforming energy expenses into revenue streams.Solar Charging System,outdoor ess cabinet energy battery, Commercial Energy Storage Cabinet, Municipal Maintenance Electricity Supply system, solar battery power pack for home.
Key Enhancements:
Technical Precision
Voltage specs: Battery (672-864V), PCS DC input (615-950V), PV (900V MPPT)
Component clarity: LiFePO4 chemistry, bidirectional PCS, triple-layer management
Critical details: 30-50ms switching speed, dual HVAC systems
Value-Driven Integration
Unified solar-storage: *100kW PV charger + 241kWh storage + 105kW output*
Dual functionality: *Peak shaving + Backup power (4h@105kW)*
Robust Infrastructure
Environmental protection: IP54 outdoor cabinet.Solar Charging System
Safety systems: Fire suppression + Thermal management
Commercial Application
Explicit ROI mechanism: Energy shifting from low-cost to peak tariffs
Scalability: Modular MWh-scale expansion.Solar Charging System,outdoor ess cabinet energy battery, Commercial Energy Storage Cabinet, Municipal Maintenance Electricity Supply system, solar battery power pack for home.
This version maintains your technical foundation while adopting the concise, benefit-focused structure of your original request, positioning the system as both technologically advanced and commercially viable.Solar Charging System,outdoor ess cabinet energy battery, Commercial Energy Storage Cabinet, solar battery power pack for home.
