Capacitor Energy Module Rack Mount Battery Lifepo4 Battery Industrial Energy Storage System
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week
204.8V 100AH Vertically Stacked Energy Storage Battery Pack
Model:DQ2910A20-01
Battery Type: LiFePO4
Nominal Voltage: 204.8V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 230.4V
Discharging Cut-off Voltage: 179.2V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1020mm
Weight: 242kg
Warranty: 5 years

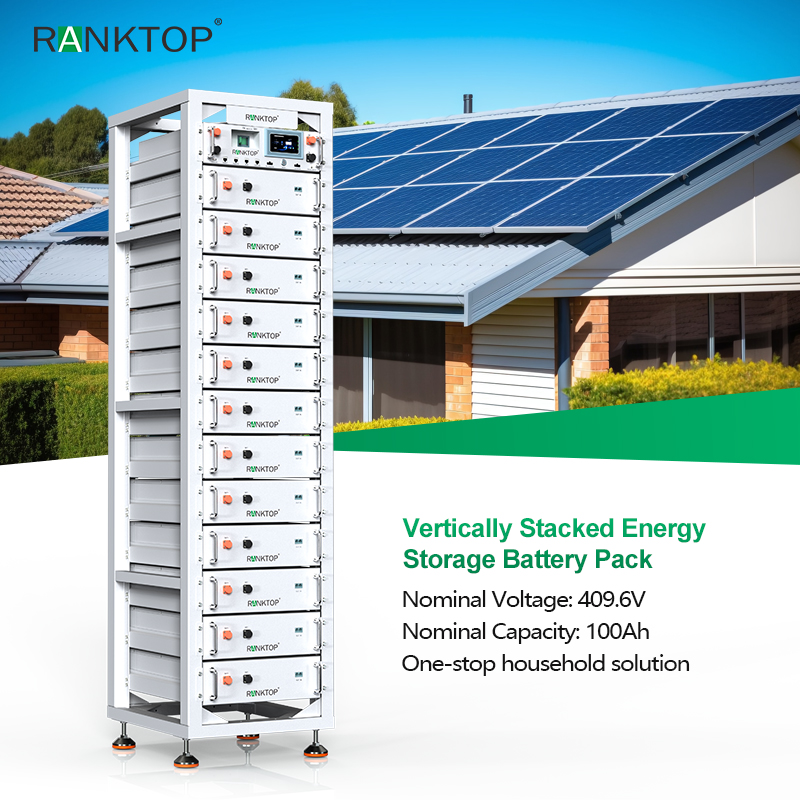

409.6V 100AH Vertically Stacked Energy Storage Battery Pack
Model：DQ2910B40-01
Battery Type: LiFePO4
Nominal Voltage: 409.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 460.8V
Discharging Cut-off Voltage: 358.4V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1604mm
Weight: 443kg
Warranty: 5 years

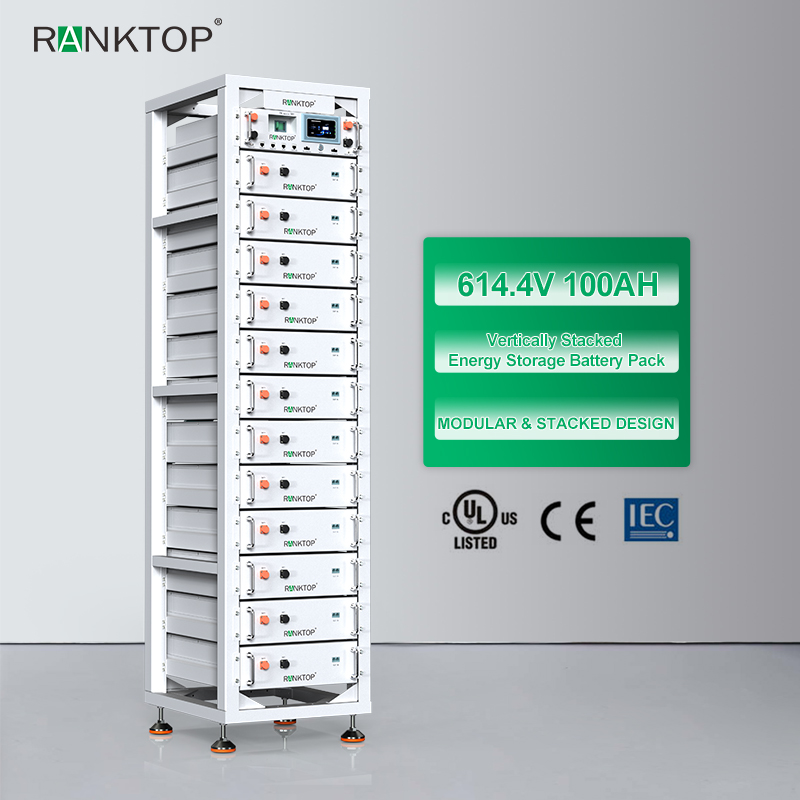

614.4V 100AH Vertically Stacked Energy Storage Battery Pack
Model:DQ2910C60-01
Battery Type: LiFePO4
Nominal Voltage: 614.4V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 691.2V
Discharging Cut-off Voltage: 537.6V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*2188mm
Weight: 644kg
Warranty: 5 years
768V 100AH Vertically Stacked Energy Storage Battery Pack
Model：DQ2910D77-01
Battery Type: LiFePO4
Nominal Voltage: 768V
Nominal Capacity: 100Ah
Charging Cut-off Voltage:865V
Discharging Cut-off Voltage: 672V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 1099*610.5*1454mm
Weight: 813kg
Warranty: 5 years
Product Advantage

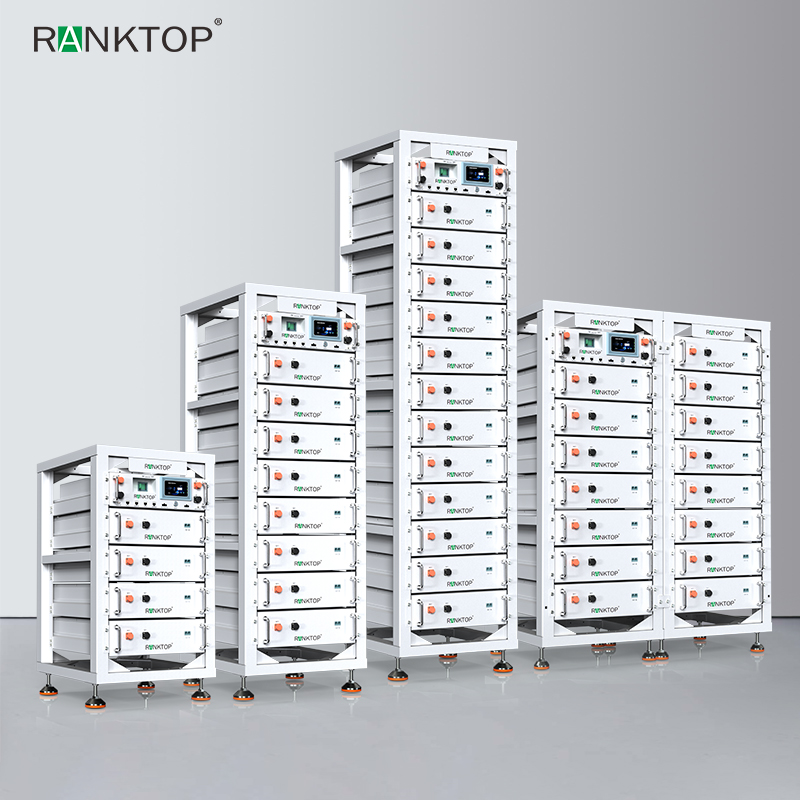

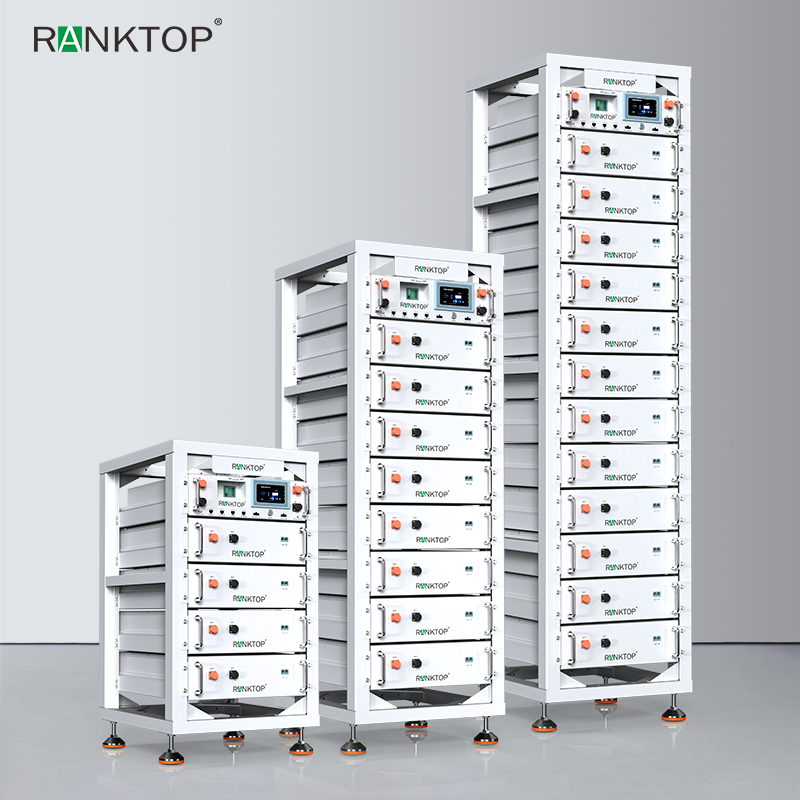

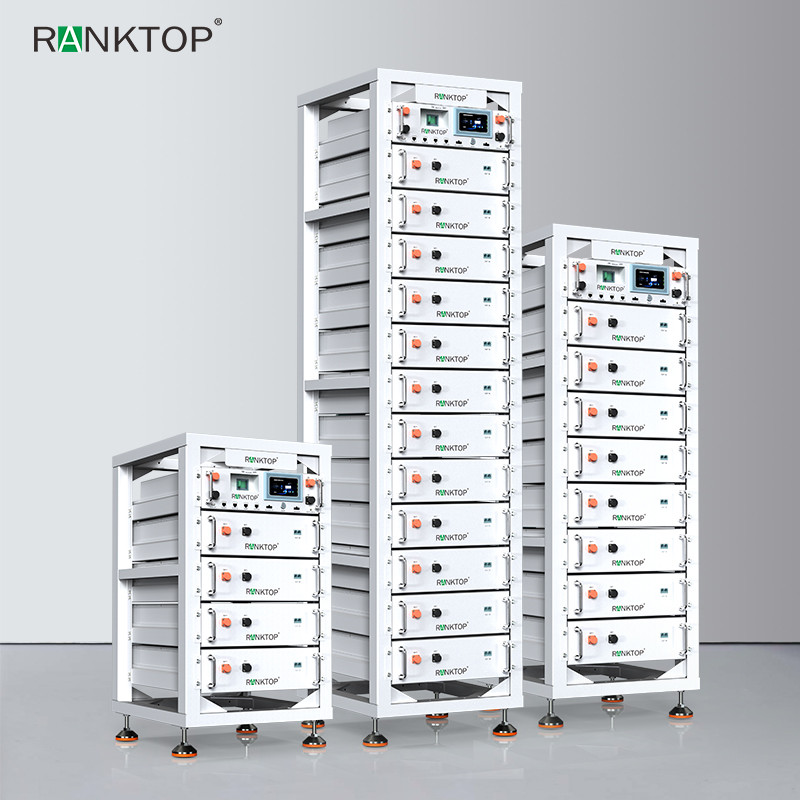

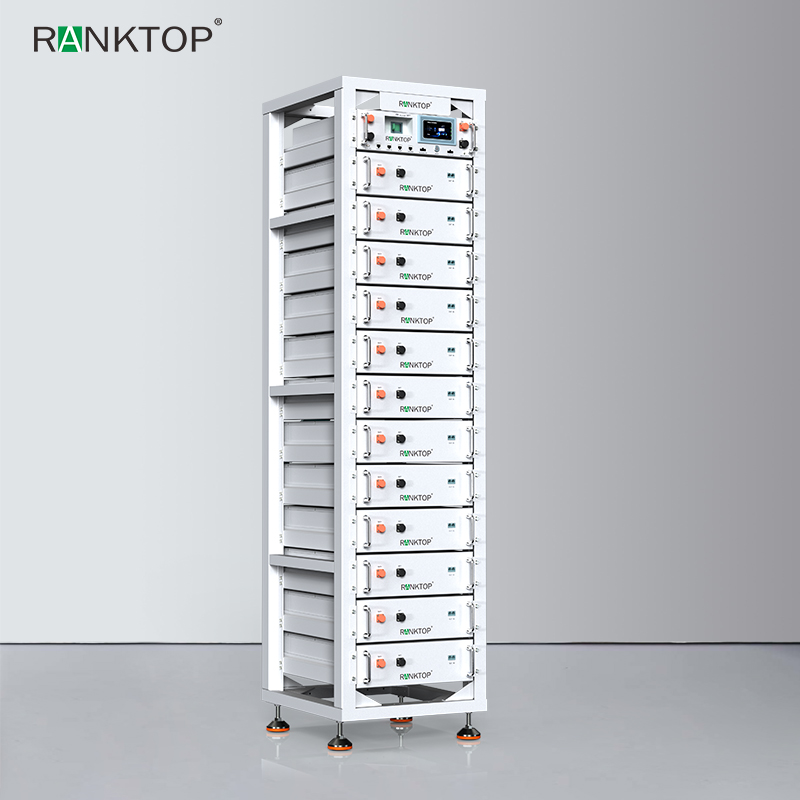

20kw,40kw,60kw,77kw Vertically Stacked Energy Storage Battery Pack
Ranktop DQ2910 series is an advanced system. The system consists of rack-mounted battery modules, each with a capacity of 5.12 kWh. Multiple modules can be connected in series and parallel to achieve the required storage capacity, and its modular and scalable architecture provides flexible capacities from 20.48kWh to 76.8kWh. Standardized 3U chassis design for easy installation and maintenance.Industrial Energy Storage System,battery energy storage system with solar, battery energy storage system industrial solar, battery system customization solar power system,solar energy battery storage system.
Rigorous testing: Starting from raw material screening and design, product design is guided by multiple safety standards at home and abroad. After strict failure mode and consequence analysis, 3710 quality control points are monitored in real time from components to systems to ensure the safety and reliability of delivered products.Industrial Energy Storage System,battery energy storage system with solar, battery energy storage system industrial solar, battery system customization solar power system,solar energy battery storage system.
Multi-level Security Control: Multi-layer safety management is superimposed in the system, from BMS to PCS safety control to AC and DC multi-level electrical protection, combined with co-management system and fire protection system to ensure product safety, and passed the strict IEC62619, IEC 63056, IEC60730-1 safety certification.Industrial Energy Storage System,battery energy storage system with solar, battery energy storage system industrial solar, battery system customization solar power system,solar energy battery storage system.battery energy storage system with solar.
Battery Safety Warning: Through the battery aging mechanism and safety warning algorithm, deeply excavate the evolution mechanism of the internal characteristics of the battery, and construct the multi-dimensional coupling relationship between the internal and external characteristics of the battery in the post-deterioration stage, thereby inferring the attenuation curve of the battery SOC and SOH, and judging the risk of internal short circuit in real time.Industrial Energy Storage System,solar energy battery storage system.
