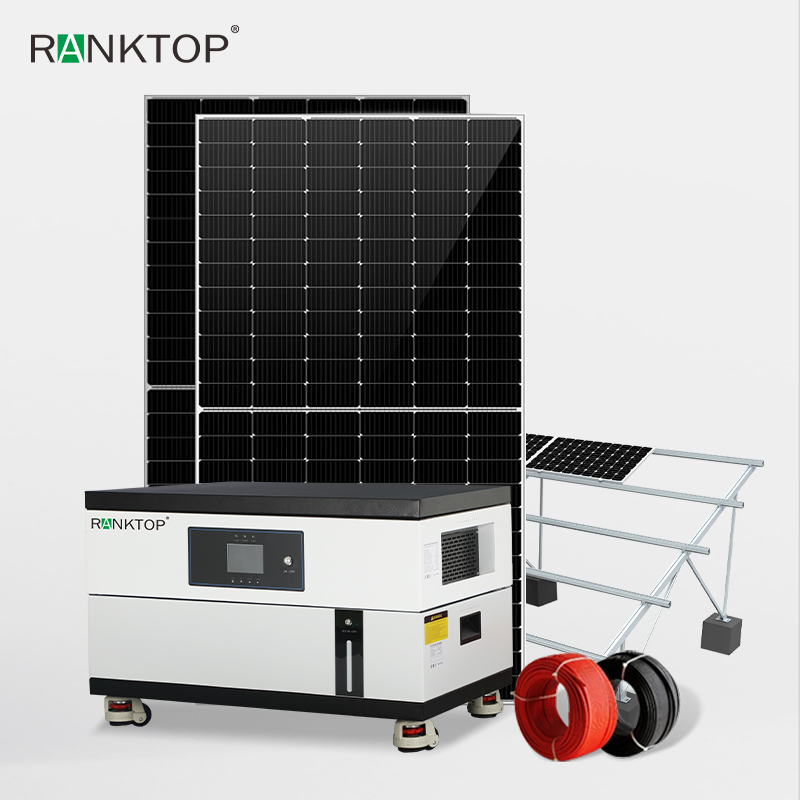

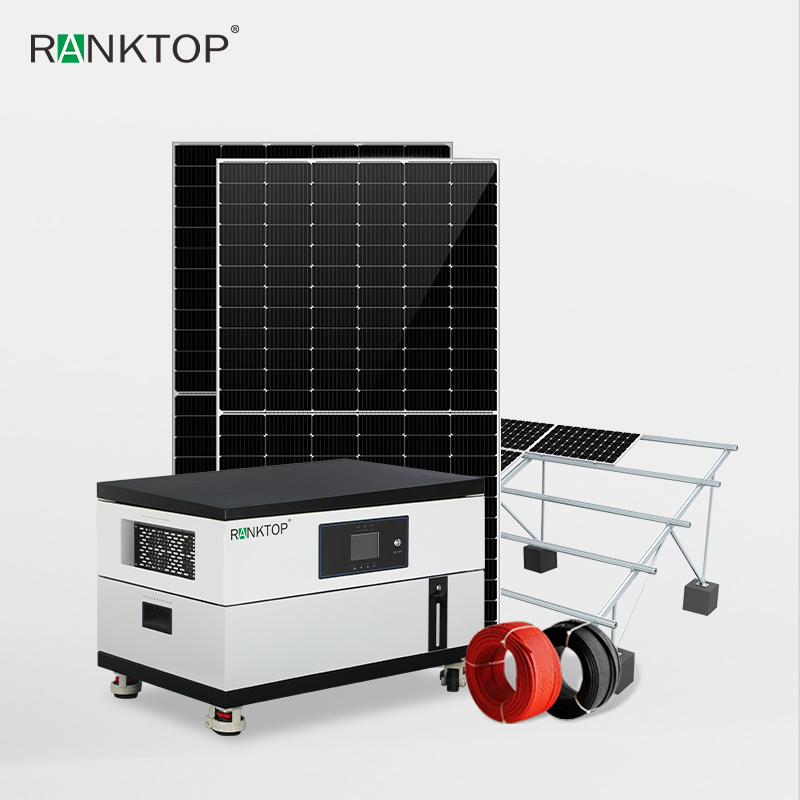

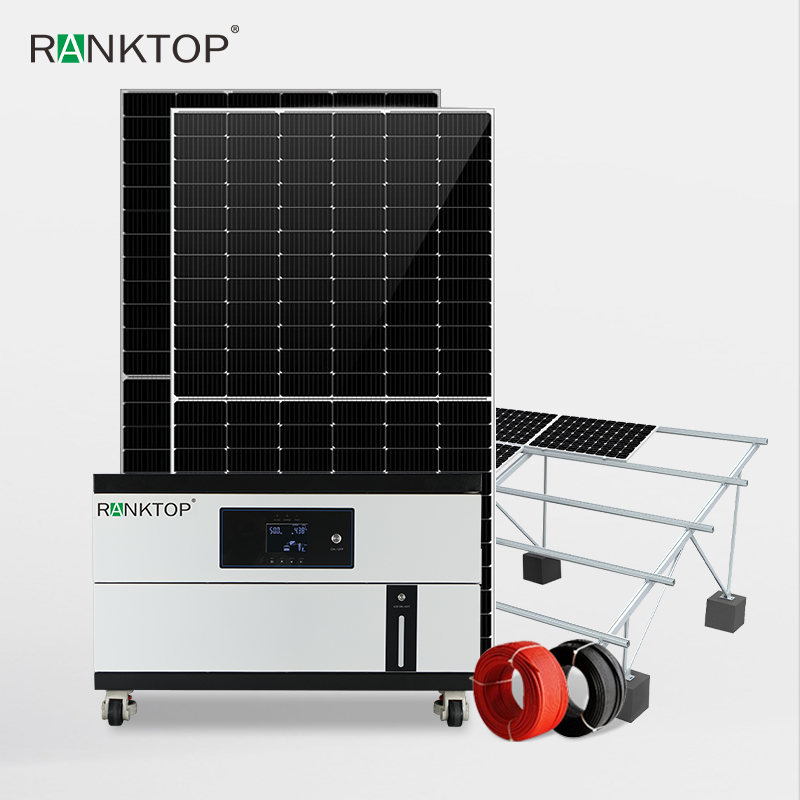

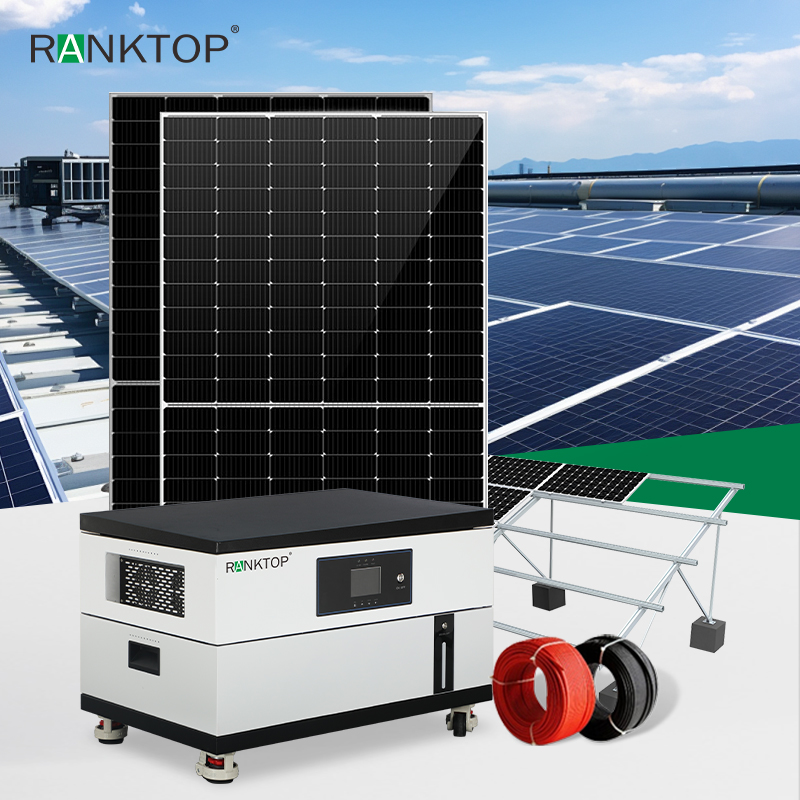

Complete Hybrid Solar Energy Storage System 5KWH Flat Layer Stacked Energy Storage

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 5 pcs In Series

5.6KW/5KWH Flat Layer Stacked Energy Storage

Rated Power: 5.6KW

LiFePO4 Battery: 100Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range:170-280VAC

AC Input Frequency: 50/60Hz

Maximum AC innut current/charging current: 40A/60A

Maximum PV Voltage: 500VDC

MPPT Voltage Range: 120-450VDC

PV Charge Current: 100A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions:610*390*490mm

Max. Number Of  Parallel: 6 sets

Warranty: 3 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

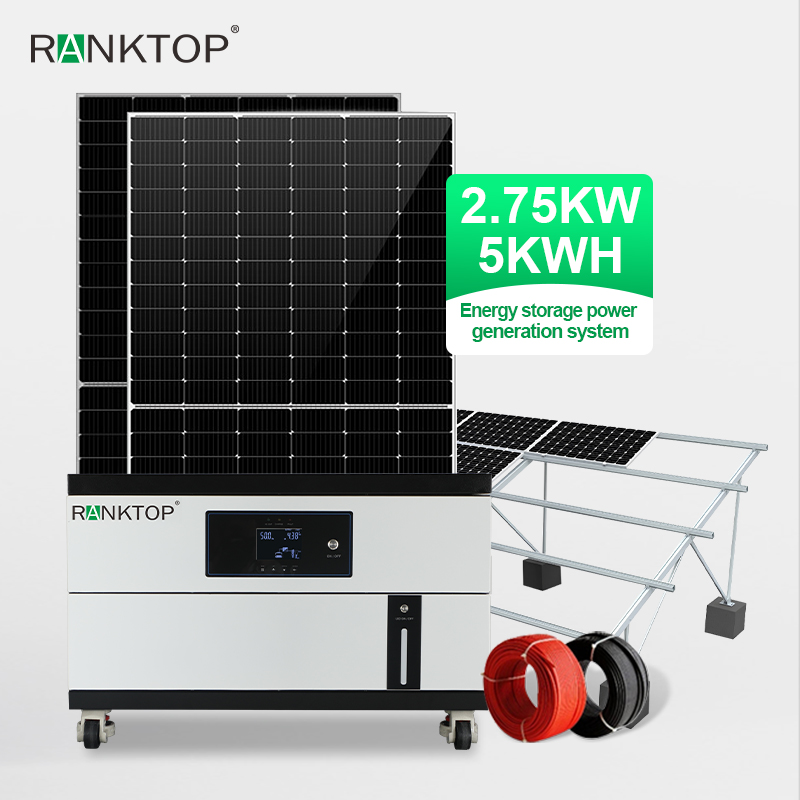

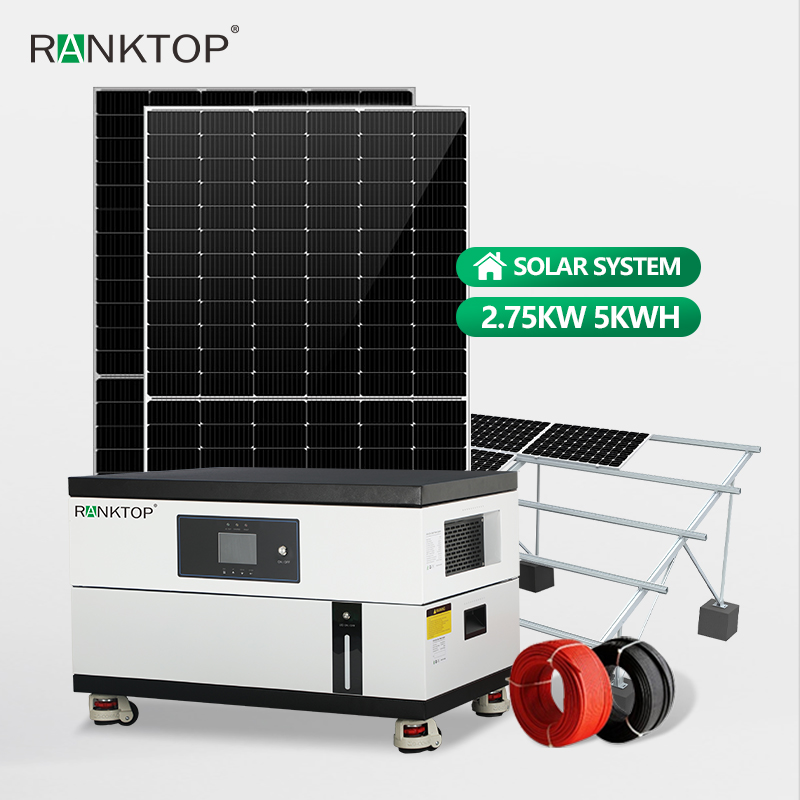

2.75KW/5KWH Flat Layer Stacked Energy Storage

5.6KW/5KWH Flat Layer Stacked Energy Storage connected in parallel. It is a lifepo4 battery storage with 5kwh energy and plug-and-play. The integrated off-grid solar system makes full use of natural energy, stores energy during the day, supplies power at night, and efficiently converts electricity to meet the energy needs of many households and businesses.connected in parallel. It is a lifepo4 battery storage with 5kwh energy and plug-and-play. The integrated off-grid solar system makes full use of natural energy, stores energy during the day, supplies power at night, and efficiently converts electricity to meet the energy needs of many households and businesses.connected in parallel. It is a lifepo4 battery storage with 5kwh energy and plug-and-play. The integrated off-grid solar system makes full use of natural energy, stores energy during the day, supplies power at night, and efficiently converts electricity to meet the energy needs of many households and businesses.Outdoor Energy Storage System.All in One Battery Solar System.Lifepo4 Lithium Energy Storage Battery.

The standard package of the product is 5.6KW/5KWH Flat Layer Stacked Energy Storage, if you need to replace other specifications or purchase the battery separately, or want to buy a complete set of solutions or other specifications or customized products, please contact us, and we will design solutions and quotations according to your specific requirements.
