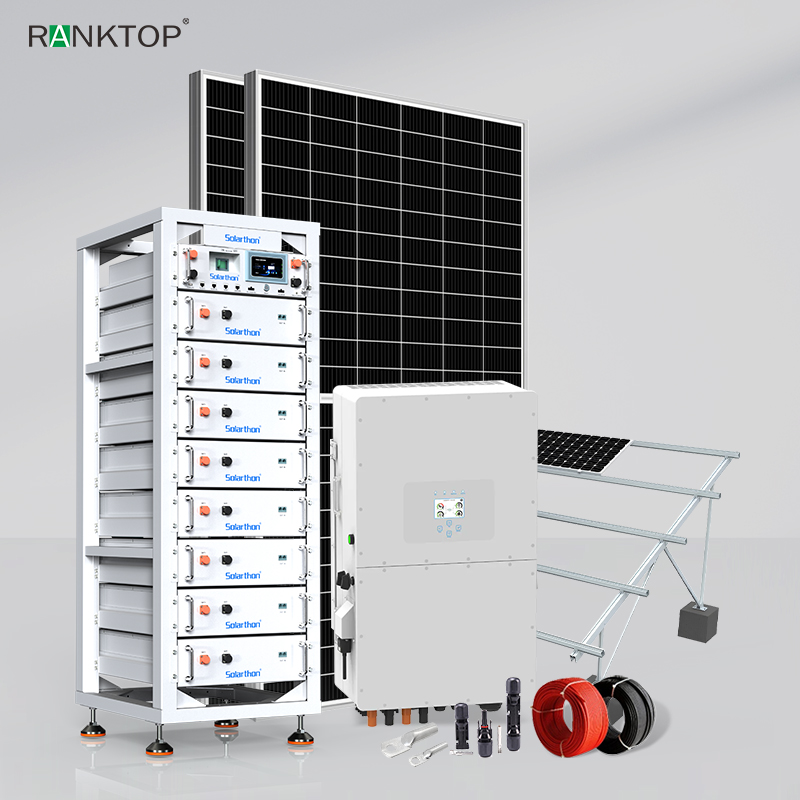

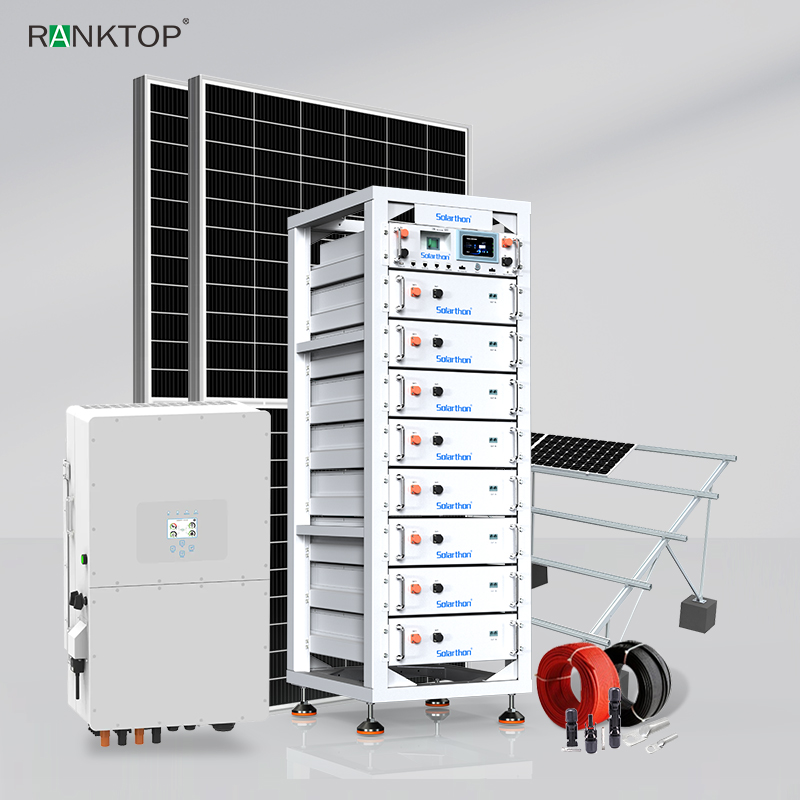

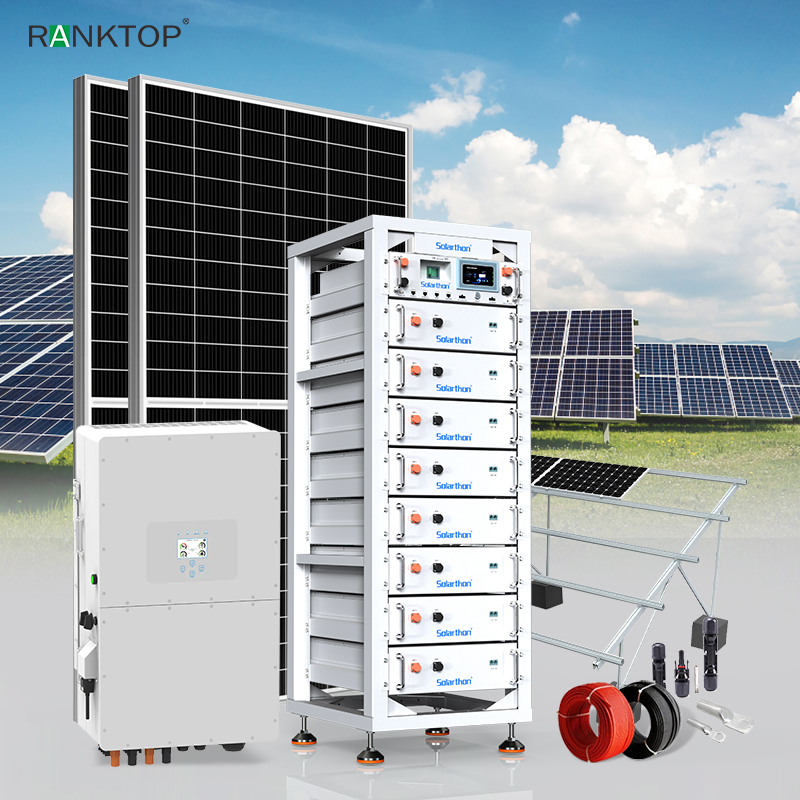

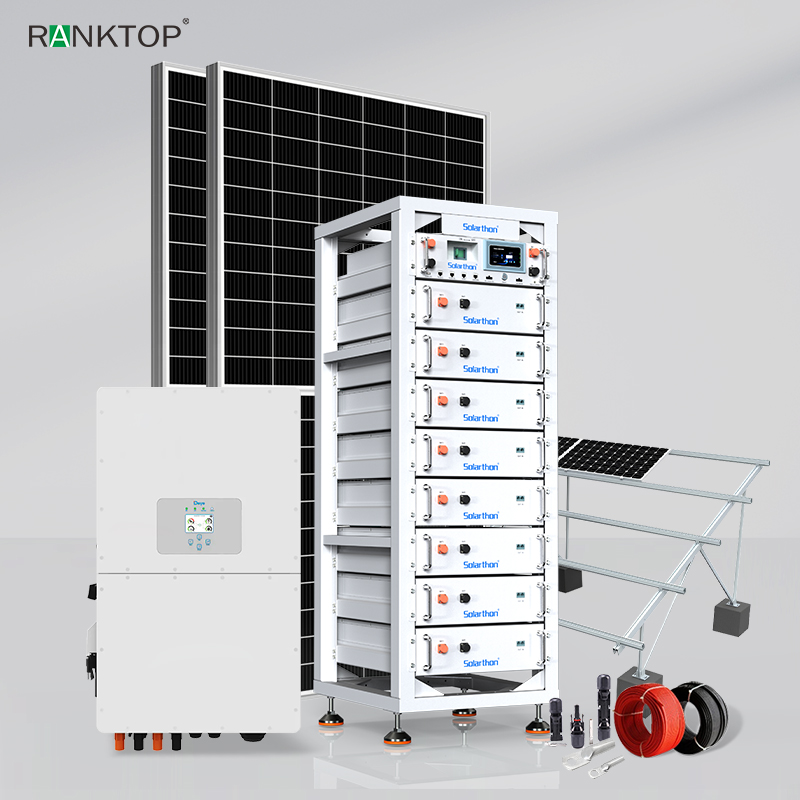

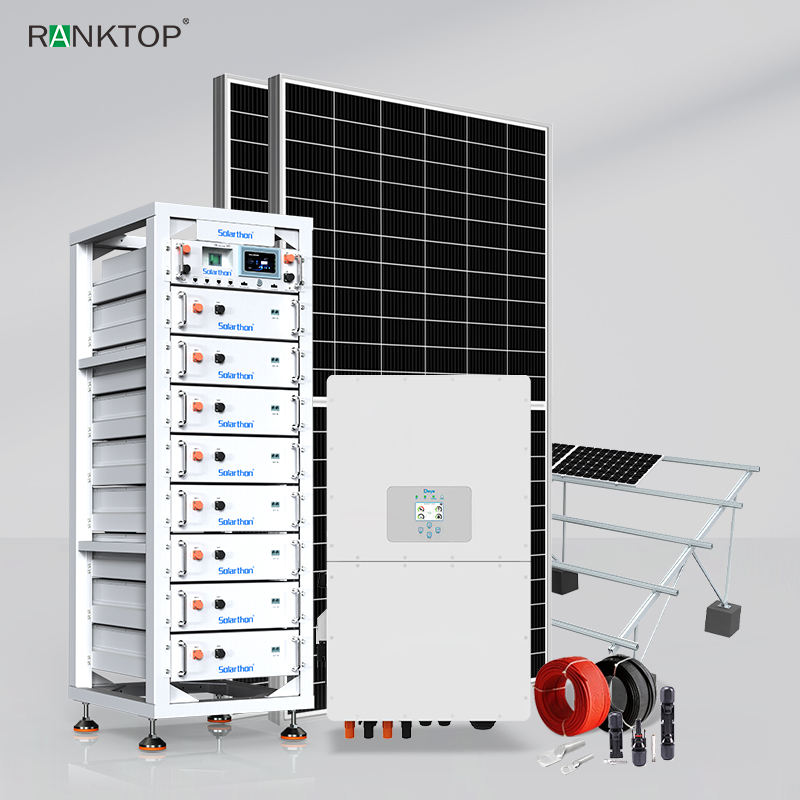

Complete Set 15KW 40KWH Hybrid Solar System with Risen Solar Panels Three Phase Inverter for Household Use

550W Mono Half Cell PERC Solar Panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

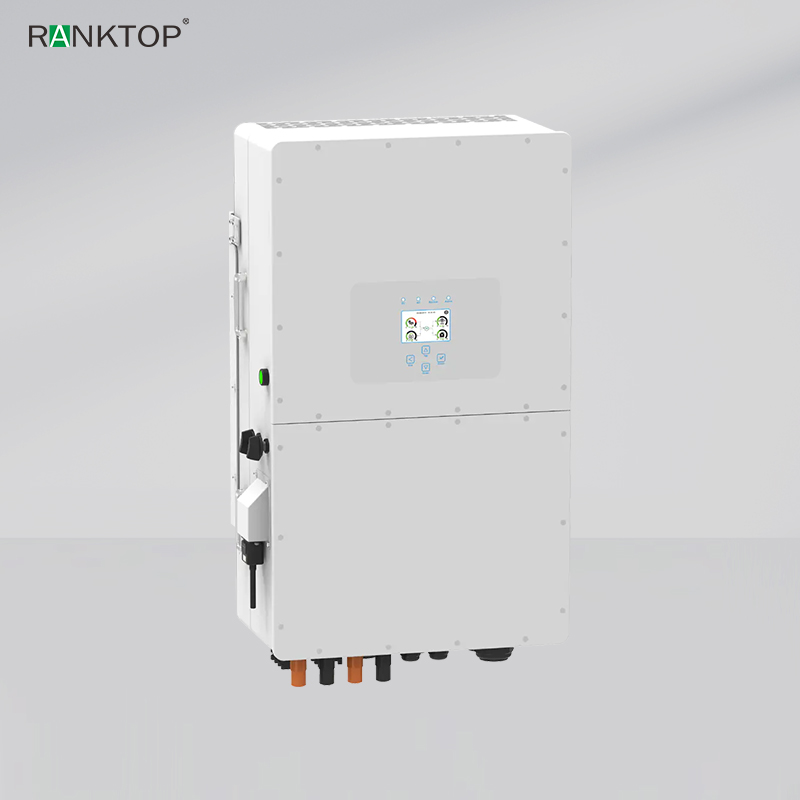

15KW Three Phase Hybrid Inverter

Rated Output Power: 15KW

Rated Output Voltage: 400VAC, 50Hz/60Hz

MPPT Number/Road: 2/2+1

MPPT Voltage Range: 150~850V

Full Load Voltage Range: 420~850V

PV Input Current: 26+20A

Battery Voltage Range : 160-700VDC

Number Of Battery Input: 1

Max. Charging Current: 37A

Max. Discharging Current: 37A

Max. Efficiency: 97.60%

Protection Class: IP65

Size: 408*638*237mm

Weight: 30.5kg

Warranty: 5 Years

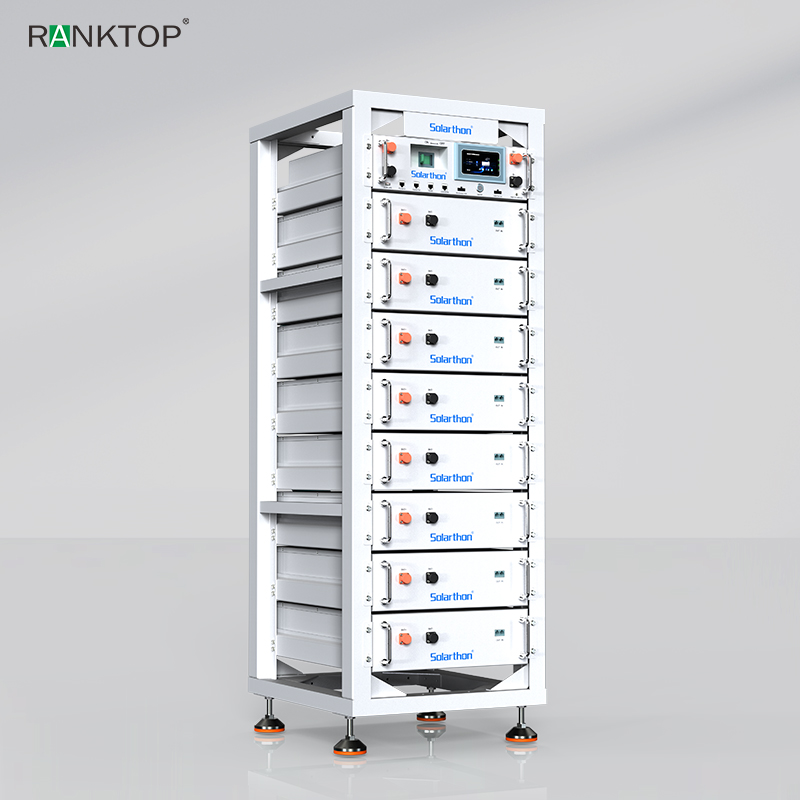

409.6V 100AH Vertically Stacked Energy Storage Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 409.6V

Nominal Capacity: 100Ah

Charging Cut-off Voltage: 460.8V

Discharging Cut-off Voltage: 358.4V

Max. Cont. Charging/Discharging Current: 100A

Max. Instantaneous Charge/Discharge Current: 100A

Cycle Life: ≥6000

Product Size: 610.5*549*1604mm

Weight: 443kg

Warranty: 5 years

Solar System Accessories

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m²

4mm² PV cable: 100m, Red

4mm² PV cable: 100m, Black

35mm^² PV Wire, Red, 5m

35mm^² PV Wire, Black, 5m

C4 Connector, Male Plug

MC4 Connector, Female Plug

Copper Lug: 35mm²

Note:The system configuration for Initial designing, and the system configuration are subject to changing depends on your final Installation conditions and requirements. for more details, please send your inquiry to Ranktop Team.

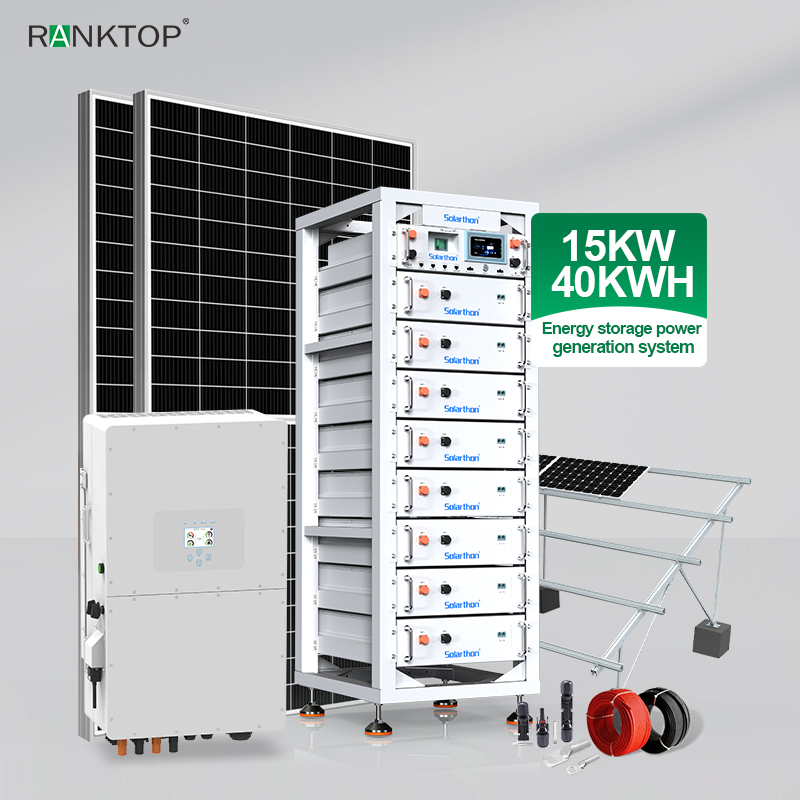

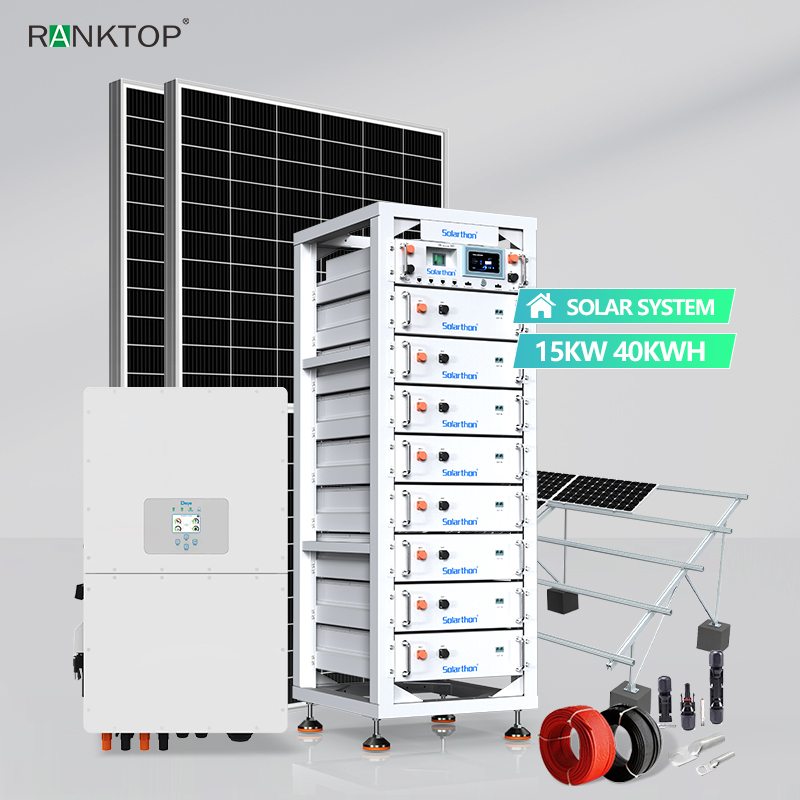

15KW 40KWH Vertical stacked energy storage power generation system

Boosts energy independence for both homeowners and commercial users, empowering you to take control of your energy future. Reduce reliance on traditional energy sources with a solution that promises sustainability and freedom in energy use.
Smart Monitoring & Remote Firmware Upgrade: Stay ahead of the curve with intelligent monitoring solutions and simple remote firmware upgrades. These features ensure your system operates at its highest peak performance, offering modern convenience at your fingertips.

Features Built-in Anti-feed-in Function: Safeguard your energy investments with advanced technology, like our built-in anti-feed-in function. Designed for maximum efficiency and safety, this feature protects your system from potential disruptions.
Rapid Shutdown: Prioritize safety with the optional Arc Fault Circuit Interrupter (AFCI) and readiness for rapid shutdown. These features provide peace of mind, ensuring the safety and security of your energy systems during emergencies.

Supports Time-of-use Optimization: Optimize and reduce your energy costs with cutting-edge time-of-use optimization features. These are strategically designed to deliver significant savings on your energy bills, ensuring economic efficiency.

Comprehensive One-Stop Energy Storage Solution

• We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.

Integrated Modular System Architecture

• The system integrates high-voltage lithium battery packs, BMS, active battery balancing, PCS (inverter), MPPT, and EMS for smart energy management.

Advanced LFP Battery Technology (LiFePO₄)

• Using high-density LFP cells , our systems are compact, lightweight, and space-saving.Safe and reliable, with over 6,000 cycles at 80% DoD .

Ideal for a Wide Range of Applications

• Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.

Supports Both On-Grid and Off-Grid Operation

• Features UPS-level automatic switching to ensure uninterrupted power for critical loads.

Professional Installation & Commissioning Team

Backed by a team of experienced engineers for on-site installation, debugging, and technical support.

Core Products and Expertis

Ranktop solar specializes in the design, development, and production of high-performance lithium-ion batteries tailored for solar energy storage applications. Our product portfolio includes:

1. Residential Energy Storage Systems: Compact and efficient batteries for homeowners to store excess solar energy, ensuring uninterrupted power supply day and night.

2. Commercial and Industrial Solutions: Scalable energy storage systems for businesses, reducing energy costs and enhancing grid independence.

3. Off-Grid and Hybrid Systems: Robust batteries for remote areas and hybrid solar setups, providing reliable power in off-grid or unstable grid environments.

4. Customized Solutions: Tailored battery systems to meet specific project requirements, ensuring optimal performance and integration.
