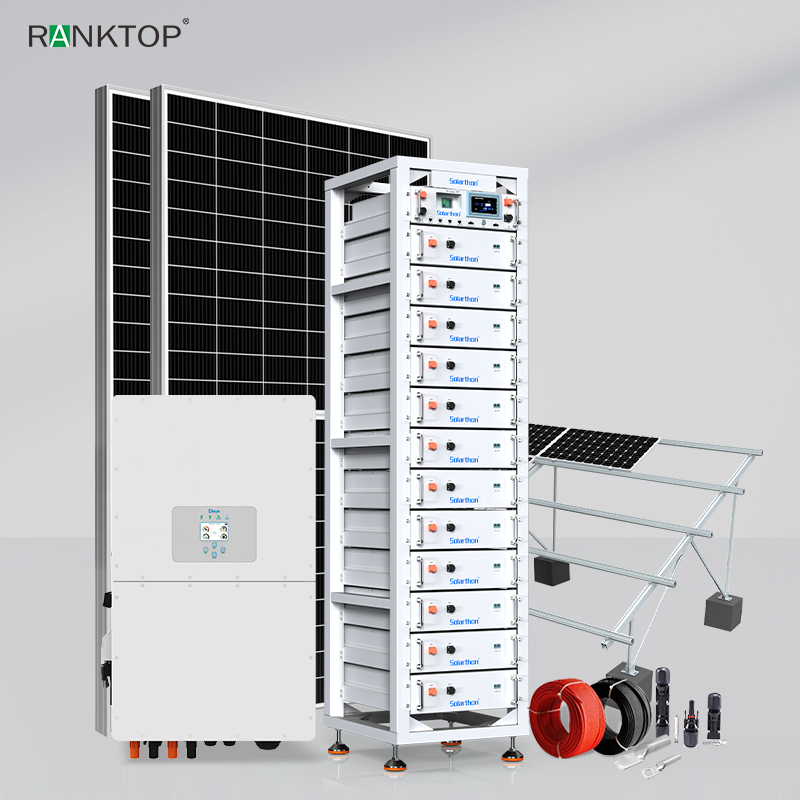

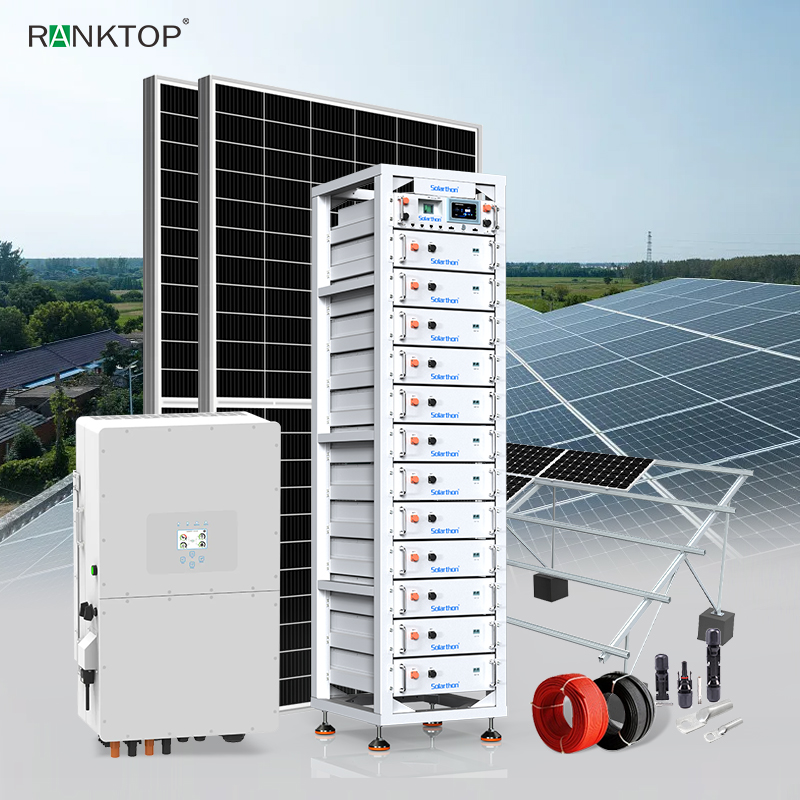

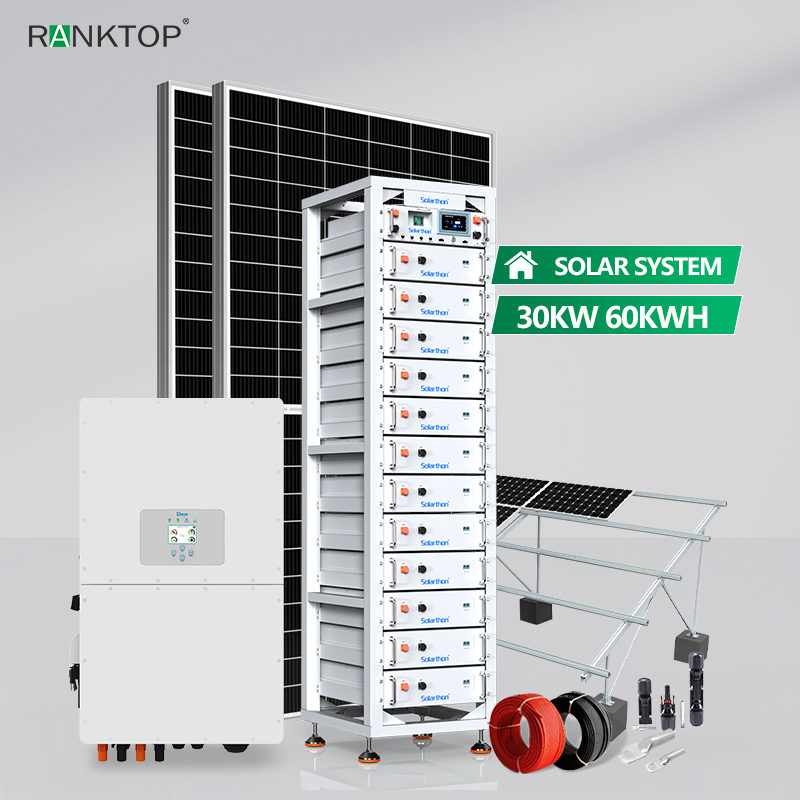

Complete Set Solar Energy Power Storage System 30kw 60KWH Hybrid Solar Panel Electric Power Generation Kit

550W Mono Half Cell PERC Solar Panel

> Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

> Size: 2279*1134*35mm

> weight: 28.3kg

> 25 years life span

> Linear performance: 25 years 80 % ; 10 years 90%

> Connection: 18 pcs In Series

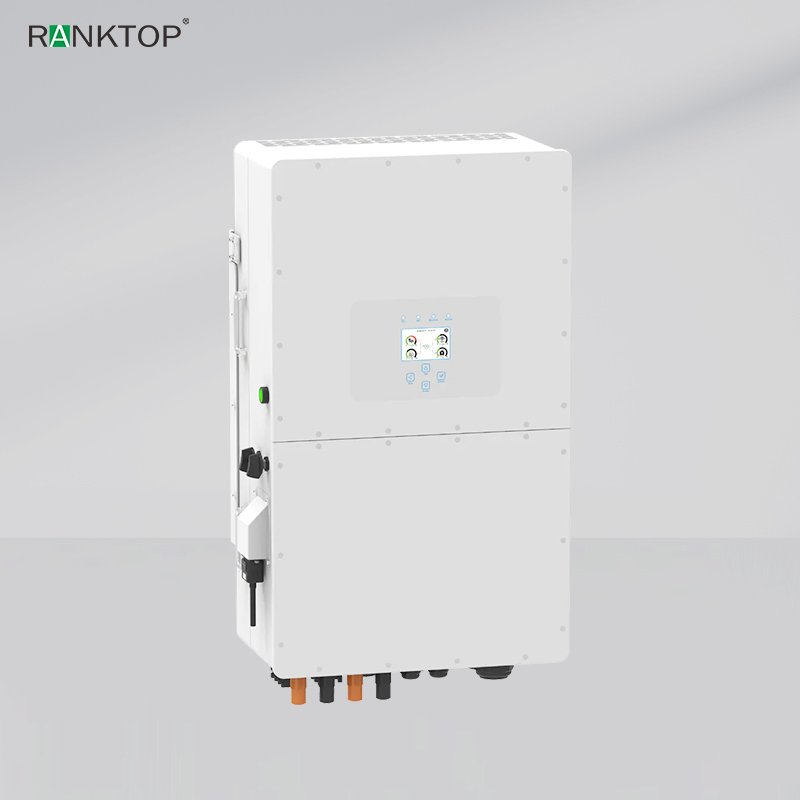

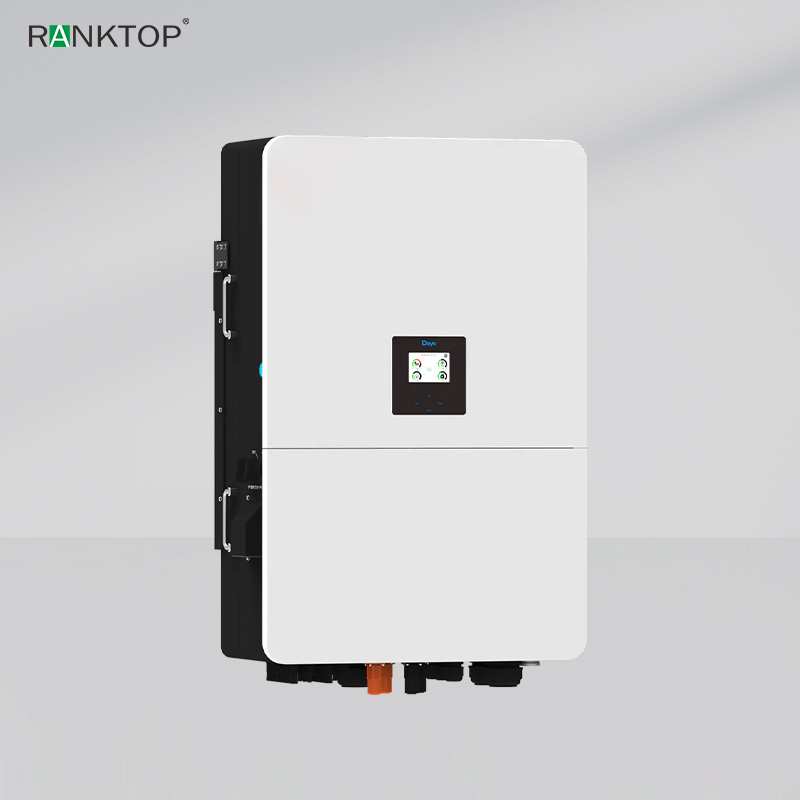

30KW Three Phase Hybrid Inverter

> Rated Output Power: 30KW

> Rated Output Voltage: 400VAC, 50Hz/60Hz

> MPPT Number/Road: 3/2+2+2

> MPPT Voltage Range: 150~850V

> Full Load Voltage Range: 360~850V

> PV Input Current: 36+36+36A

> Battery Voltage Range : 160-800VDC

> Number Of Battery Input: 2

> Max. Charging Current: 50+50A

> Max. Discharging Current: 50+50A

> Max. Efficiency: 97.60%

> Protection Class: IP65

> Size: 527*894*294mm

> Weight: 80kg

> Warranty: 5 Years

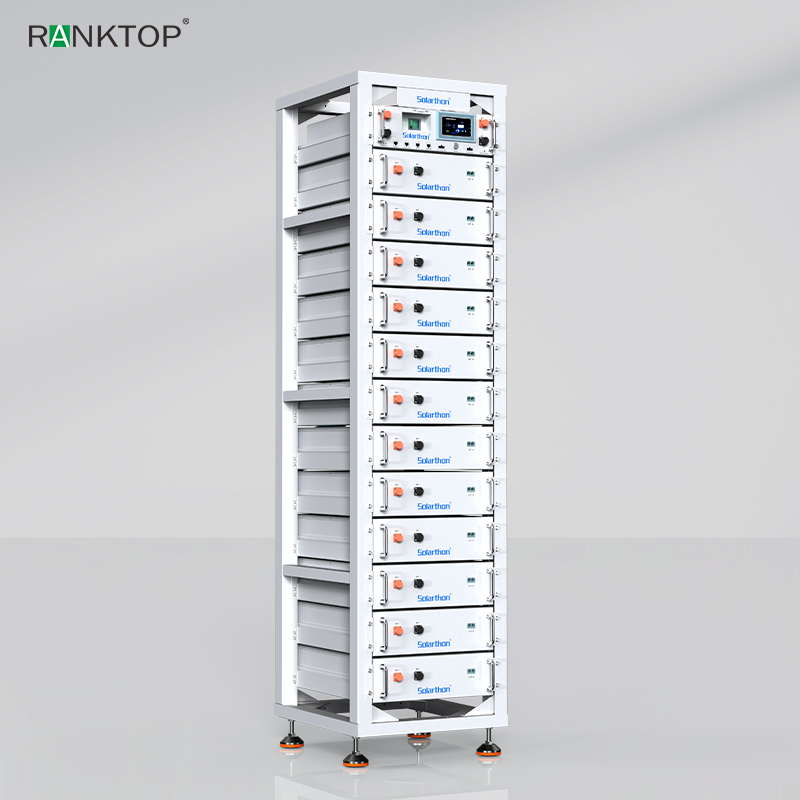

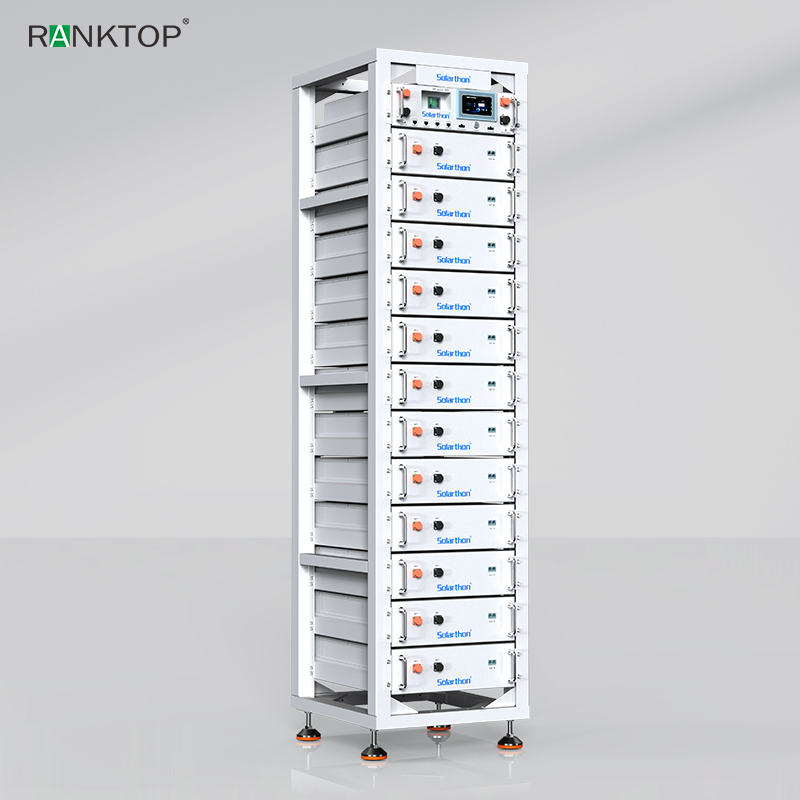

614.4V 100AH Vertically Stacked Energy Storage Battery Pack

> Battery Type: LiFePO4

> Nominal Voltage: 614.4V

> Nominal Capacity: 100Ah

> Charging Cut-off Voltage: 691.2V

> Discharging Cut-off Voltage: 537.6V

> Max. Cont. Charging/Discharging Current: 100A

> Max. Instantaneous Charge/Discharge Current: 100A

> Cycle Life: ≥6000

> Product Size: 610.5*549*2188mm

> Weight: 644kg

> Warranty: 5 years

Flat Roof Mounting Structure

> structure: Hot-Dip Galvanized Steel

> wind load: 55m/s,snow load:1.5kn/m²

> 4mm² PV cable: 100m, Red

> 4mm² PV cable: 100m, Black

> 35mm^² PV Wire, Red, 5m

> 35mm^² PV Wire, Black, 5m

> MC4 Connector, Male Plug

> MC4 Connector, Female Plug

> Copper Lug: 35mm^²

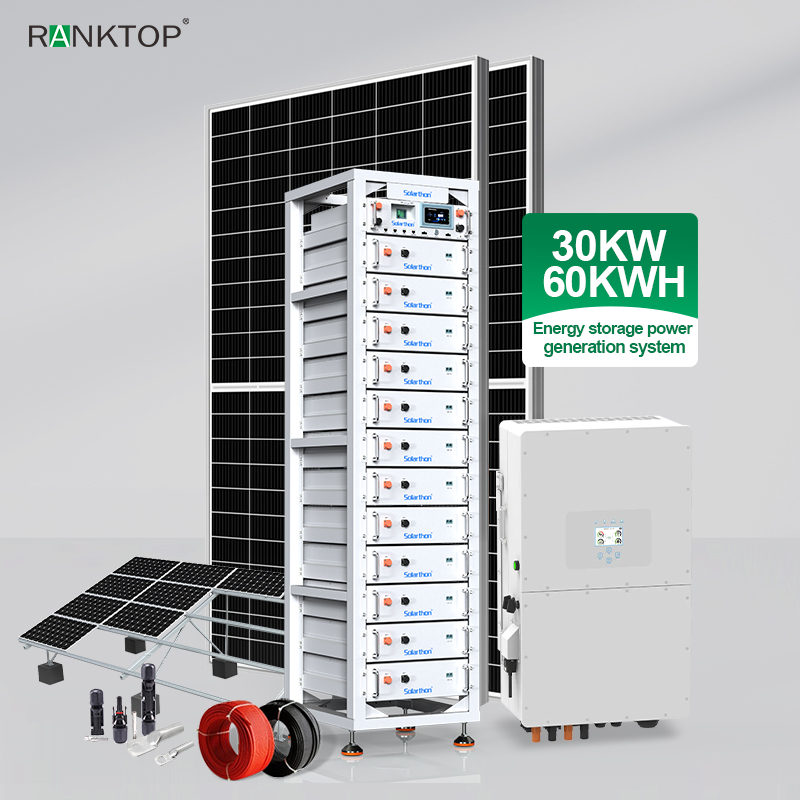

30KW 60KWH Vertical stacked energy storage power generation system

Ranktop Technology focuses on integrating solar photovoltaic technology and related energy

solutions, dedicated to advancing the application and development of clean energy. The services and products we may offer

include:

 1. Photovoltaic system design and engineering: Designing and planning photovoltaic power generation systems based on customer requirements and project scale, including layout of solar panels, selection of components, array configuration, etc.

 2. Photovoltaic component supply: Providing high-quality solar photovoltaic components, including monocrystalline,

polycrystalline, and thin-film solar panels, to meet the needs of different projects.

 3. Installation and construction services: Providing installation, debugging, and construction services for photovoltaic systemsto ensure efficient operation and compliance with safety standards.

 4. Operation and maintenance: Providing operation and maintenance services for completed photovoltaic power generation projects, including regular inspection, cleaning, fault troubleshooting, etc., to ensure long-term stable operation of the system.

 5. Energy management systems: Providing intelligent energy management systems to help customers monitor and optimize energy usage, achieving maximum reduction of energy consumption and efficiency improvement.

 6. Photovoltaic project consulting and investment: Providing consulting services for photovoltaic projects, including feasibility studies, policy interpretation, etc., and offering investment advice and support.

Overall, we are committed to providing customers with comprehensive photovoltaic energy solutions, promoting the application and popularization of clean energy.
