Custom Commercial Industrial LiFePO4 Batteries 52.8KW 145kwh Lithium lon Solar Storage Battery

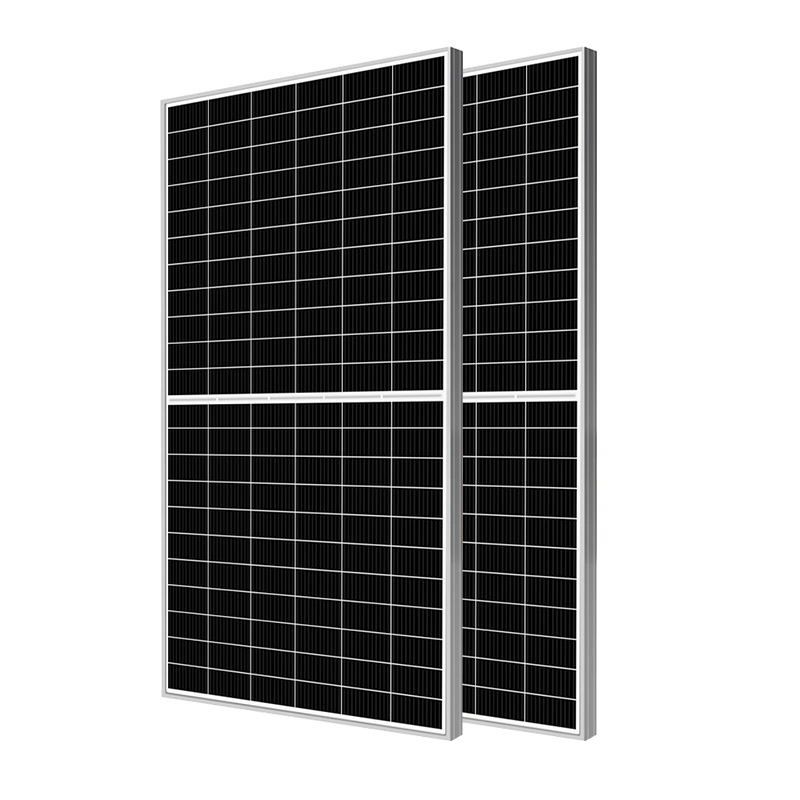

550W mono Half Cell PERC solar panel

Vmp: 41V  Voc: 49.2V  Imp 13.45A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span  (TUV IEC61215 IEC61730)

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 12 pcs  in series

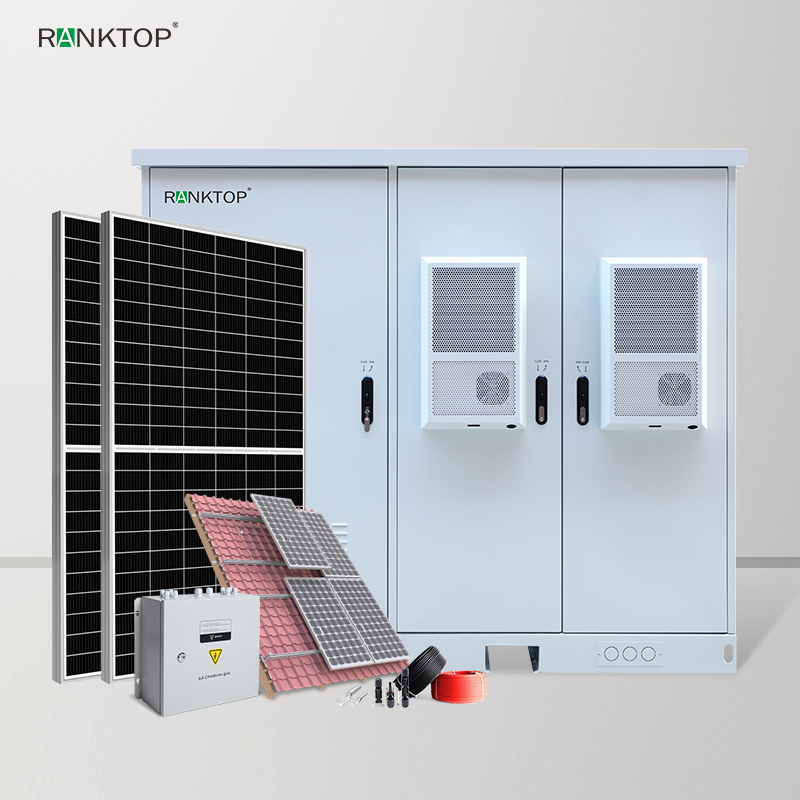

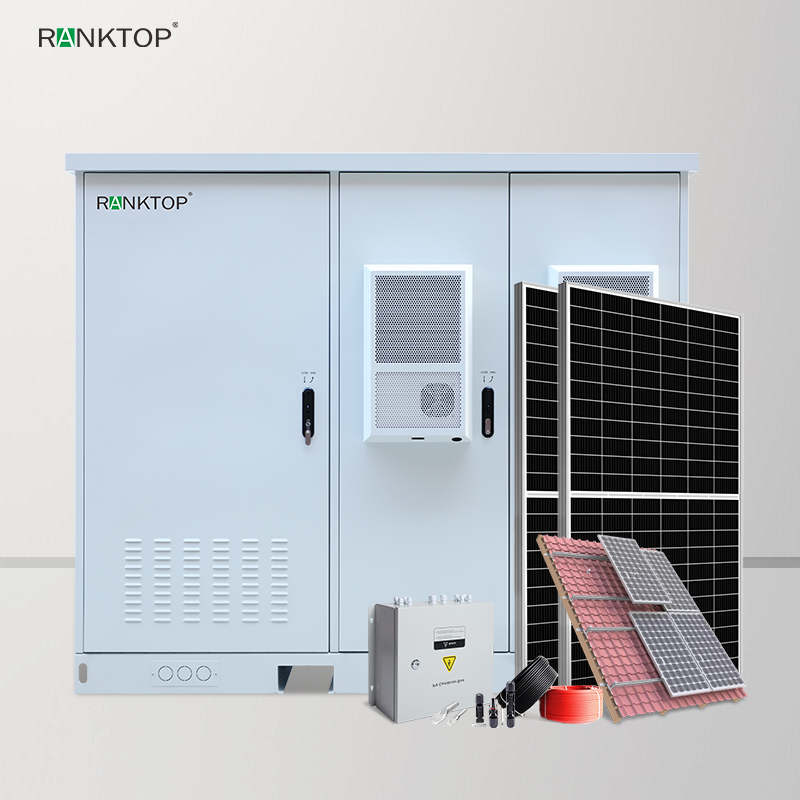

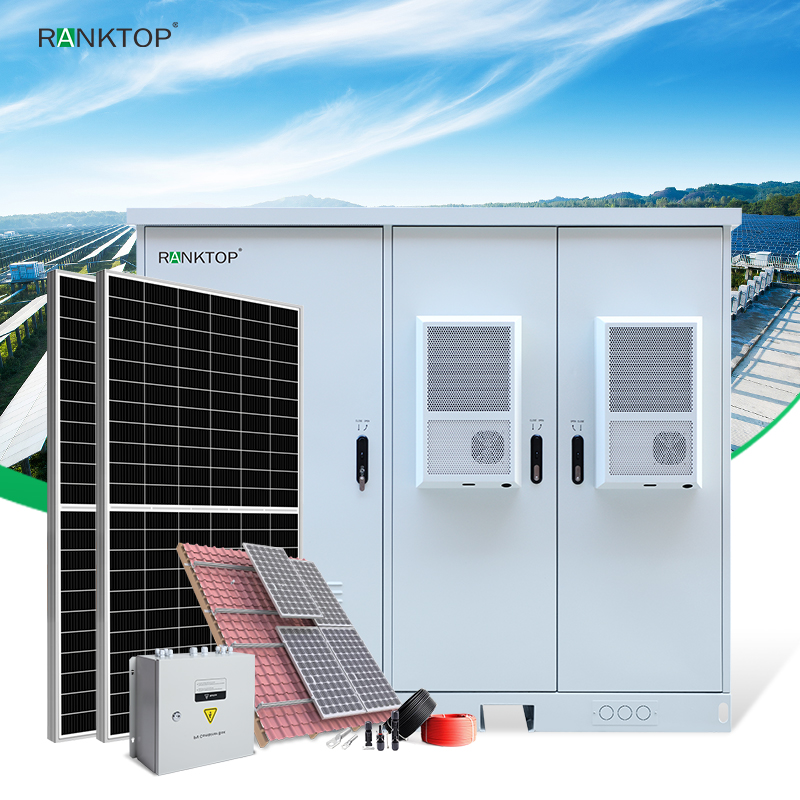

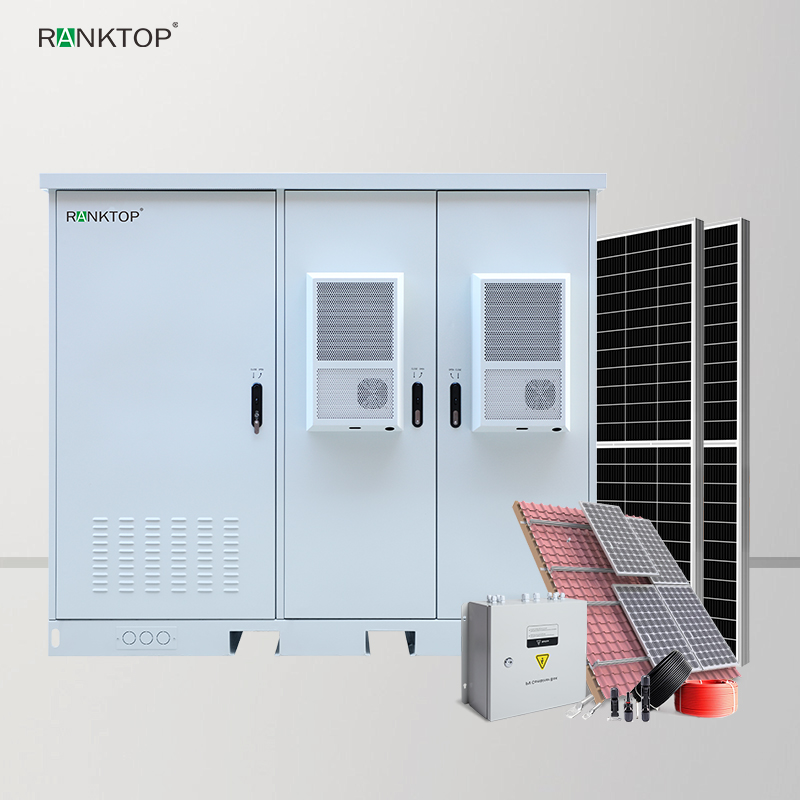

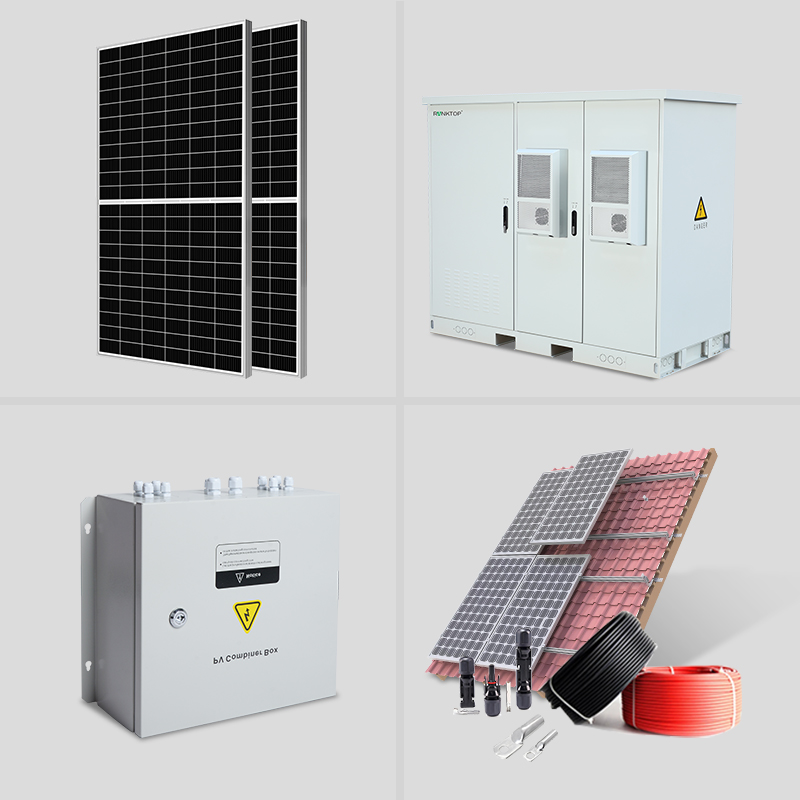

145KWH ESS with 50KW PCS and Solar Charging System

Energy Storage System(ESS)

LiFePO4 Battery: 512V/280AH

Battery Voltage Range: 448~576V

Power Conversion System(PCS)

Rated Power: 50KW

Rated AC Voltage: 400V, 50/60Hz

AC Voltage Range: 320~460V, 50/60Hz

DC Voltage Range: 320~850V

Solar Charger

Max. PV Charge Power: 60KW

Max. PV Input Voltage: 1000V

MPPT Voltage Range: 250~850V

Energy Management System(EMS)

LCD monitor, RS485, CAN, TCP/IP

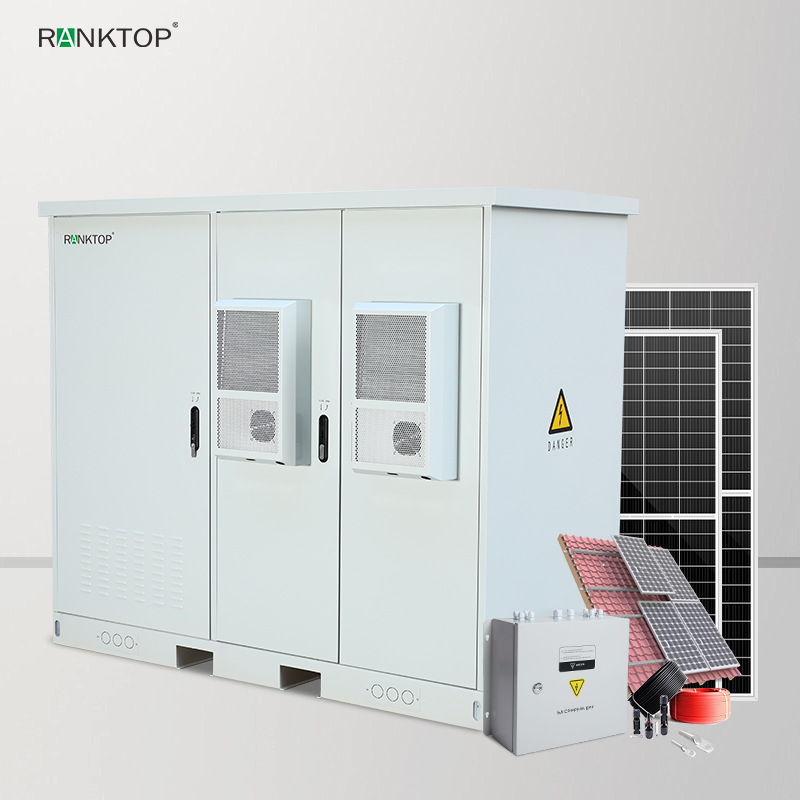

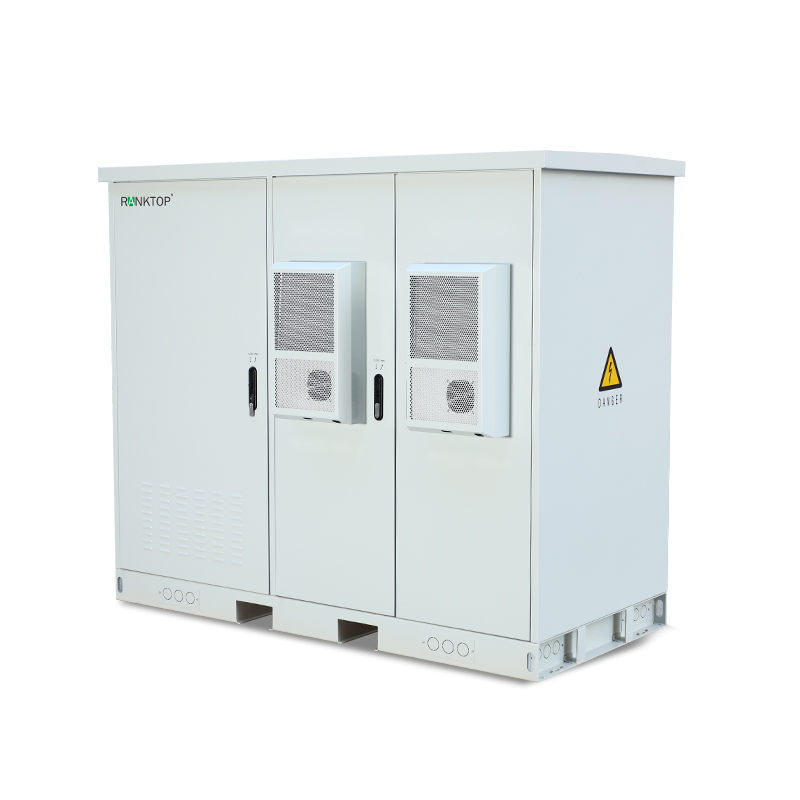

Outdoor Three-cabin Cabinet

Size: 2300*1100*2360mm

Air Conditioner, 600W, 2 sets

Fire Fighting System

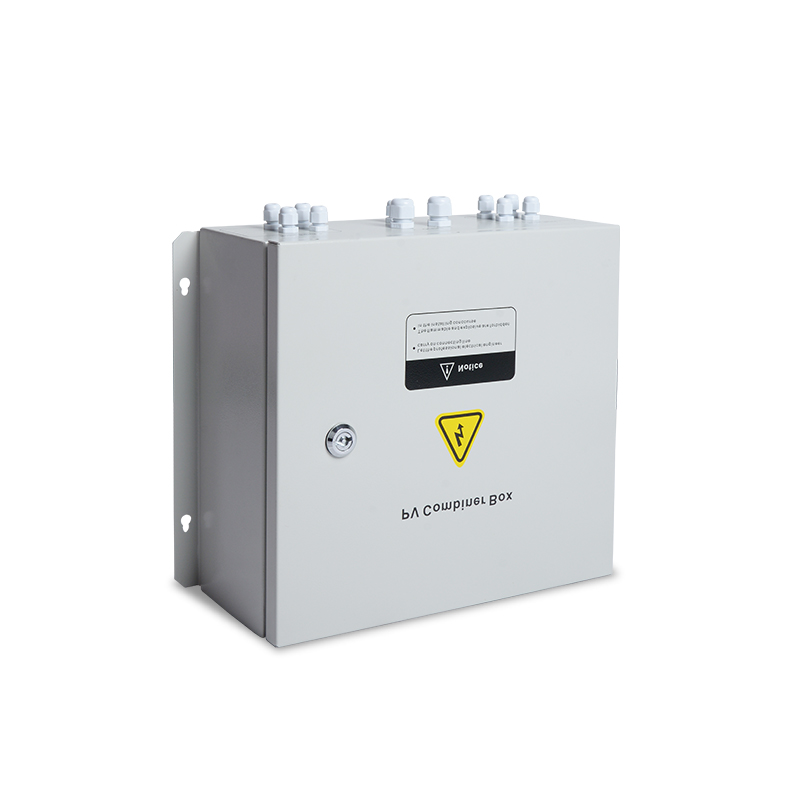

8 In 1 Out PV Combiner Box

Rated Voltage: 1000VDC

Simplify Wiring Between PV Array And Controller;

Reliable Thunderstorm& Surge Protection

Product Size: 446x420x145mm

Weight: 11kg

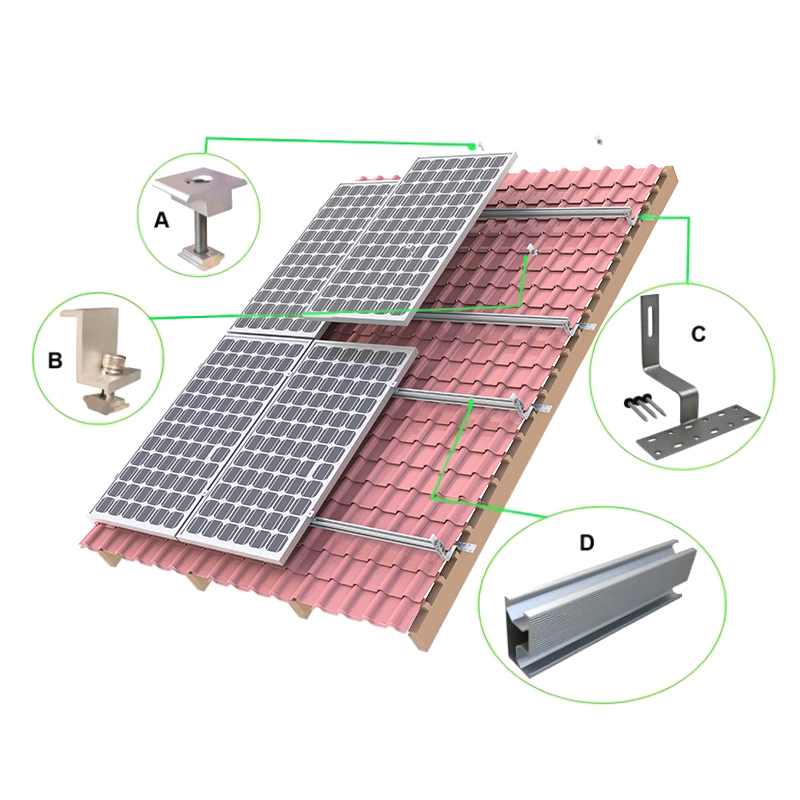

Slope Roof Mounting Structure

wind load: 55m/s,snow load:1.5kn/m²

structure: Anodized Aluminum

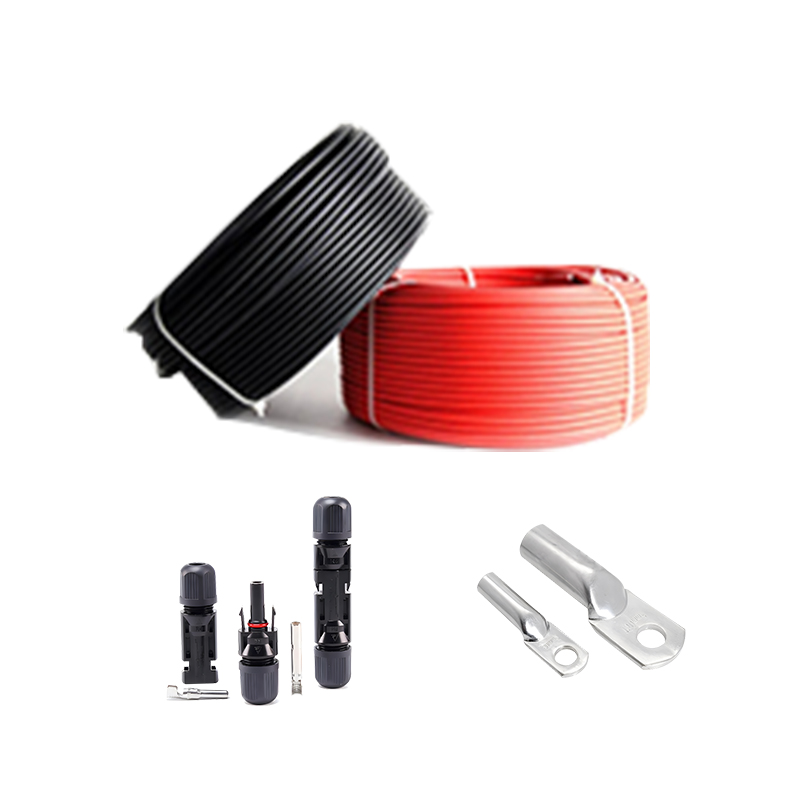

Attachment

4mm² PV cable: 100m, Red

4mm² PV cable: 100m, Black

25mm² PV cable: 100m, Red

25mm² PV cable: 100m, Black

MC4 Connector, Male Plug

MC4 Connector, Female Plug

Copper Lug: 25mm²

Highly integrated:Productized system, integrating eneray storage battery, PCS and power distribution, temperature control fire extinguishing, water immersion door magnetic and monitoring communication to fully control the operating status and risks of the system;Industrial Solar Power System, ESS Solar Power System ,Outdoor Power Supply Cabinets,ESS Solar Energy Storage Container, Hybrid Photovoltaic Energy.

Flexible parallel functions:With patent technology of vSG features and functions, can realize the functions of multiple equipment remotely parallel and on/off grid switching without communication lines;Industrial Solar Power System, ESS Solar Power System ,Outdoor Power Supply Cabinets,ESS Solar Energy Storage Container, Hybrid Photovoltaic Energy.

Excellent protection:Patent outdoor cabinet protection desian, optimizing heat dissipation and air ventilation,prevent dust and rain, Front,back and two sides with door for maintenance. easy to make multiple sets of systems side by side deployment on site, saving the floor space;Industrial Solar Power System, ESS Solar Power System ,Outdoor Power Supply Cabinets,ESS Solar Energy Storage Container, Hybrid Photovoltaic Energy.

Various functions:Standardized structure desian, menu function confiauration, solar charaing module (DC-DC), and on/off arid switching module, isolation transformer and other components can be selected flexibly and efficiently under micro-grid and other applications;Industrial Solar Power System, ESS Solar Power System ,Outdoor Power Supply Cabinets,ESS Solar Energy Storage Container, Hybrid Photovoltaic Energy.

Space saving:Door mounted integrated air conditioning, does not occupy cabinet space. improving the available space of outdoor cabinet, keep top structure integrity, results in better waterproof effects;Industrial Solar Power System, ESS Solar Power System ,Outdoor Power Supply Cabinets,ESS Solar Energy Storage Container, Hybrid Photovoltaic Energy.

Intelligent management:Local monitoring screen can realize various functions such as system operation monitoring,ESS Solar Power System, energy management formulation and remote software upgrade of equipment.
