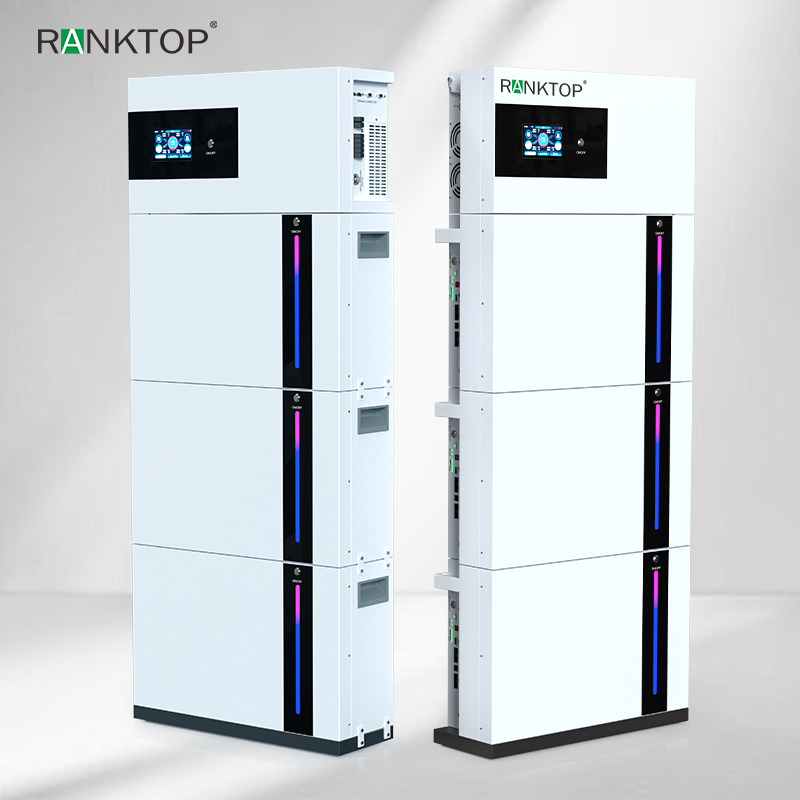

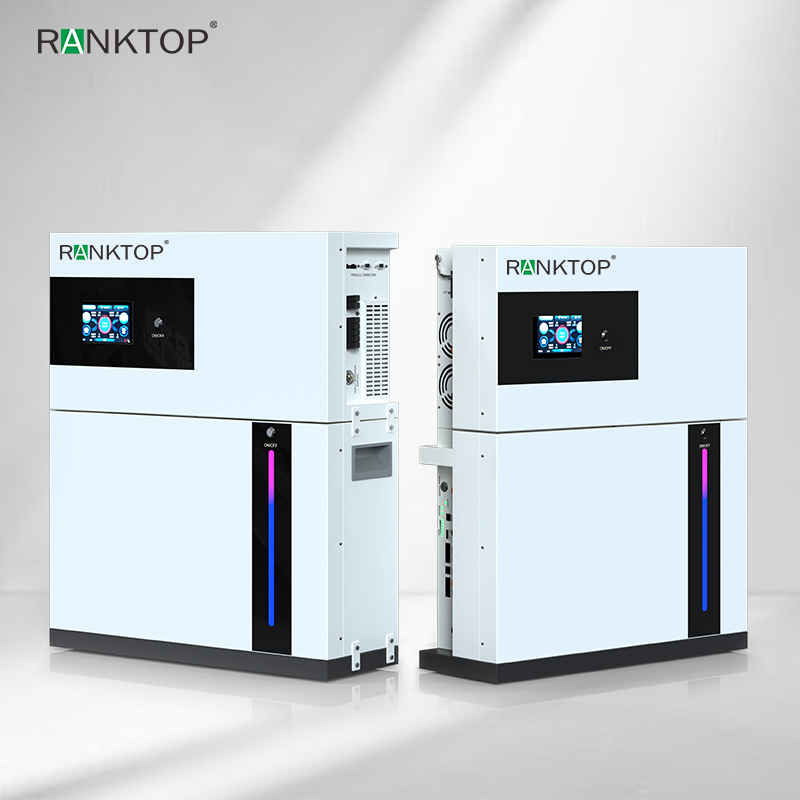

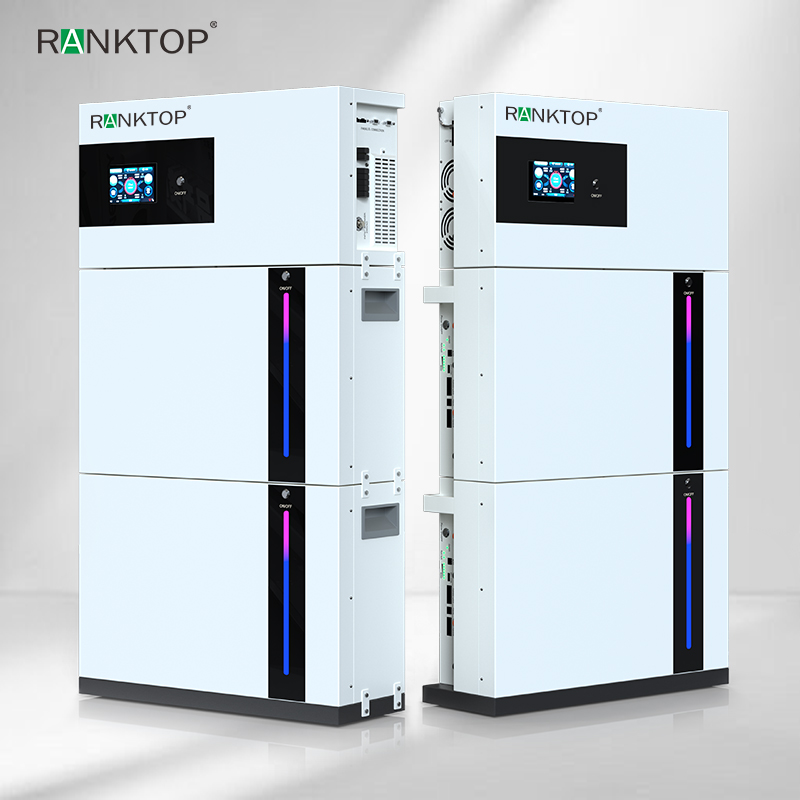

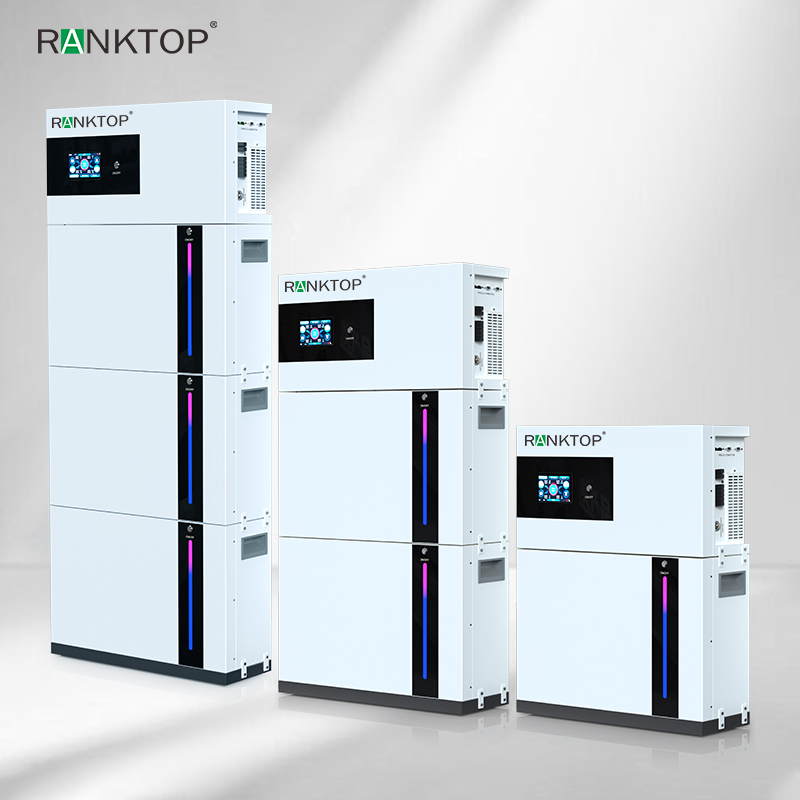

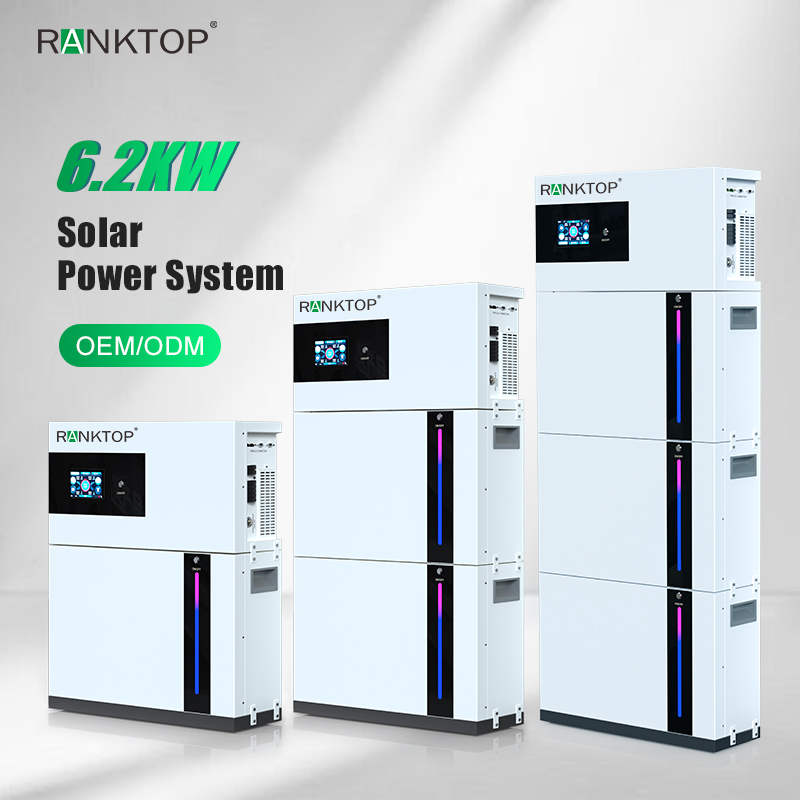

Customized Home solar energy storage System Lithium lon Stackable Battery Lifepo4 Battery

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

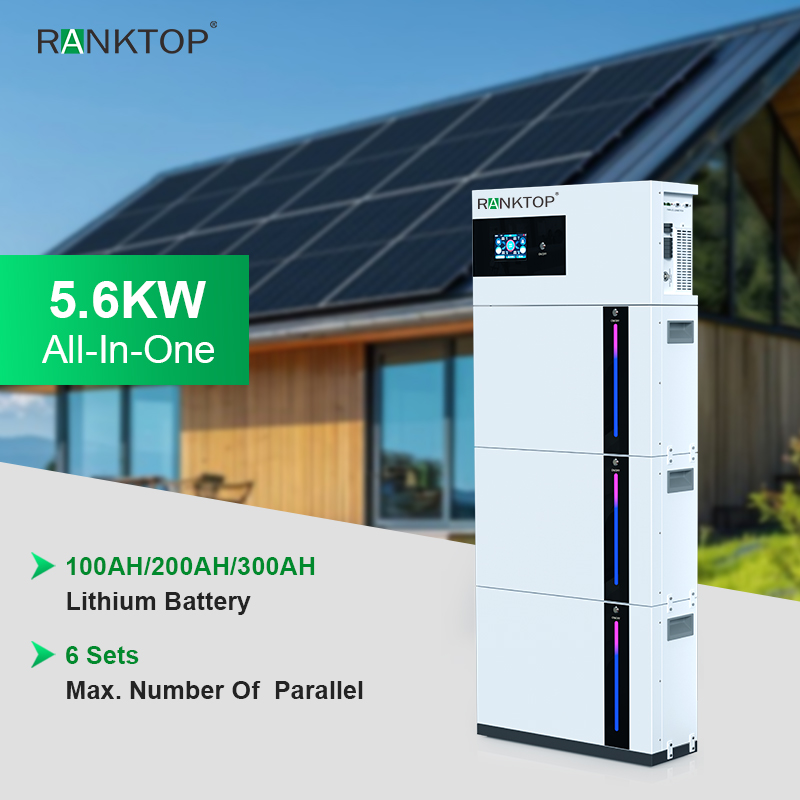

3.5KW/5KW/5.5KW INVERTER WITH ENERGY STORAGE SYSTEM

1.One-stop home solution.

2.Modular design and intelligent switching.

3.Each battery is equipped with an independent BMS Lifepo4 Battery energy management system.

4.Solar Home System Inverter,Support GPRS/WIFI/RS485, remote monitoring.

5.Warranty 3 years, 10+ years life design.CONTACT US

Inverter with energy storage system

Model	STOL351512	STOL502512	STOL5521024	STOL5521536
Rated Power	3.5kW	5kW	5.5kW	5.5kW
Lithium Battery	100Ah/51.2V	100Ah/51.2V	200Ah/51.2V	300Ah/51.2V
AC Output Voltage	230VAC	230VAC	230VAC	230VAC
AC Output Voltage	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC Input Voltage Range	230VAC	230VAC	230VAC	230VAC
AC Input Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC Charge Current	/	/	80A	80A
Maximum PV Voltage	500VDC	500VDC	450VDC	450VDC
MPPT Voltage Range	120-450VDC	120-450VDC	120-430VDC	120-430VDC
PV Charge Current	80A	100A	80A	100A
Maximum Input Current	/	/	18A	/
Temperature For Operation	-20-+50℃	-20-+50℃	-20-+50℃	-20-+50℃
Temperature For Storage	-30 -+70℃	-30 -+70℃	-30 -+70℃	-30 -+70℃
External Dimensions	550697200mm	550697200mm	6181072198mm	5501443200mm
Warranty	3 years

Solar Home System Inverter

Lifepo4 Battery

FUNCTIONAL FEATURES

● Pure sine wave inverters;

● Integrated MPPT controller/charger;

● Settable priority of utility and PV power supply;

● Wide PV input voltage;Energy Storage Battery System.

● Settable battery type, supporting lead-acid and lithium batteries;

● Functions and parameters can be set via the LCD;

● With battery equalization function to optimize battery performance and extend battery life.CONTACT US

SYSTEM SCHEMATIC

The following figure shows the system application scenario of this product. A complete system includes the following parts:

1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through Inverter with energy storage system, or directly reverse it into AC to power the load.

2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the Energy Storage Battery System at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.

3. Battery: The role of the Lifepo4 Battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.

4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.

5. Customized Home solar energy storage System Integrated Machine: The energy conversion device of the whole system.CONTACT US
