High Voltage Stacked Solar Energy Storage Batteries 15KWH Lifepo4 Residential Energy Storage System

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 9 pcs In Series

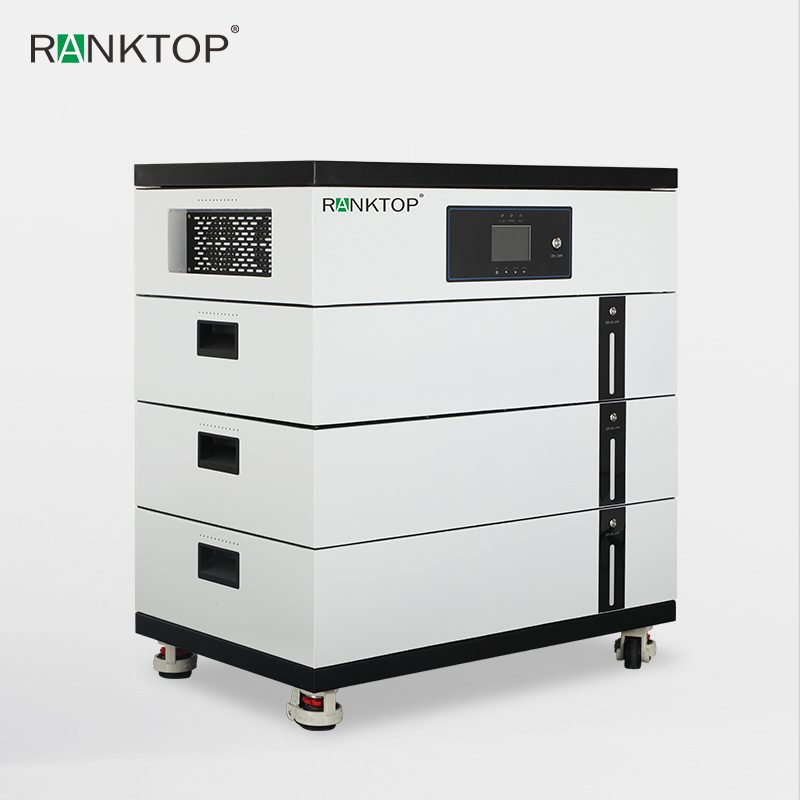

5.6KW/15KWH Flat Layer Stacked Energy Storage

Rated Power: 5.6KW

LiFePO4 Battery: 300Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range: 170-280VAC

AC Input Frequency: 50/60Hz

Maximum AC innut current/charging current: 40A/60A

Maximum PV Voltage: 500VDC

MPPT Voltage Range: 120-450VDC

PV Charge Current: 100A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions: 610*390*813mm

Max. Number Of  Parallel: 6 sets

Warranty: 3 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

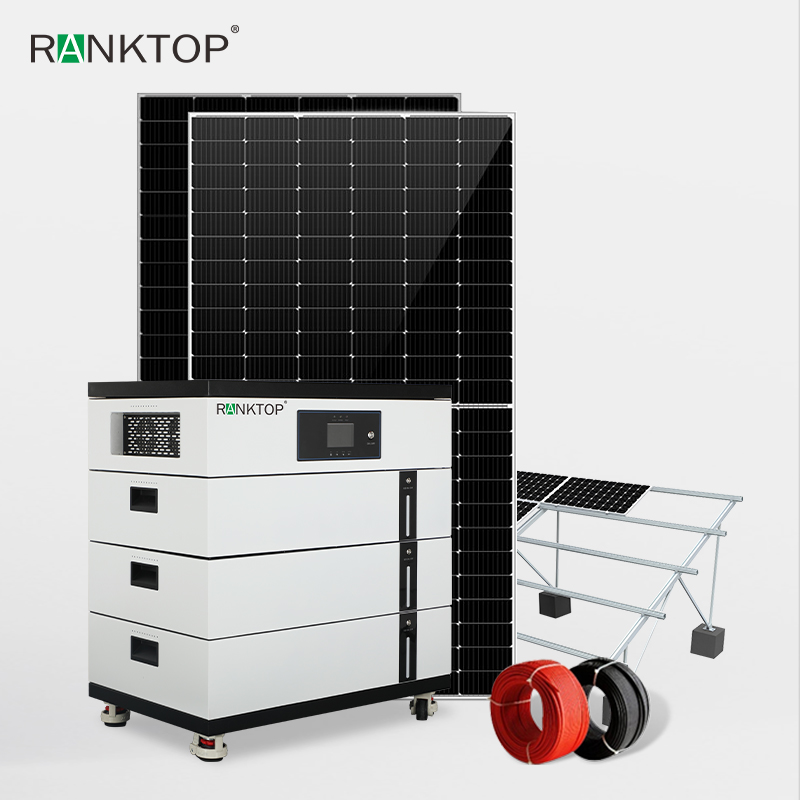

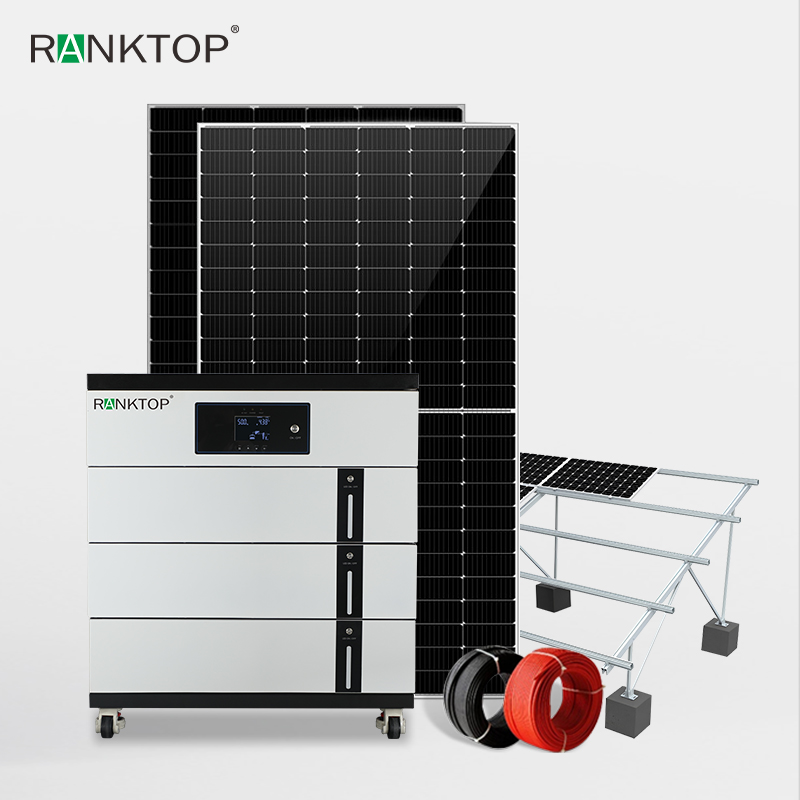

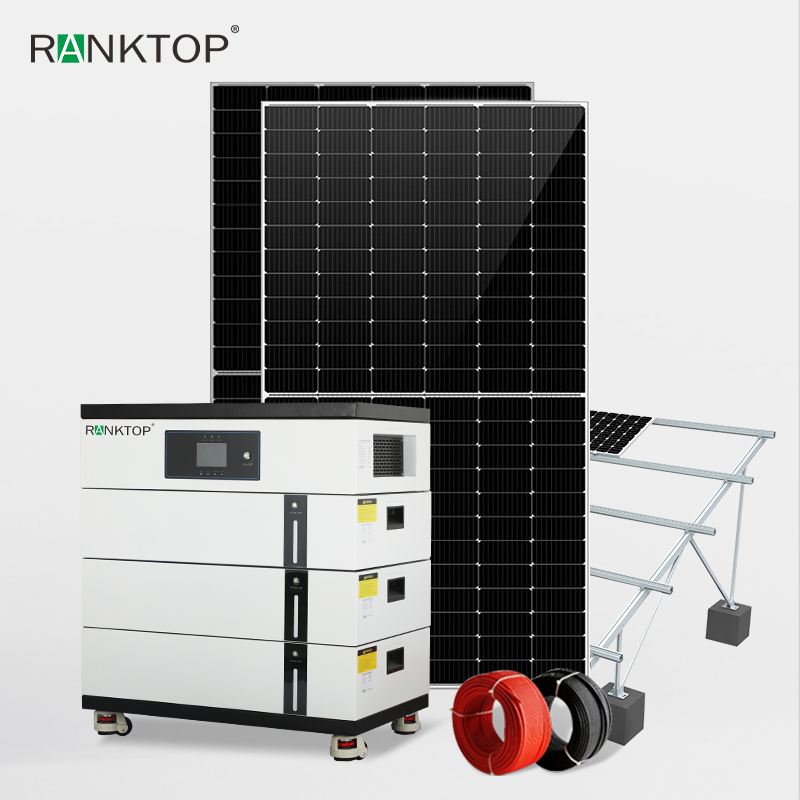

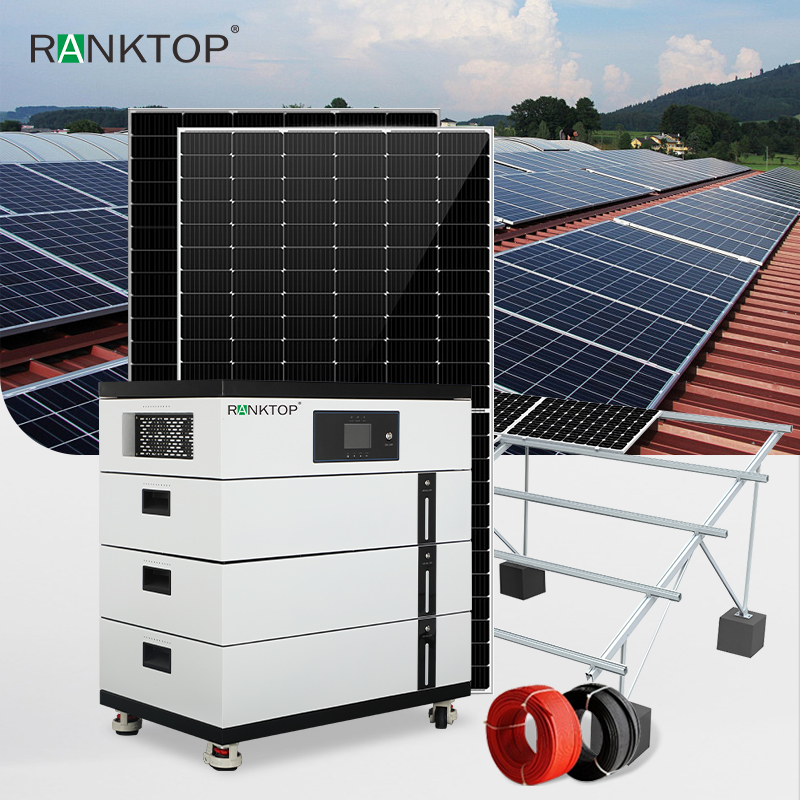

4.95KW / 15kWh Smart Home Energy Solution

This household energy storage system adopts a compact, flat, stacked, integrated design, integrating efficient inverter, intelligent charging and discharging management, and safe energy storage. It provides you with stable and reliable power supply for your home. The system is equipped with pure sine wave inverter technology, outputting clean and stable alternating current, effectively protecting various household appliances. It also comes with an efficient MPPT controller, supporting wide voltage photovoltaic input, and can maximize solar energy conversion efficiency even in low light or complex lighting conditions. Its core uses safe and reliable lithium iron phosphate batteries, featuring strong heat resistance, long cycle life, and fast charging characteristics. Combined with active battery balancing technology, it significantly improves energy utilization efficiency and extends battery life. Users can flexibly set working modes and parameters through an intuitive LCD interface, making the operation simple and convenient. This system is suitable for various scenarios such as household self-generation and self-use, commercial backup power supply, and outdoor power usage, and supports multi-unit parallel connection to expand capacity (from 5kWh to 40kWh). It is an ideal choice for achieving energy self-sufficiency and building an independent and sustainable clean energy system.home energy storage system，storage system for home，sistema solar para el hogar，Outdoor Energy Storage System，all in one inverter and battery.

Mounting structure :  roof mounting , Aluminum structure , ground mounting , adjustable brackets , screw piles and customized

Kindly Reminder: The Above System Configuration is for Initial Design Purposes. Final System Configuration May Vary Based On Your Specific Installation Conditions and Requirements. For Further Details, Please Direct Your Inquiries to the RanktopTeam.
Thank You!
