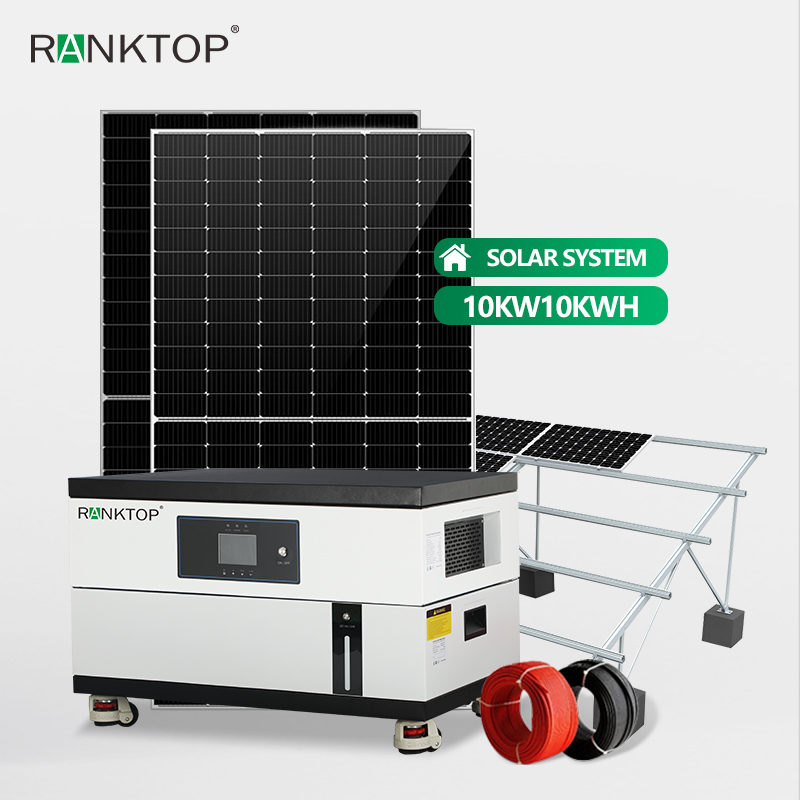

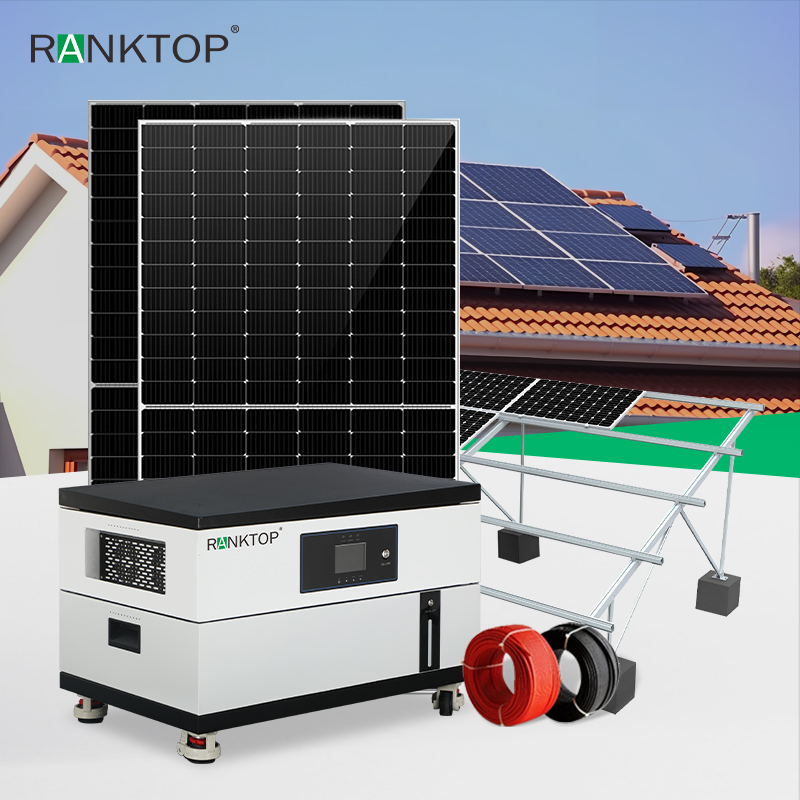

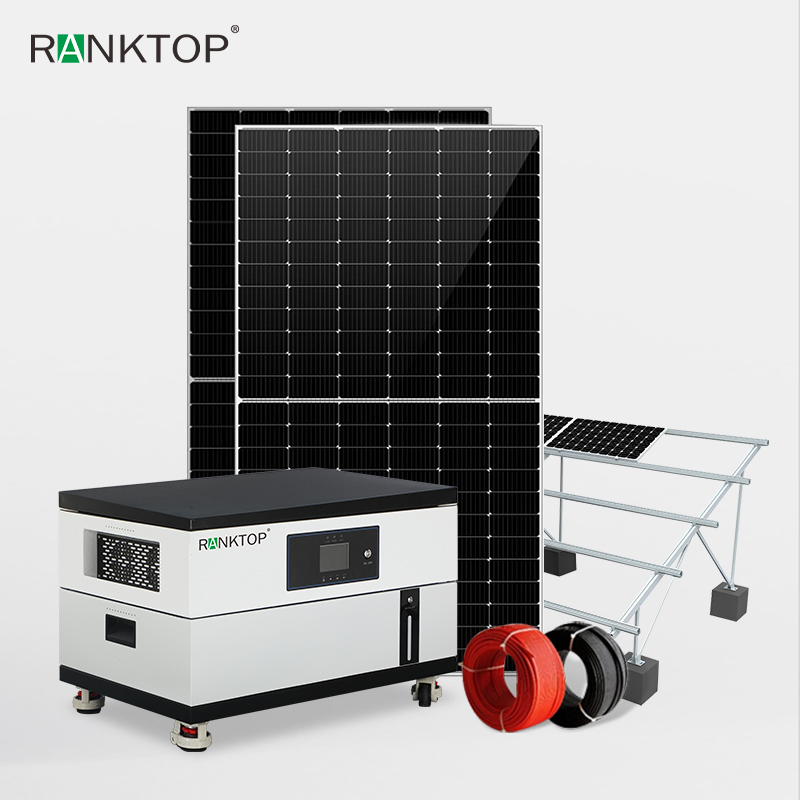

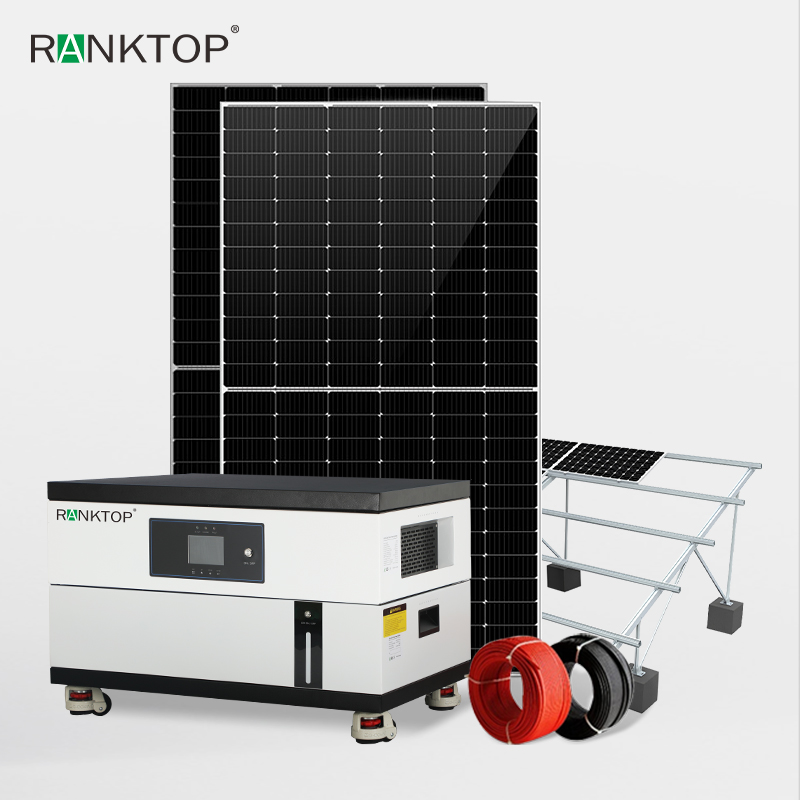

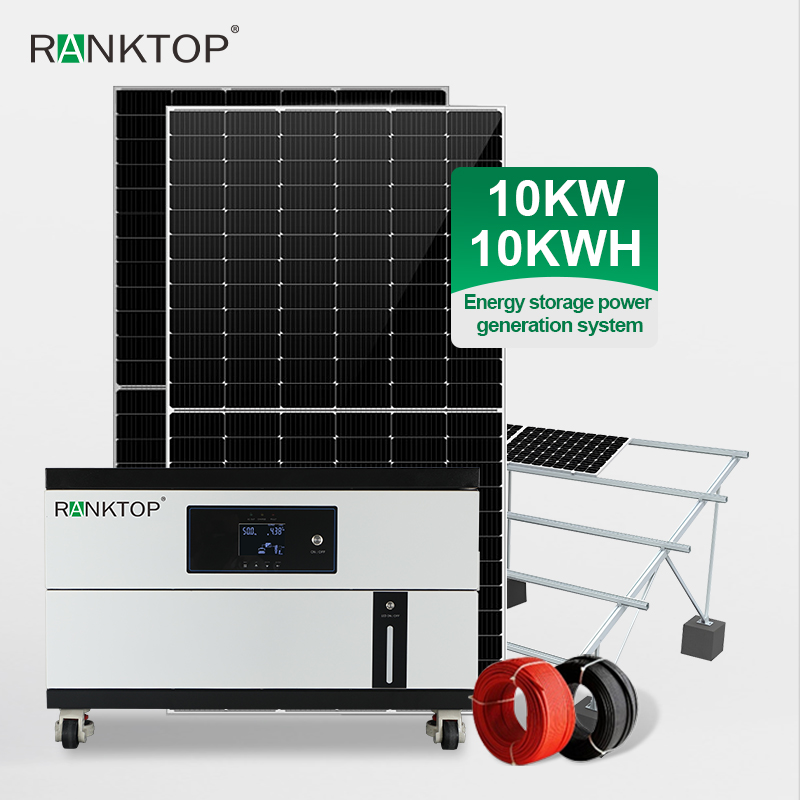

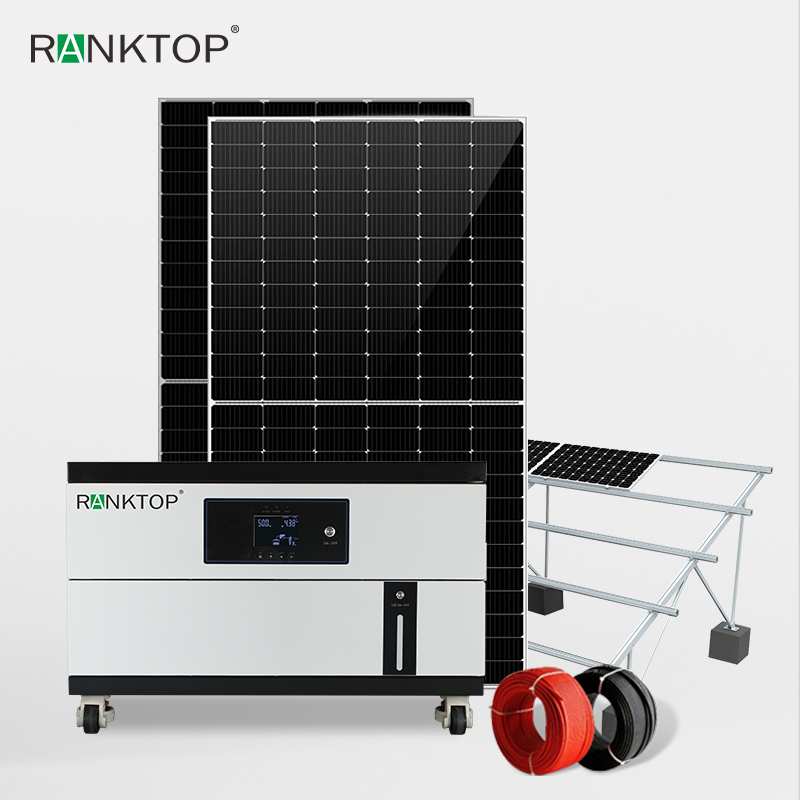

House Solar Battery Bank High Voltage 10KW 10KWH Stackable Solar Lithium Battery

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 9 pcs In Series

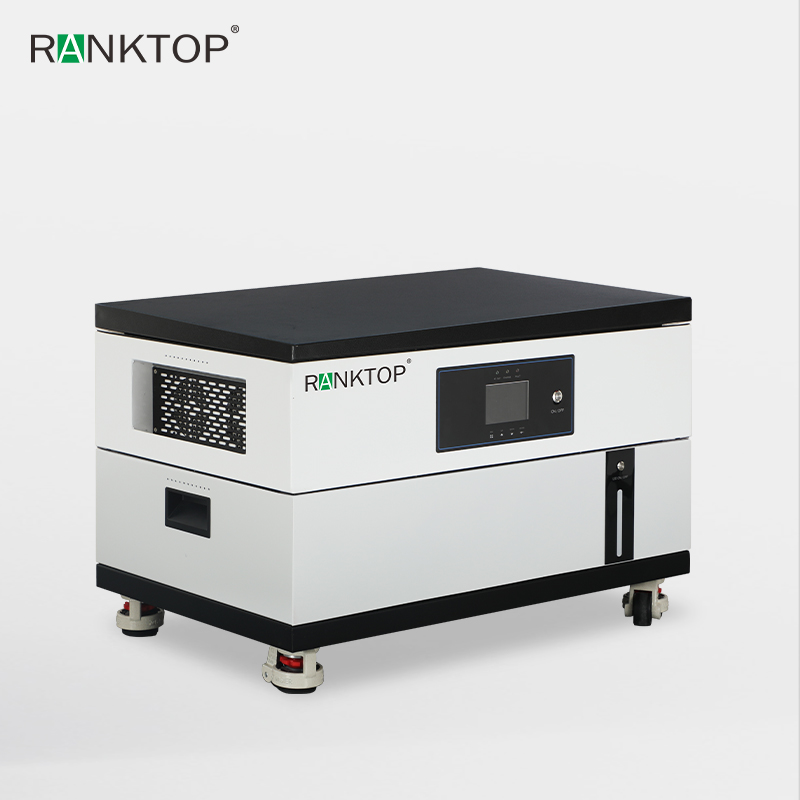

10KW/10KWH Flat Layer Stacked Energy Storage

Rated Power: 10KW

LiFePO4 Battery: 200Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range: 170-280VAC

AC Input Frequency: 50/60Hz

Maximum AC innut current/charging current: 60A/150A

Maximum PV Voltage: 500VDC

MPPT Voltage Range: 120-450VDC

PV Charge Current: 150A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions:750*480*510mm

Max. Number Of  Parallel: 6 sets

Warranty: 3 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

10KW/10KWH Flat Layer Stacked Energy Storage

The system schematic diagram of this product illustrates the complete energy application scenario. The system mainly consists of photovoltaic modules, mains power/generator, batteries, household loads, and an energy storage control inverter integrated unit. The photovoltaic modules convert light energy into direct current, which can be charged into the battery through the integrated unit or converted into alternating current to directly power the loads; the mains power or generator is connected to the AC input terminal, which can simultaneously power the loads and charge the battery. If there is no mains power or generator, the system can still supply power to the loads relying on the battery and photovoltaic modules. The battery ensures the continuous power supply for the loads when solar energy is insufficient and there is no mains power. The system supports the connection of various household and office AC loads, such as refrigerators, lamps, televisions, air conditioners, etc. The energy storage control inverter integrated unit serves as the core of energy conversion for the entire system, integrating charge/discharge management and inverter functions, ensuring efficient and stable energy utilization.hybrid solar system complete, solar panels power,  Lithium Energy Storage Battery,  Outdoor Energy Storage System,  home smart energy storage battery system.solar panels power.

1. Integrated Integration: Combines inverter, MPPT solar controller and mains power charging in one unit, achieving multiple functions with one machine, suitable for various energy input and power usage scenarios.hybrid solar system complete, solar panels power,  Lithium Energy Storage Battery,  Outdoor Energy Storage System,  home smart energy storage battery system.

2. Pure sine wave stable output: Utilizes advanced SPWM technology to output high-quality pure sine wave alternating current, safely applicable to household appliances and industrial equipment.hybrid solar system complete, solar panels power,  Lithium Energy Storage Battery,  Outdoor Energy Storage System,  home smart energy storage battery system.

3. Widely applicable to power-limited areas: Specifically designed for areas without electricity, with insufficient electricity supply and unstable voltage, providing continuous and stable power supply, enhancing power usage reliability. Including precision electronic products.hybrid solar system complete, solar panels power,  Lithium Energy Storage Battery,  Outdoor Energy Storage System,  home smart energy storage battery system.solar panels power.

4. Intelligent display and real-time monitoring: Equipped with an LCD screen, it can display real-time data and status of the system operation, enabling users to intuitively grasp the energy usage and equipment performance.hybrid solar system complete, solar panels power,  Lithium Energy Storage Battery,  Outdoor Energy Storage System,  home smart energy storage battery system.

5. Comprehensive Electronic Protection System: Equipped with multiple protective mechanisms, it ensures the safe and stable operation of the system, and effectively protects both the equipment and the usage environment.solar panels power.
