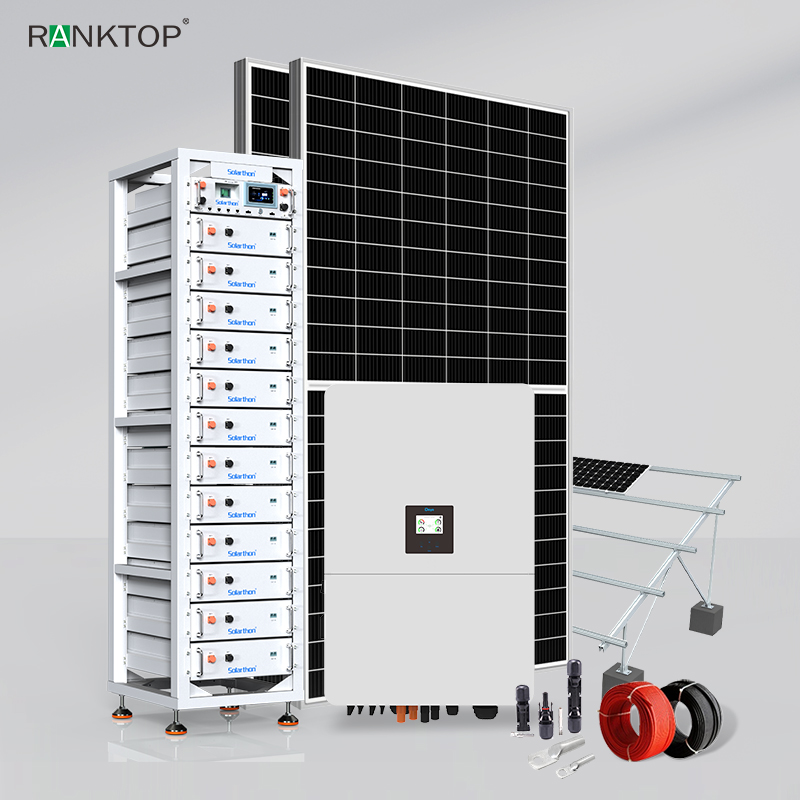

Hybrid Solar System Complete Solar Power System Price Solar Energy System with Solar Inverter

550W Mono Half Cell PERC Solar Panel

• Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

• Size: 2279*1134*35mm

• weight: 28.3kg

• 25 years life span

• Linear performance: 25 years 80 % ; 10 years 90%

• Connection: 11 pcs In Series

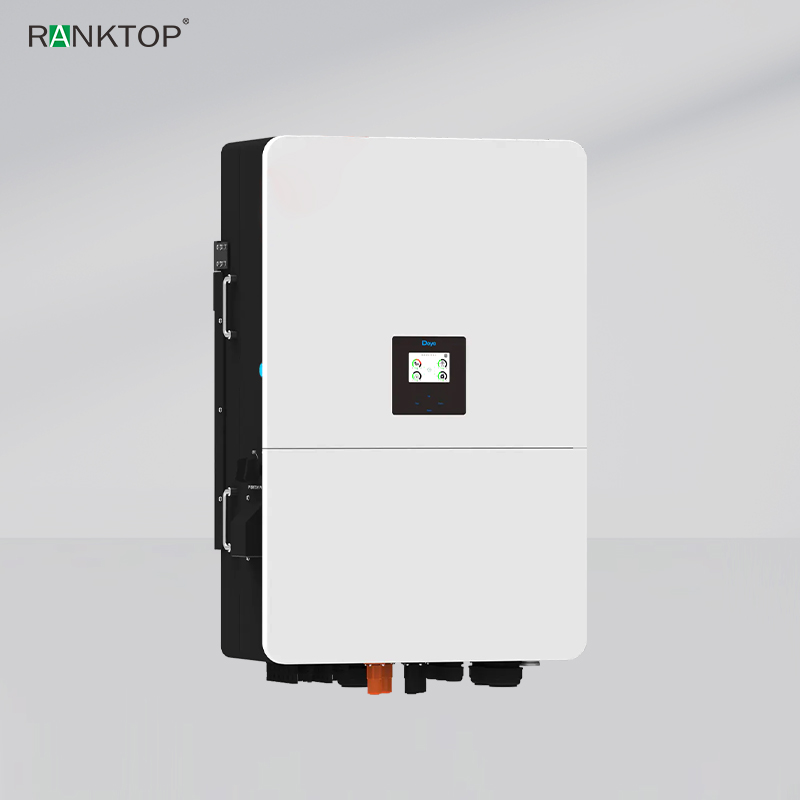

50KW Three Phase Hybrid Inverter

• Rated Output Power: 50KW

• Rated Output Voltage: 400VAC, 50Hz/60Hz

• MPPT Number/Road: 4/2+2+2+2

• MPPT Voltage Range: 150~850V

• Full Load Voltage Range: 450~850V

• PV Input Current: 36+36+36+36A

• Battery Voltage Range : 160-800VDC

• Number Of Battery Input: 2

• Max. Charging Current: 50+50A

• Max. Discharging Current: 50+50A

• Max. Efficiency: 97.60%

• Protection Class: IP65

• Size: 527*894*294mm

• Weight: 80kg

• Warranty: 5 Years

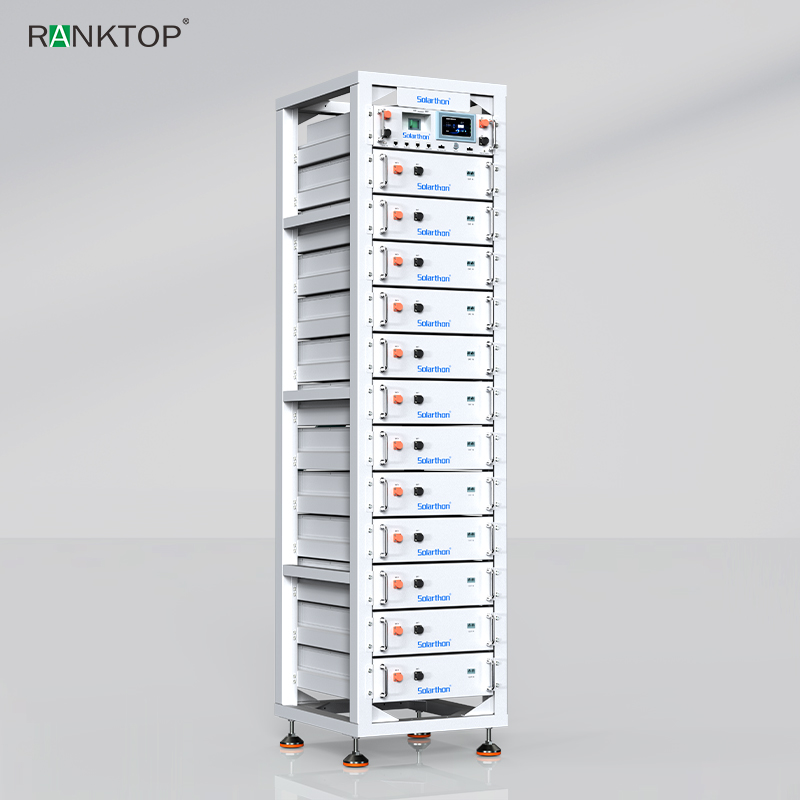

512V 100AH Vertically Stacked Energy Storage Battery Pack

• Battery Type: LiFePO4

• Nominal Voltage: 512V

• Nominal Capacity: 100Ah

• Charging Cut-off Voltage: 576V

• Discharging Cut-off Voltage: 448V

• Max. Cont. Charging/Discharging Current: 100A

• Max. Instantaneous Charge/Discharge Current: 100A

• Cycle Life: ≥6000

• Product Size: 610.5*549*1896mm

• Weight: 544kg

• Warranty: 5 years

Flat Roof Mounting Structure

• structure: Hot-Dip Galvanized Steel

• wind load: 55m/s,snow load:1.5kn/m²

•


• 4mm² PV cable: 100m, Red

• 4mm² PV cable: 100m, Black

• 35mm^² PV Wire, Red, 5m

• 35mm^² PV Wire, Black, 5m

• MC4 Connector, Male Plug

• MC4 Connector, Female Plug

• Copper Lug: 35mm²

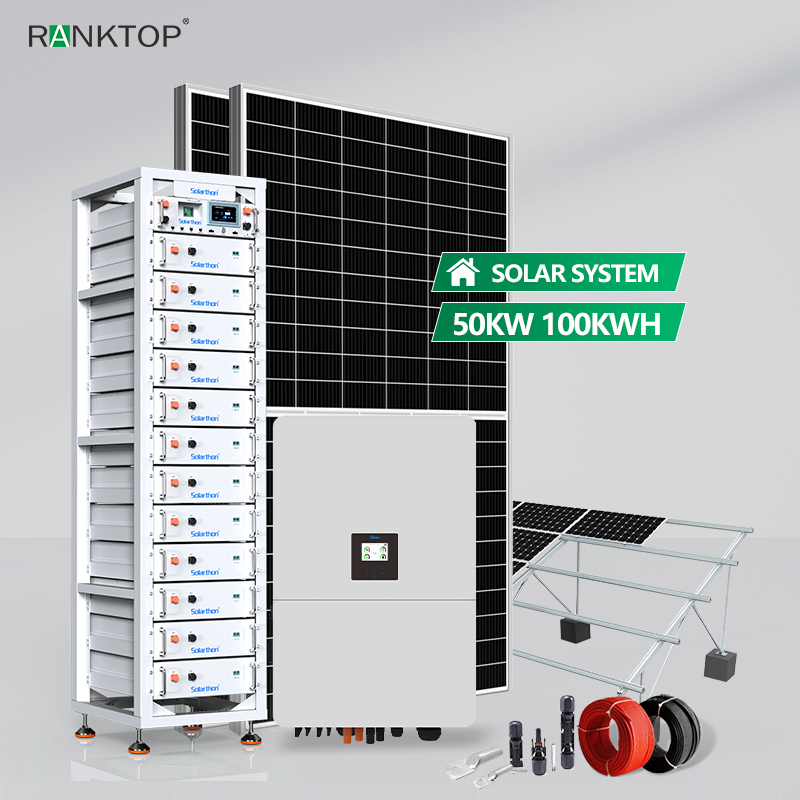

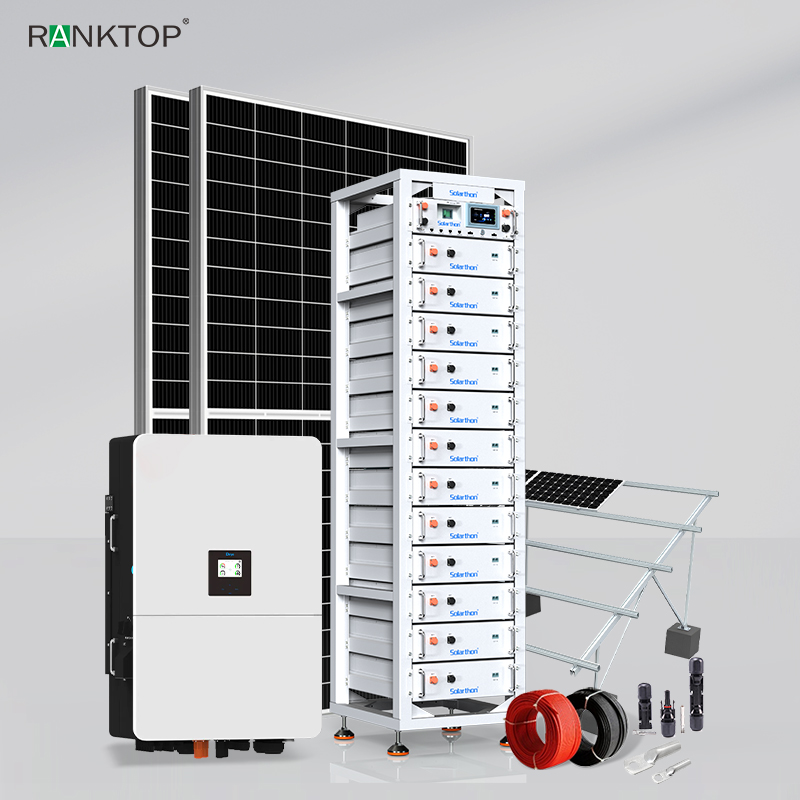

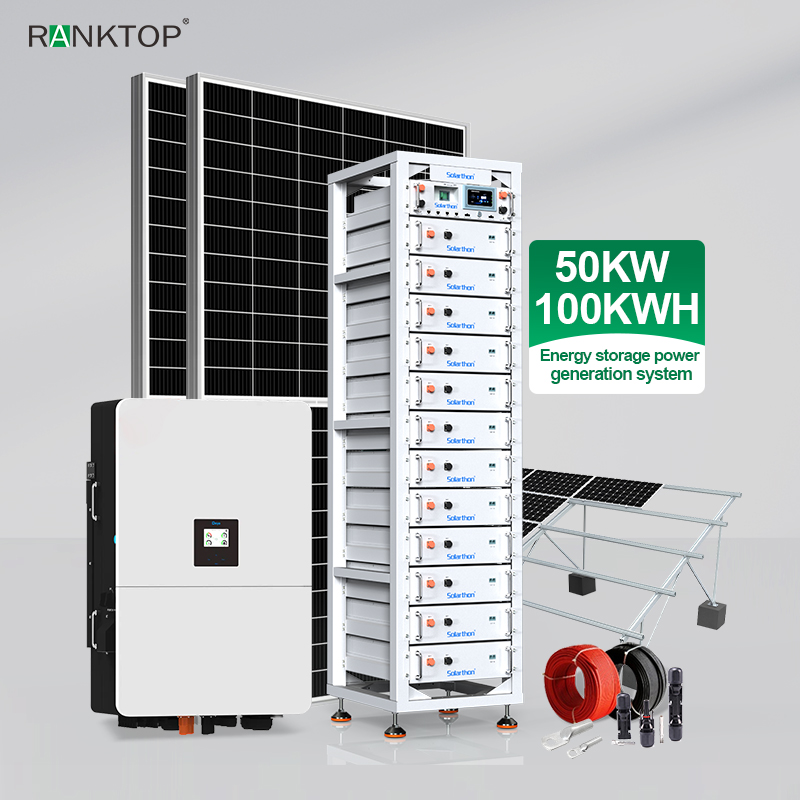

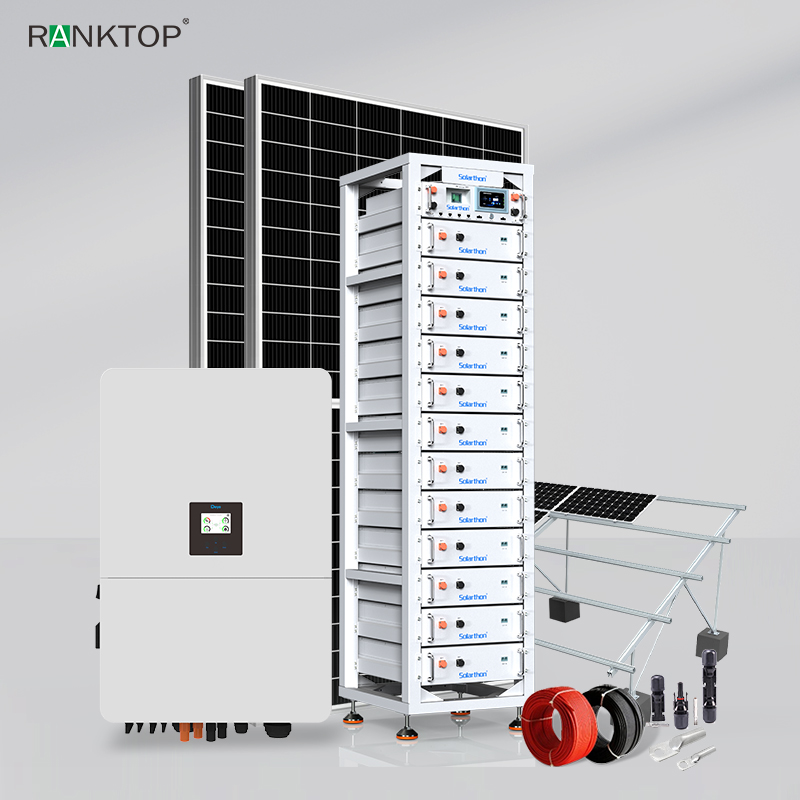

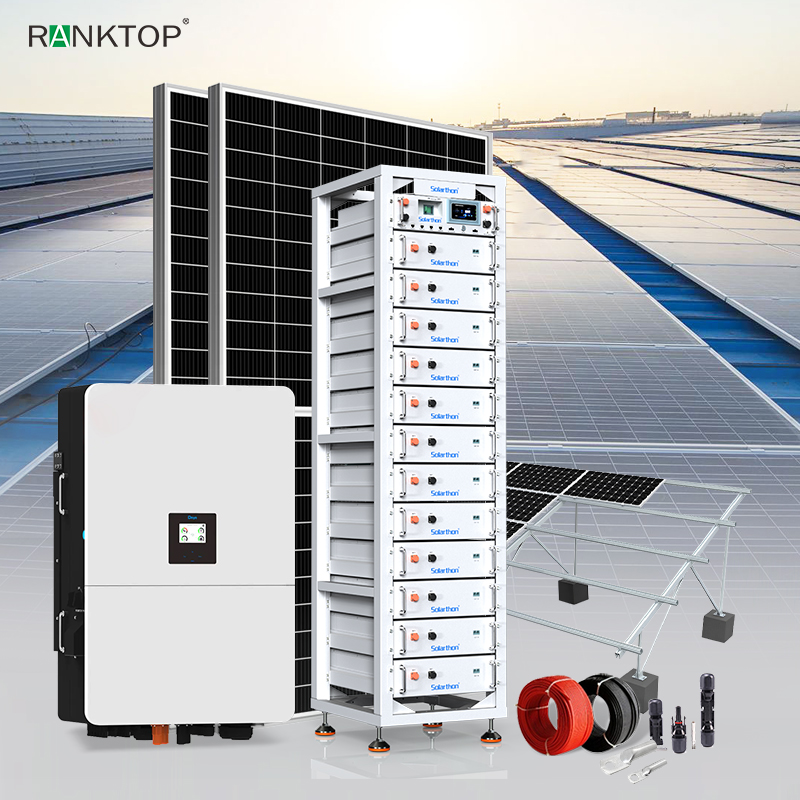

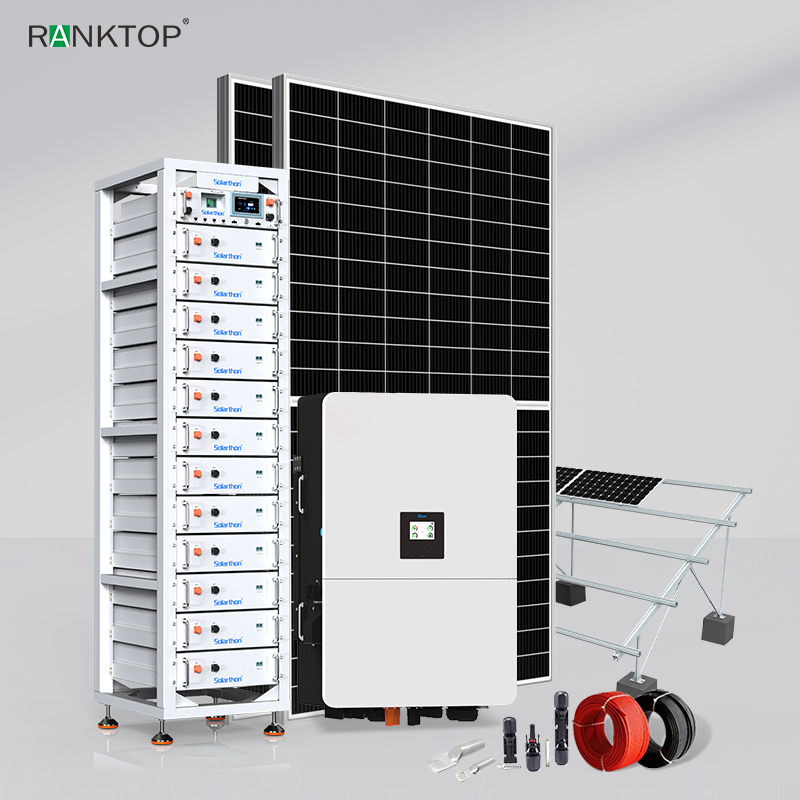

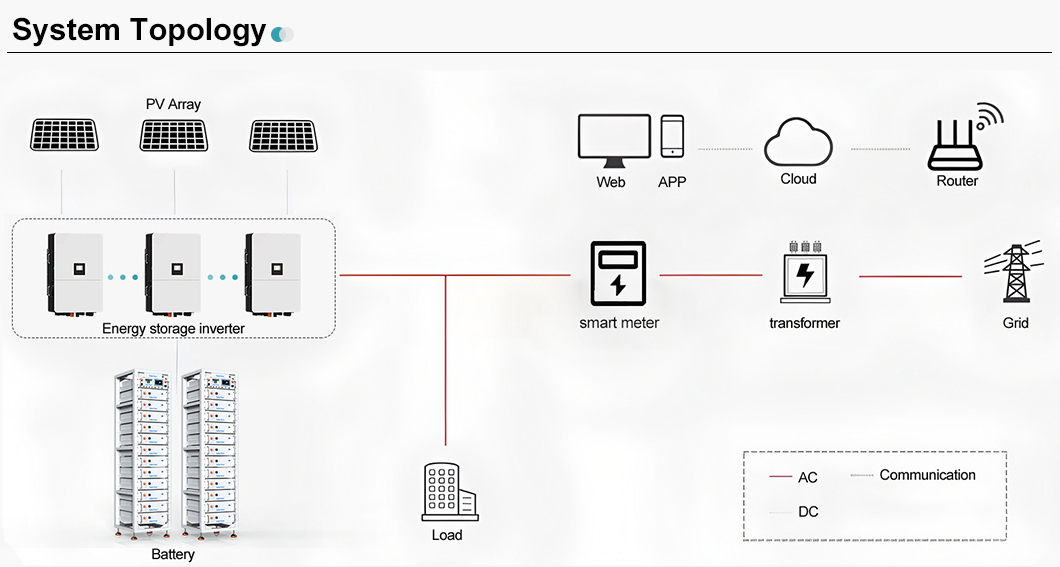

50KW 100KWH Vertical stacked energy storage power generation system

World's leading supplier of Solar inverter and energy storage system solutions

Design an innovative and intelligent Battery Management System (BMS) that meticulously monitors the voltage, temperature, and current of the battery pack in real-time. This ensures safe and stable operation with precision. Incorporate a modular approach, empowering users to seamlessly adjust battery capacity to perfectly meet their household energy requirements. This flexibility makes it ideal for dynamic energy management.

All-in-One Design:

Elevate the integration of the inverter, battery, and BMS to not only improve space utilization but also enhance the aesthetic appeal. Utilize a compact inverter accompanied by state-of-the-art cooling solutions to guarantee stable operation even under high loads. The sophisticated exterior design effectively conceals wiring and offers a spectrum of color and material choices, catering to diverse home styles with elegance.

Communication Interface:

Embrace the use of CAN bus or RS485 interfaces to bolster anti-interference capabilities, making them apt for challenging electromagnetic environments. Craft interfaces that are compatible with multiple communication protocols or can be upgraded via software to seamlessly align with emerging standards, ensuring future-proof connectivity.

High Power & Scalability:Modular design supports large-scale energy storage needs, allowing flexible expansion for growing business demands.
Cost Savings: Reduces peak demand charges and optimizes energy consumption through intelligent load management, lowering electricity costs.
Stable & Reliable Performance:Advanced battery management system (BMS) ensures consistent power supply, minimizing downtime for critical operations.
Fast ROI (Return on Investment): Efficient energy arbitrage and participation in demand response programs accelerate payback periods.
Smart Energy Management:AI-driven monitoring and remote control enable real-time optimization for maximum efficiency and savings.
