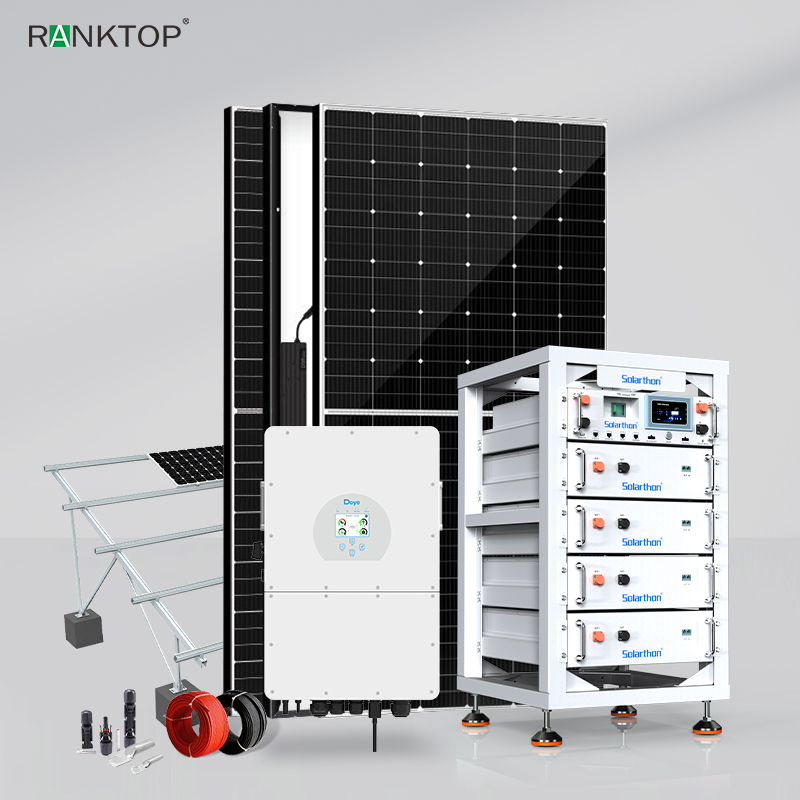

Hybrid Solar System Solar Power Systems Whole Set Solar System Kit Off Grid

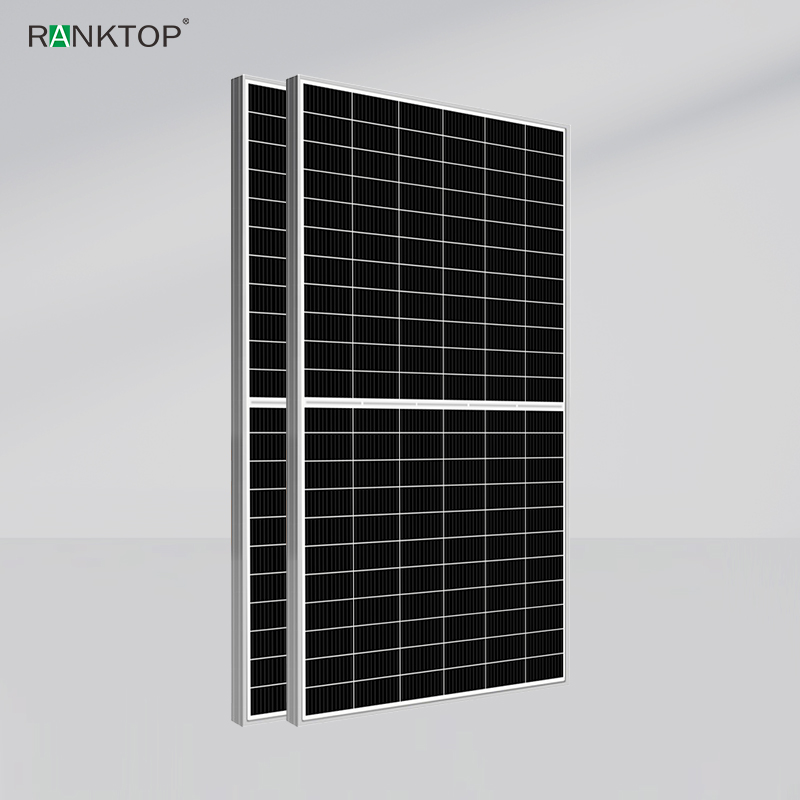

550W Mono Half Cell PERC Solar Panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 8 pcs In Series

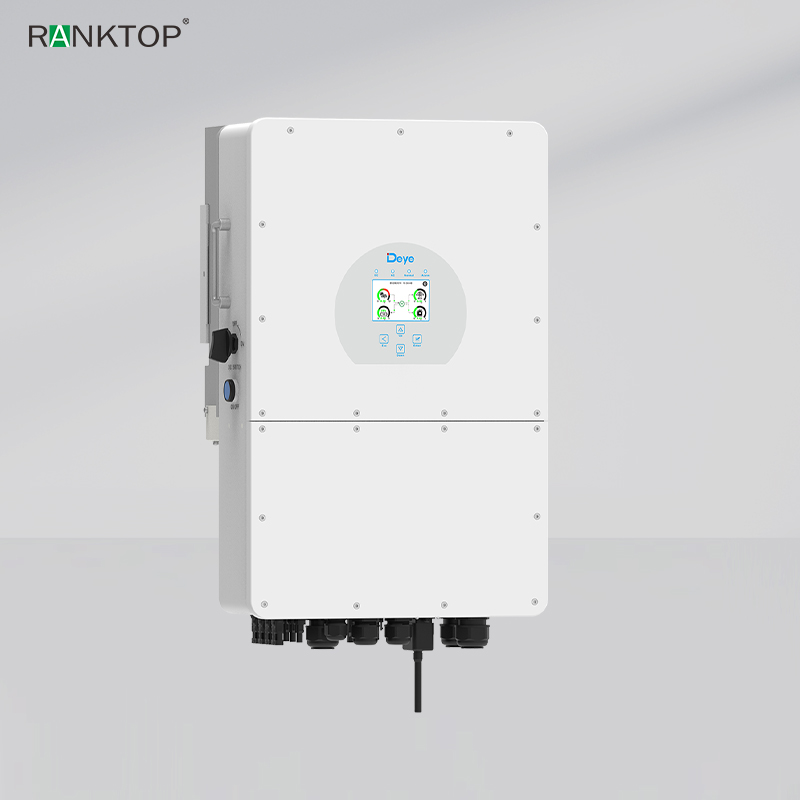

8KW Three Phase Hybrid Inverter

: Rated Output Power: 8KW

: Rated Output Voltage: 400VAC, 50Hz/60Hz

: MPPT Number/Road: 2/1+1

: MPPT Voltage Range: 150~850V

: Full Load Voltage Range: 260~850V

: PV Input Current: 20+20A

: Battery Voltage Range : 160-700VDC

: Number Of Battery Input: 1

: Max. Charging Current: 37A

: Max. Discharging Current: 37A

: Max. Efficiency: 97.60%

: Protection Class: IP65

: Size: 408*638*237mm

: Weight: 30.5kg

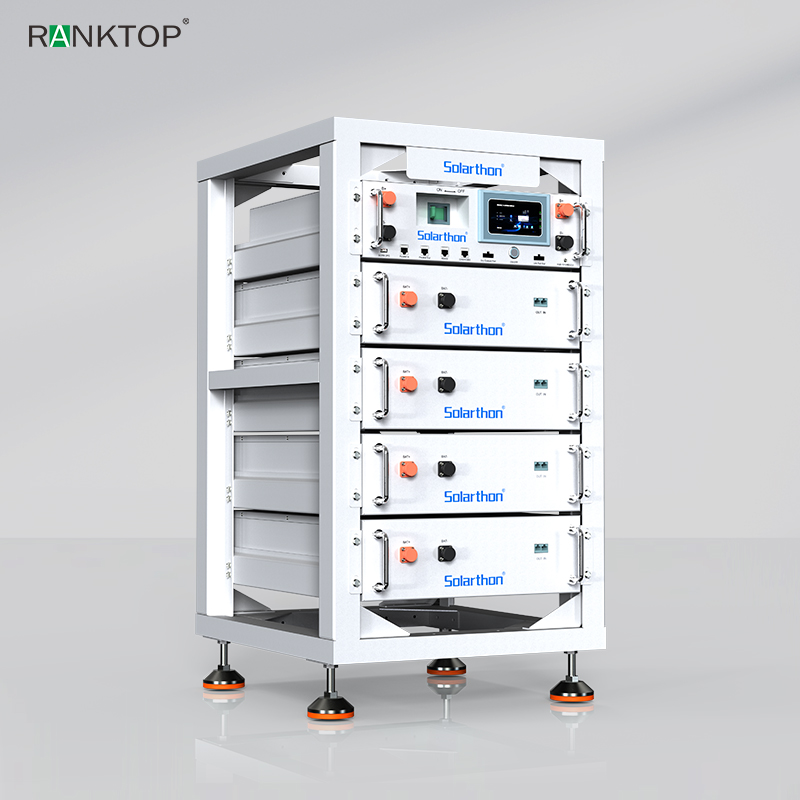

204.8V 100AH Vertically Stacked Energy Storage Battery Pack

: Battery Type: LiFePO4

: Nominal Voltage: 204.8V

: Nominal Capacity: 100Ah

: Charging Cut-off Voltage: 230.4V

: Discharging Cut-off Voltage: 179.2V

: Max. Cont. Charging/Discharging Current: 100A

: Max. Instantaneous Charge/Discharge Current: 100A

: Cycle Life: ≥6000

: Product Size: 610.5*549*1020mm

: Weight: 242kg

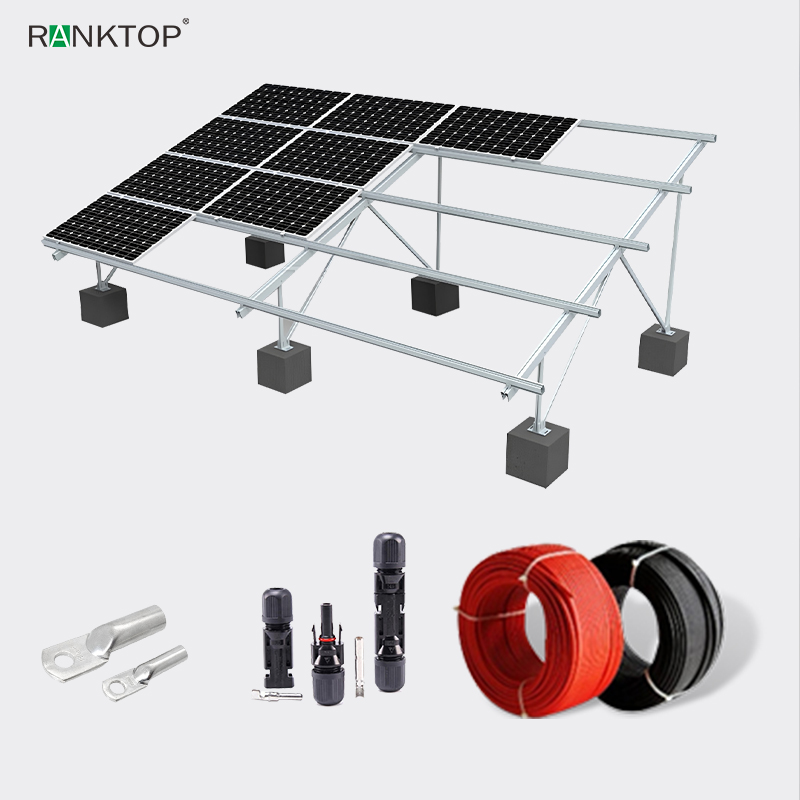

Mounting structure

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

ind load: 55m/s,snow load:1.5kn/m2

4mm² PV cable: 100m, Red

4mm² PV cable: 100m, Black

35mm^² PV Wire, Red, 5m

35mm^² PV Wire, Black, 5m

MC4 Connector, Male Plug

MC4 Connector, Female Plug

Copper Lug: 35mm²

Ranktop offers a comprehensive one-stop energy storage solution for both residential and commercial use.

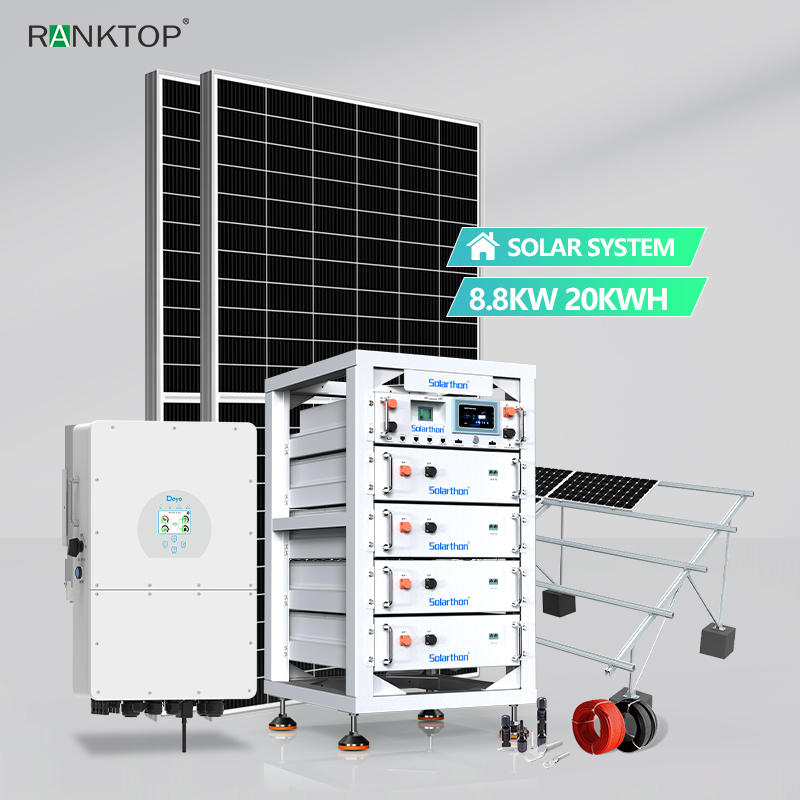

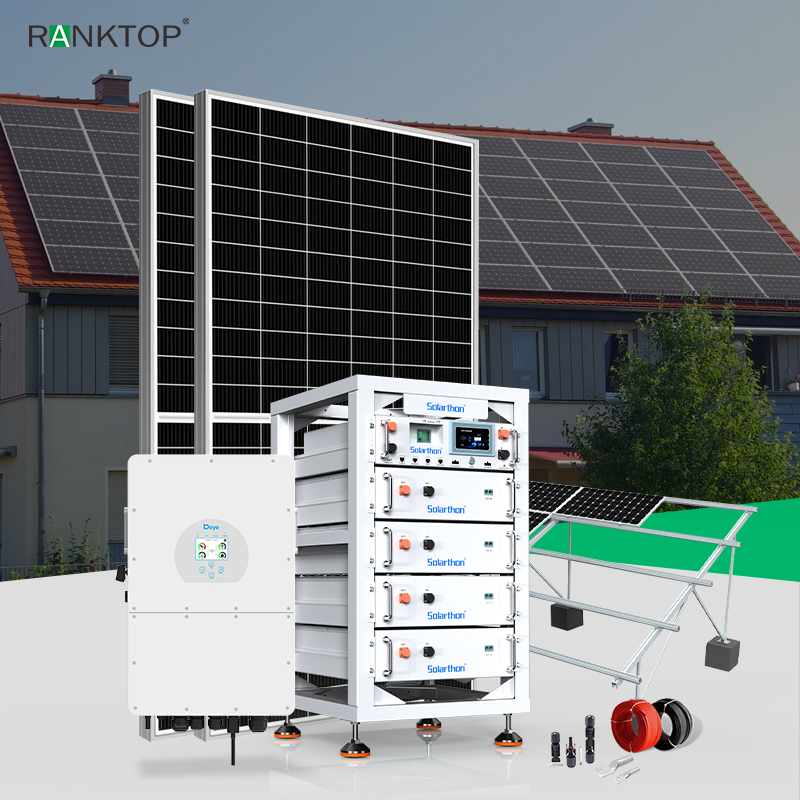

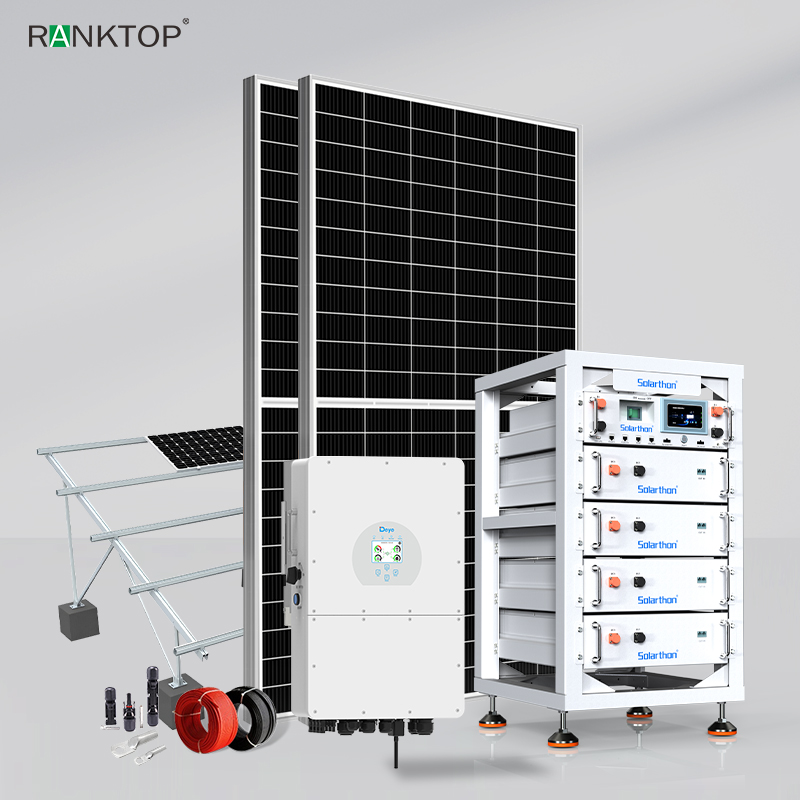

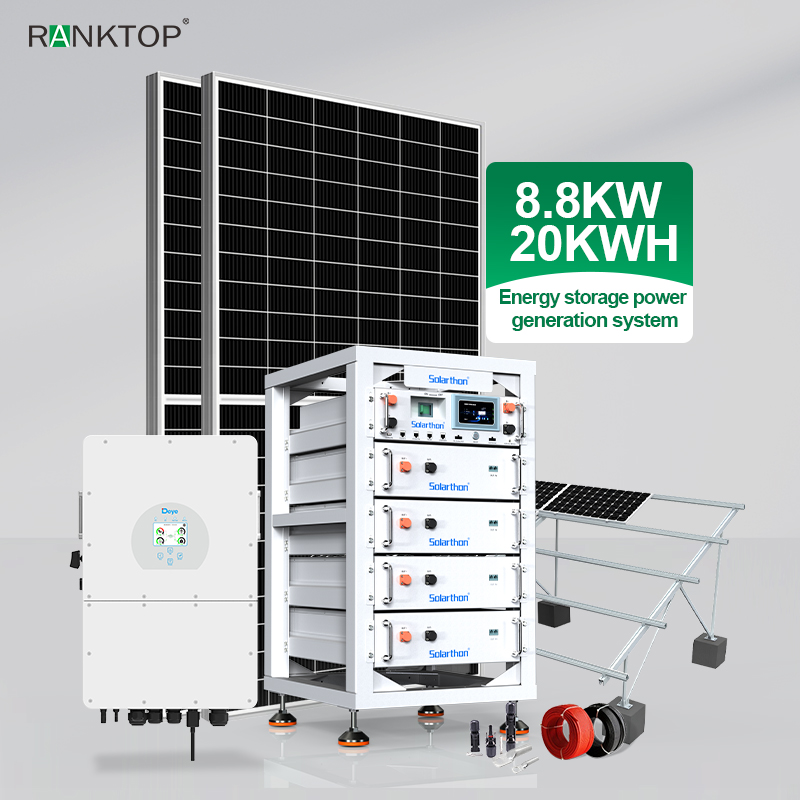

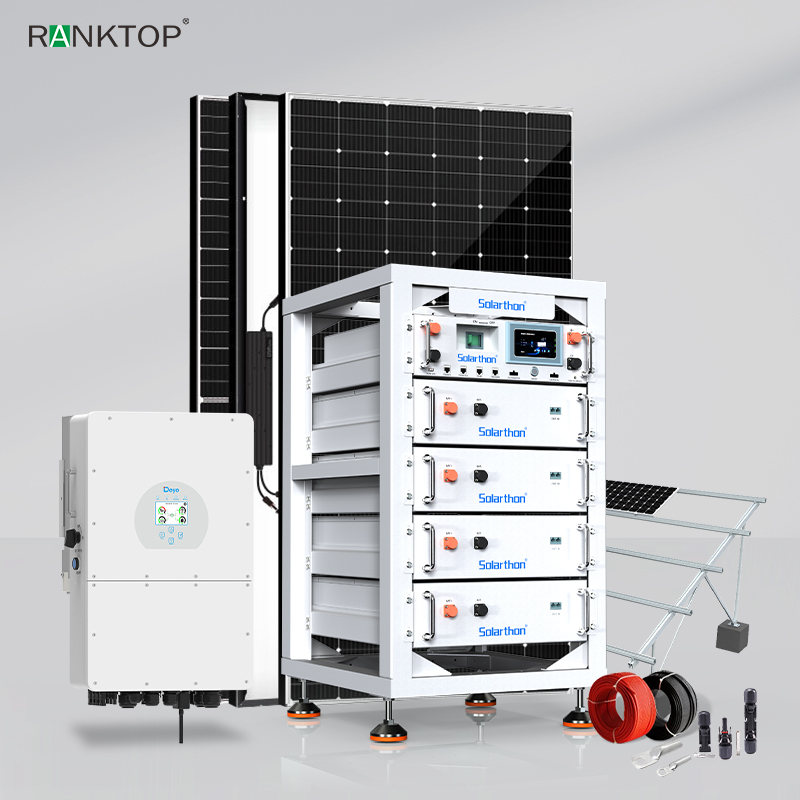

8.8KW 20KWH Vertical stacked energy storage power generation system

Our 8.8KW/20KWH vertical stacked energy storage power generation system is a high-performance and highly integrated integrated energy solution. This system innovatively adopts a vertical stacking design, which significantly saves installation space and is particularly suitable for household and small-scale commercial applications. With a continuous output power of 8.8 kilowatts, it can easily meet the daily power consumption needs of most high-power appliances; while the 20-kilowatt-hour large-capacity energy storage unit ensures a long-term and stable power supply during nighttime or power grid outages. This system integrates advanced battery management technology and intelligent inverters, supporting various operation modes such as solar priority, peak shaving and valley filling, and backup power supply. It enables users to efficiently manage energy, significantly reduce electricity expenses, and achieve energy independence and safety. Its modular design also makes it easy to be flexibly expanded in the future according to needs, making it an ideal choice for building a modern intelligent and Ranktop energy lifestyle.

Applications:

Ranktop product configuration defaults to the initial design. If you have customized needs, the professional team can tailor a suitable solar system solution based on the parameters, LOGO, appearance and other requirements you provide.

Send inquiry，get a free solution and quotation! ! !
