Industry Home Inverter with energy storage system 10kwh

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

The Energy Storage Controller Inverter Integrated Machine is an all-in-one power solution that combines an inverter, MPPT solar controller, and utility charging to provide stable power supply in areas with unreliable or no electricity. It features a fully digital design with advanced SPWM technology to output pure sine wave power, converting DC to AC for use with household appliances, power tools, and electronics. The machine includes an LCD screen for real-time data monitoring and comprehensive electronic protection for enhanced safety and stability.

1OKW INVERTER WITH ENERGY STORAGE SYSTEM

Introducing the Energy Storage Controller Inverter Integrated Machine—a revolutionary device that combines the functions of an inverter, MPPT solar controller, and utility charging into a single, compact unit. Designed for areas with no power, limited power, or unstable electricity supply, this integrated machine provides a stable and reliable power source for a wide range of applications. It is ideal for powering household appliances, power tools, industrial equipment, and electronic audio/video devices, ensuring continuous operation even in challenging environments. Based on fully digital and intelligent design principles, this machine utilizes advanced SPWM technology to output pure sine wave power,Solar Home System Inverter ,Solar Panel Inverter System , converting DC energy into high-quality AC power with high efficiency and minimal distortion.Energy storage system,Solar Home System Inverter ,Solar Panel Inverter System ,Energy Storage System Inverter, Home Energy Storage Battery.

Key Selling Points and Features:

Multi-Functional Integration: This all-in-one device integrates an inverter, MPPT solar controller, and utility charging capabilities, reducing the need for multiple components and simplifying your energy system. It is perfect for off-grid living, remote locations, and areas with unreliable power grids.Energy storage system,Solar Home System Inverter ,Solar Panel Inverter System ,Energy Storage System Inverter, Home Energy Storage Battery.
Advanced Technology: Utilizing SPWM (Sinusoidal Pulse Width Modulation) technology, the machine outputs pure sine wave power, ensuring compatibility with sensitive electronic devices and appliances. The fully digital and intelligent design enhances system efficiency and reliability, while the LCD screen provides real-time monitoring of system operation data and status.
Safety and Stability: Comprehensive electronic protection functions safeguard the entire system against overloads, short circuits, and other potential issues, ensuring long-term stability and safety. This makes the Energy Storage Controller Inverter Integrated Machine not only efficient but also a trustworthy choice for your energy needs.Energy storage system,Solar Home System Inverter ,Solar Panel Inverter System ,Energy Storage System Inverter, Home Energy Storage Battery.

Model	DQ1906E10K-02
Rated Power	10kW
Lithium Battery	280Ah/51.2V
AC Output Voltage	230VAC
AC Output Frequency	50/60Hz
AC Input Voltage Range	230VAC
AC Input Frequency	50/60Hz
Maximum PV Voltage	500VDC
MPPT Voltage Range	90-450VDC
PV Charge Current	150A
Maximum Input Current	27A*2
Temperature For Operation	-10-+50ºC
Temperature For Storage	-15 -+60ºC
External Dimensions	6661157220mm
Max. Number Of Parallel	6 sets
Warranty	3 years

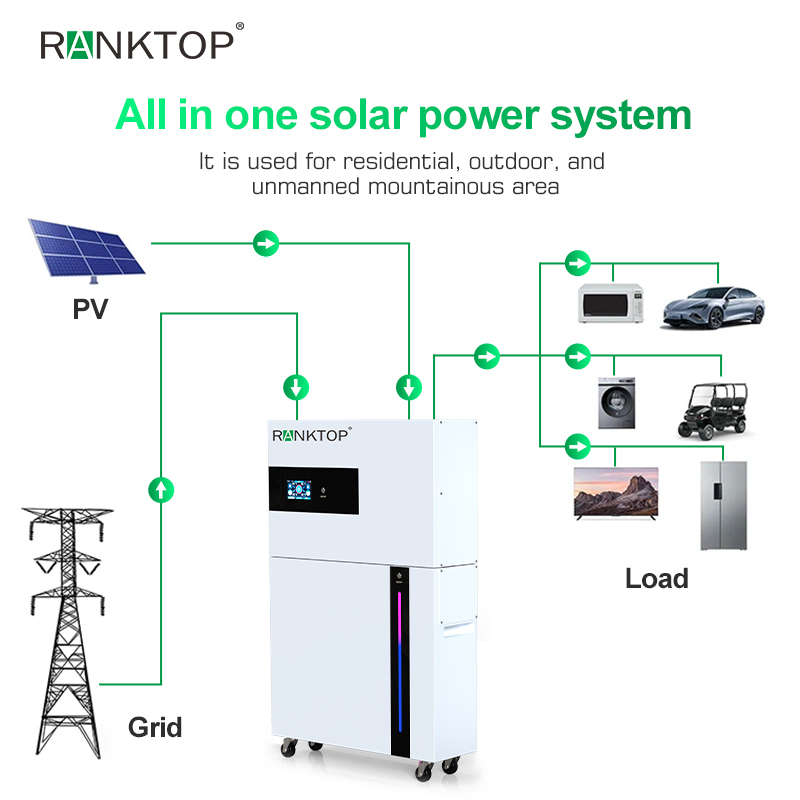

SYSTEM SCHEMATIC

The following figure shows the system application scenario of this product. A complete system includes the following parts:

1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load,Energy Storage System Inverter.

2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.

3. Battery: The role of the battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.

4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.Home Energy Storage Battery.

5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.CONTACT US

Conclusion:

The Energy Storage Controller Inverter Integrated Machine is the ultimate solution for stable and reliable power supply in any environment. Its multi-functional design, advanced technology, and robust safety features make it a versatile and efficient choice for powering your essential devices. Whether you are living off-grid, facing power shortages, or need a backup system, this integrated machine offers the stability and performance you need. Solar Home System Inverter ,Solar Panel Inverter System ,Upgrade to a smarter, more efficient energy solution today!Solar Home System Inverter ,Solar Panel Inverter System ,Energy Storage System Inverter, Home Energy Storage Battery.Solar Home System Inverter ,Solar Panel Inverter System ,Energy Storage System Inverter, Home Energy Storage Battery.
