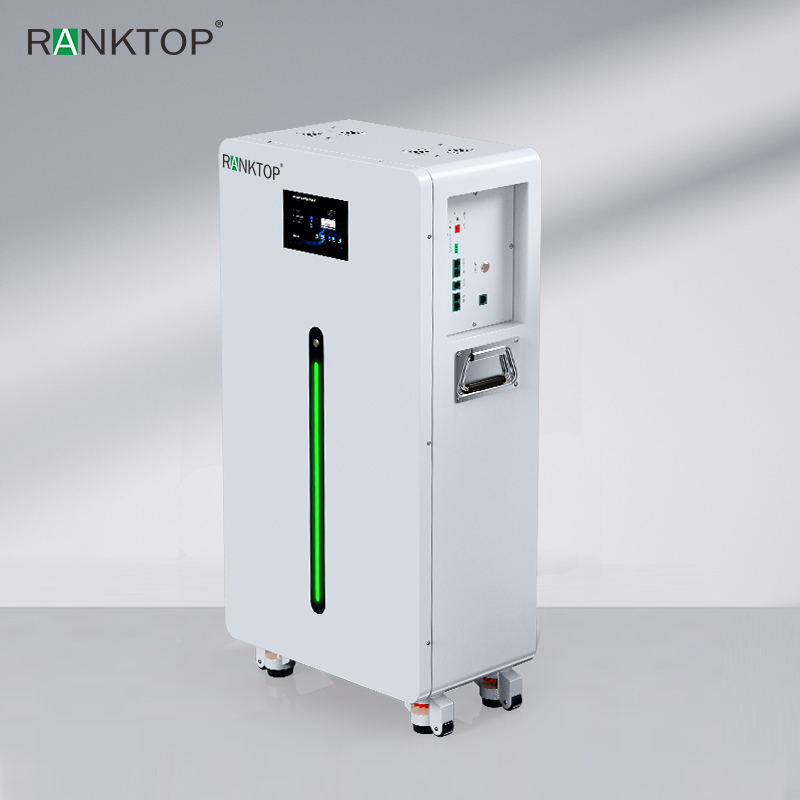

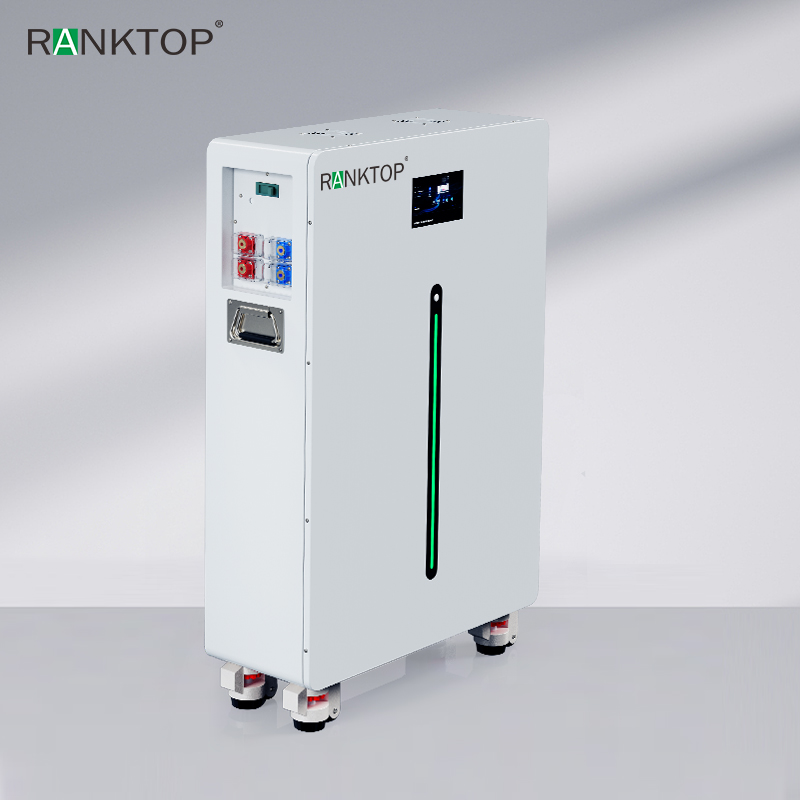

LiFePo4 Battery Pack 6000 Cycles Life Standing Movable For Home Energy Storage CAN Stackable Super
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week
25.6V 100AH Battery Pack
Model: ALF24100-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 100A
Continuous Charge/Discharge Current :50A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 430*456*156mm
Weight: 29.5kg(Estimated weight)
Warranty: 5 years
25.6V 200AH Battery Pack
Model：ALF24200-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :80A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635*456*156mm
Weight: 51kg(Estimated weight)
Warranty: 5 years
25.6V 300AH Battery Pack
Model: ALF24300-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 300Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :80A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635.5*456.5*249.5mm
Weight: 68kg(Estimated weight)
Warranty: 5 years
51.2V 100AH Battery Pack
Model：ALF52100-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :75A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635*456*156mm
Weight: 53kg(Estimated weight)
Warranty: 5 years
51.2V 230AH Battery Pack
Model: ALF52230-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 230Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 200A/200A
Continuous Charge/Discharge Current :115A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470*245*750mm
Weight: 97kg(Estimated weight)
Warranty: 5 years
51.2V 280AH Battery Pack
Model: ALF52280-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 140A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470*245*910mm
Weight: 120kg(Estimated weight)
Warranty: 5 years
51.2V 314AH Battery Pack
Model：ALF52314-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 150A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470*245*910mm
Weight: 120kg(Estimated weight)
Warranty: 5 years
51.2V 628AH Battery Pack
Model：ALF52628-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 628Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 230A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 705*250*1065mm
Weight: 230kg(Estimated weight)
Warranty: 5 years
Product Advantage
This product belongs to one of our self-designed and developed household energy storage product series. It is used for energy storage and energy supply of household, commercial, UPS and other electrical equipment.
This product enjoys many merits: long cydle life, high safety standard from software protection to strong housing, exquisite looks, and easy installation, etc. It is widely used in energy storage system with off-grid inverters, grid-connected inverters and hybrid inverters.Off Grid Solar Power System, solar battery pack with solar panel, solar power system with battery, Home Solar Battery Storage System, Solar Home Energy Storage.
BUILT IN BMS：Built-in BMS intelligent security protection system, Protect the battery. Extend battery life. Six layers of intelligent safe typrotection, when the battery voltage and current reach the value set by BMS, The battery will enter the protection state.Off Grid Solar Power System, solar battery pack with solar panel, solar power system with battery, Home Solar Battery Storage System, Solar Home Energy Storage.
SAFETY：National high-tech enterprise, home intelligent energy management, safe, efficient and green energy
LONG LIFE：Designed for 15-20 years, over 6000 cycles.Off Grid Solar Power System, solar battery pack with solar panel, solar power system with battery, Home Solar Battery Storage System, Solar Home Energy Storage.
Overall, mobile home energy storage lithium battery has good performance and high value in mobile home energy storage system, which can improve the power quality, reliability and efficiency of mobile home energy storage system, and reduce the power loss and maintenance cost of the whole system. Therefore, it is widely used in mobile home energy storage system.OFF GRID SOLAR POWER SYSTEM, SOLAR BATTERY PACK WITH SOLAR PANEL, SOLAR POWER SYSTEM WITH BATTERY, HOME SOLAR BATTERY STORAGE SYSTEM, SOLAR HOME ENERGY STORAGE.OFF GRID SOLAR POWER SYSTEM, SOLAR BATTERY PACK WITH SOLAR PANEL, SOLAR POWER SYSTEM WITH BATTERY, HOME SOLAR BATTERY STORAGE SYSTEM, SOLAR HOME ENERGY STORAGE.OFF GRID SOLAR POWER SYSTEM, SOLAR BATTERY PACK WITH SOLAR PANEL, SOLAR POWER SYSTEM WITH BATTERY, HOME SOLAR BATTERY STORAGE SYSTEM, SOLAR HOME ENERGY STORAGE.OFF GRID SOLAR POWER SYSTEM, SOLAR HOME ENERGY STORAGE.OFF GRID SOLAR POWER SYSTEM, SOLAR HOME ENERGY STORAGE.
