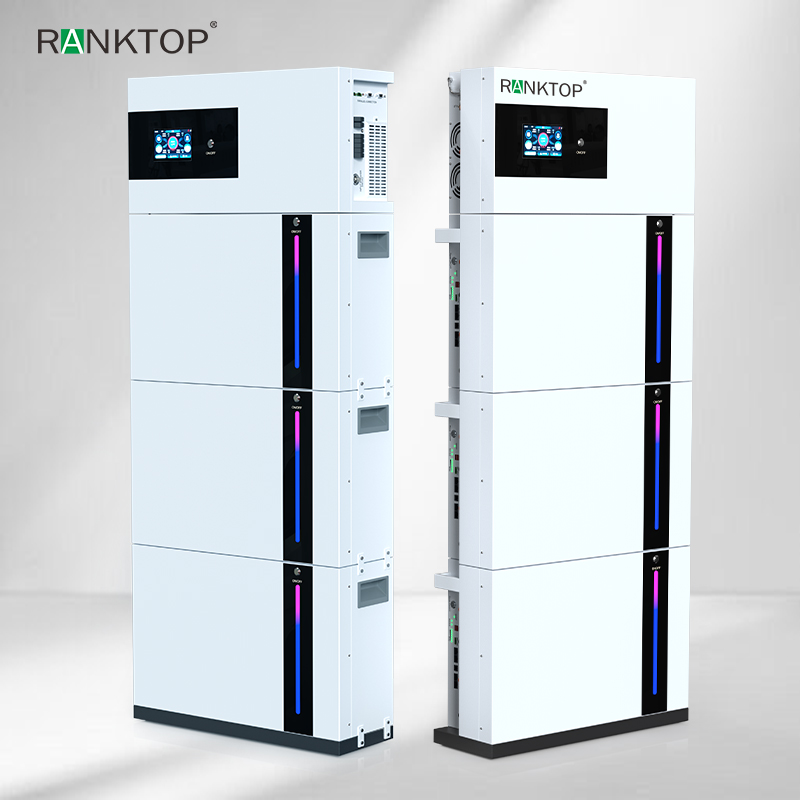

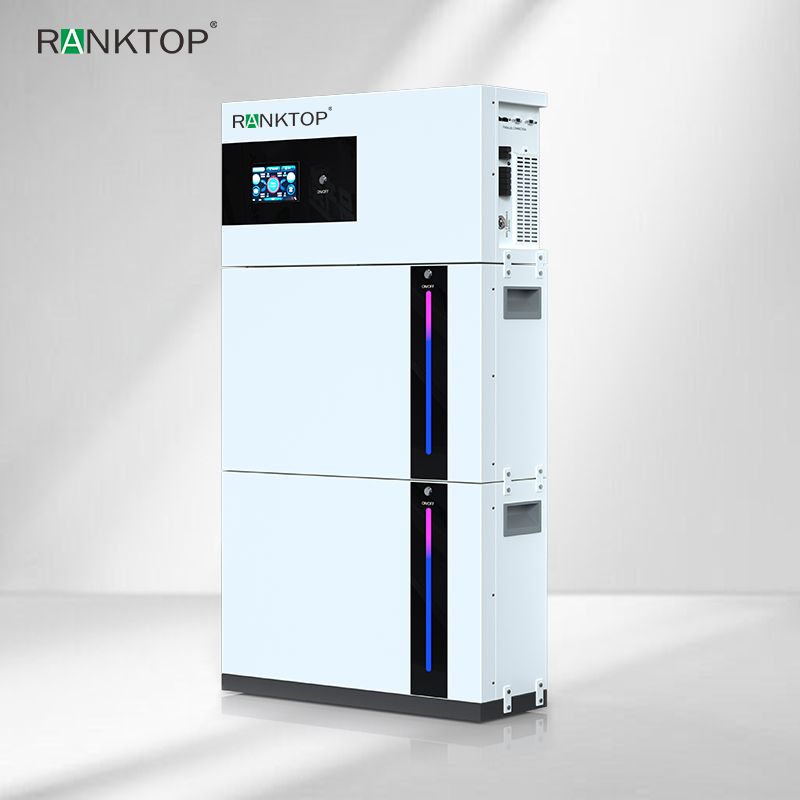

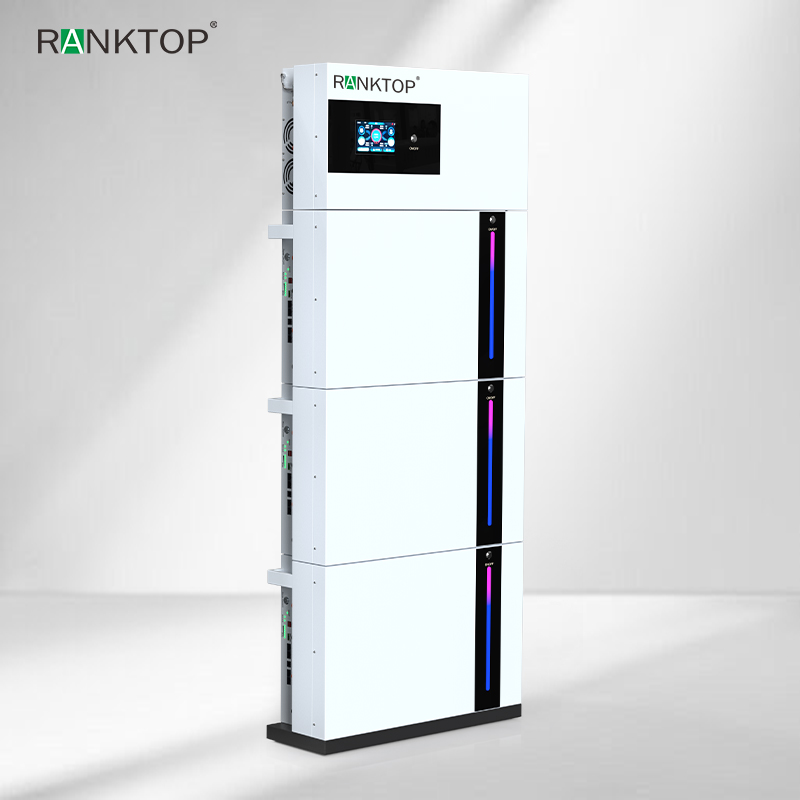

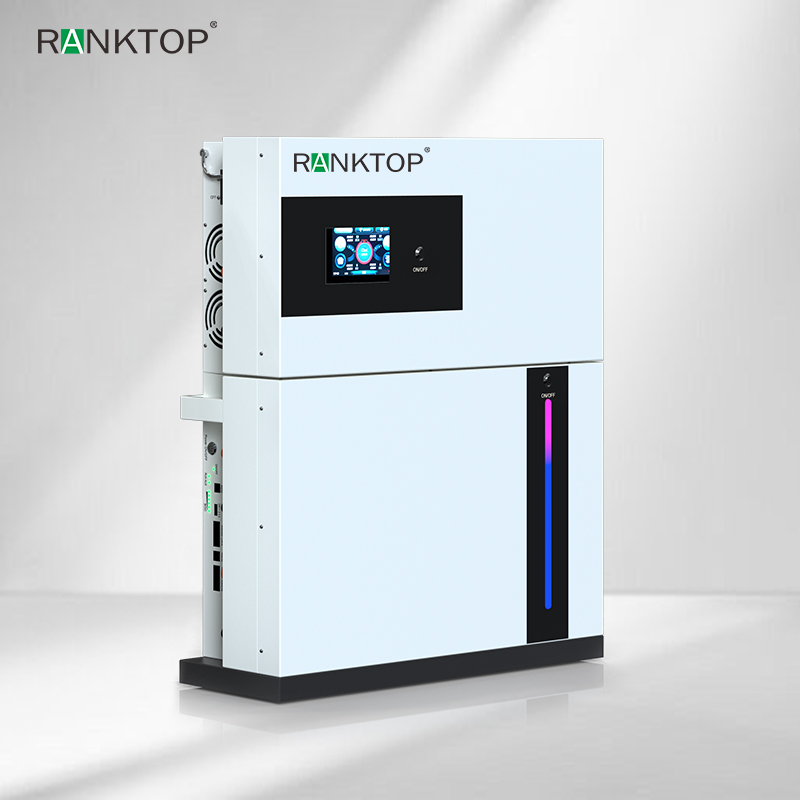

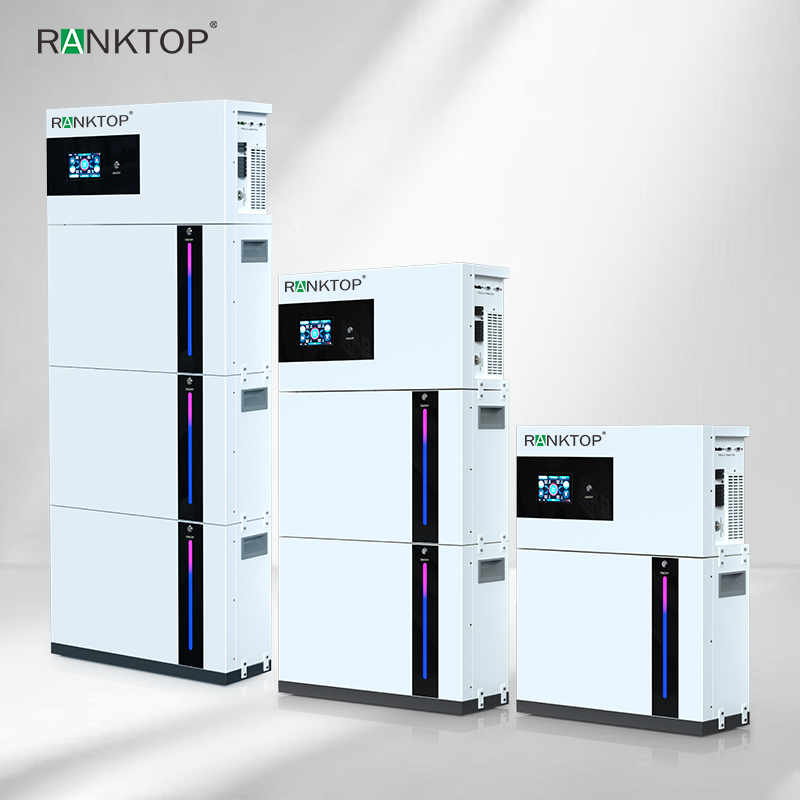

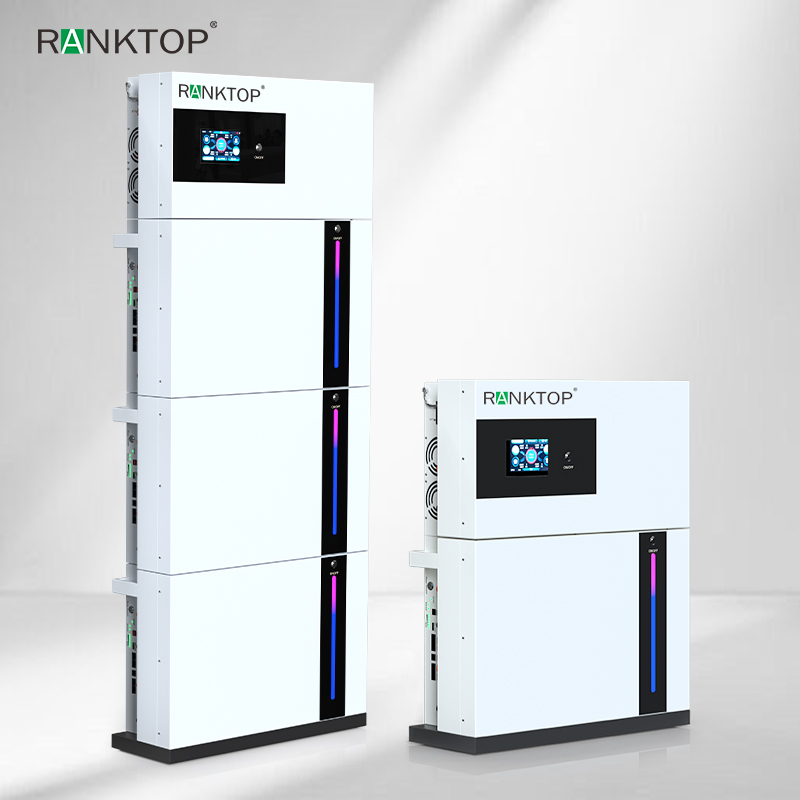

Lifepo4 Whole House Battery Solar Battery Home Energy Storage All-In-One Solar Power System
RANKTOP
ZhongShan
5-15 Days
5000/Week
Complete Home Energy Package: This integrated machine delivers a seamless, all-in-one energy solution for homes, combining essential functions to ensure a reliable power supply even in areas with unstable or no grid connection.
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 590*196*700mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
5.6KW All-In-One Solar Power System
Model:DQ1906C5K6-02
Rated Power: 5.6kW
Lithium Battery: 200Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 590*196*1070mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years

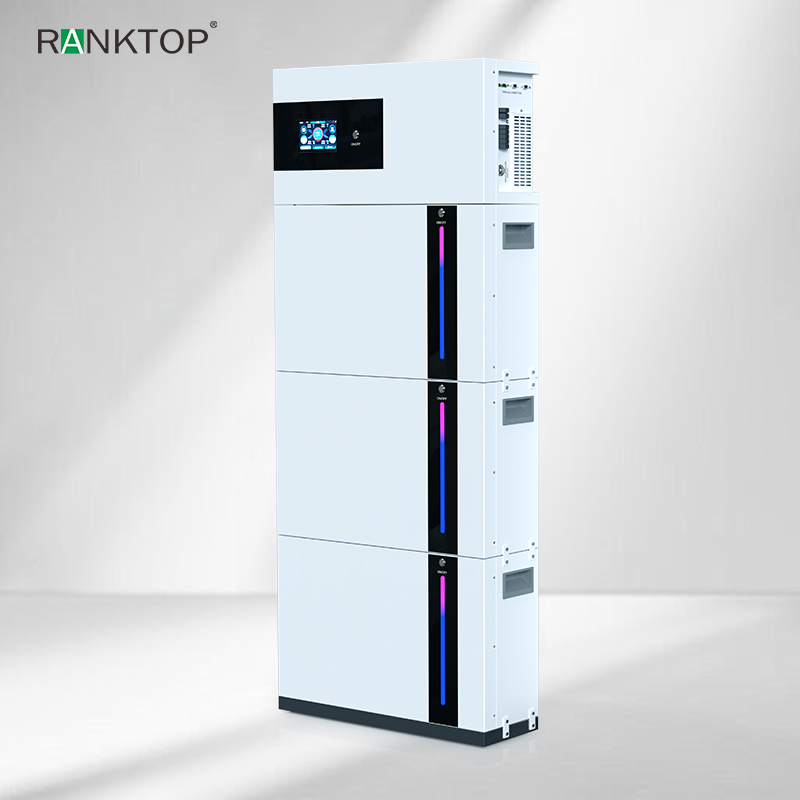

5.6kW All-In-One Solar Power System
Model:DQ1906D5K6-02
Lithium Battery: 300Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 590*196*1440mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
Product Advantage
5.6KW All-In-One Solar Power System
The Energy Storage Controller Inverter Inte grated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system operation data and operating status. Comprehensive electronic prote ction function ensures the whole system is safer and more stable.House Battery Solar Battery ,Commercial Solar Power Battery System, battery for solar power system home energy storage ,solar power system with generator backup, off grid solar power system home,
1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load. House Battery Solar Battery ,Commercial Solar Power Battery System, battery for solar power system home energy storage ,solar power system with generator backup, off grid solar power system home,
2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module. House Battery Solar Battery ,Commercial Solar Power Battery System, battery for solar power system home energy storage ,solar power system with generator backup, off grid solar power system home,
3. Battery: The role of the battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power. House Battery Solar Battery ,Commercial Solar Power Battery System, battery for solar power system home energy storage ,solar power system with generator backup, off grid solar power system home,
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads. House Battery Solar Battery.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.
