Off Grid Solar System Panel All In One Energy Storage Battery System
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

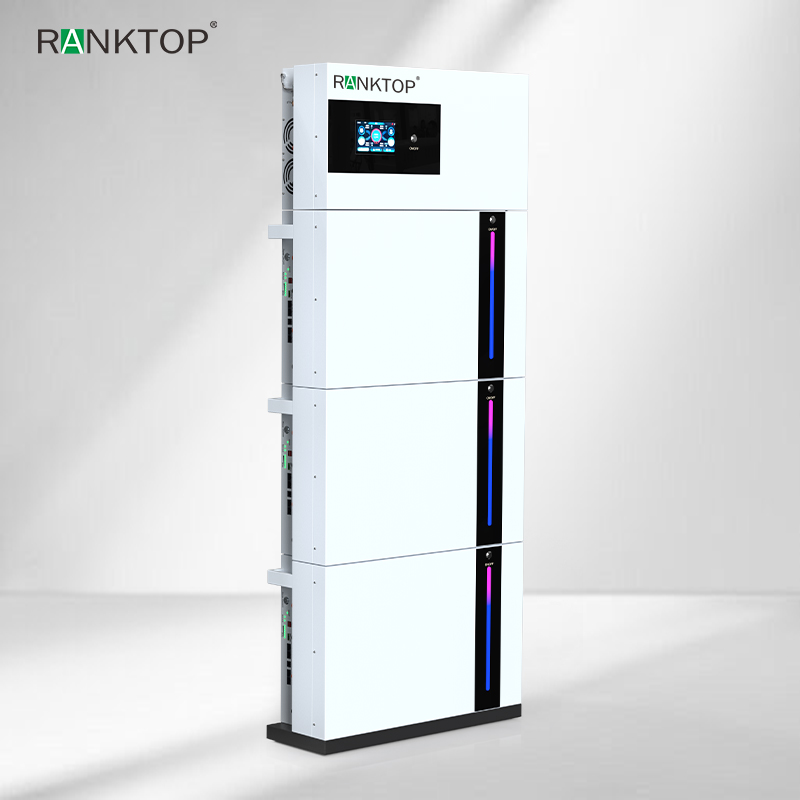

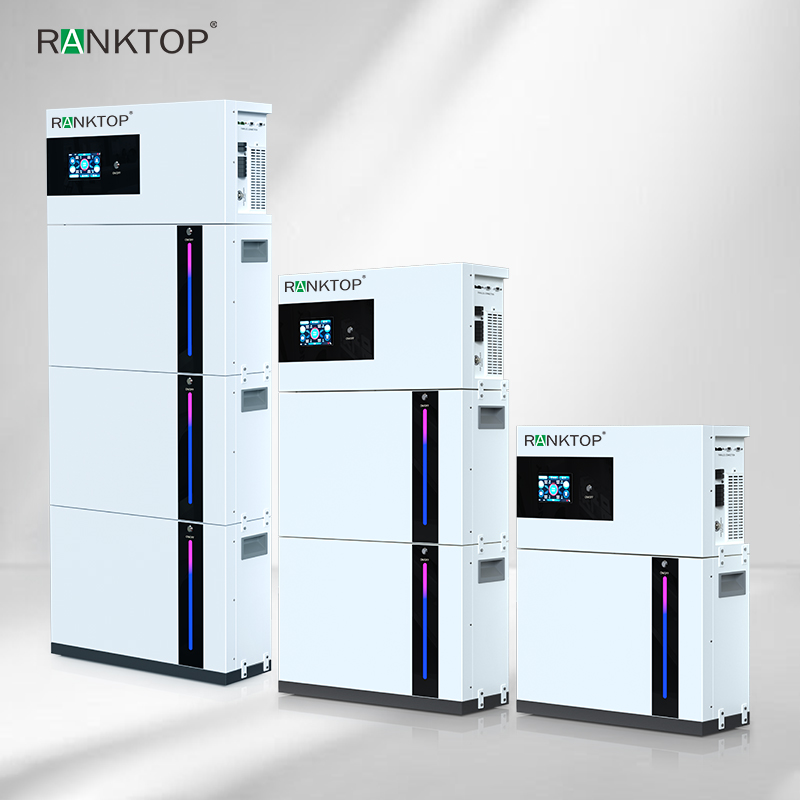

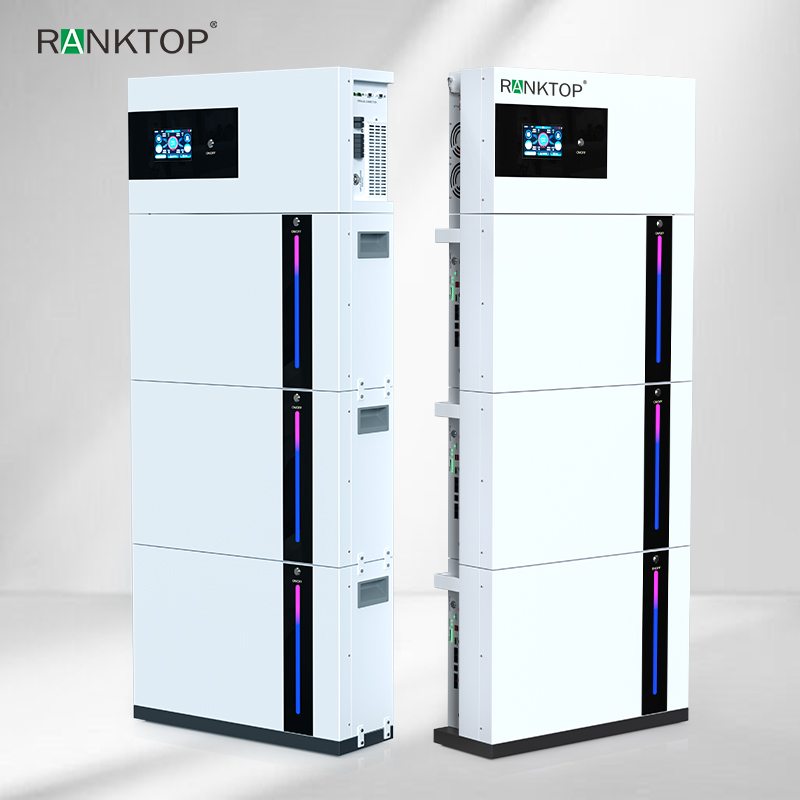

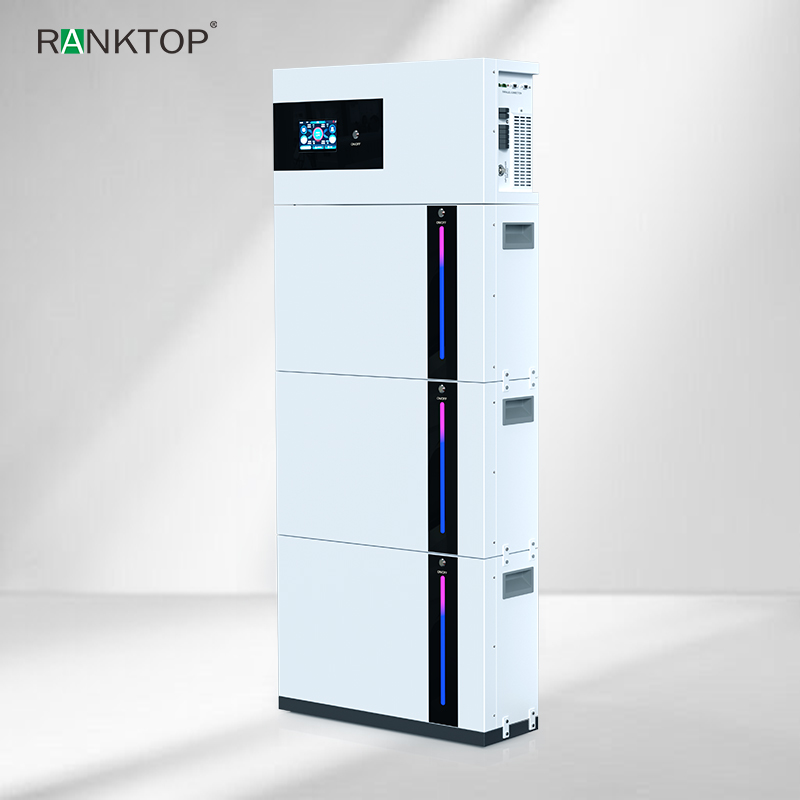

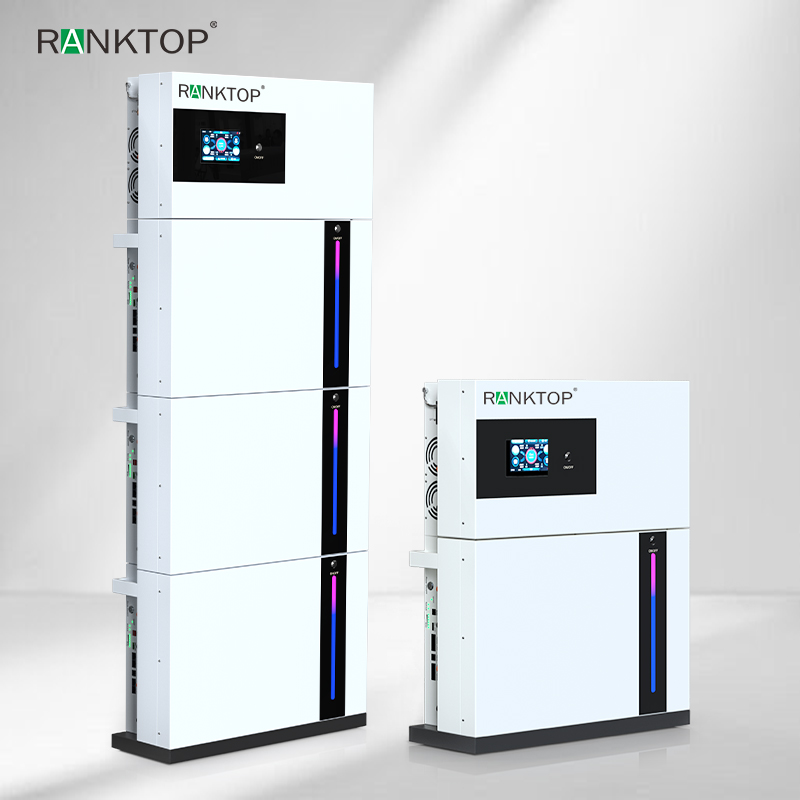

5.5kW All-In-One Solar Power System
Rated Power: 5.5kW
Lithium Battery: 300Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
AC Charge Current: 80A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-430VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 550*1443*200mm
Warranty: 3 years
Product Advantage
SYSTEM SCHEMATIC
The following figure shows the system application scenario of this product. A complete system includes the following parts:
● Photovoltaic module: Convert light energy into DC electric energy, charge the battery through Inverter with energy storage system, or directly reverse it into AC to power the load.
● Utility or generator: Connected at the AC input, it can supply power to the load and charge the Energy Storage Battery System at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.
● Battery: The role of the Lifepo4 Battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
● Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
● Customized Home solar energy storage System Integrated Machine: The energy conversion device of the whole system.
APPLICATION
-New-energy generation: Effectively smoothen the power output to decrease the impact to the grid
-Generate according to the plan and correct forecast errors-Reduce the peak and fill the valley
-Grid frequency modulation with AVC and AGC functions-Electricity of transmission and distribution- Smart Grid.Stackable Battery Lifepo4 Battery
- Micro-grid- Reduce the peak and fill the valley-Military Base, smelter, chemical plant, paper mill, airport, wharf and others.CONTACT US
