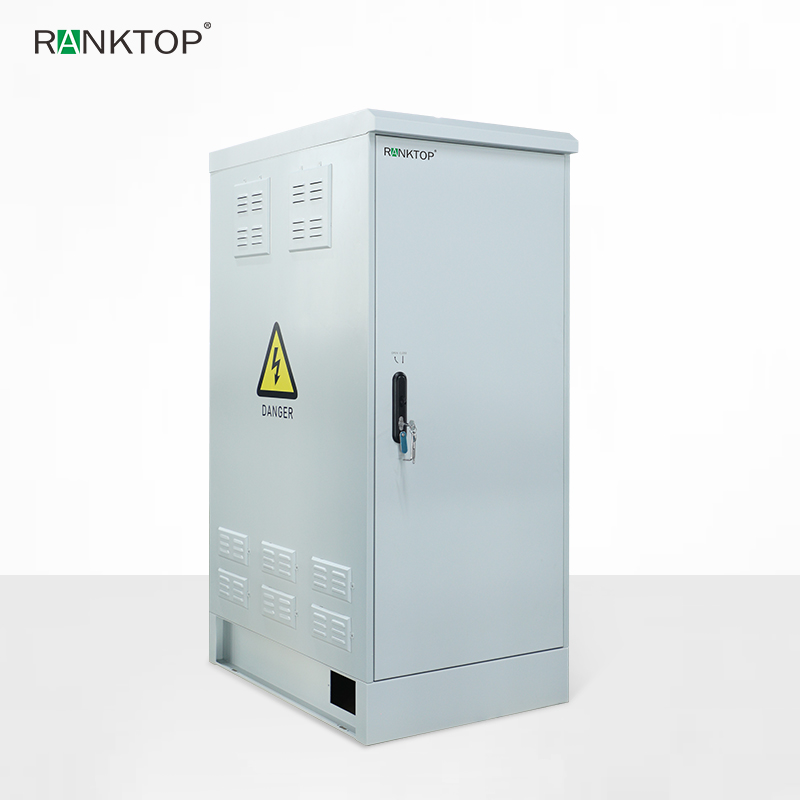

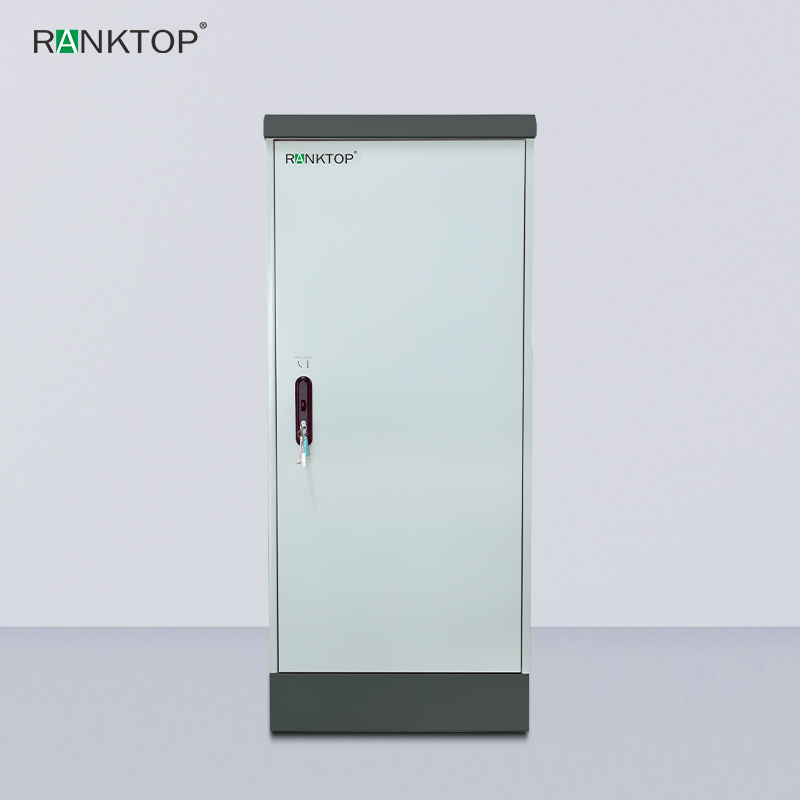

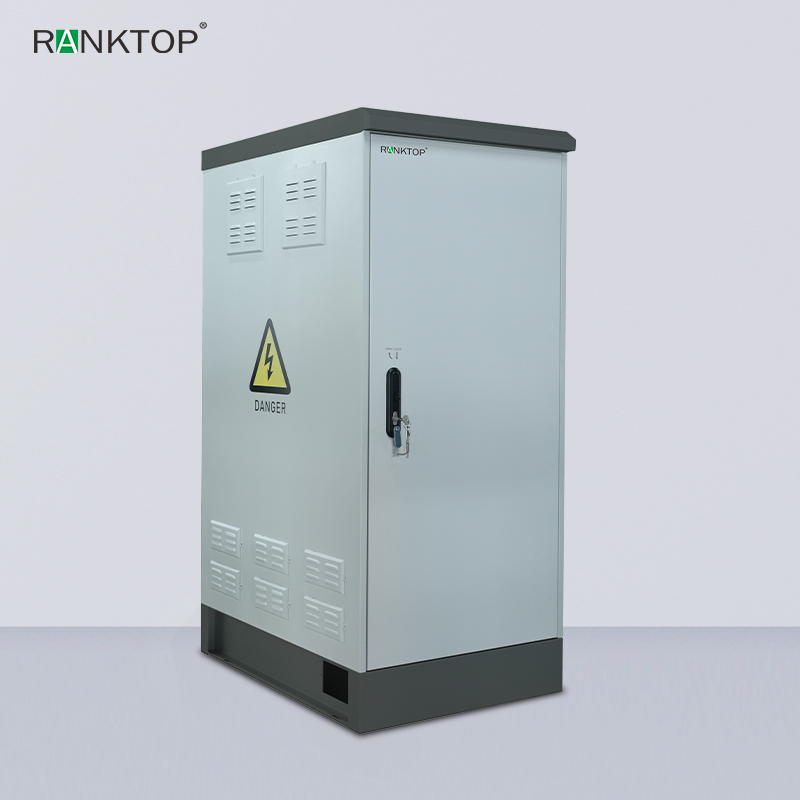

Outdoor 6.2KW/28KWH Smart BESS Cabinet Industrial and Commercial Energy Storage System

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

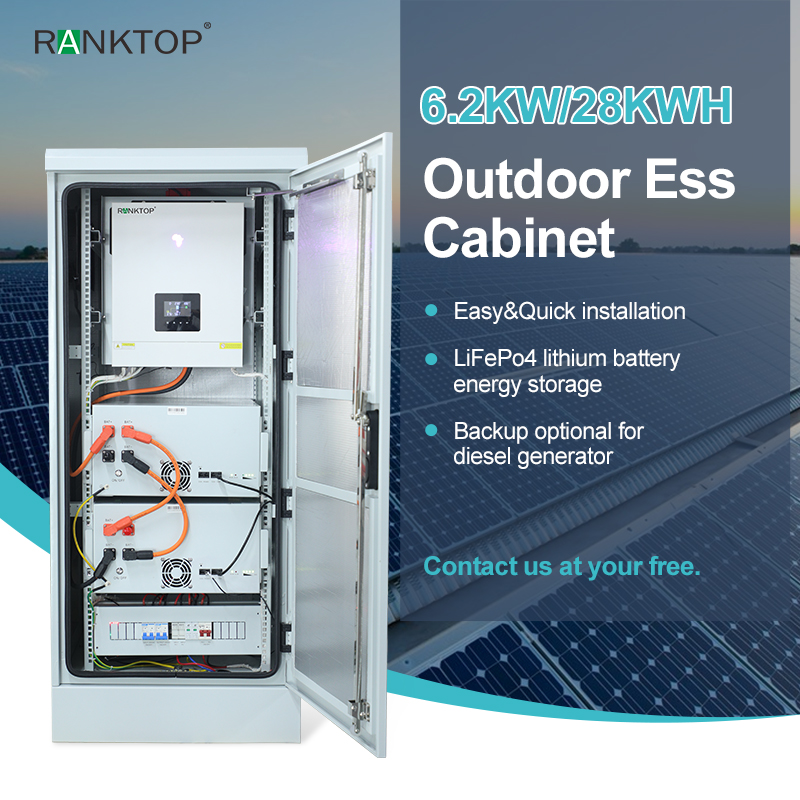

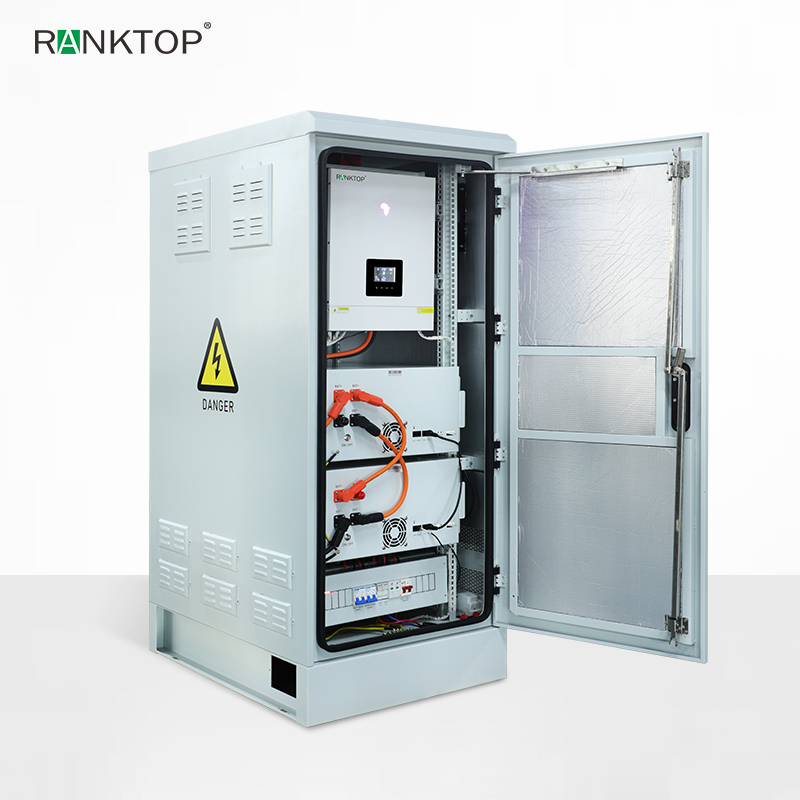

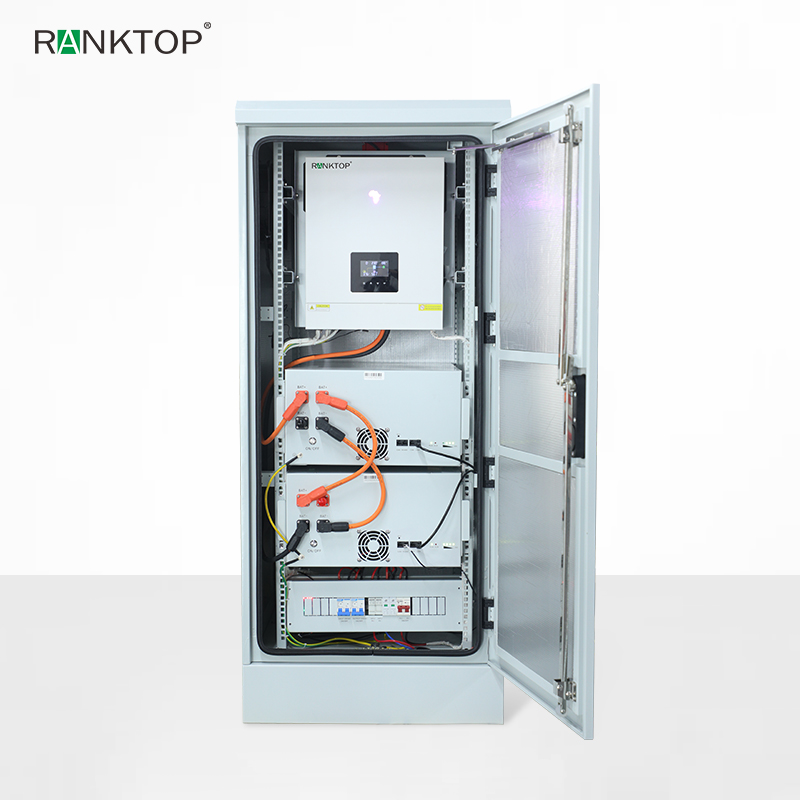

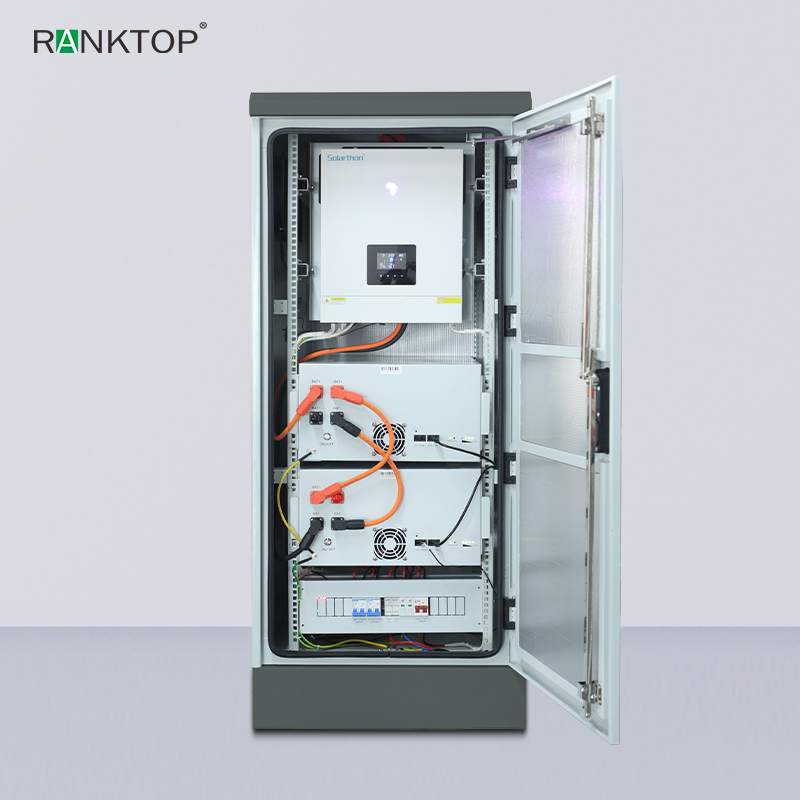

● The energy storage cabinet consists of 2 51.2V 280AH battery packs, and the 51.2V 560AH DC source supplies power to the inverter; ● Adopt 6.2KW hybrid inverter, support mains, solar energy, battery input at the same time; ● Optional mains priority or solar priority mode to supply power to the load, when there is no mains or insufcient solar energy, the battery will supply power to the load; ● Mains and solar power can charge the battery at the same time; ● High voltage battery, higher efciency, low caloric value; ● Built-in 4 x 65W fans;

Outdoor Ess Cabinet

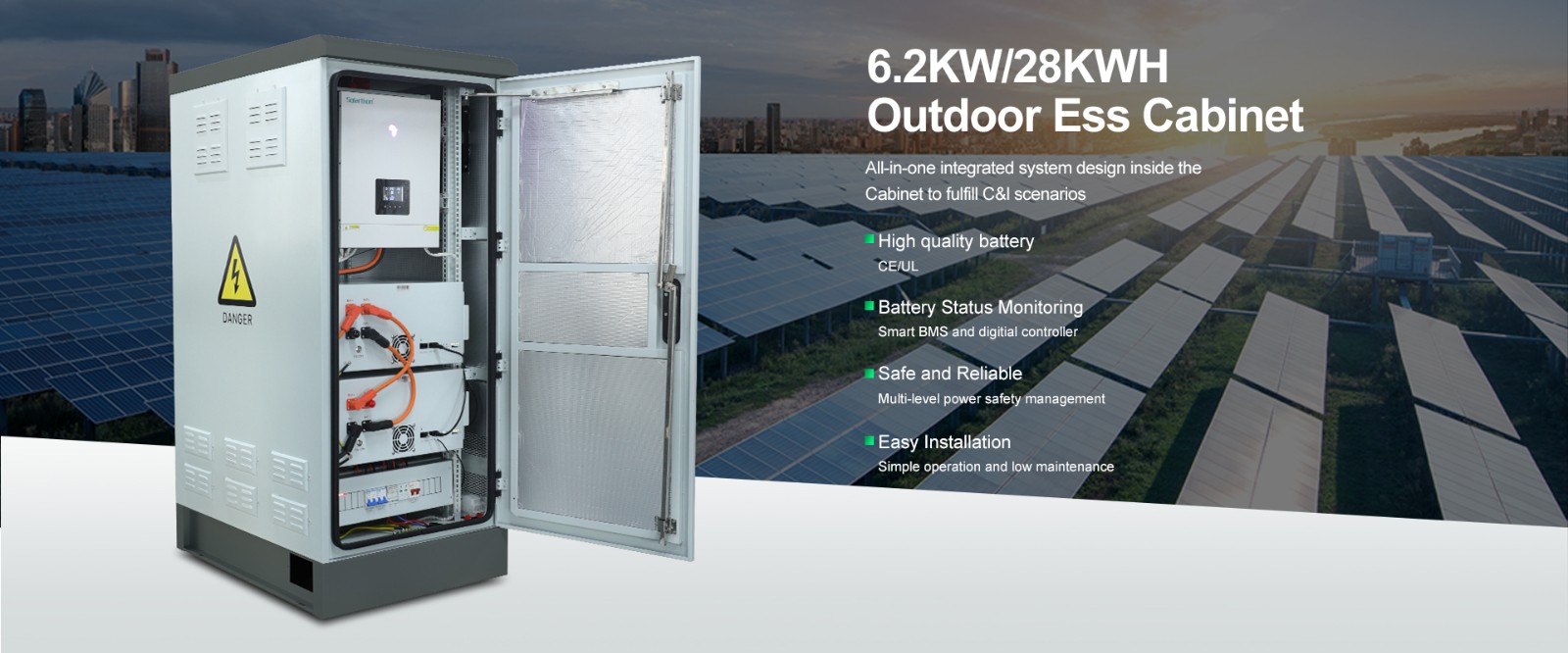

6.2KW/28KWH Outdoor Ess Cabinet

Model:DQ1908A6K2-01

DC Parameters

Battery Type: Lithium iron phosphate

Cycle Life: ≥6000

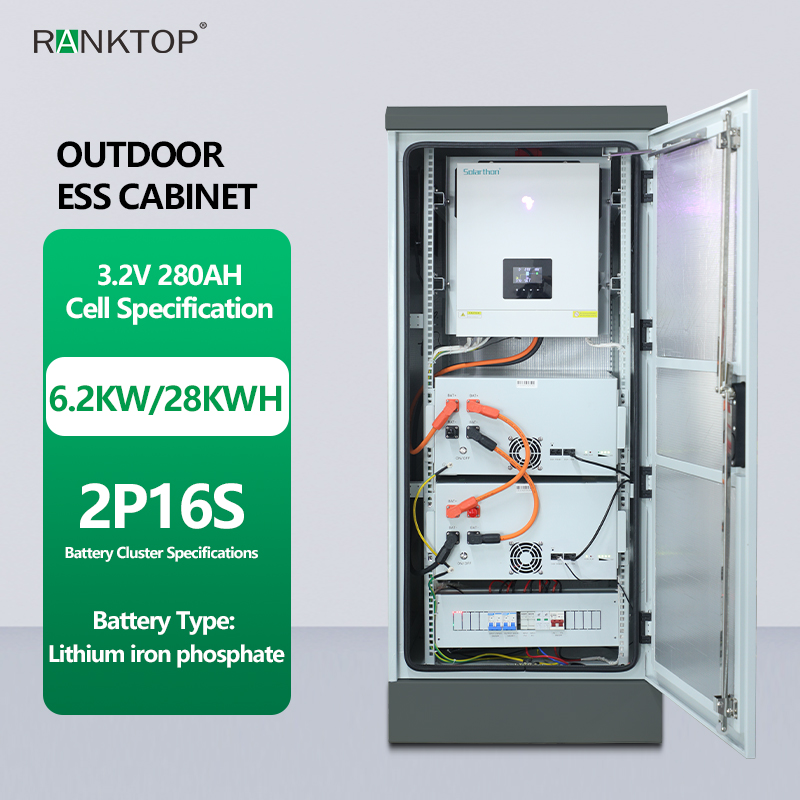

Cell Specification: 3.2V 280AH

Battery Cluster Specifications: 2P16S

Number Of Battery Clusters: 1 Cluster

Battery Rated Capacity: 28KWH

Nominal Voltage: 51.2VDC

Operating Voltage Range: 45~58VDC

AC Parameters

Rated AC Power: 6.2KW

Rated Voltage: AC230V

Maximum AC Current: 26.9A

Grid Frequency: 50/60HZ

MPPT Charger

Maximum DC Input Power: 6.5KW

Maximum DC Input Voltage: 500VDC

Starting Voltage: 90VDC

MPPT Voltage Range: 60-450VDC

DC Rated Input Voltage: 360VDC

PV Input Current: 22A

MPPT Input: 1 channel

Size(W*D*H): 898*652*1518mm

Weight:132kg

Warranty: 5 years

Product Advantage

6.2KW/28KWH Outdoor Ess Cabinet

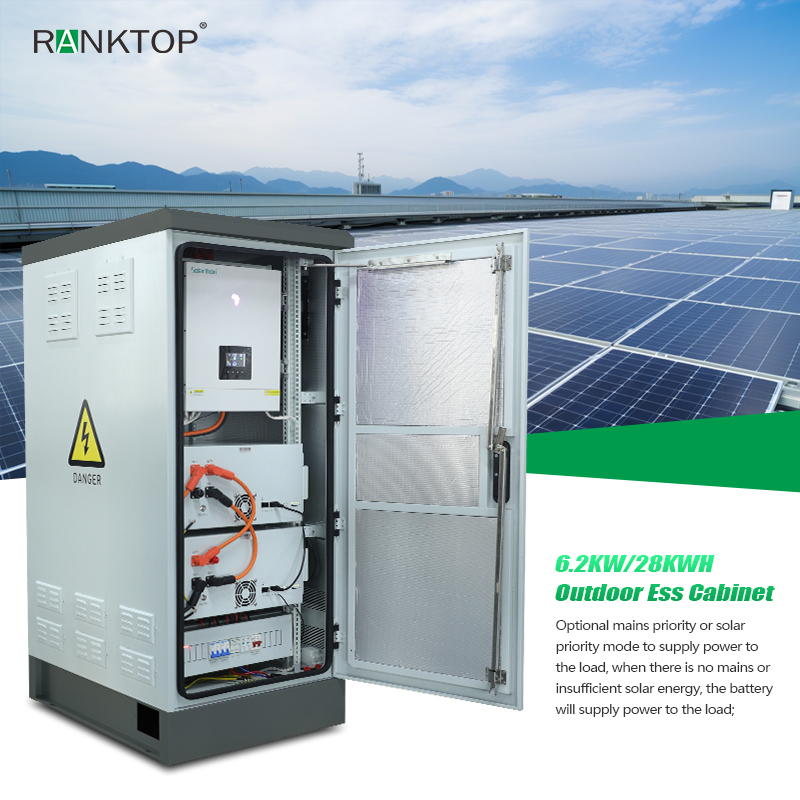

The energy storage cabinet features two 51.2V 280Ah battery packs, providing a 51.2V 560Ah DC power supply for the inverter. It uses a 6.2kW hybrid inverter that supports input from mains, solar, and batteries simultaneously. The system offers optional mains priority or solar priority modes to power the load, with the battery taking over when mains power is unavailable or solar energy is insufficient. Both mains and solar power can charge the battery concurrently.Outdoor Ess Cabinet，outdoor ess cabinet energy battery， Commercial Energy Storage Cabinet ，Camping Vehicle Energy Storage System ，Outdoor Solar Lithium Battery Energy Storage System.
The system includes a high-voltage battery with higher efficiency and lower heat generation, ensuring stable performance. Additionally, it is equipped with four 65W fans for effective cooling.Outdoor Ess Cabinet，outdoor ess cabinet energy battery， Commercial Energy Storage Cabinet ，Camping Vehicle Energy Storage System ，Outdoor Solar Lithium Battery Energy Storage System.outdoor ess cabinet energy battery， Commercial Energy Storage Cabinet .
Commercial and Industrial Energy Storage
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use.Camping Vehicle Energy Storage System.Commercial Energy Storage Cabinet.outdoor ess cabinet energy battery.
Energy independence and reduced grid power demand through solar PV and battery storage.  Ranktop provides one-stop.Camping Vehicle Energy Storage System.Commercial Energy Storage Cabinet.
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.Outdoor Solar Lithium Battery Energy Storage System.outdoor ess cabinet energy battery.
