Solar Battery Energy Storage System 77KW Off Grid Industrial Commercial Energy Storage Container Battery
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

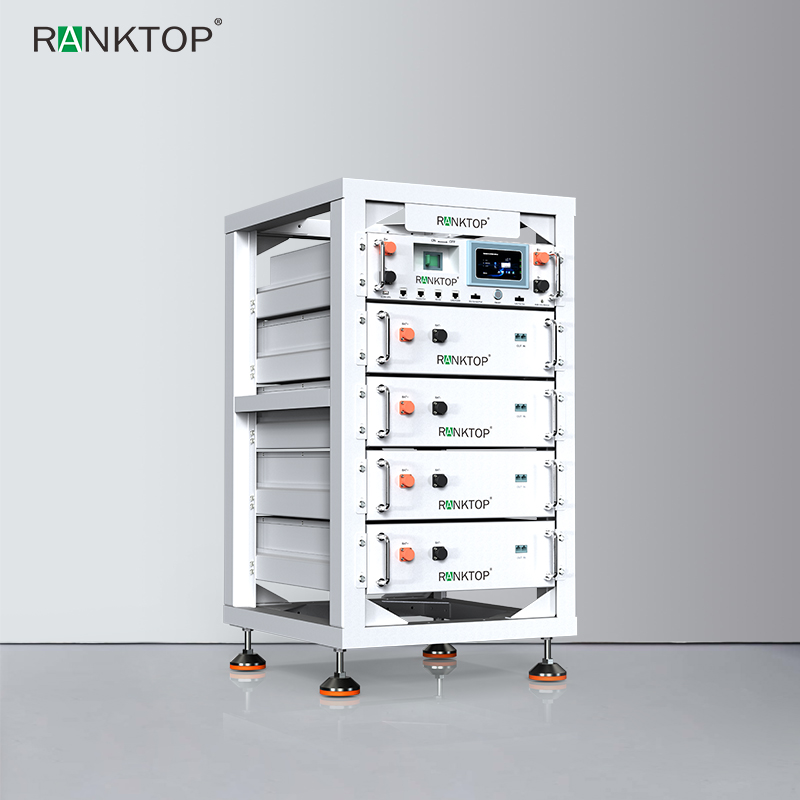

204.8V 100AH Vertically Stacked Energy Storage Battery Pack
Model:DQ2910A20-01
Battery Type: LiFePO4
Nominal Voltage: 204.8V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 230.4V
Discharging Cut-off Voltage: 179.2V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1020mm
Weight: 242kg
Warranty: 5 years

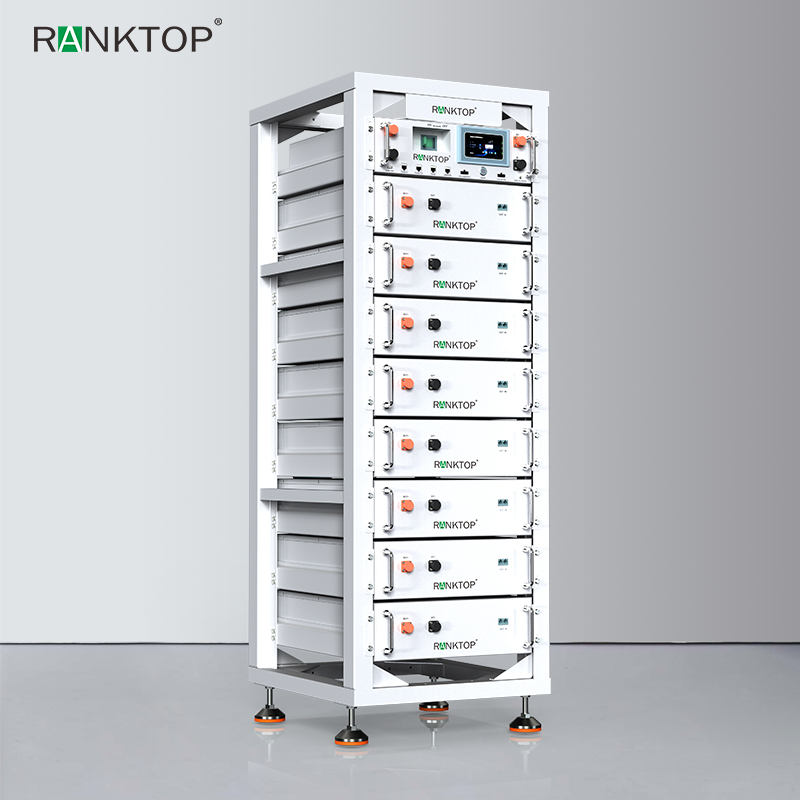

409.6V 100AH Vertically Stacked Energy Storage Battery Pack
Model：DQ2910B40-01
Battery Type: LiFePO4
Nominal Voltage: 409.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 460.8V
Discharging Cut-off Voltage: 358.4V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1604mm
Weight: 443kg
Warranty: 5 years

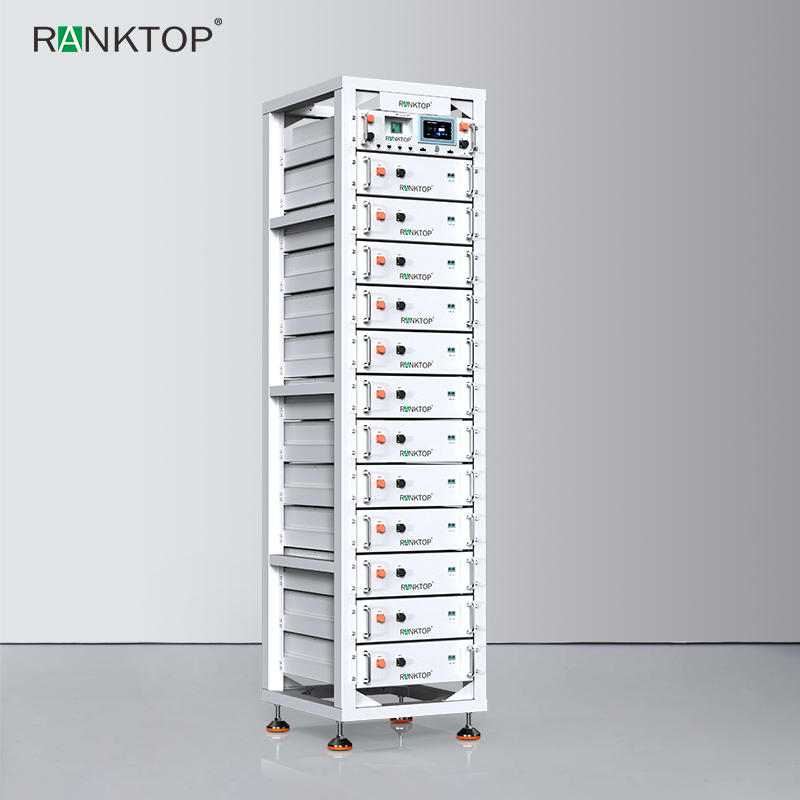

614.4V 100AH Vertically Stacked Energy Storage Battery Pack
Model:DQ2910C60-01
Battery Type: LiFePO4
Nominal Voltage: 614.4V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 691.2V
Discharging Cut-off Voltage: 537.6V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*2188mm
Weight: 644kg
Warranty: 5 years

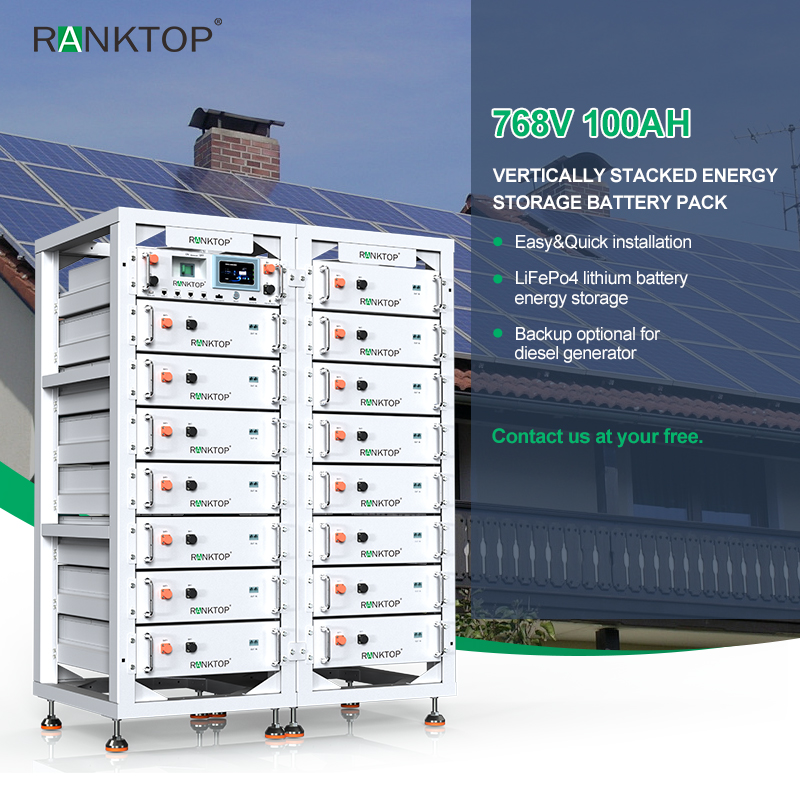

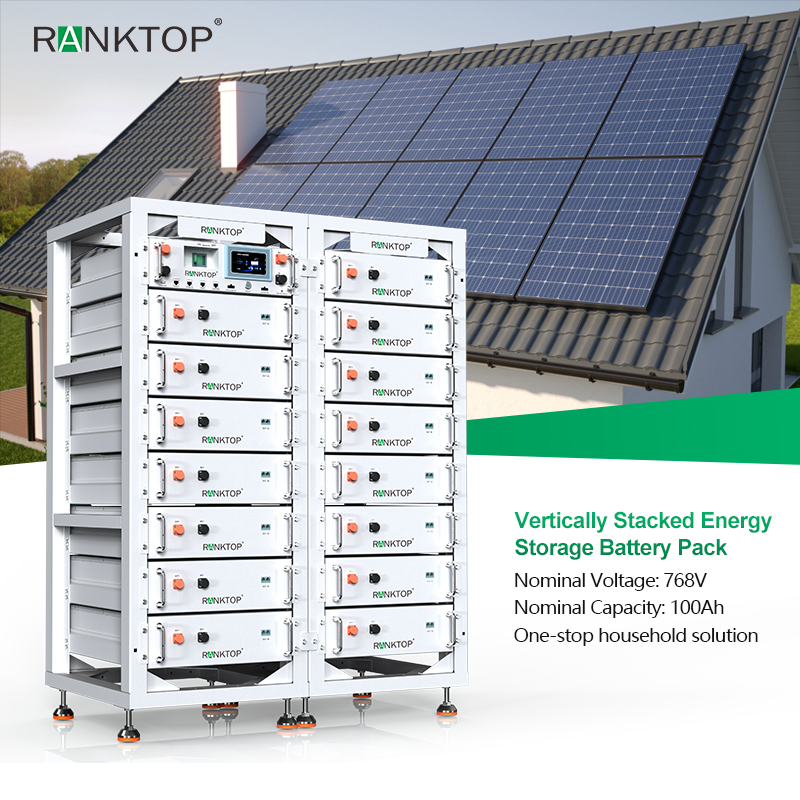

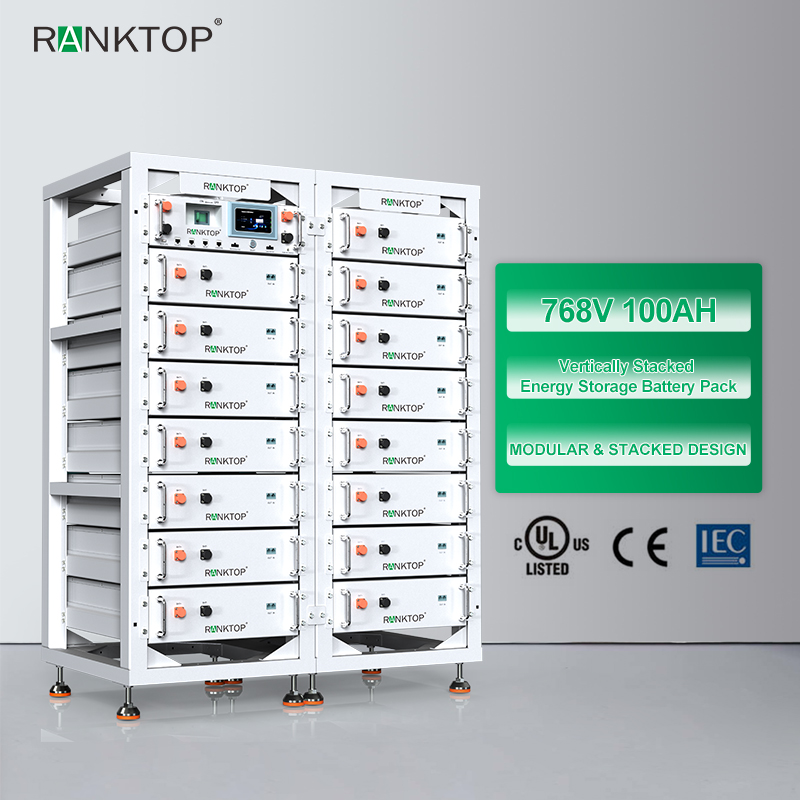

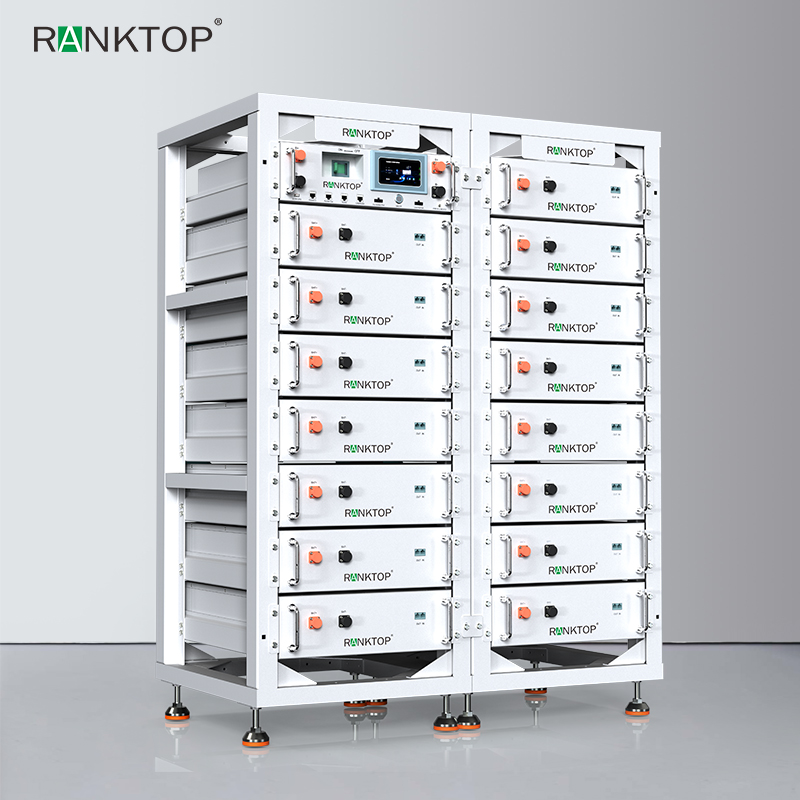

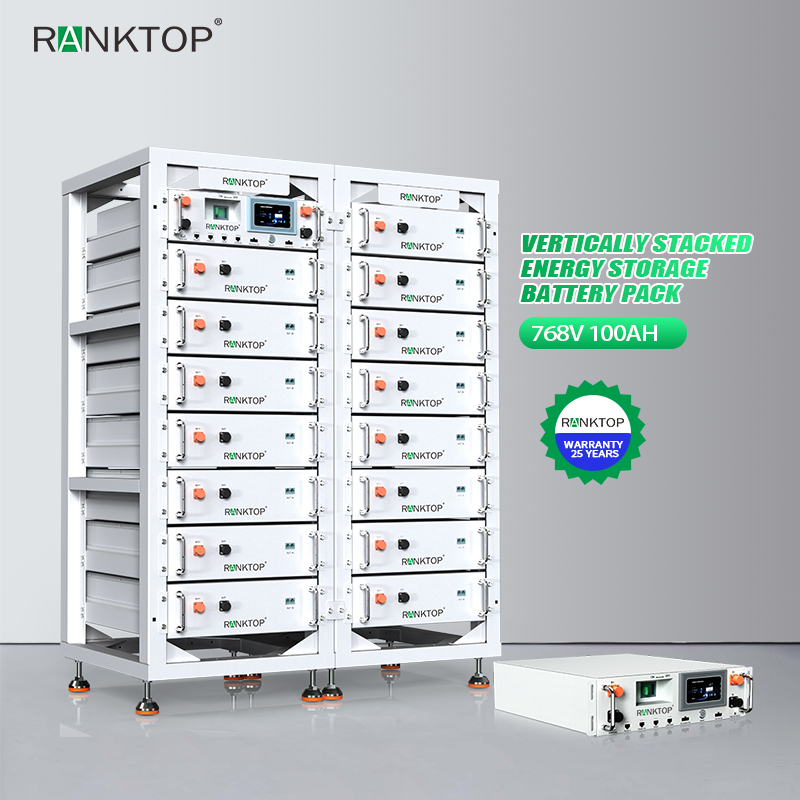

768V 100AH Vertically Stacked Energy Storage Battery Pack
Model：DQ2910D77-01
Battery Type: LiFePO4
Nominal Voltage: 768V
Nominal Capacity: 100Ah
Charging Cut-off Voltage:865V
Discharging Cut-off Voltage: 672V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 1099*610.5*1454mm
Weight: 813kg
Warranty: 5 years
Product Advantage

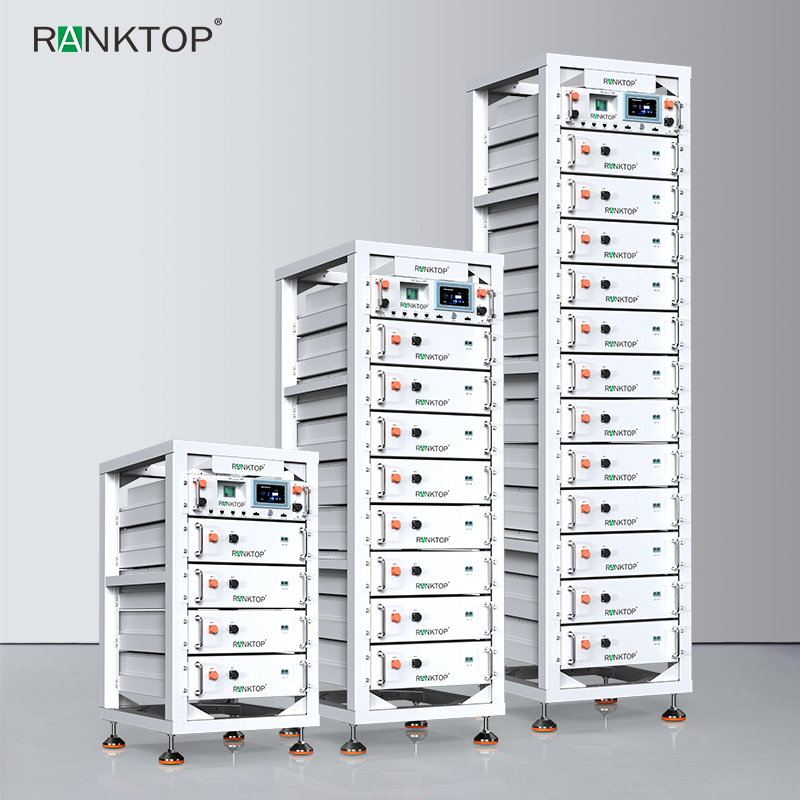

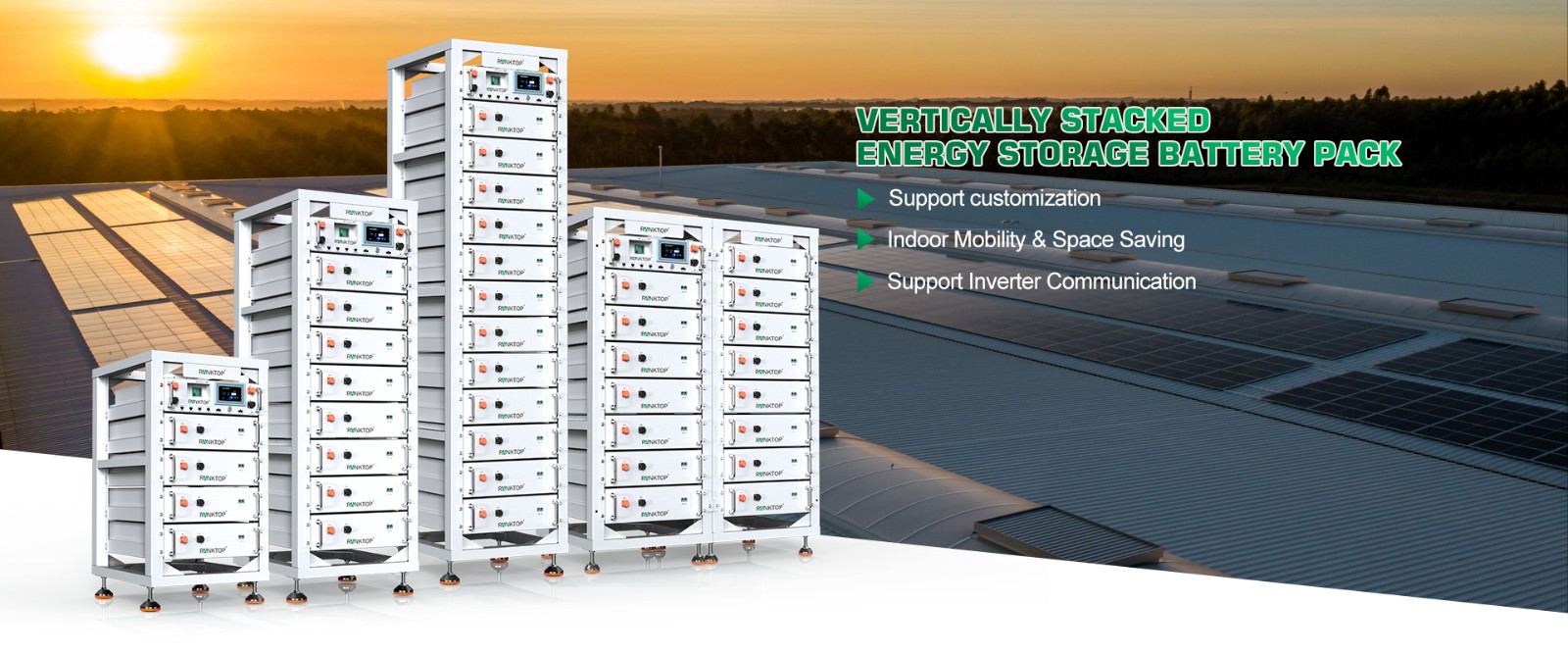

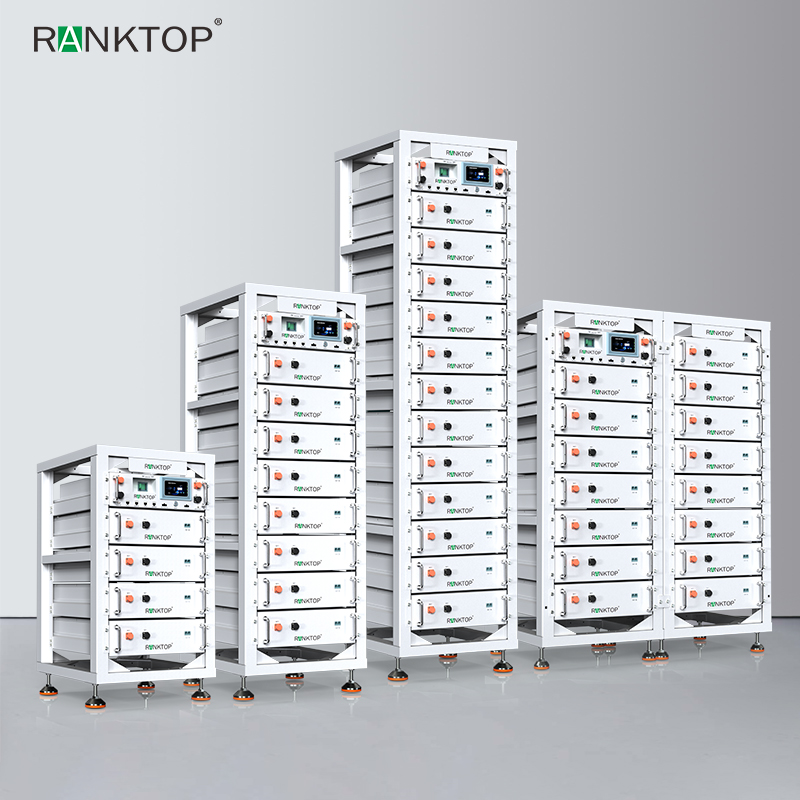

20kw,40kw,60kw,77kw Vertically Stacked Energy Storage Battery Pack
Product Features:
Modular: Compact size and light weightSafty: Safe lithium iron phosphate battery cell.
Long lifetime: 6000 cycles, 20 years design life.
Easy installation: Standard design with helpful pilling ear.
Parallel: Support in parallels connection for higher storage capacity.
Smart: Each module is equipped with an independent BMS system for cell.balancing,overcharged,over discharged,over current or short circuit,over temperature.
Efficient: High round-trip efficiencies up to 95%.solar storage battery stackable，battery energy storage system with solar，Lithium lon Batteries Solar Energy Storage，Camping Vehicle Energy Storage System，solar energy battery storage system.
Certified: UL, CE, UN38.3, IEC62619 and other certifications.solar storage battery stackable，battery energy storage system with solar，Lithium lon Batteries Solar Energy Storage，Camping Vehicle Energy Storage System，solar energy battery storage system.
It can be used as backup power supply at night time, or in bad weather days or when grid fails. Also battery can store energy generated throughout off-peak times and then discharge it during peak times, aiding in both peak shifting (by supplying stored enerfy at peak periods) and load shifting (by charging at off-peak period), which can save electricity bills.Contact us today to discuss your energy storage needs!
