Solar Energy Commercial Industrial All In One Lifepo4 Lithium Battery Storage Systems Container
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

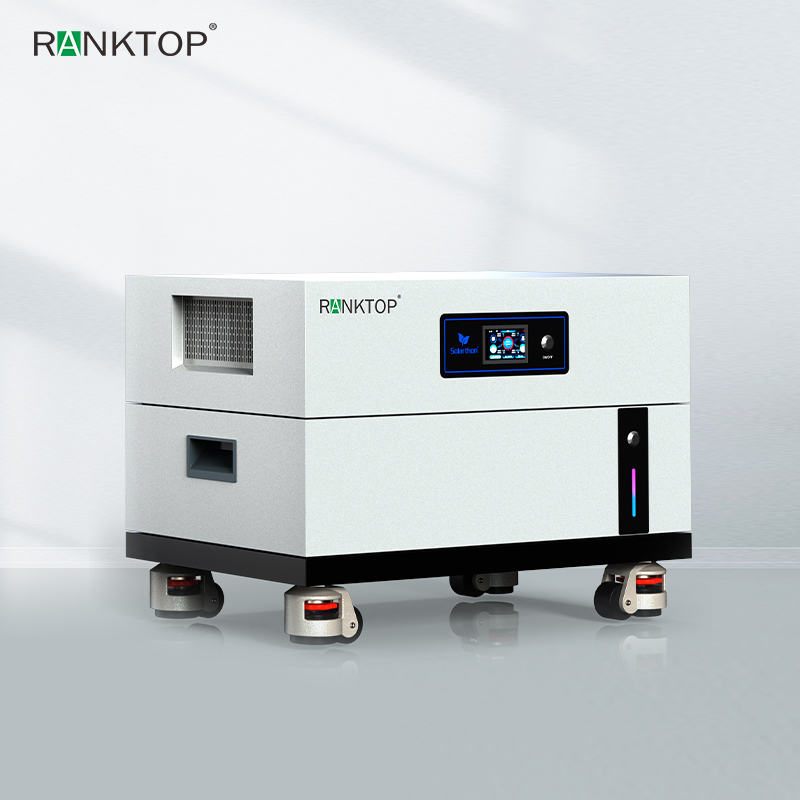

5.6KW/5KWH Flat Layer Stacked Energy Storage
Model:DQ1911A5K6-01
Rated Power: 5.6KW
LiFePO4 Battery: 100Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range:170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions:610*410*490mm
Warranty: 3 years

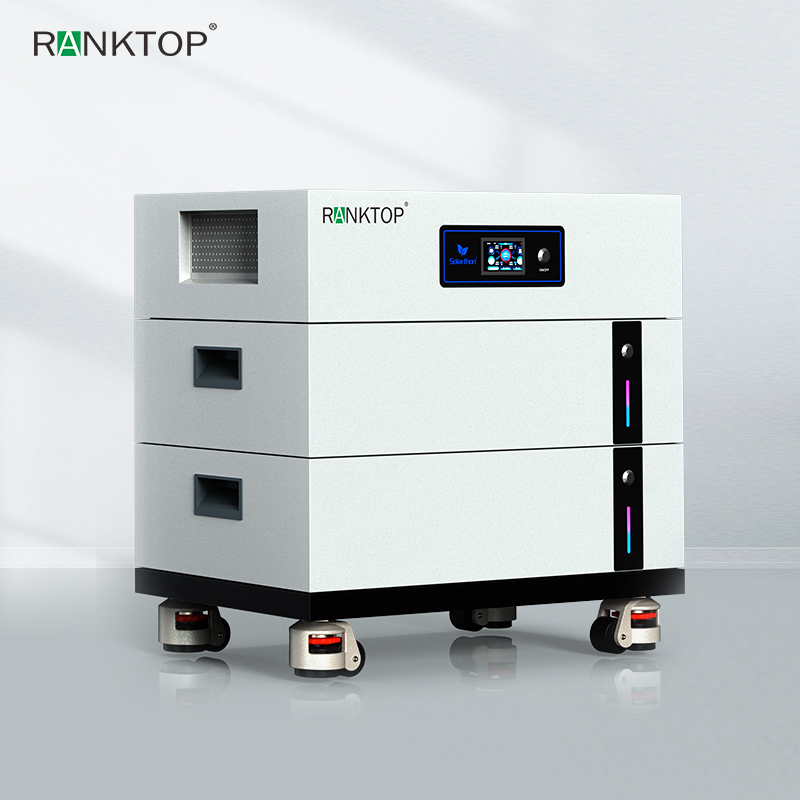

5.6KW/10KWH Flat Layer Stacked Energy Storage
Model：DQ1911B5K6-01
Rated Power: 5.6KW
LiFePO4 Battery: 200Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 610*410*652mm
Warranty: 3 years

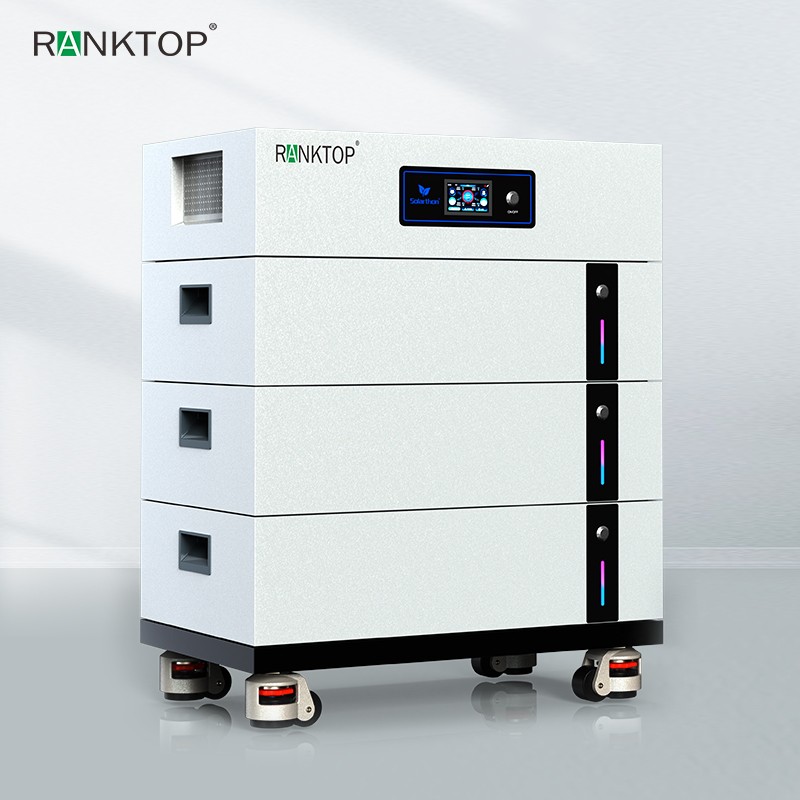

5.6KW/15KWH Flat Layer Stacked Energy Storage
Model: DQ1911C5K6-01
Rated Power: 5.6KW
LiFePO4 Battery: 300Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 610*410*813mm
Warranty: 3 years

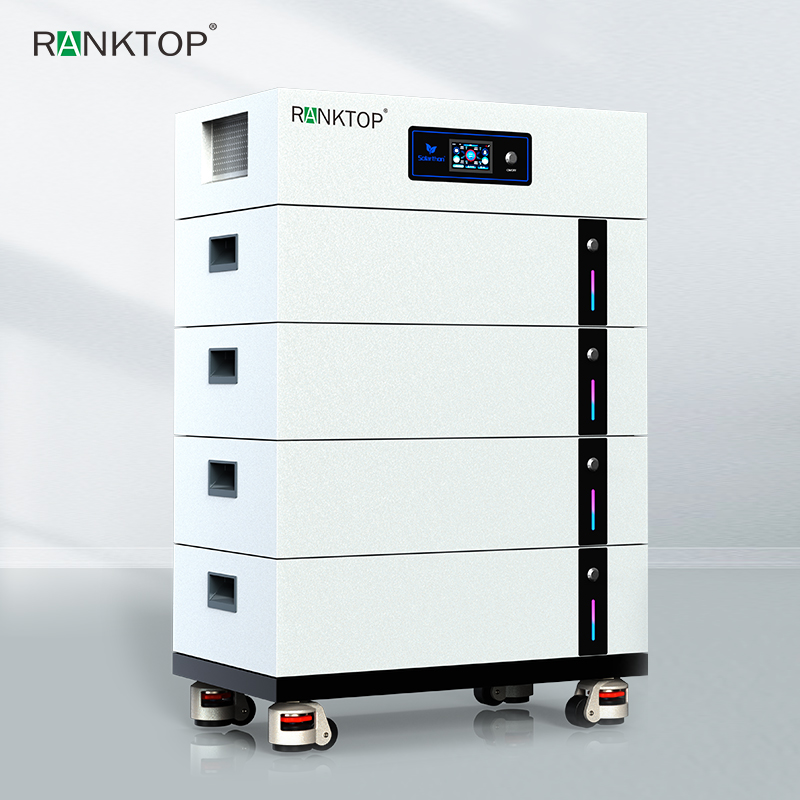

5.6KW/20KWH Flat Layer Stacked Energy Storage
Model：DQ1911D5K6-01
LiFePO4: 5.6KW
Lithium Battery: 400Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 610*410*975mm
Warranty: 3 years
Product Advantage
Flat-stacked energy storage system

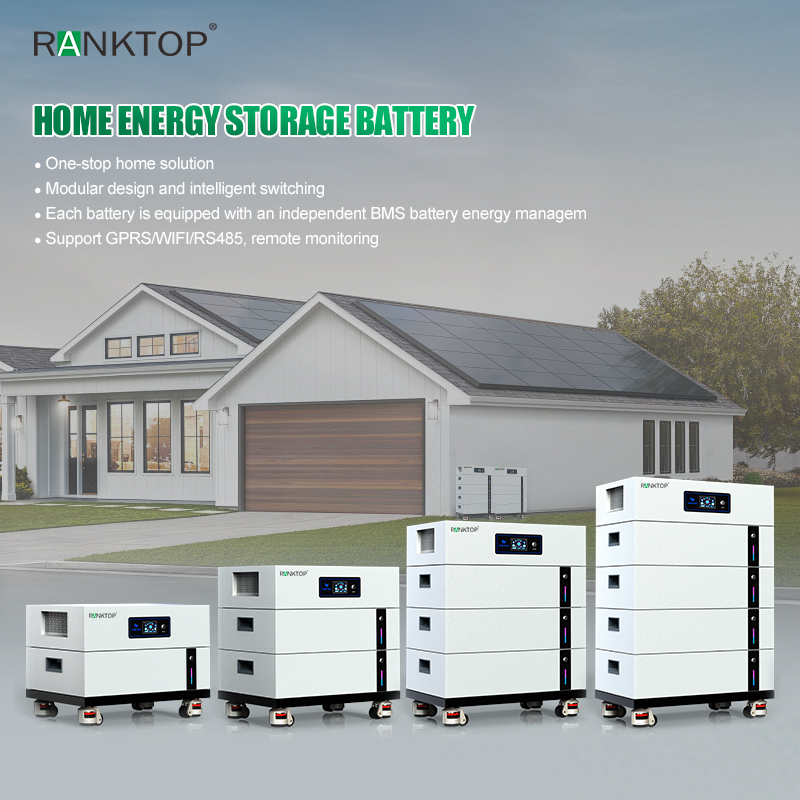

5.6KW/5KWH 5.6KW/10KWH 5.6KW/15KWH 5.6KW/20KWH
Flat Layer Stacked Energy Storage batteries are devices used for household energy storage, typically consisting of multiple battery modules stacked together and equipped with related control systems. Compared to traditional wound batteries, our factory's stacked battery can fully utilize the corner space of the battery, thereby providing higher energy density in the same volume. This design increases the energy density by about five percent, making the battery more efficient in storing and transporting energy. In addition, stacked energy storage batteries adopt a modular design, allowing users to flexibly expand or reduce battery capacity according to their needs, meeting different energy demands and available space.Battery Storage Systems Container, High Voltage Solar Lifepo4 Battery, Home Solar Energy Storage System Backup, Residential Home Solar Energy Storage System.

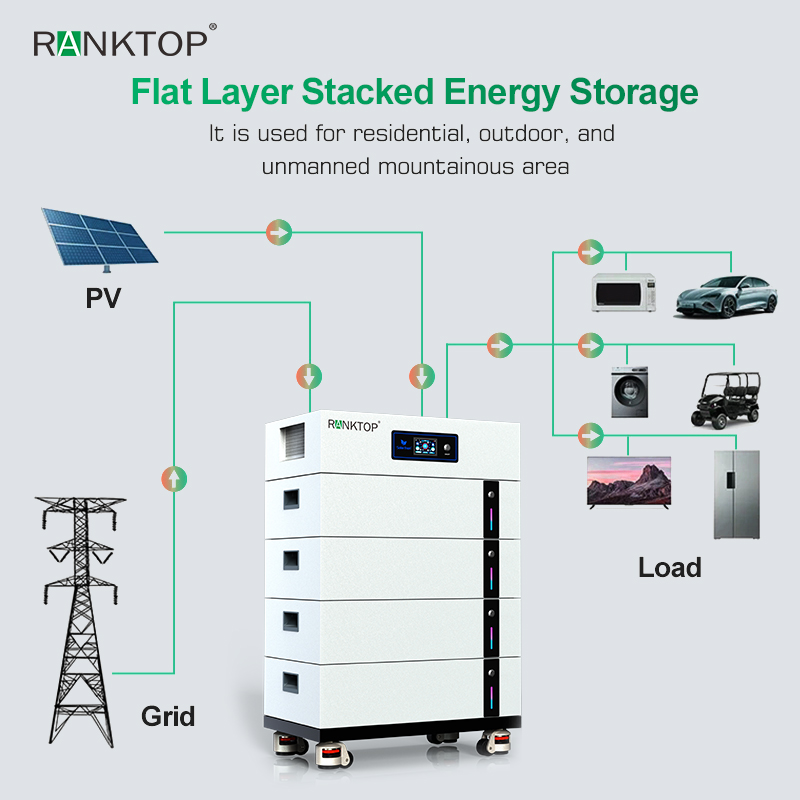

he following figure shows the system application scenario of this product. A complete system includes the following parts:
1.Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load. Battery Storage Systems Container, High Voltage Solar Lifepo4 Battery, Home Solar Energy Storage System Backup, Residential Home Solar Energy Storage System.
2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module. Battery Storage Systems Container, High Voltage Solar Lifepo4 Battery, Home Solar Energy Storage System Backup, Residential Home Solar Energy Storage System.3. Battery: The role of the battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.Battery Storage Systems Container, High Voltage Solar Lifepo4 Battery, Home Solar Energy Storage System Backup, Residential Home Solar Energy Storage System.
5.Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.Battery Storage Systems Container, High Voltage Solar Lifepo4 Battery, Home Solar Energy Storage System Backup, Residential Home Solar Energy Storage System.
It can be used as backup power supply at night time, or in bad weather days or when grid fails. Also battery can store energy generated throughout off-peak times and then discharge it during peak times, aiding in both peak shifting (by supplying stored enerfy at peak periods) and load shifting (by charging at off-peak period), which can save electricity bills.Contact us today to discuss your energy storage needs!
