Solar Energy System for Manufacturing Plants & Large Facilities Off/On Grid Solar System

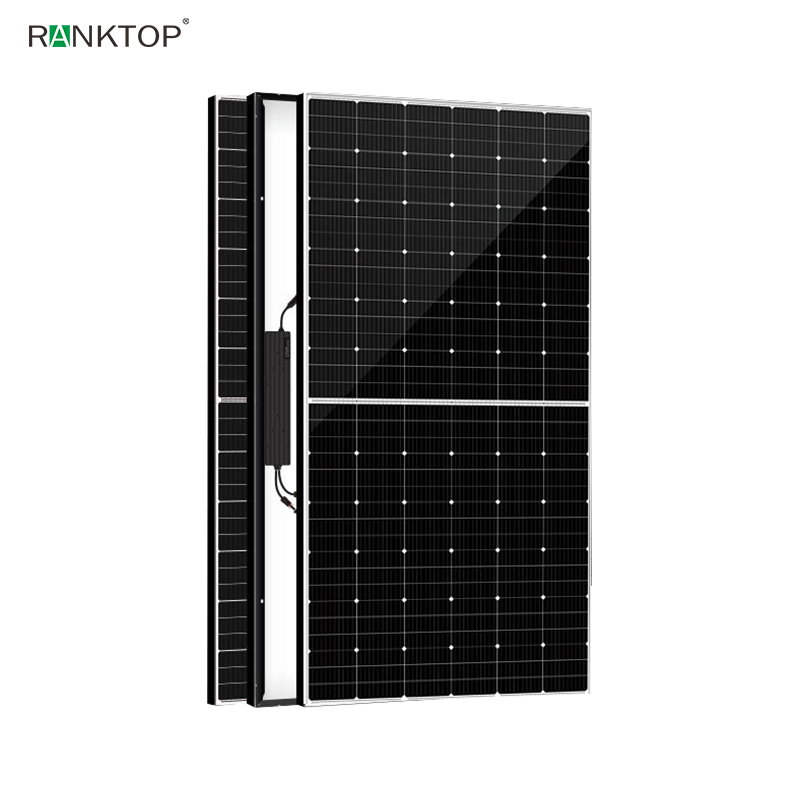

550W Mono Half Cell PERC Solar Panel

• Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

• Size: 2279*1134*35mm

• weight: 28.3kg

• 25 years life span

• Linear performance: 25 years 80 % ; 10 years 90%

• Connection: 8 pcs In Series

8KW Three Phase Hybrid Inverter

• Rated Output Power: 8KW

• Rated Output Voltage: 400VAC, 50Hz/60Hz

• MPPT Number/Road: 2/1+1

• MPPT Voltage Range: 150~850V

• Full Load Voltage Range: 260~850V

• PV Input Current: 20+20A

• Battery Voltage Range : 160-700VDC

• Number Of Battery Input: 1

• Max. Charging Current: 37A

• Max. Discharging Current: 37A

• Max. Efficiency: 97.60%

• Protection Class: IP65

• Size: 408*638*237mm

• Weight: 30.5kg

• Warranty: 5 Years

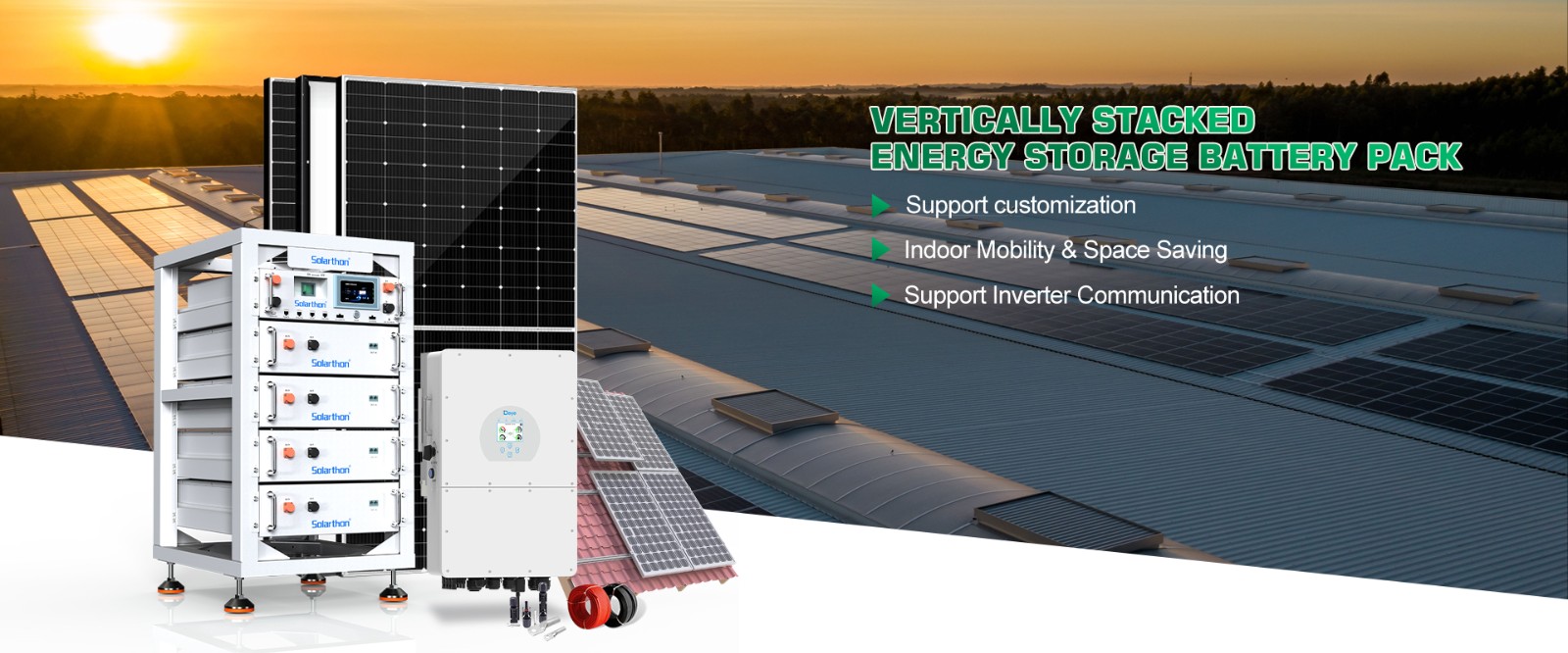

204.8V 100AH Vertically Stacked Energy Storage Battery Pack

• Battery Type: LiFePO4

• Nominal Voltage: 204.8V

• Nominal Capacity: 100Ah

• Charging Cut-off Voltage: 230.4V

• Discharging Cut-off Voltage: 179.2V

• Max. Cont. Charging/Discharging Current: 100A

• Max. Instantaneous Charge/Discharge Current: 100A

• Cycle Life: ≥6000

• Product Size: 610.5*549*1020mm

• Weight: 242kg

• Warranty: 5 years

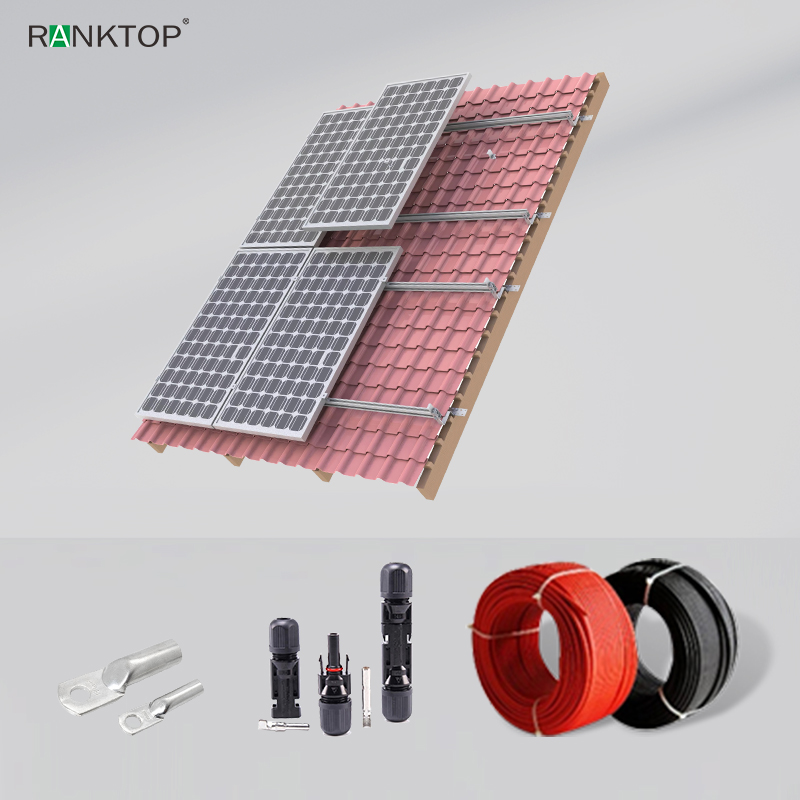

Solar System Accessories

• Slope Roof Mounting Structure

• wind load: 55m/s,snow load:1.5kn/m2

• structure: Anodized Aluminum

•


• 4mm² PV cable: 100m, Red

• 4mm² PV cable: 100m, Black

• 35mm^² PV Wire, Red, 5m

• 35mm^² PV Wire, Black, 5m

• MC4 Connector, Male Plug

• MC4 Connector, Female Plug

• Copper Lug: 35mm²

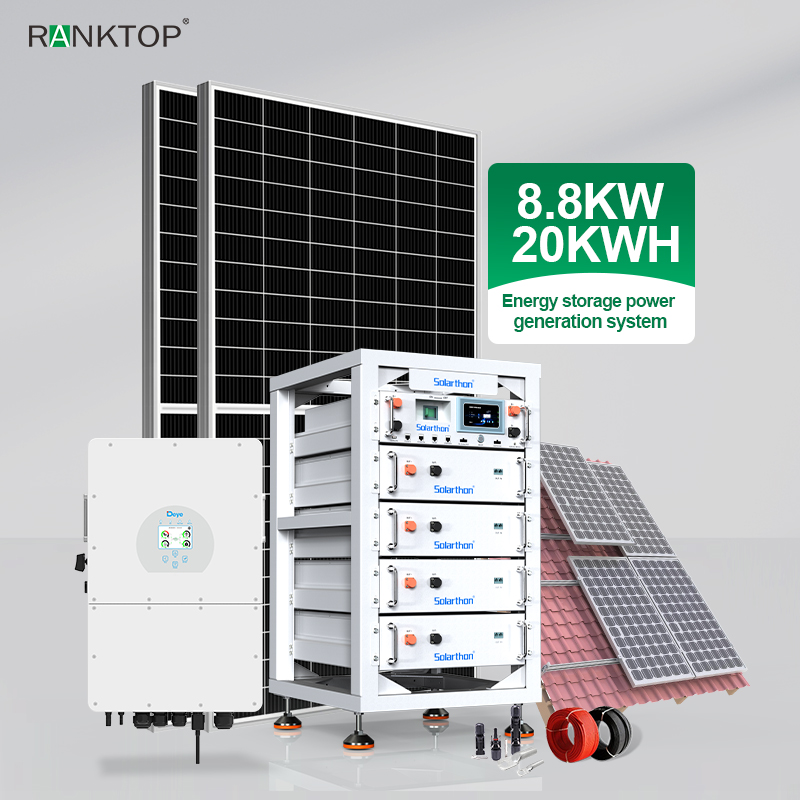

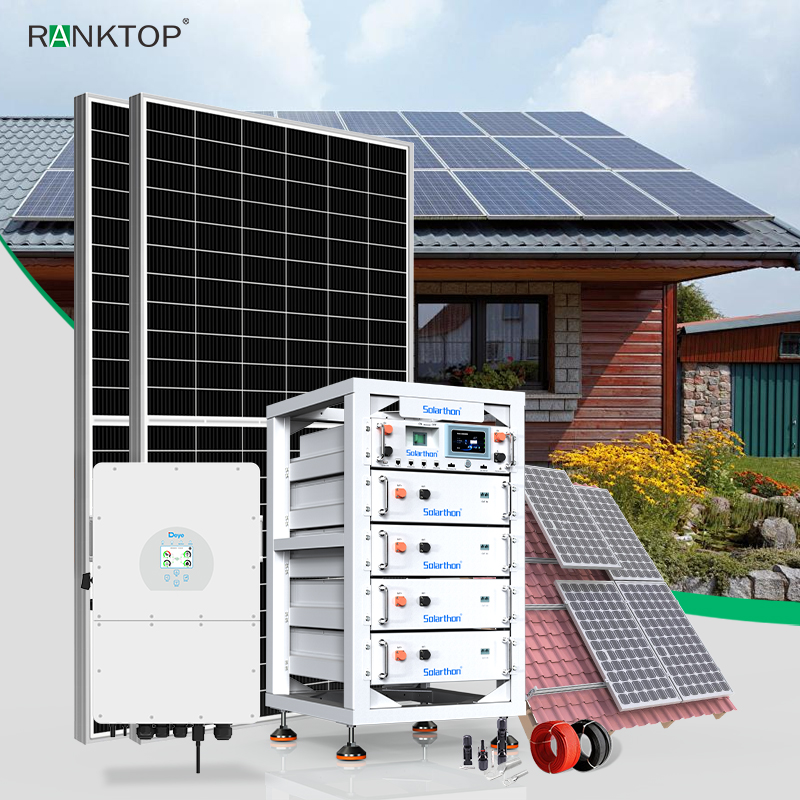

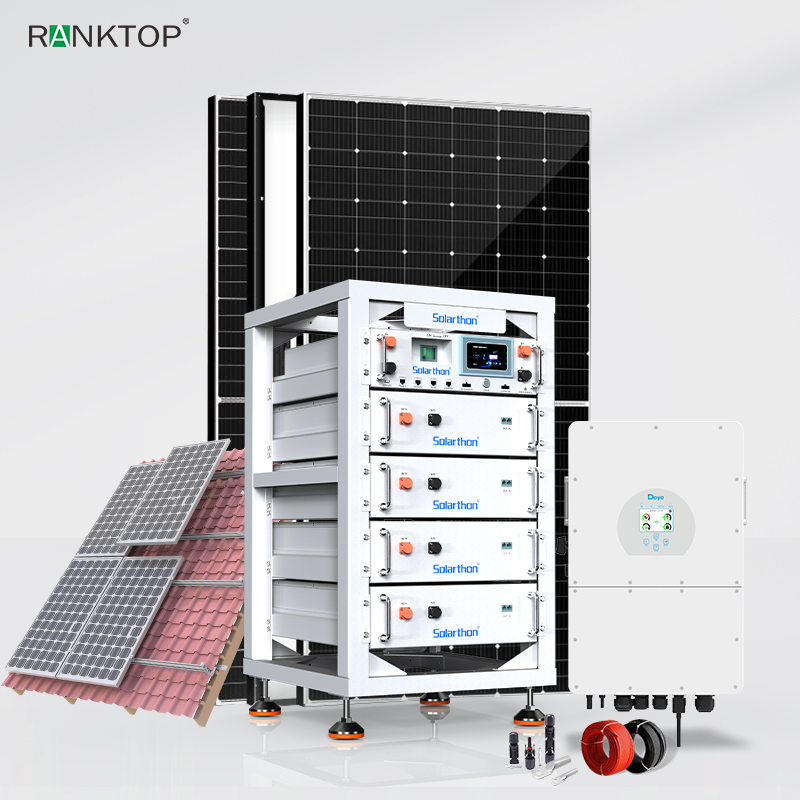

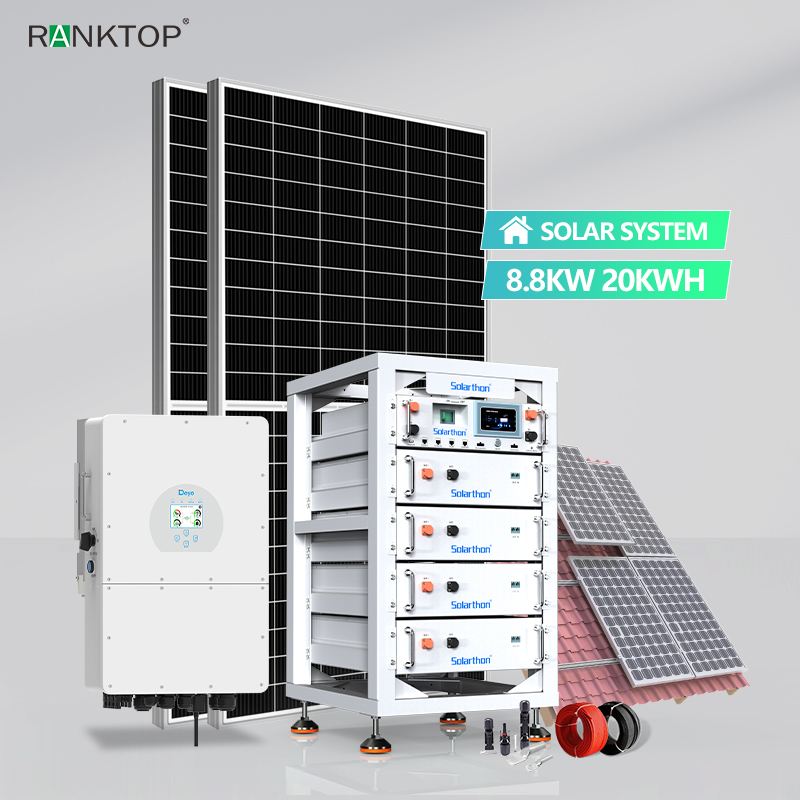

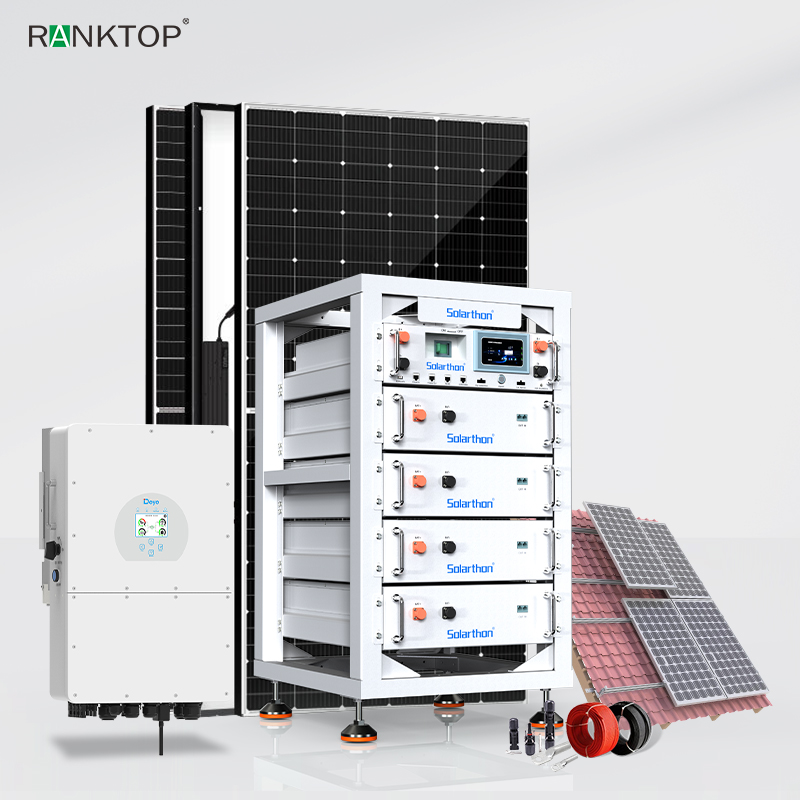

Intelligent Hybrid Solar Energy Storage System | 8.8KW 20KWH Vertical Stacked Design

Deep Cycle long lifespan. Achieve long-lasting power with our deep cycle batteries, designed for extended lifespan and unwavering reliability.
High discharge performance. Experience robust power with our batteries' high discharge performance, providing reliable energy when it counts most.
Easy installation and Maintenance-free. Enjoy hassle-free energy solutions with our easy-to-install, maintenance-free designs, simplifying system management.
AGM/GEL/Lithium Ion Battery Type. Choose from our diverse battery options, including AGM, GEL, and Lithium Ion, each designed to meet various energy needs.
High Voltage Battery. Achieve powerful energy storage capabilities with our high voltage batteries, ideal for a wide range of demanding applications.
More than 6000 times, up to 90% DOD. Experience extended operational life with over 6000 cycles and up to 90% depth of discharge, ensuring longevity and efficiency.
Wide suitability of ambient temperature range. Our batteries are engineered for reliable operation across a vast range of ambient temperatures, providing peace of mind in diverse environments.

Engineered for both home and business applications, this state-of-the-art energy storage solution combines high-voltage capacity with advanced technology, making it the perfect backup power system for your needs.
