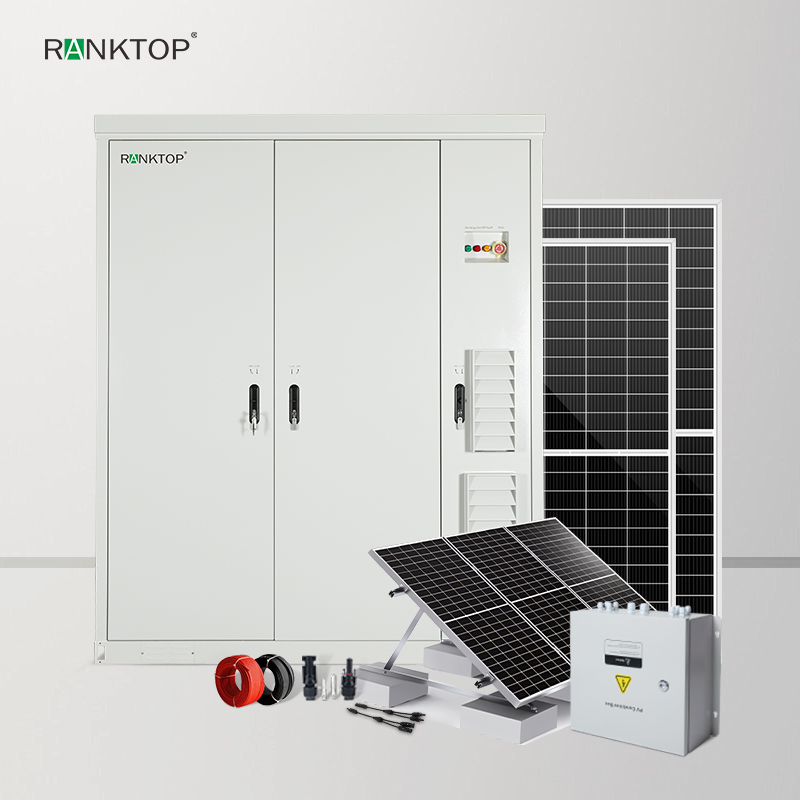

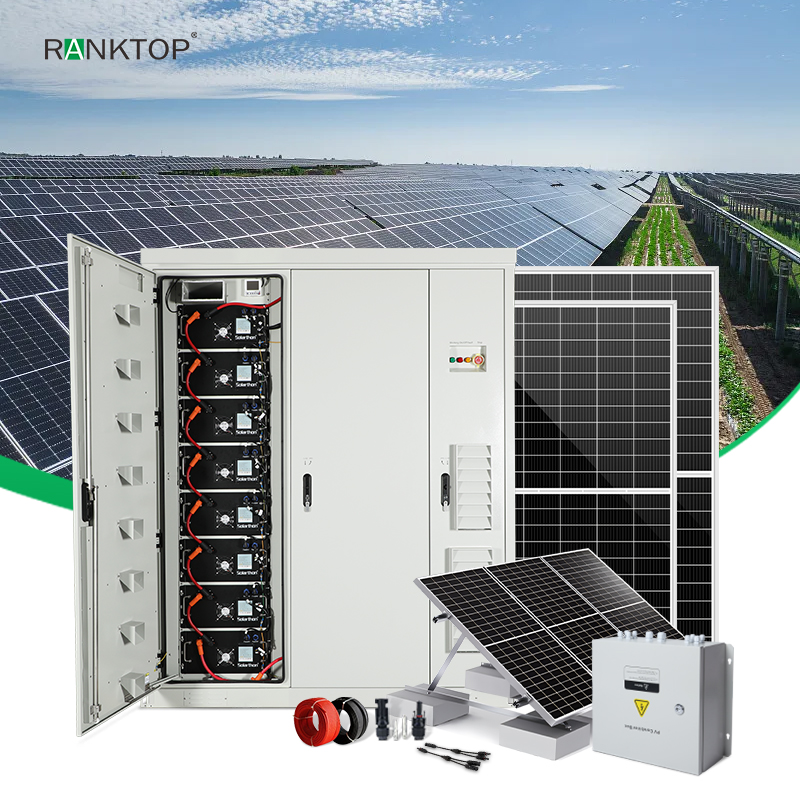

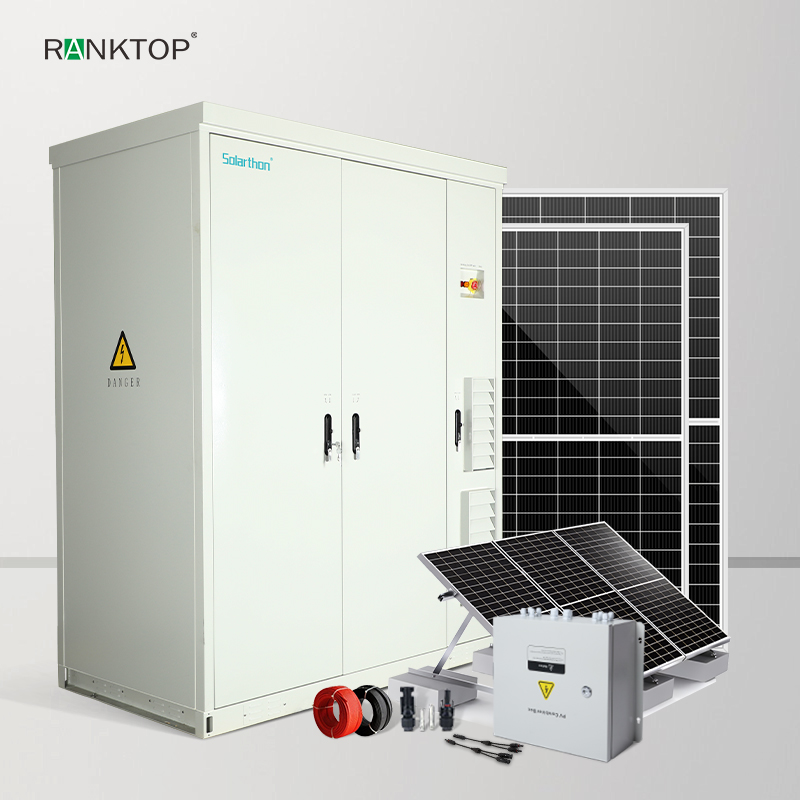

Solar Energy System100Kw With 215KWh Commercial All in One Solar System Storage Battery Cabinet

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

The energy storage container system plays a vital role in various application scenarios. It is widely used in PV stations and lithium energy storage batteries, effectively addressing the intermittency of solar power and providing stable grid support. The system can also be applied to wind farm grid-side storage, where the Battery Management System (BMS) enables frequency regulation for stable grid operation. On the grid side, it offers peak shaving, valley filling, frequency and voltage regulation, enhancing grid flexibility and reliability. In industrial and commercial settings, it integrates with solar charging systems to form a PV-storage-charging solution, meeting clean energy needs and reducing electricity costs.

Solar Power System Commercial

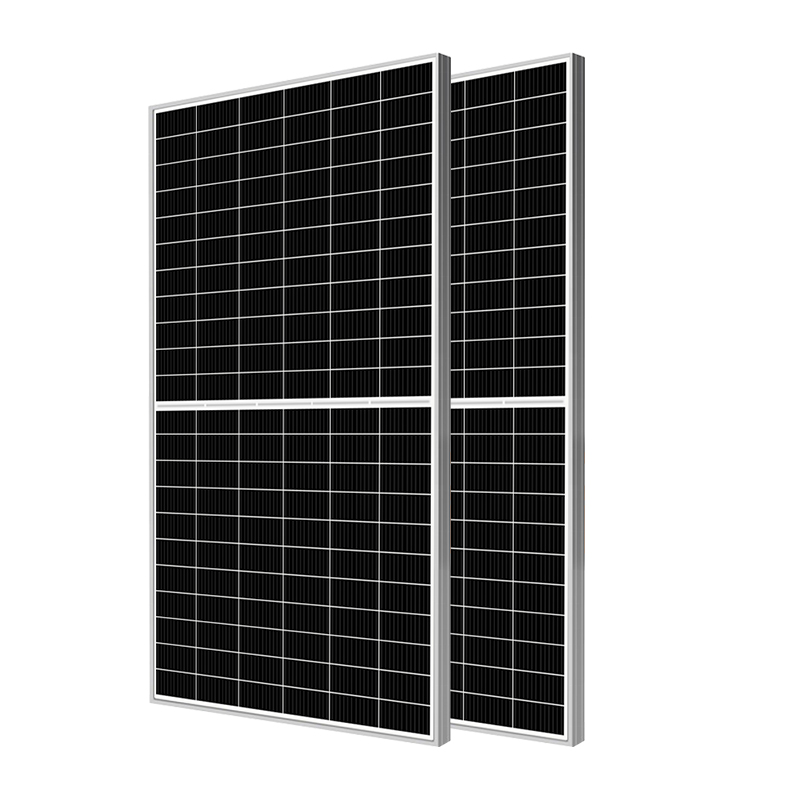

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 12 pcs In Series

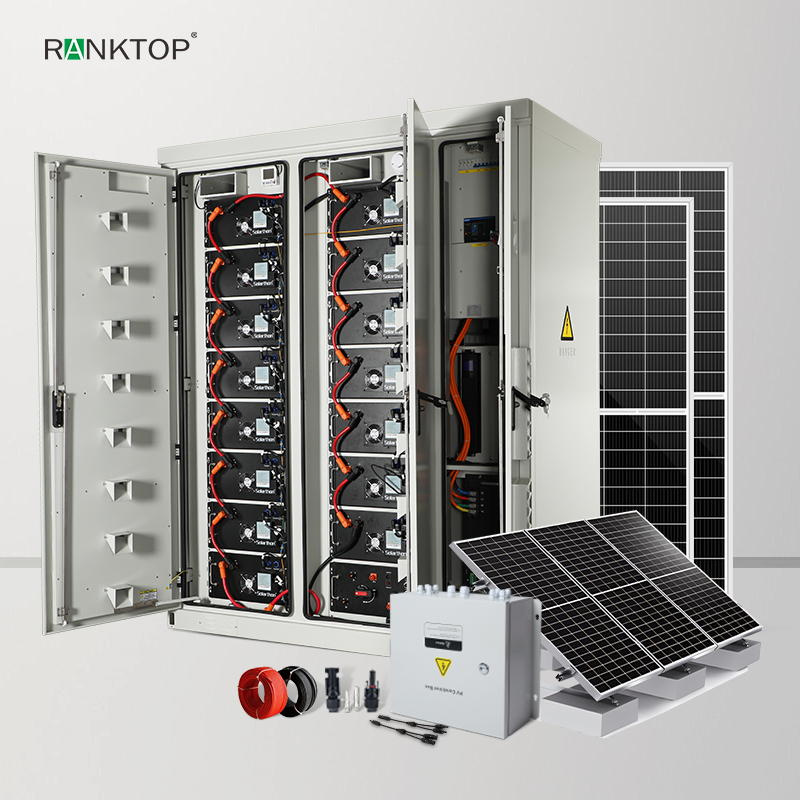

215KWH ESS with 100KW PCS and Solar Charging System

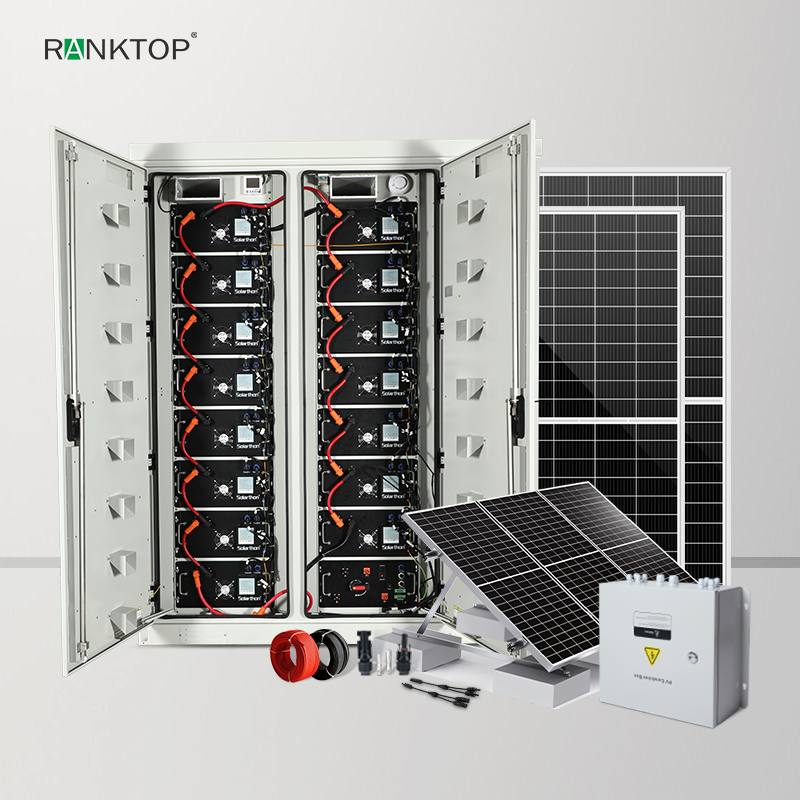

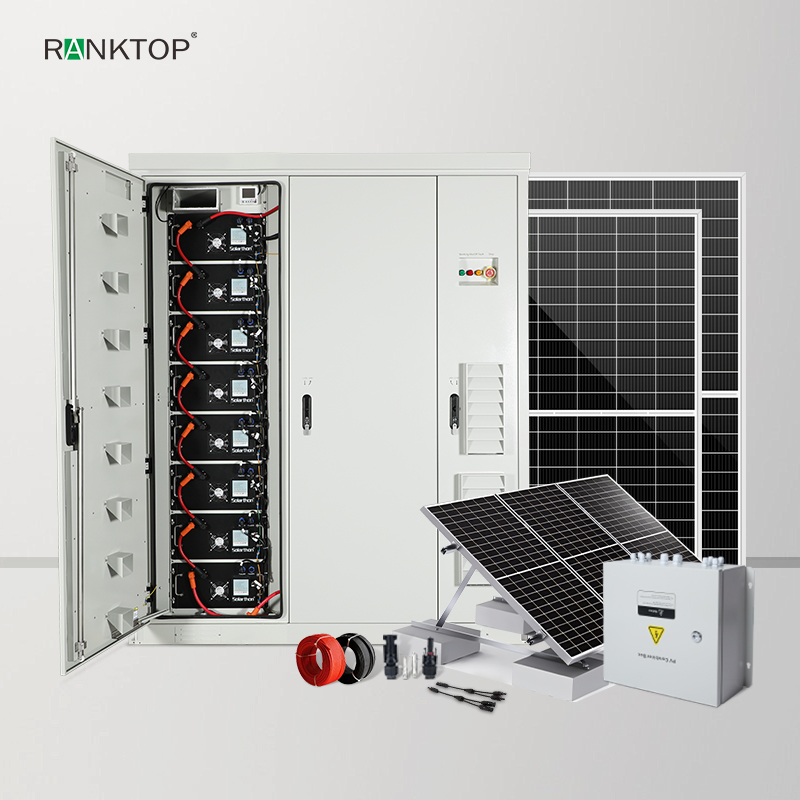

Energy Storage System(ESS)

LiFePO4 Battery: 768V/280AH

Battery Voltage Range: 672~864V

Power Conversion System(PCS)

Rated Power: 100KW

Rated AC Voltage: 400V, 50/60Hz

AC Voltage Range: 320~460V, 50/60Hz

DC Voltage Range: 420~850V

Solar Charger

Max. PV Charge Power: 120KW

Max. PV Input Voltage: 1000V

MPPT Voltage Range: 250~850V

Energy Management System(EMS)

LCD monitor, RS485, CAN, TCP/IP

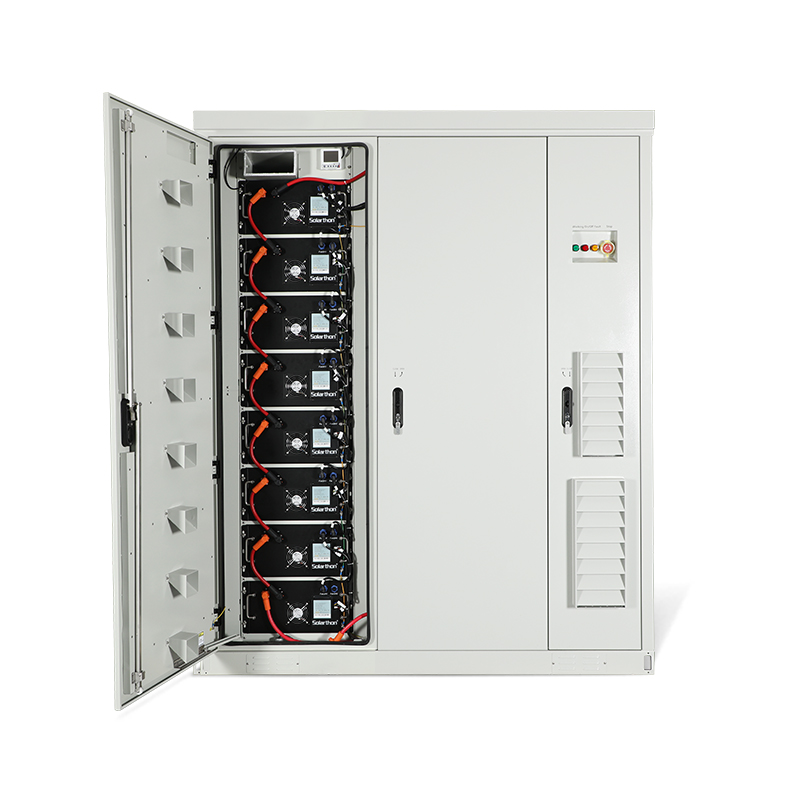

Outdoor Three-cabin Cabinet

Size: 2700*1100*2550mm

Air Conditioner, 600W, 2 sets

Fire Fighting System

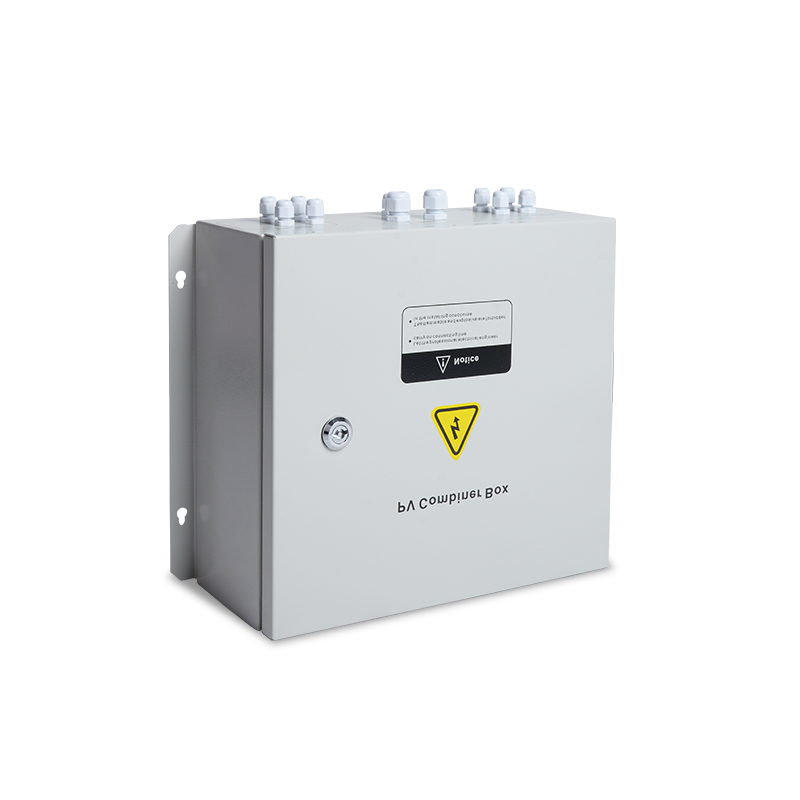

8 In 1 Out PV Combiner Box

Rated Voltage: 1000VDC

Simplify Wiring Between PV Array And Controller;

Reliable Thunderstorm& Surge Protection

Product Size: 446x420x145mm

Weight: 11kg

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m²

4mm² PV cable: 100m, Red

4mm² PV cable: 100m, Black

25mm² PV cable: 100m, Red

25mm² PV cable: 100m, Black

MC4 Connector, Male Plug

MC4 Connector, Female Plug

Copper Lug: 25mm²

Product Advantage

215KWH ESS with 100KW PCS and Solar Charging System

Introducing the Series Outdoor Energy Storage Cabinet—a cutting-edge solution that seamlessly integrates a suite of advanced components to revolutionize energy management. This innovative system features high-performance energy storage batteries, modular PCS for flexible maintenance and easy expansion, Solar Power System Commercial,an intelligent energy management monitoring system, a reliable power distribution system, an efficient environmental control system, and a robust fire control system. Designed for outdoor use, the cabinet offers front maintenance, reducing the required area and maintenance channels while ensuring safe, reliable, and efficient operation. It boasts fast deployment, low cost, Home Energy Storage,high energy efficiency, and intelligent management capabilities, making it an ideal choice for a wide range of applications.Outdoor Energy Storage System.

The intuitive home page interface provides real-time insights into the system's performance, Solar Energy Storage System,displaying key metrics such as power, voltage, current, generated energy, operation mode, and working status. Whether you are looking for a commercial solar power system, a solar energy storage solution, lithium energy storage batteries, an outdoor energy storage system, or a home energy storage setup, the Series Outdoor Energy Storage Cabinet is designed to meet your needs with unparalleled reliability and efficiency.
