Solar Power System Hybrid Solar System Commercial Solar Powered System Solar Panels With Battery and Inverter Super

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

RANKTOP solar system, an integrated hybrid solution with a capacity ranging from 100kW to 1MW. It integrates efficient lithium batteries and intelligent inverters, supporting off-grid and emergency backup power supply, and has peak load management capabilities. equipped with intelligent BMS and full life cycle monitoring, ensuring safety and reliability. It has obtained international certifications such as CE, CSA, and CB, and complies with global standards.

Home ESS LiFePO4 Solar Powered Battery Pack

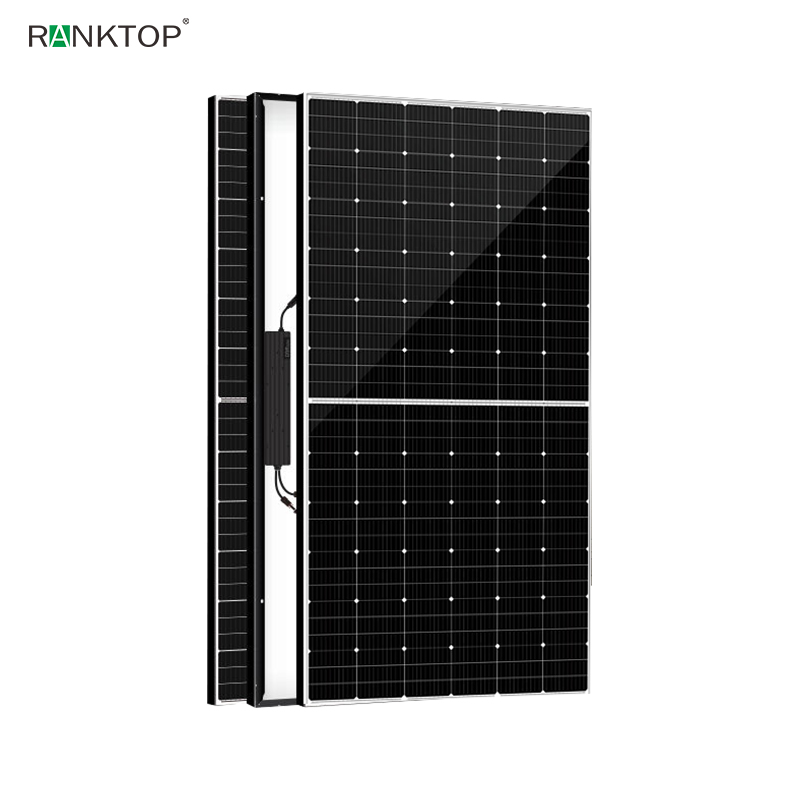

550W Mono Half Cell PERC Solar Panel

≡ Vmp: 41.95V Voc: 49.8V Imp 13.11A

≡ Size: 2279*1134*35mm

≡ weight: 28.3kg

≡ 25 years life span

≡ Linear performance: 25 years 80 % ; 10 years 90%

≡ Connection: 18 pcs In Series

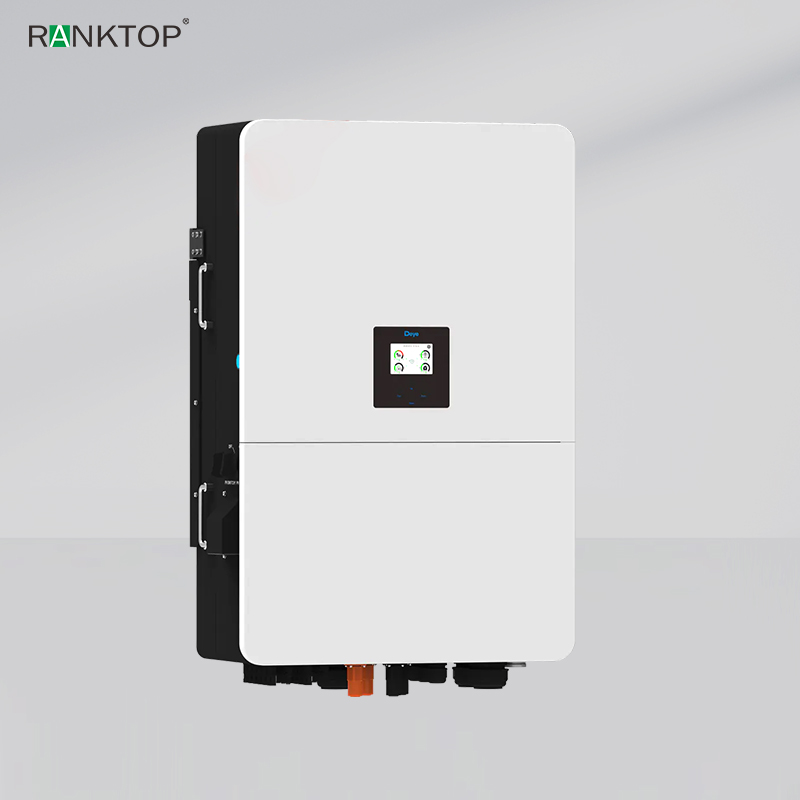

40KW Three Phase Hybrid Inverter

≡ Rated Output Power: 40KW

≡ Rated Output Voltage: 400VAC, 50Hz/60Hz

≡ MPPT Number/Road: 4/2+2+2+2

≡ MPPT Voltage Range: 150~850V

≡ Full Load Voltage Range: 360~850V

≡ PV Input Current: 36+36+36+36A

≡ Battery Voltage Range : 160-800VDC

≡ Number Of Battery Input: 2

≡ Max. Charging Current: 50+50A

≡ Max. Discharging Current: 50+50A

≡ Max. Efficiency: 97.60%

≡ Protection Class: IP65

≡ Size: 527*894*294mm

≡ Weight: 80kg

Home ESS LiFePO4 Solar Powered Battery Pack

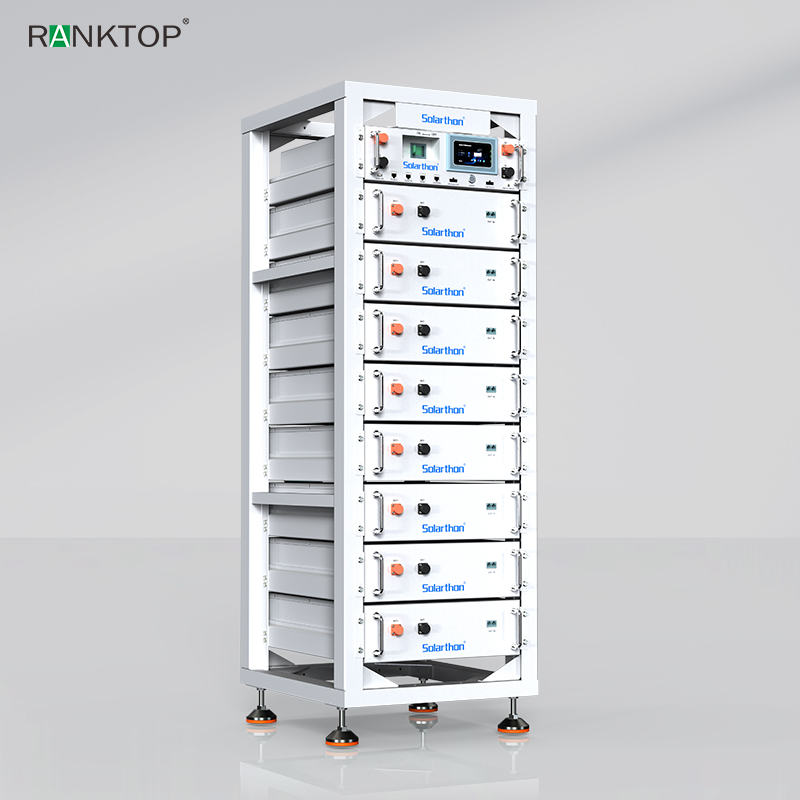

409.6V 100AH Vertically Stacked Energy Storage Battery Pack

≡ Battery Type: LiFePO4

≡ Nominal Voltage: 409.6V

≡ Nominal Capacity: 100Ah

≡ Charging Cut-off Voltage: 460.8V

≡ Discharging Cut-off Voltage: 358.4V

≡ Max. Cont. Charging/Discharging Current: 100A

≡ Max. Instantaneous Charge/Discharge Current: 100A

≡ Cycle Life: ≥6000

≡ Product Size: 610.5*549*1604mm

≡ Weight: 443kg

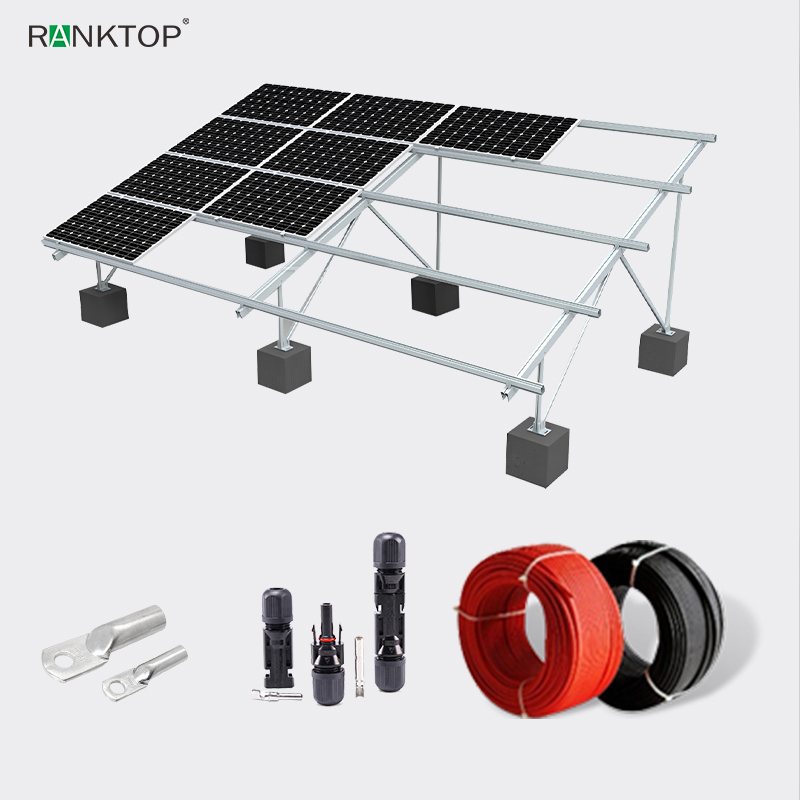

Solar System Accessories

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m²

4mm² PV cable: 100m, Red

4mm² PV cable: 100m, Black

35mm^²PV Wire, Red, 5m

35mm^² PV Wire, Black, 5m

MC4 Connector, Male Plug

MC4 Connector, Female Plug

Copper Lug: 35mm^²

Kindly Reminder: The Above System Configuration For Initial Desicning, The System Configuration Are Subiect to Changing Depends on Your Final installation Conditions and Requirements

Product Advantage

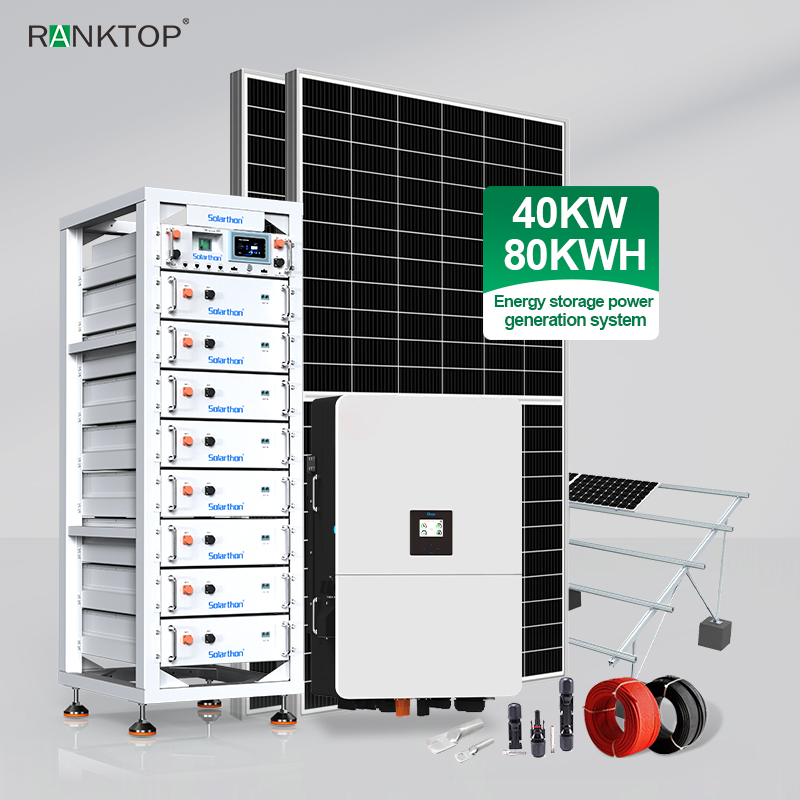

40KW 80KWH Vertical stacked energy storage power generation system

Each lithium battery cell is systematically inserted into a distribution cabinet capable of housing hundreds of cells or testing points. The capacity division process effectively categorizes these pre-formed batteries based on their 1C discharge capacity, ensuring they meet various capacity requirements. This ensures that each battery is not only 'charged' after production but also effectively 'activated' before use, enabling it to store energy efficiently.

System Working Modes:
There are four different modes of operation for a solar energy system:

1) Self-Use: In this mode, the solar energy generated by the system is used to power your home or business. Any excess energy is
stored in batteries for later use.

2) Time of Use: This mode is designed to take advantage of peak energy rates. The system is set up to store energy during off-peak hours and use that energy during peak hours when rates are higher.

3) Selling First: In this mode, the system is set up to sell excess energy back to the grid first before storing any energy in batteries. This is a good option if your utility company offers a good buy-back rate for excess energy.

4) Back-Up: This mode is designed to provide backup power in case of a power outage. The system is set up to automatically switch over to battery power when the grid goes down, ensuring that you have power even when the rest of the neighborhood is in the dark.Each of these modes has its own benefits and drawbacks, so it's important to carefully consider your energy needs and goals before choosing the right mode for your solar energy system.

Energy Storage Solutions

1.Typical Application

* Maximizing Solar Self-Consumption.During the day, the solar PV system generates electricity to power the loads first. Any extra energy is used to charge the battery through the Deye hybrid inverter. Later, when needed, the stored energy in the battery can be used to supply the loads.

* Providing Backup for Critical Loads.The system has separate ports for critical loads and the grid. This allows important devices like refrigerators, routers, lamps, and computers to keep working during a power outage. It can switch to backup mode automatically in just, ensuring that even non-inverter air conditioners can run smoothly.
