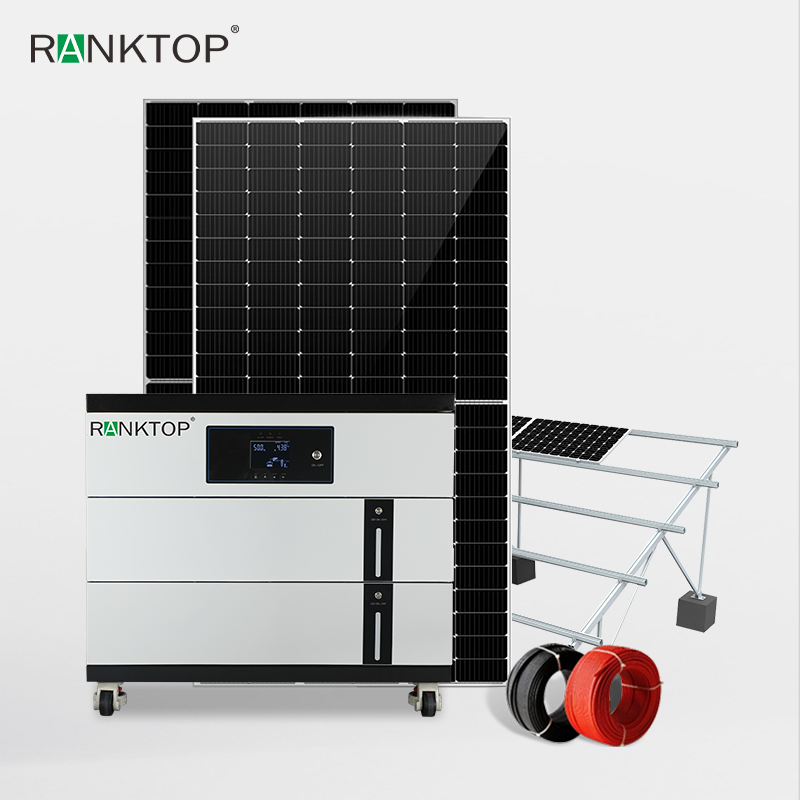

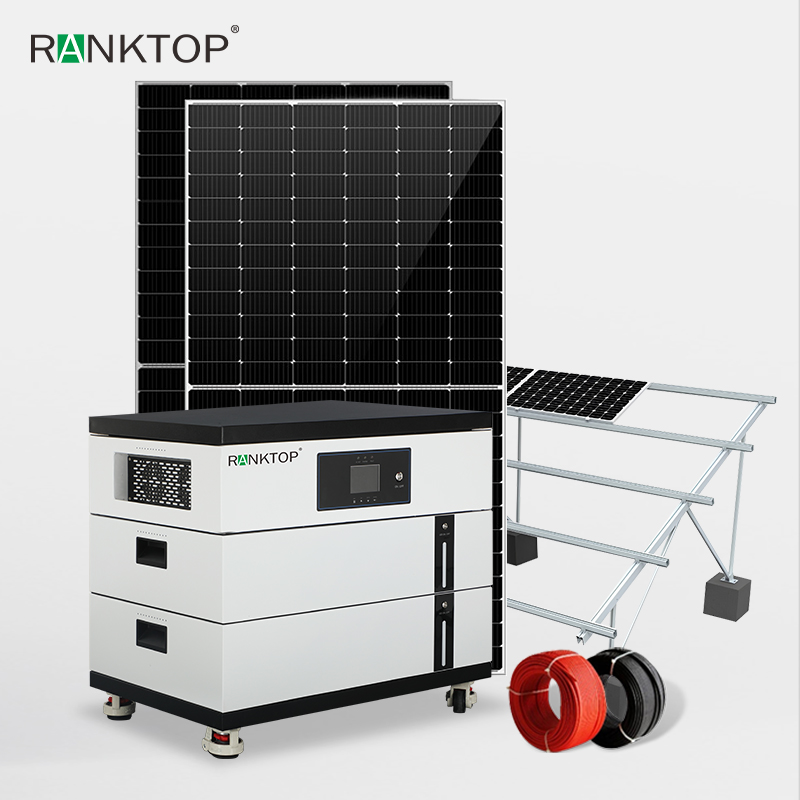

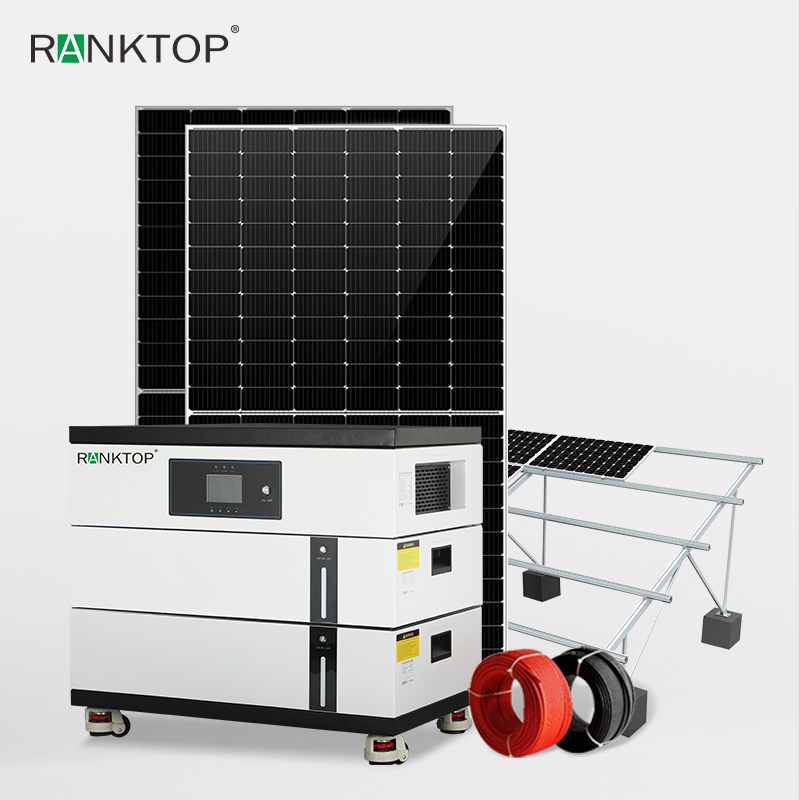

Stackable Modular 10kwh Lifepo4 Lithium lon Batteries Home Solar System 51.2V 200Ah

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

1.Suitable for all scenaros: multi-specification energy storage batteries cover multiple needs such as household, outdoor, and commercial. Accurately match different customer base. 2.One-stop solution service: custom packaging and Logo. promotional material. advertising support, save time and effort to establish market awareness. 3.Enhance brand image, make brand growth: your only focus on front-end sales ,we are your backup ,from supply chain to after-sales support.

solar panels energy storage

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 9 pcs In Series

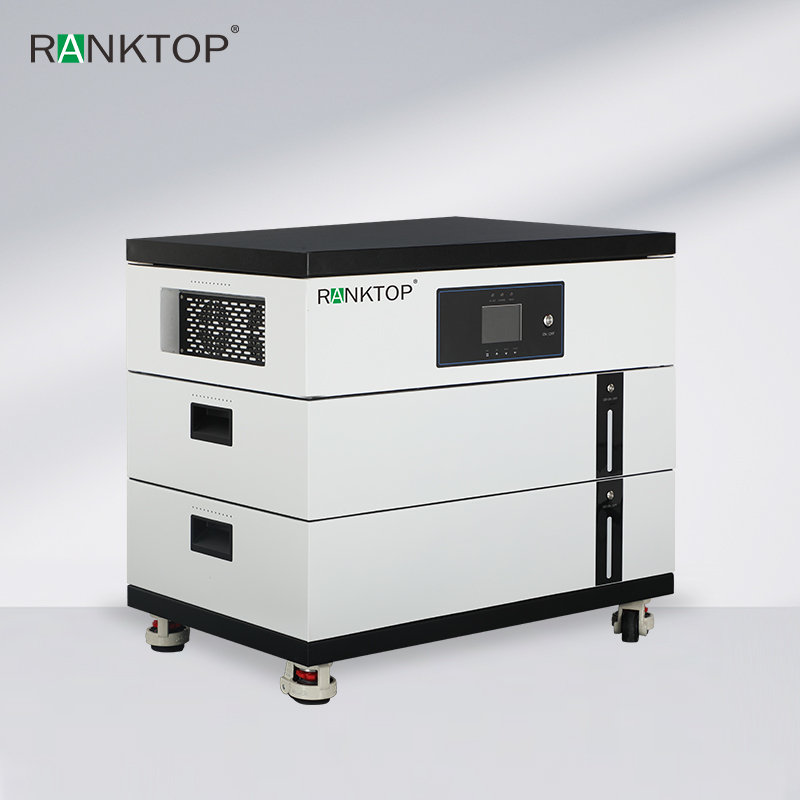

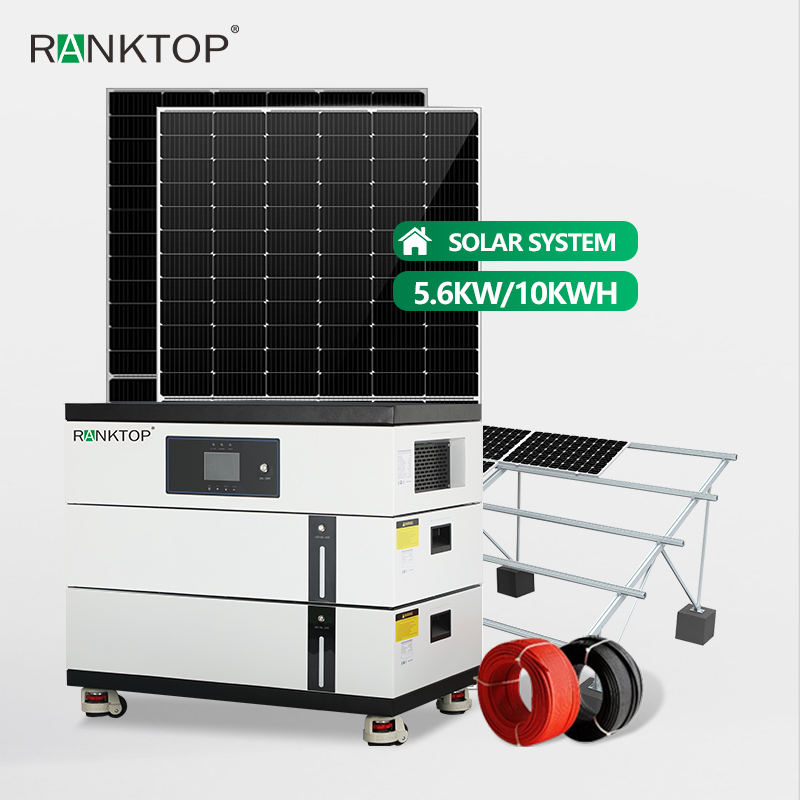

5.6KW/10KWH Flat Layer Stacked Energy Storage

Rated Power: 5.6KW

LiFePO4 Battery: 200Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range: 170-280VAC

AC Input Frequency: 50/60Hz

Maximum AC innut current/charging current: 40A/60A

Maximum PV Voltage: 500VDC

MPPT Voltage Range: 120-450VDC

PV Charge Current: 100A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions: 610*390*652mm

Max. Number Of Parallel: 6 sets

Warranty: 3 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

Product Advantage

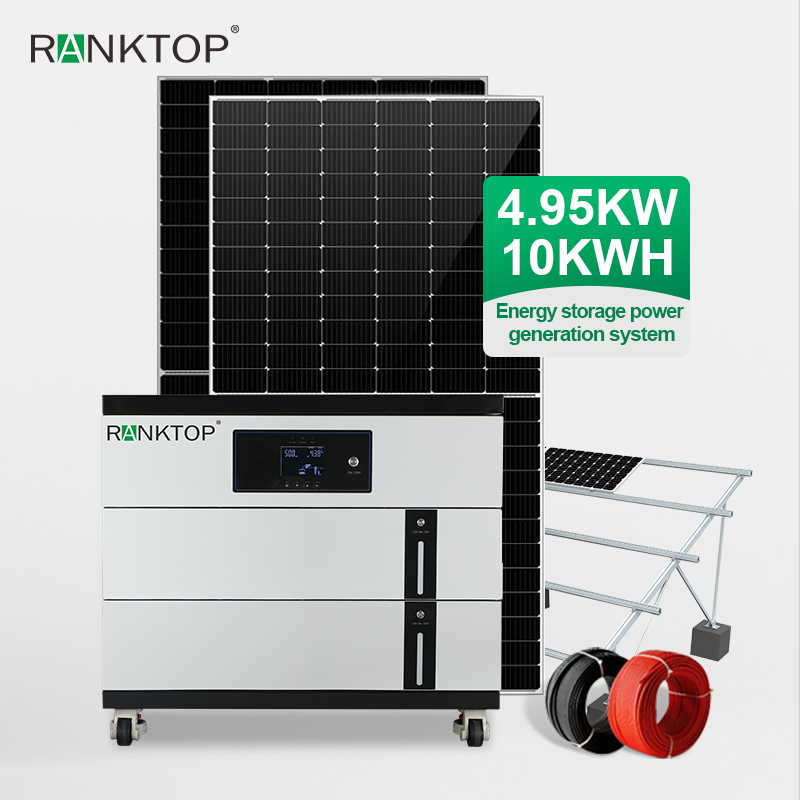

Home Energy Independence: 4.95KW 10kWh Stackable Battery System

Household energy storage application service:

1. Backup and Off Grid：Capable of off grid applications and emergency power supply. In off grid situations user side enercy storage solutions can operate with high. storage capacity. Whether it's home power supply or load backup power supply, there is always a set.

2.Self sufficiency and optimization：Renewable energy is the future trend, and with the reduction of global subsidies for renewable energy generation and the rise in electricity prices, self-sufficient sustalnable energy is becoming more economically vable.

3. Suitable for more application scenarios: Sultable for a wider range of application scenarios, from Individual household users to small businesses More flexible and convenlent module expanslon methods meet the needs of more customers, and can bed easily completed throughout the product lifecycle.

When there is a power outage, the stored energy can be used to power the home, and with the use of solar energy through the conversion of inverters, clean energy can be used to charge and keep appliances running uninterrupted.
