Whole Home Electricity Power Home Energy Storage System All in One Complet Solar Power System
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

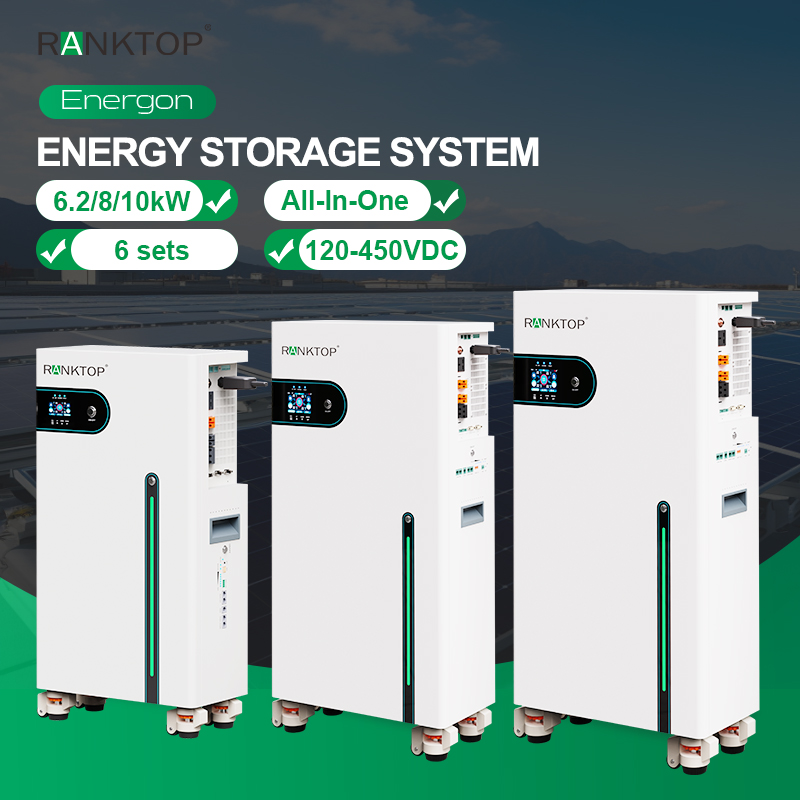

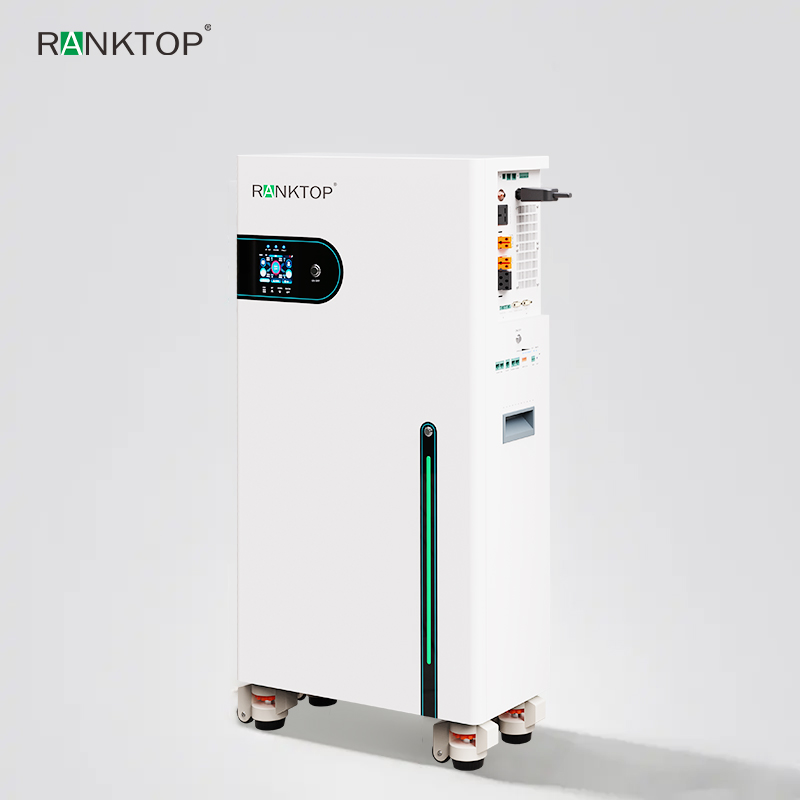

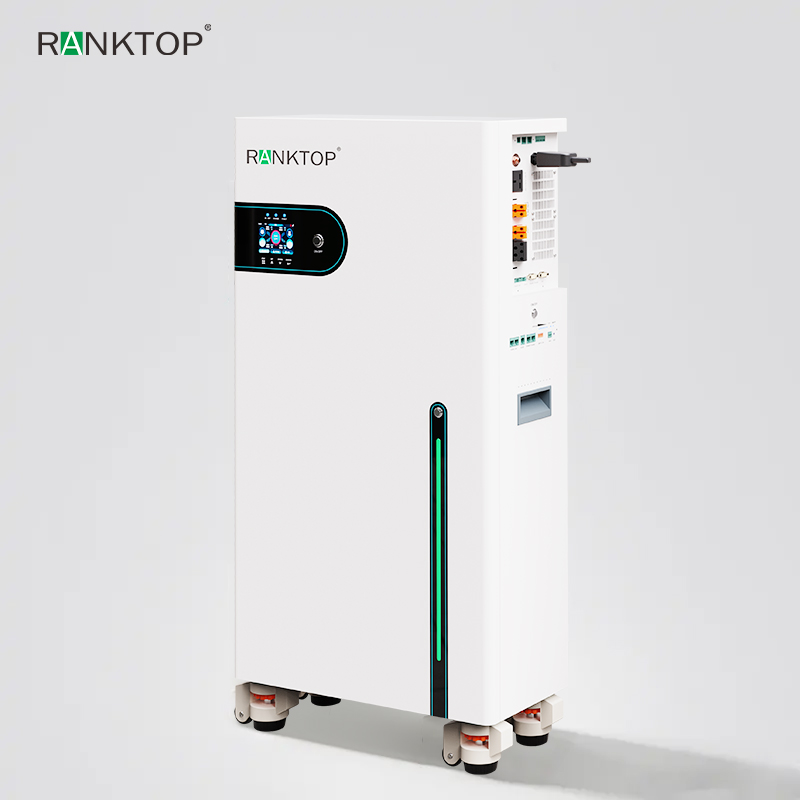

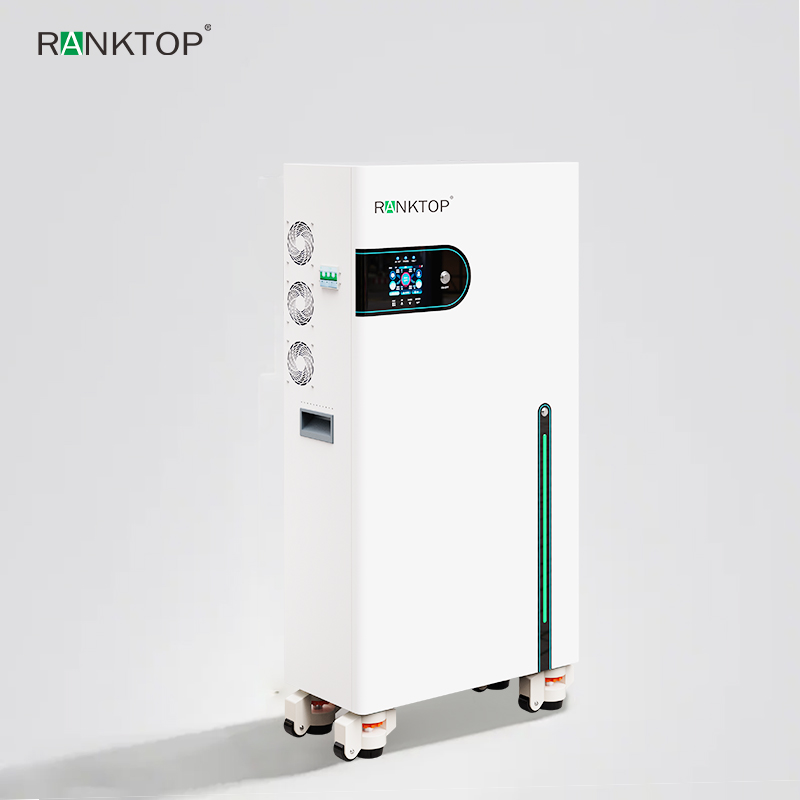

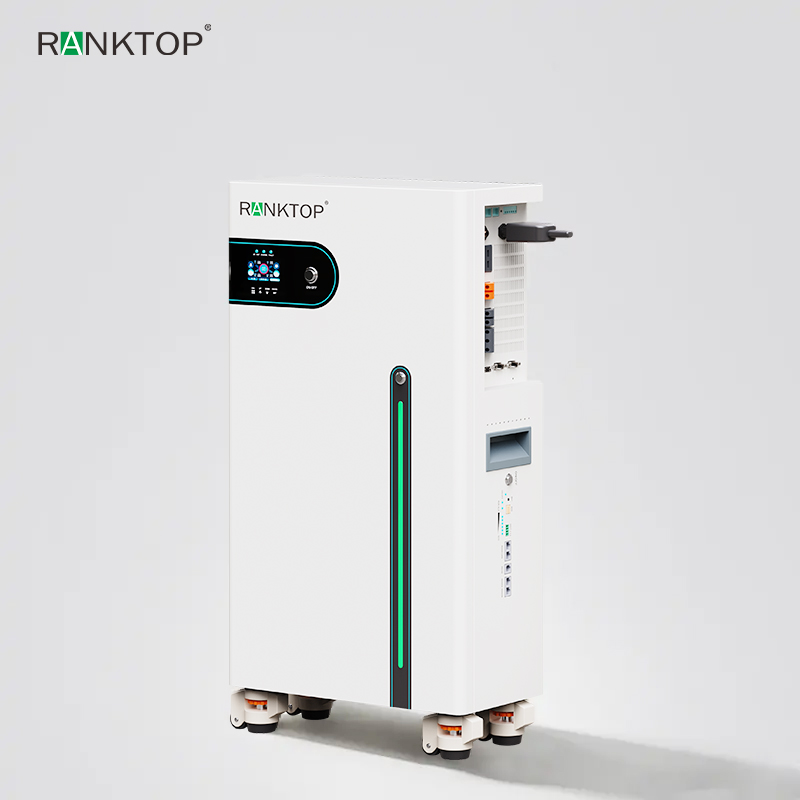

6.2kW/5kWH All-In-One Energon Energy Storage System
Model：DQ1414A6K2-01
Rated Power: 6.2kW
Lithium Battery: 100Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/80A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 420*200*870mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
8kW/10kWH All-In -One Energon Energy Storage System
Model: DQ1414B8K-01
Rated Power: 8kW
Lithium Battery: 200Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 70A/150A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 560*250*1146mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
10kW/16kWH All-In -One Energon Energy Storage System
Model：DQ1414C10K-01
Rated Power: 10kW
Lithium Battery: 314Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 70A/150A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 560*250*1200mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
Product Advantage

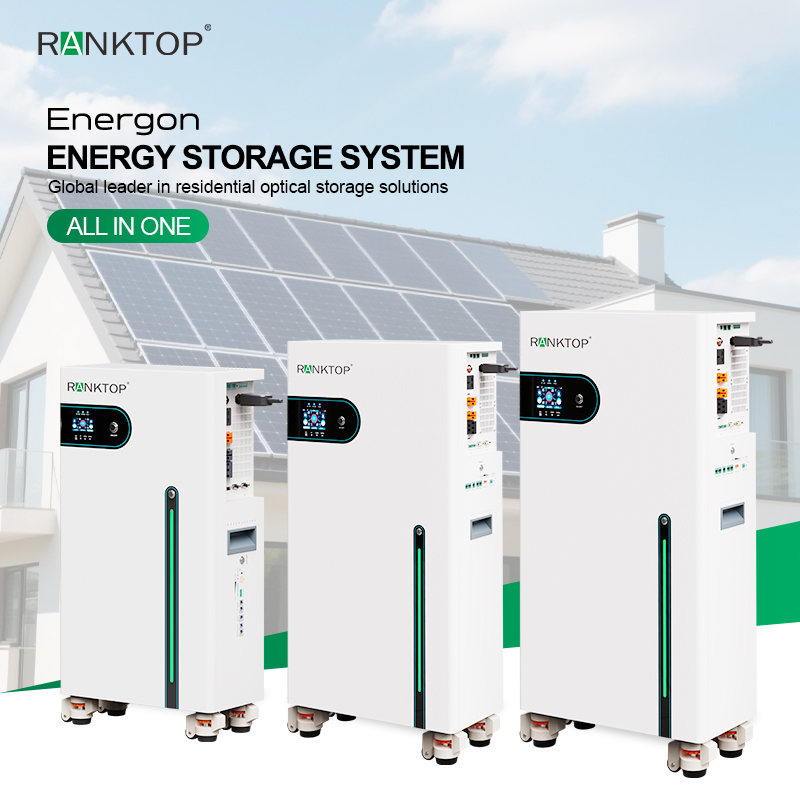

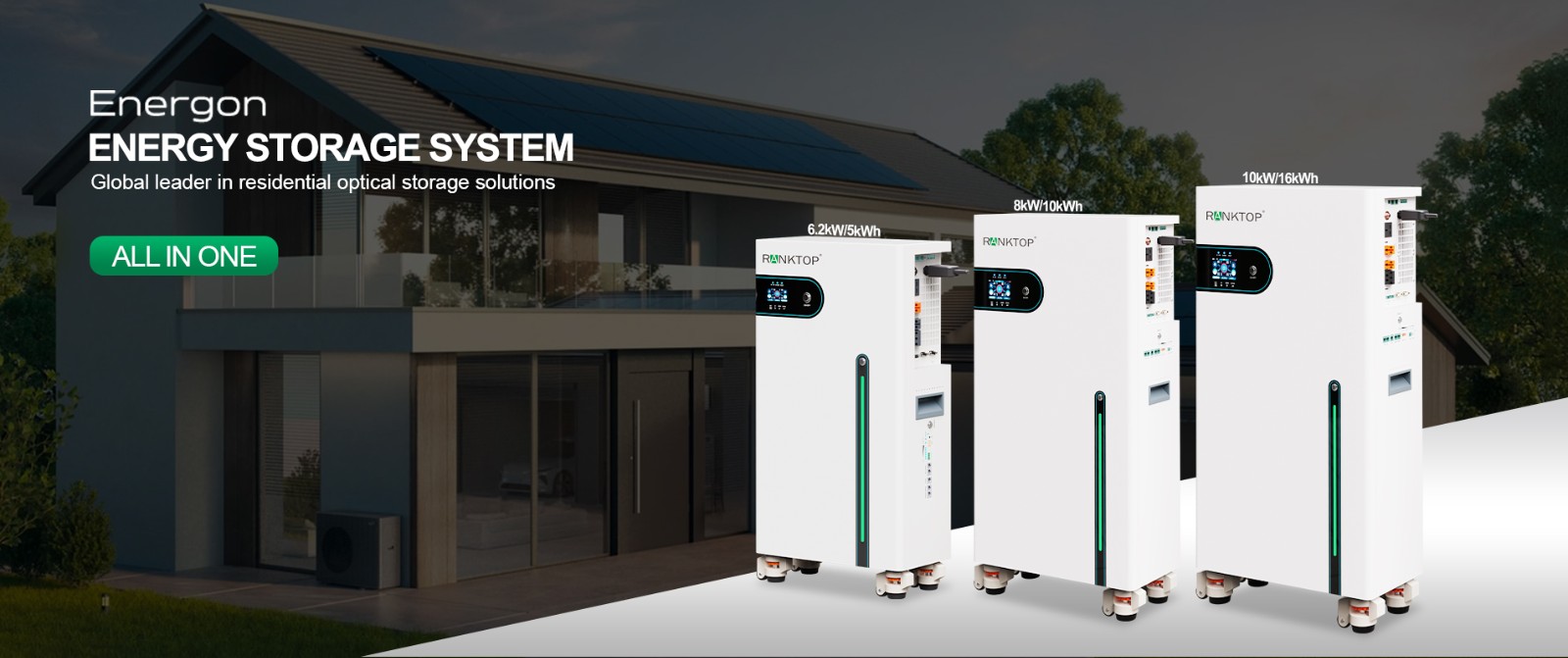

All-In -One Energon Energy Storage System

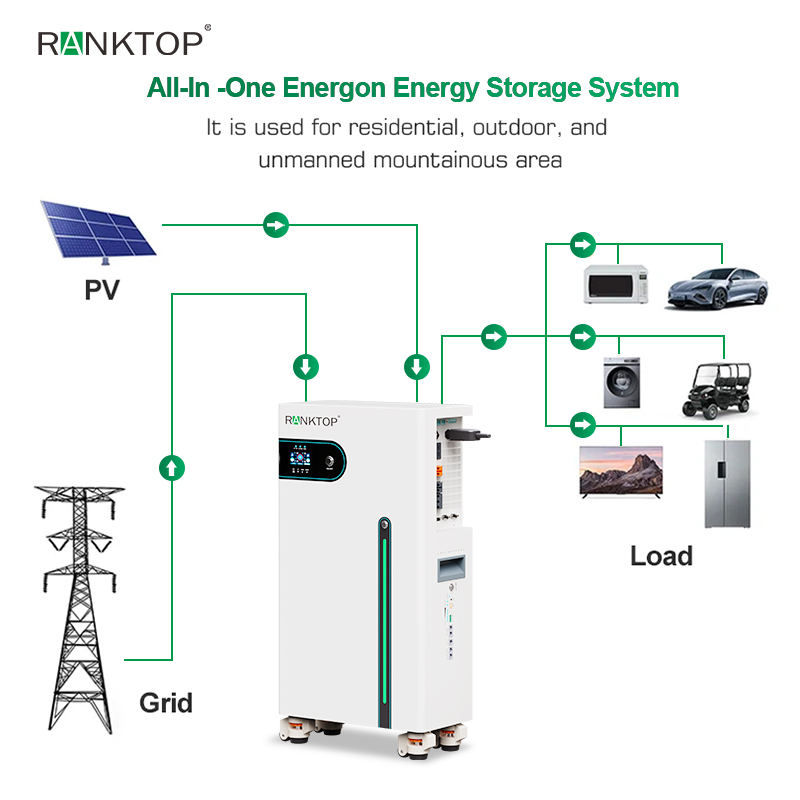

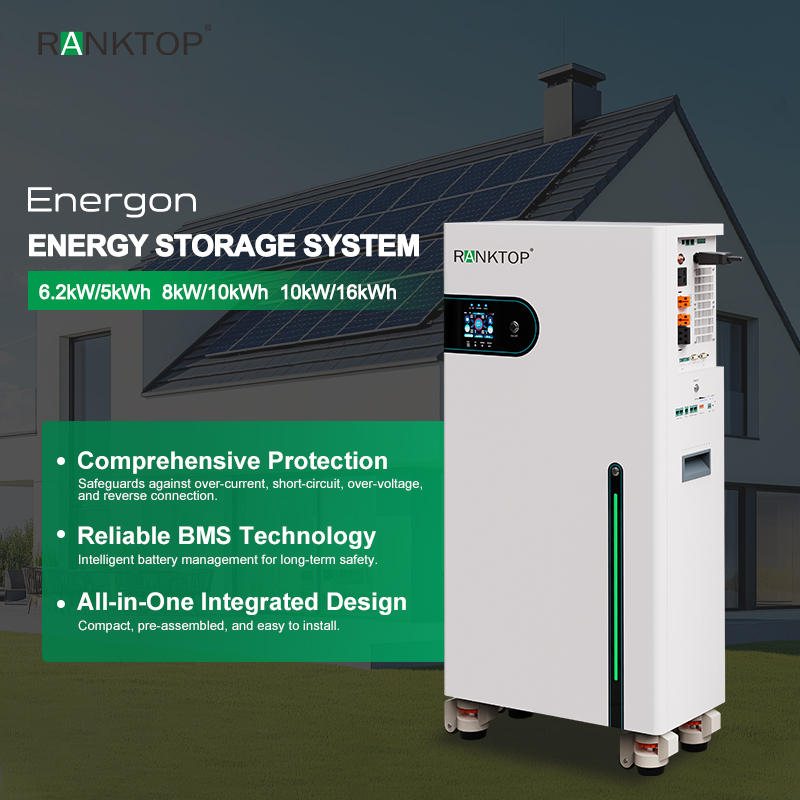

The integrated energy source inverter combines an inverter, solar controller, and utility charging function into one unit,providing stable power for electrical devices in areas without electricity, lacking electricity, or with unstable power supply. Based on fully digital intelligent design, this product uses advanced SPWM technology to output a pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, and electronic audio-visual devices. The LCD screen display design shows real-time system operation data and status. Comprehensive electronic protection functions ensure that the entire system is safer and more stable.All-in-One Solar Power Home Energy Storage Systems, energy storage system for home, Home Battery Solar Energy Storage , home energy storage systems all in one, Customized Home solar energy storage System.All-in-One Solar Power Home Energy Storage Systems, energy storage system for home, Home Battery Solar Energy Storage , home energy storage systems all in one, Customized Home solar energy storage System.energy storage system for home, Home Battery Solar Energy Storage , home energy storage systems all in one, Customized Home solar energy storage System.energy storage system for home.
