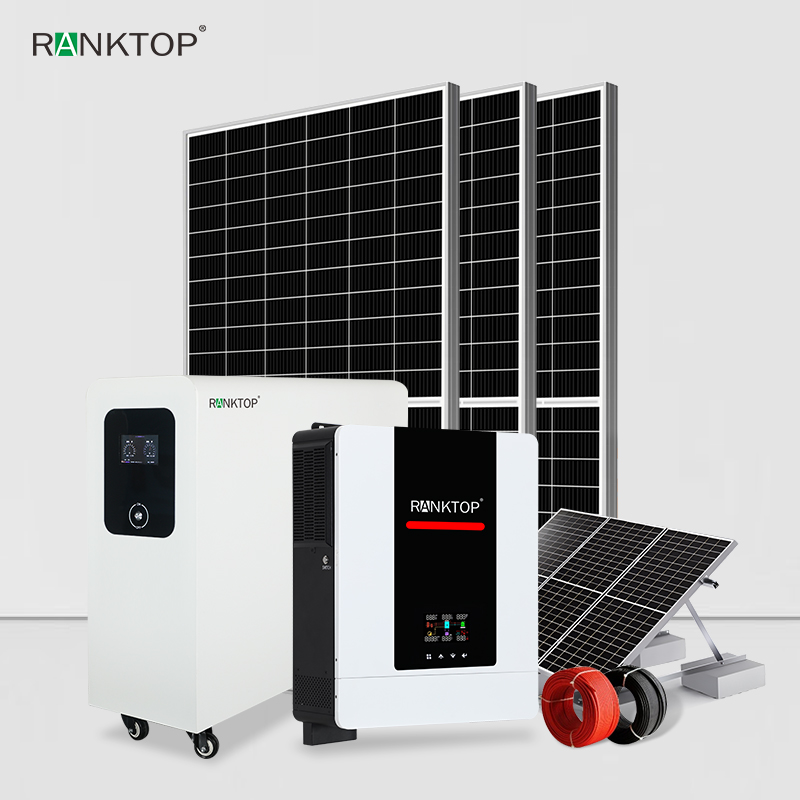

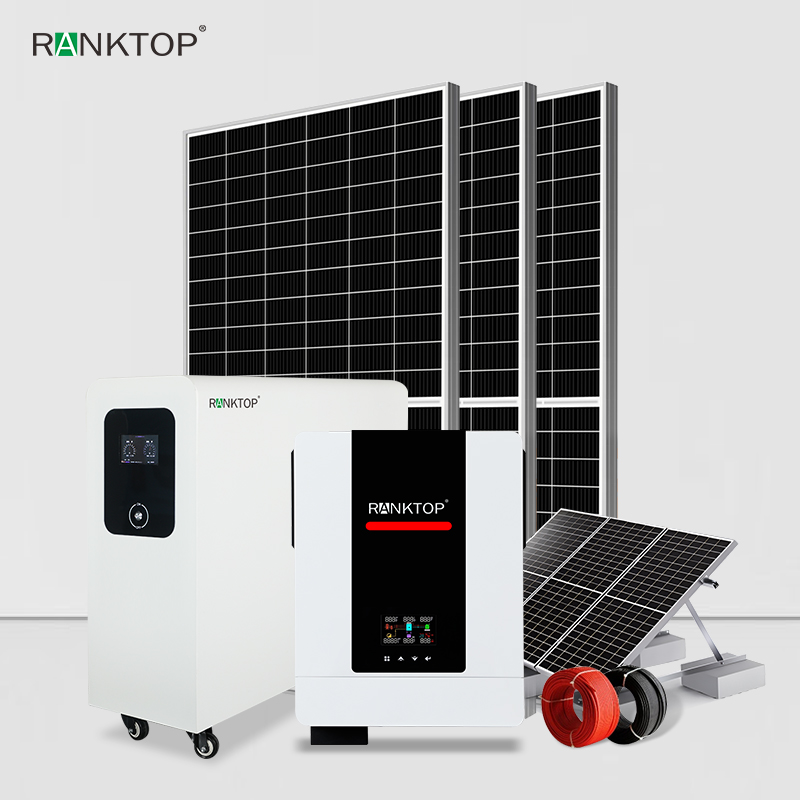

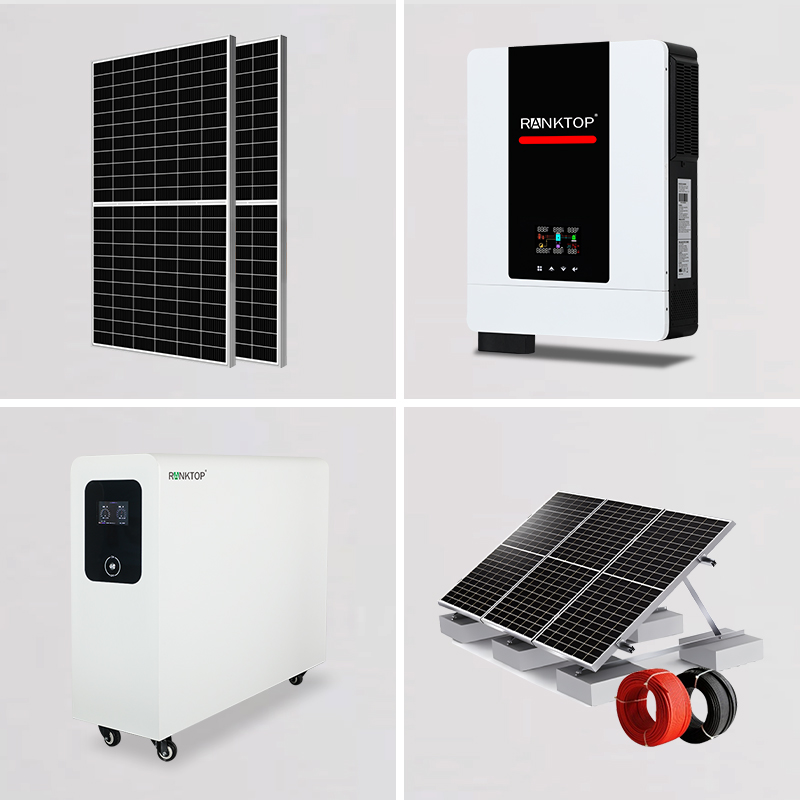

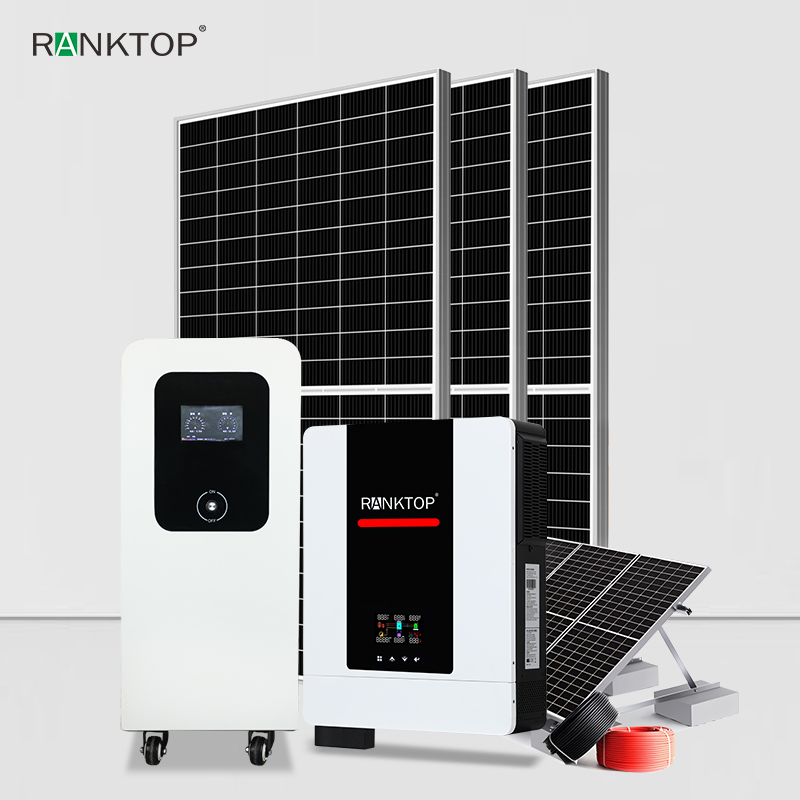

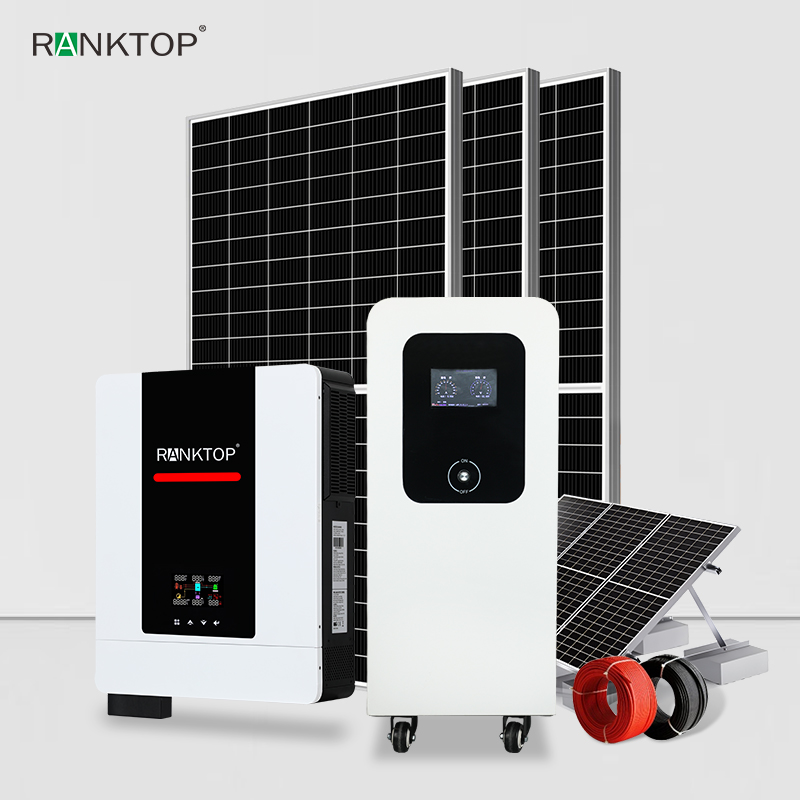

8.2KW Solar System Home Energy Storage System Solar Kit Solar Panels With Battery

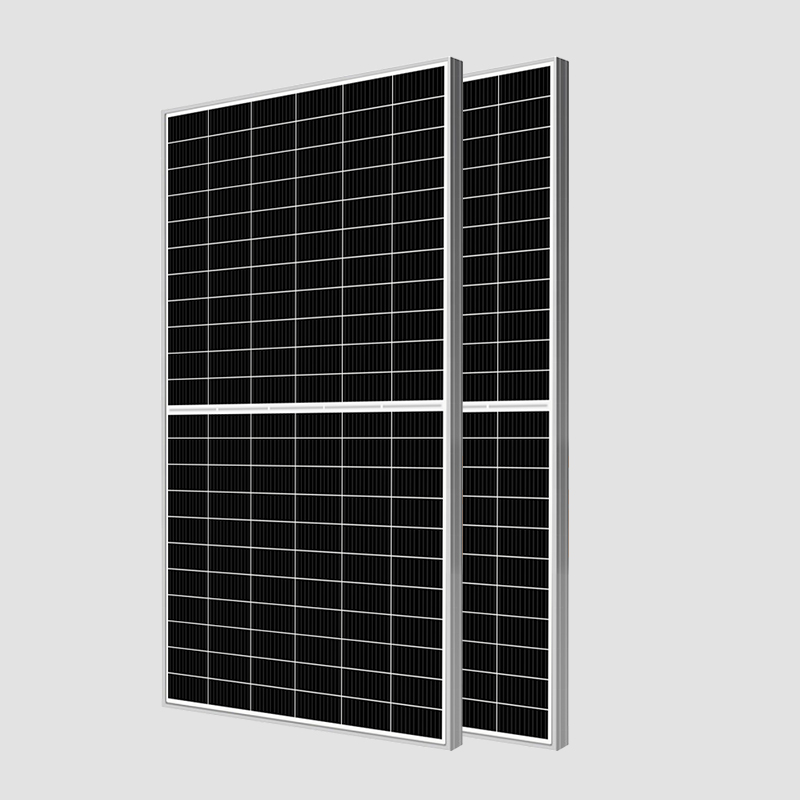

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 7 pcs In Series

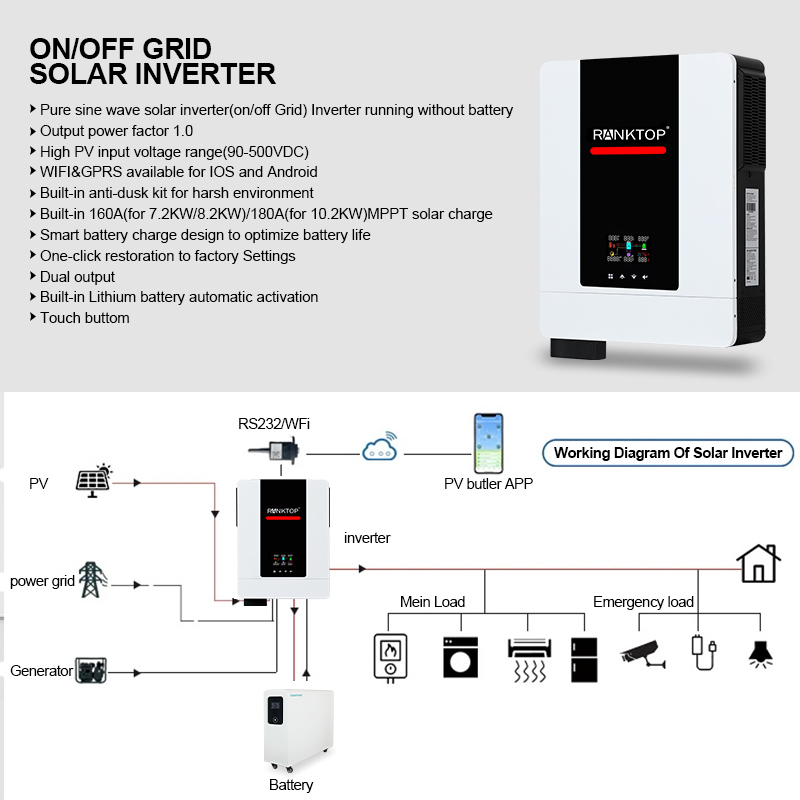

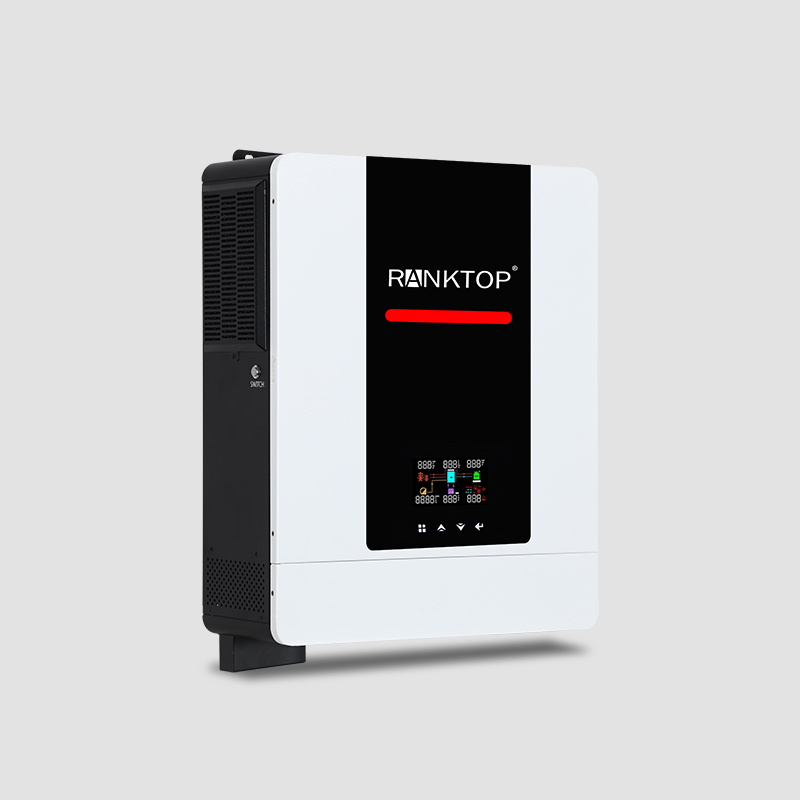

8.2KW Solar Inverter (On/Off Grid)

Rated Output Power: 8200W

Rated Output Voltage: 230VAC, 50Hz/60Hz

Maximum Main Load: 8200W

Maximum Second Load: 2733W

Max. PV Input Current: 18A/18A

Max. PV Input Voltage(Voc): 500VDC

MPPT Tracking Voltage Range: 90V-450VDC

Max. PV Charge Current: 160A

Baterry Voltage: 48VDC

AC Input Voltage: 170~280VAC, 50Hz/60Hz

Max. AC Charge Current: 140A

Product Size: 390x530x130mm

Weight: 14.2kg

Warranty: 3 Years

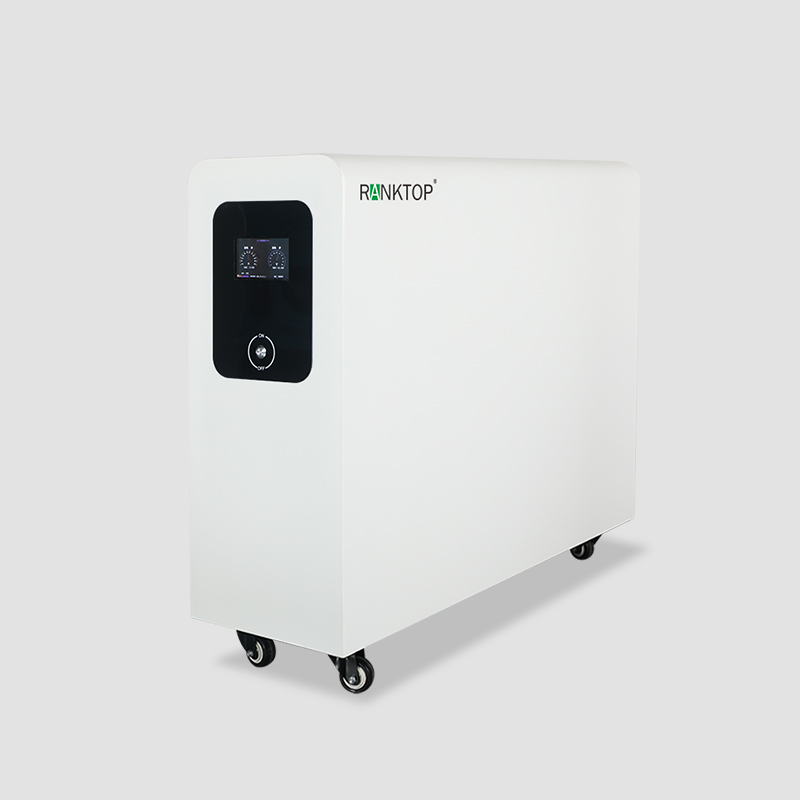

51.2V 280AH Battery Pack

51.2V 280AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 280Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage:40.8V

Max. Cont. Charging/Discharging Current: 150A

Max. Instantaneous Charge/Discharge Current: 200A

Max. Number Of  Parallel: 10 sets

Cycle Life: ≥6000

Product Size: 860*290*738mm

Weight: 130kg

Warranty: 5 years

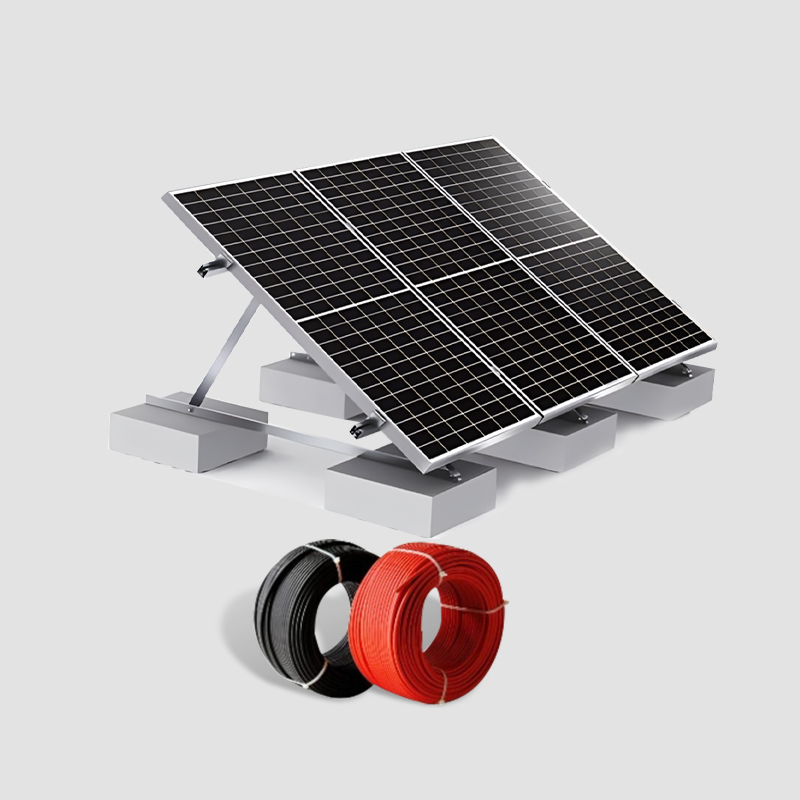

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2



4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

35mm² PV Wire, Red, 5m

35mm² PV Wire, Black, 5m

Advanced Inverter Technology: The system includes a pure sine wave hybrid on/off grid inverter for efficient energy conversion and a long lifespan, as guaranteed by our manufacturer.Hybrid energy storage solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.

Customized Installation Options: With a roof customization option,solar power inverter,our system can be tailored to fit your specific installation requirements, ensuring seamless integration with your existing infrastructure.guangdong inverter battery.

Comprehensive Communication Interface: Enjoy real-time monitoring and control with our system's WiFi/4G/RS485/CAN communication interface, allowing you to optimize your energy usage and performance.

Why Choose Our Solar Inverters?

• Versatility: Suitable for residential, commercial, and off-grid applications.

• Energy Efficiency: Maximizes solar energy usage and reduces waste.power supply.

• Sustainability: Promotes clean energy and reduces environmental impact.

• Cost-Effectiveness: Lowers energy bills and provides a strong return on investment.

Upgrade to our Solar Inverters today and experience the benefits of smart, sustainable, and reliable energy management! Take control of your energy future with a solution that grows with your needs.
