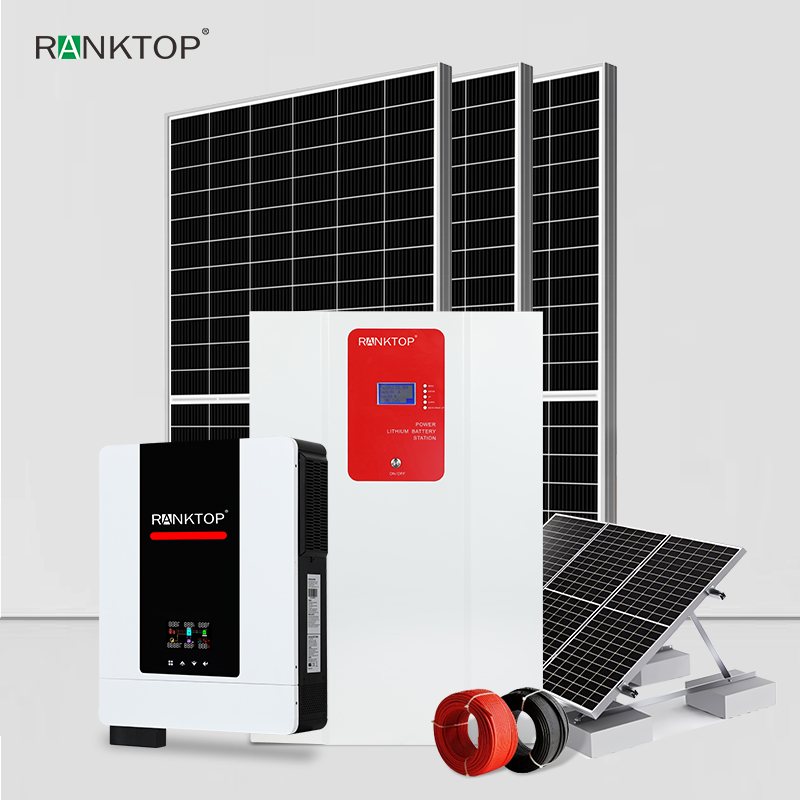

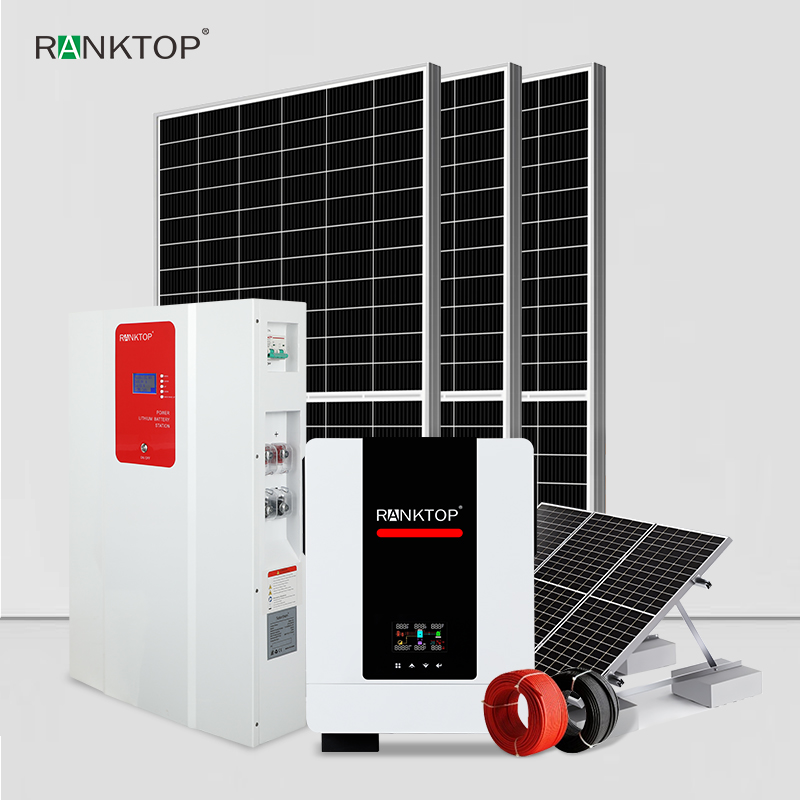

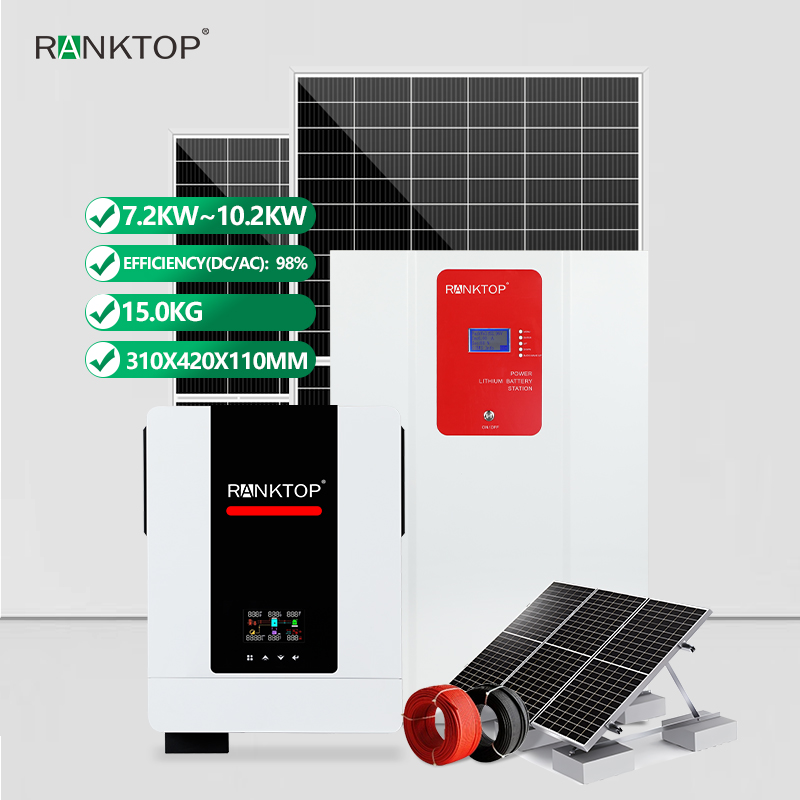

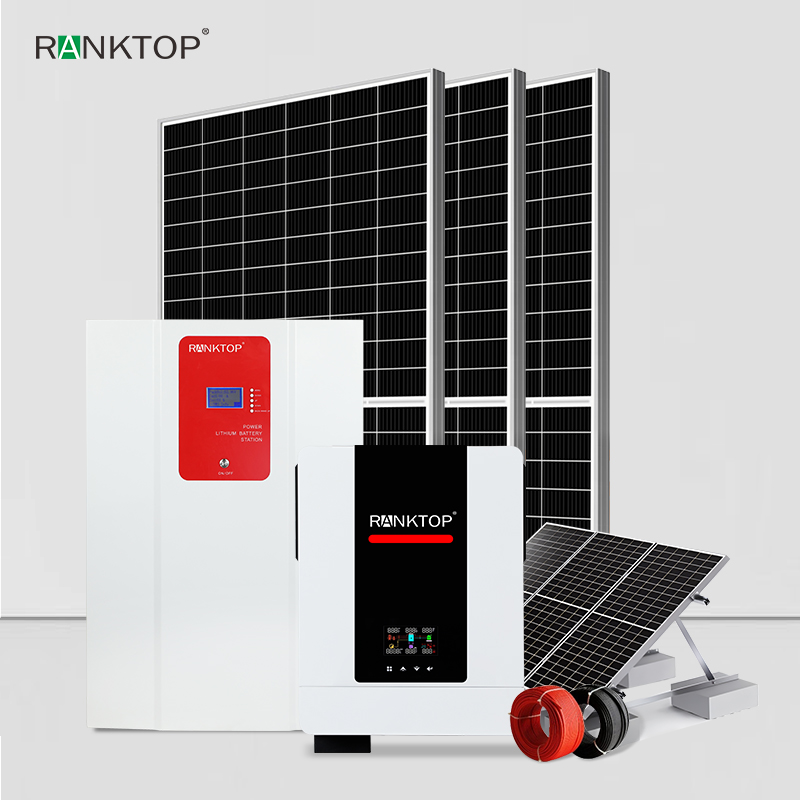

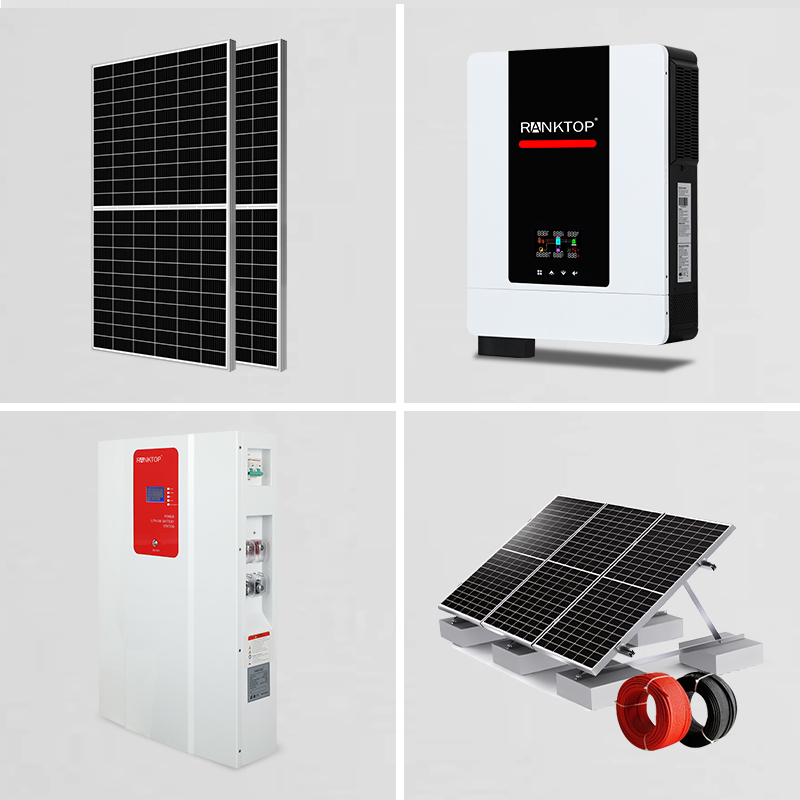

Solar inverter 10.2Kw Solar Panel Set With battery Home Photovoltaic Energy Storage System

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 9 pcs In Series

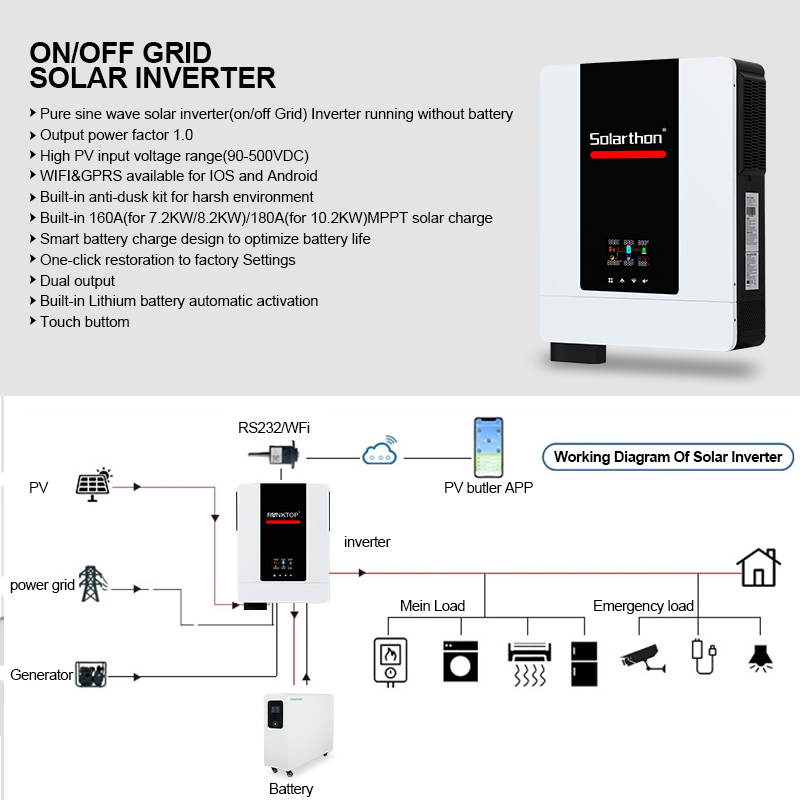

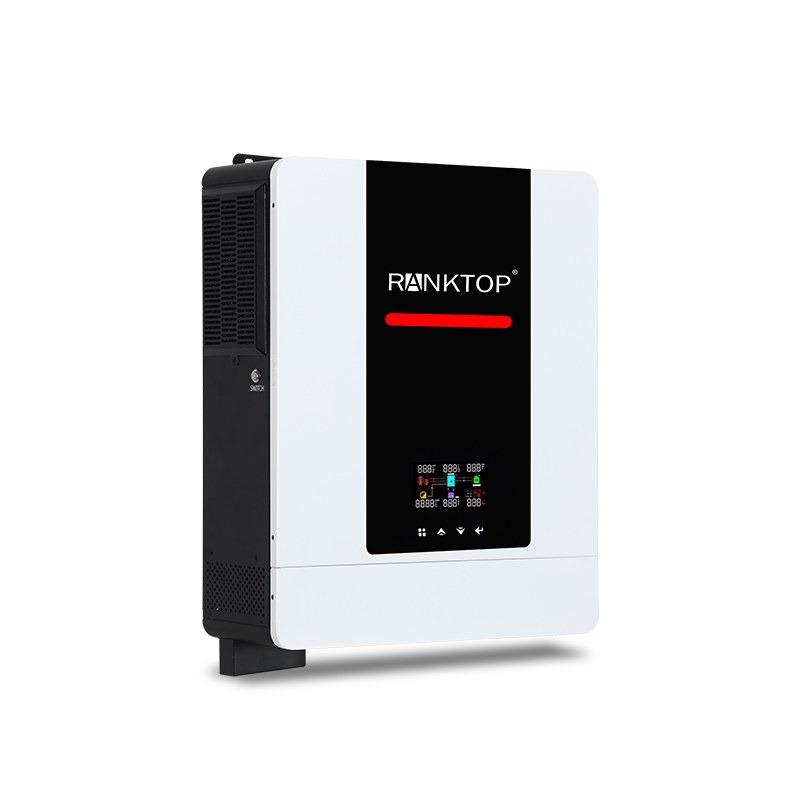

10.2KW Solar Inverter (On/Off Grid)

Rated Output Power: 10200W

Rated Output Voltage: 230VAC, 50Hz/60Hz

Maximum Main Load: 10200W

Maximum Second Load: 3400W

Max. PV Input Current: 18A/18A

Max. PV Input Voltage(Voc): 500VDC

MPPT Tracking Voltage Range: 90V-450VDC

Max. PV Charge Current: 160A

Baterry Voltage: 48VDC

AC Input Voltage: 170~280VAC, 50Hz/60Hz

Max. AC Charge Current: 140A

Product Size: 390x530x130mm

Weight: 14.5kg

Warranty: 3 Years

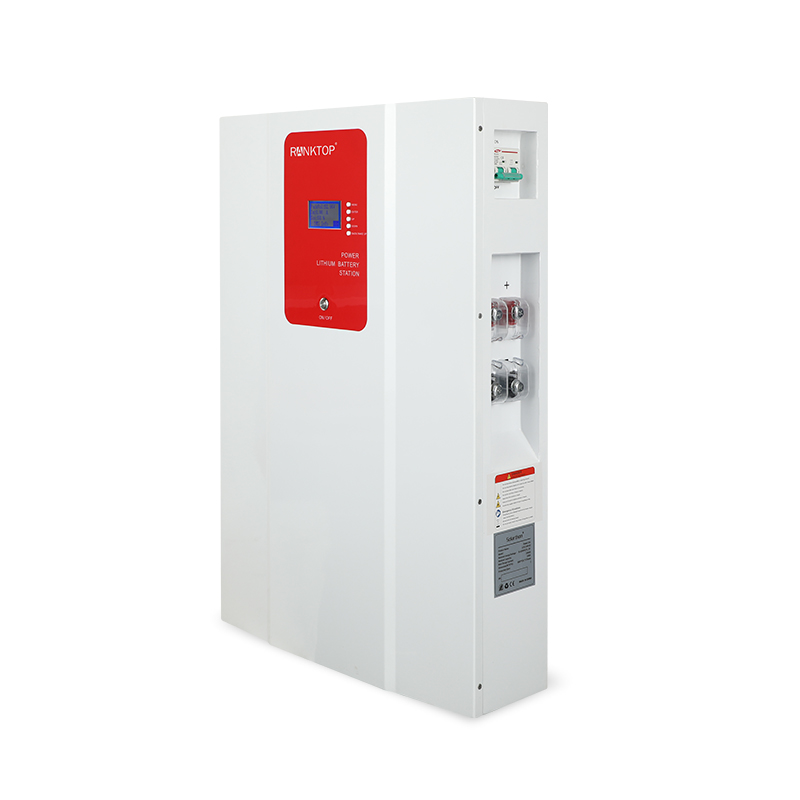

51.2V 200AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 200Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage:40.8V

Max. Cont. Charging Current: 184A

Max. Cont. Discharging Current: 184A

Cycle Life:≥6000

Product Size: 800*551*175mm

Weight: 79kg

Warranty: 5 years

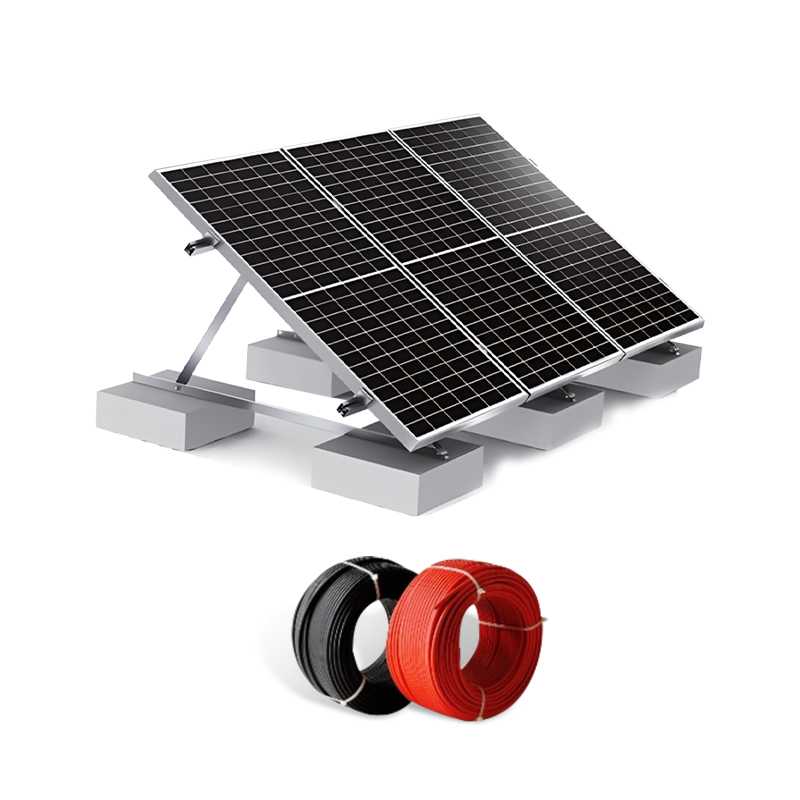

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2



4mm² PV Wire, Red, 20ml

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

50mm² PV Wire, Red, 5m

50mm² PV Wire, Black, 5m

70mm² RV Wire, 0.5m

Solar Energy System (Off-Grid Solar System): Cost-Effective and Reliable Power Solution

Product Overview:
Our Solar Energy System, also known as an Off-Grid Solar System, is the most cost-effective and efficient way to harness solar energy for your home, business, or remote location. This complete solar setup includes highly efficient solar panels, an MPPT Hybrid Inverter, a solar power inverter, and a choice of lithium-ion or gel batteries, along with other standard solar accessories. Designed to provide uninterrupted electricity and significantly reduce your electricity bills, this system is perfect for those seeking energy independence and sustainability.

• Product Features:

• Waterproof, dustproof and insect-proof design

•  Each product undergoes an aging test for no less than 2 hours before shipment

•  Use high-quality raw materials to prevent corrosion and extend service life

• Pure sine wave solar inverter

• High PV input voltage range

•  9 Inverters in Parallel

• Built-in MPPT solar controller

• Battery equalization function to optimize battery performance and extend lifecycle.

• Inverter running without battery

• WIFI/GPRS remote monitoring

• RS485 communication for BMS(optional)

• Self consumption and feed-in to the grid(optional)

Upgrade to Solar Energy Today!
Our Solar Energy System (Off-Grid Solar System) is the perfect solution for anyone looking to achieve energy independence, reduce electricity bills, and embrace sustainable living. Whether you're at home, in the office, or off the grid, this system delivers reliable, efficient, and cost-effective power.

Order Now and Take Control of Your Energy Future!
