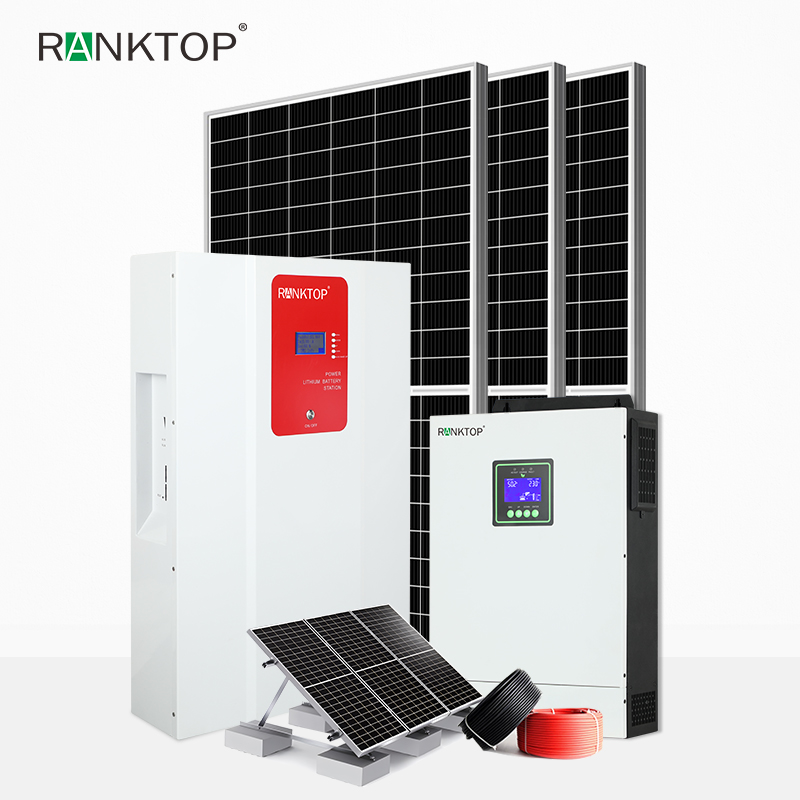

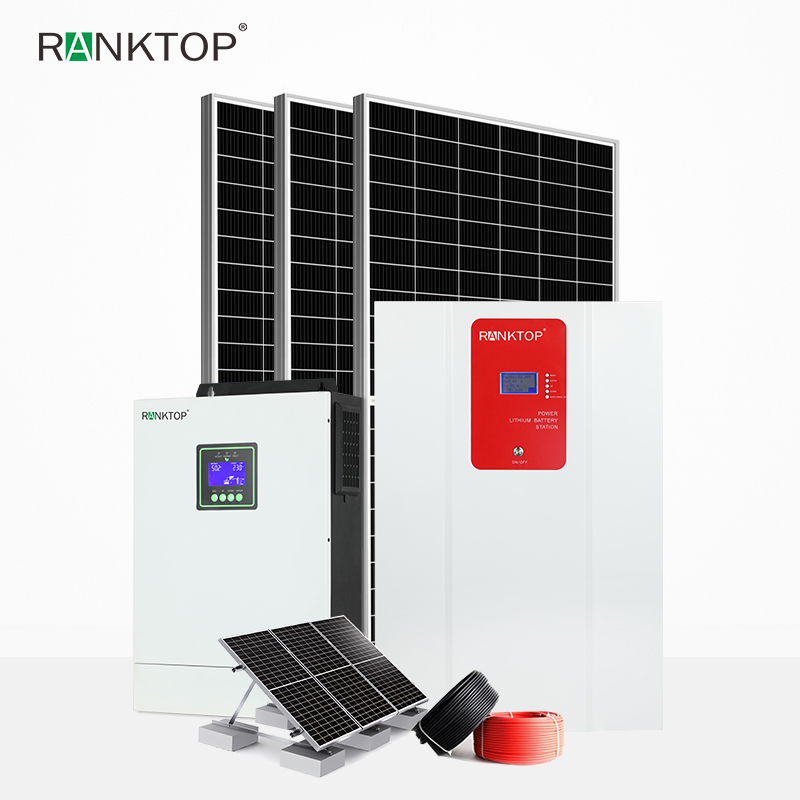

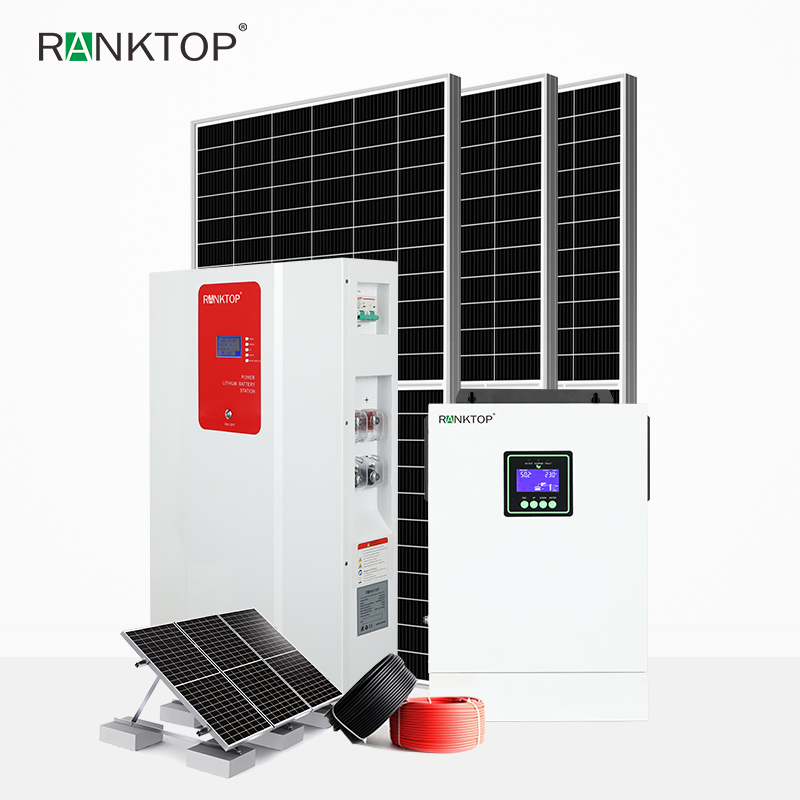

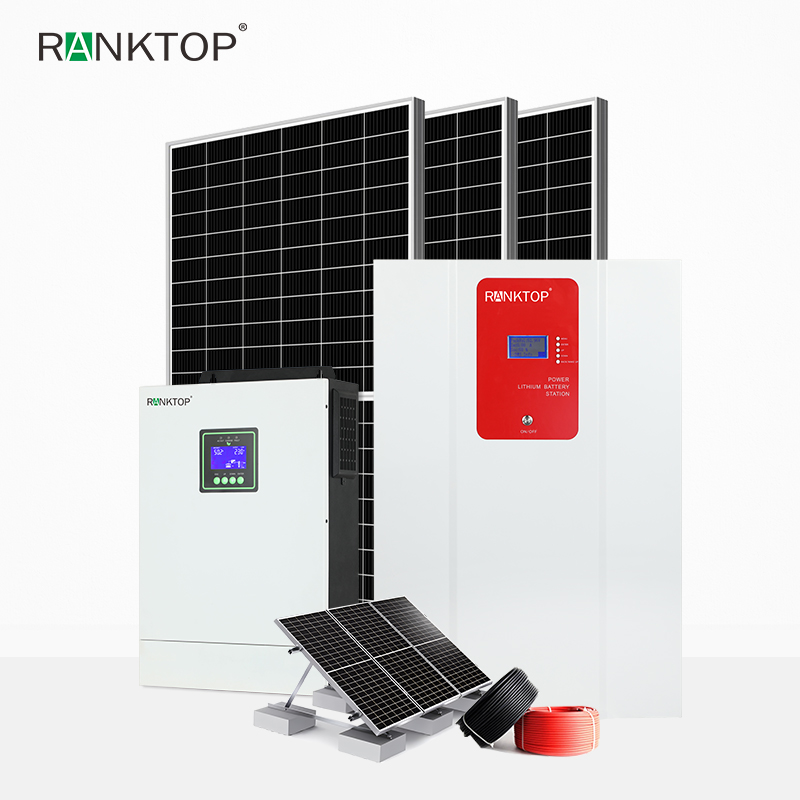

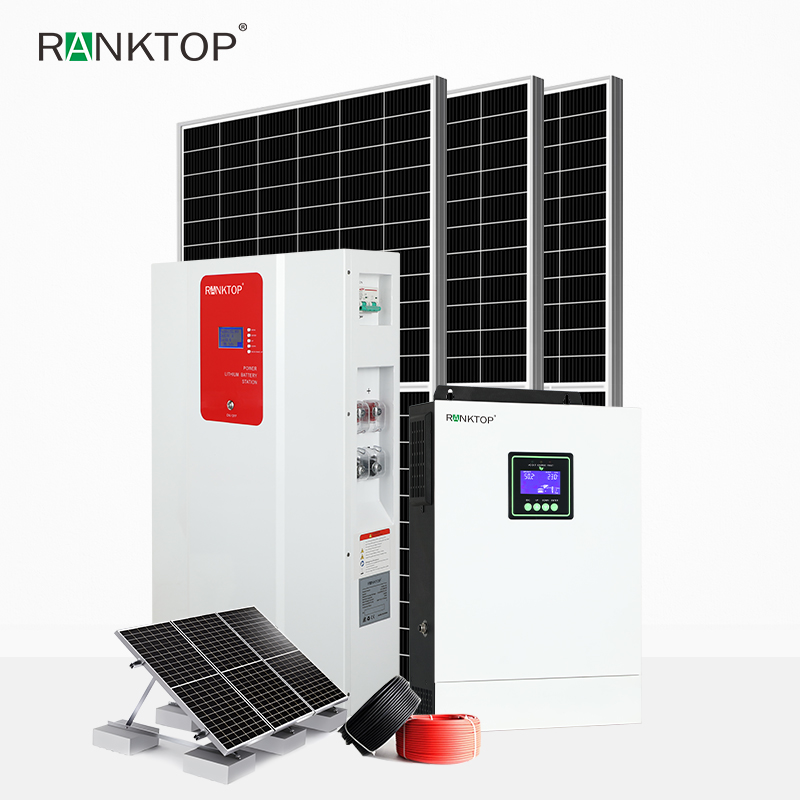

Complete residential Hybrid solar power system 5.6KW off grid photovoltaic system kit
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week

550W Mono Half Cell PERC Solar Panel
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 9 pcs In Series

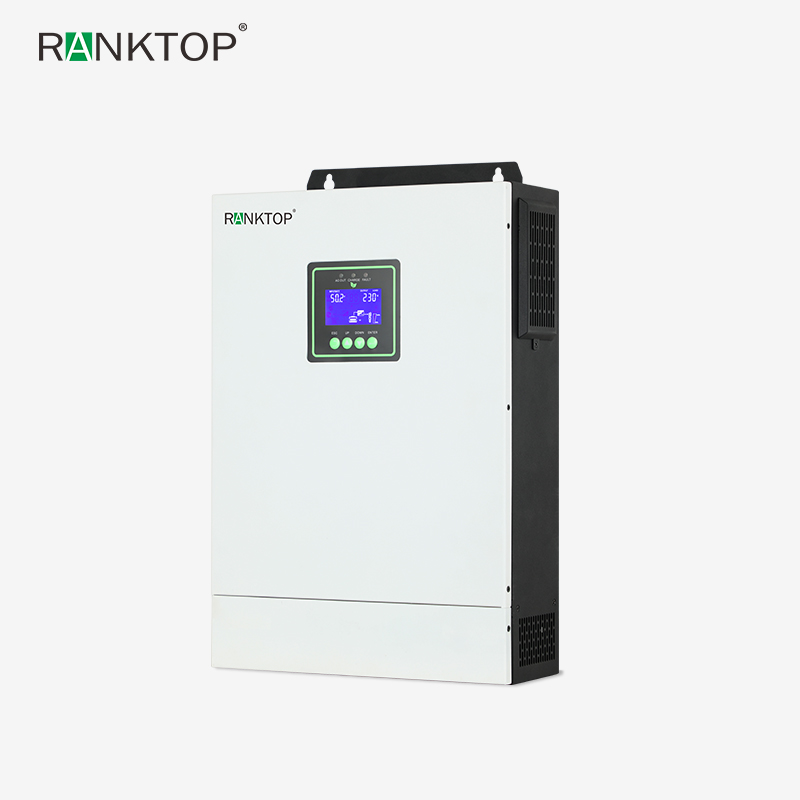

5.6KW Hybrid Inverter
Battery Voltage: 51.2VDC
Rated Power: 5600VA/5600W
Rated AC Output Voltage: 230VAC
Rated AC Input Voltage Range: 170-280VAC
Maximum AC Charging Current: 60A
Maximum PV Input Power: 5600W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A
Maximum PV Charge Current: 100A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 470*318.7*117.5mm
Warranty: 3 Years

51.2V 200AH Battery Pack
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage:40.8V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life:≥6000
Product Size: 800*551*175mm
Weight: 79kg
Warranty: 5 years

Attachment
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV Wire, Red, 20m
4mm2 PV Wire, Black, 20m
4mm2 PV Wire, Black, 2m
25mm2 PV Wire, Red, 5m
25mm2 PV Wire, Black, 5m
Product Advantage
Hybrid Inverter with Solar Battery Charging: 5.6KW/8KW/10KW/12KW Solar Inverter
Your Reliable Energy Storage Solution
* THON Solar Inverter charger integrators are suitable for most residential and commercial scenarios, ensuring higher output stability and reliability.
* THON Solar Inverter charger integrators are suitable for most residential and commercial scenarios, ensuring higher output stability and reliability.
* It combines pure sine wave inverter output with mains or generator bypass output functions to support solar charging and AC power charging. The output power and charging power can be prioritized according to the actual application needs.
* The bottom of the machine is equipped with a battery circuit fuse to ensure the safety of the circuit.
* Built-in a variety of protection functions and accurate alarm mechanism to provide comprehensive protection for system safety and stability.
* External communication is supported via RS232 or RS482. Support BMS communication, effectively monitor the battery operation, optimize the operating efficiency of the battery pack, extend the service life of the entire battery pack.photovoltaic system kit.

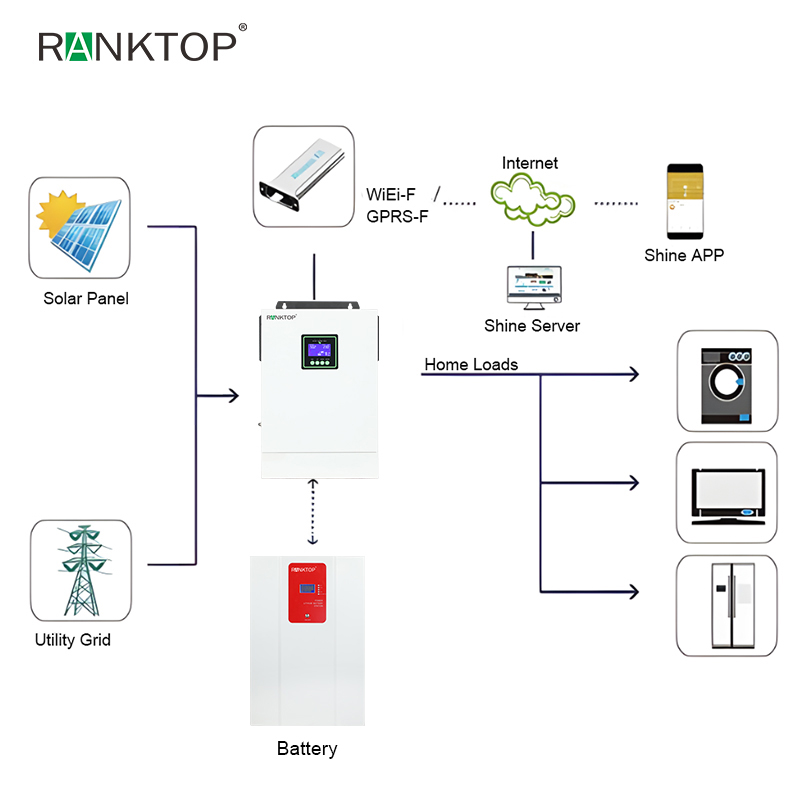

Basic System Architecture
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights,fans,refrigerators, and air conditioners.
Upgrade to our Hybrid Solar Inverters today and take control of your energy future with a smart, sustainable, and reliable energy solution!
