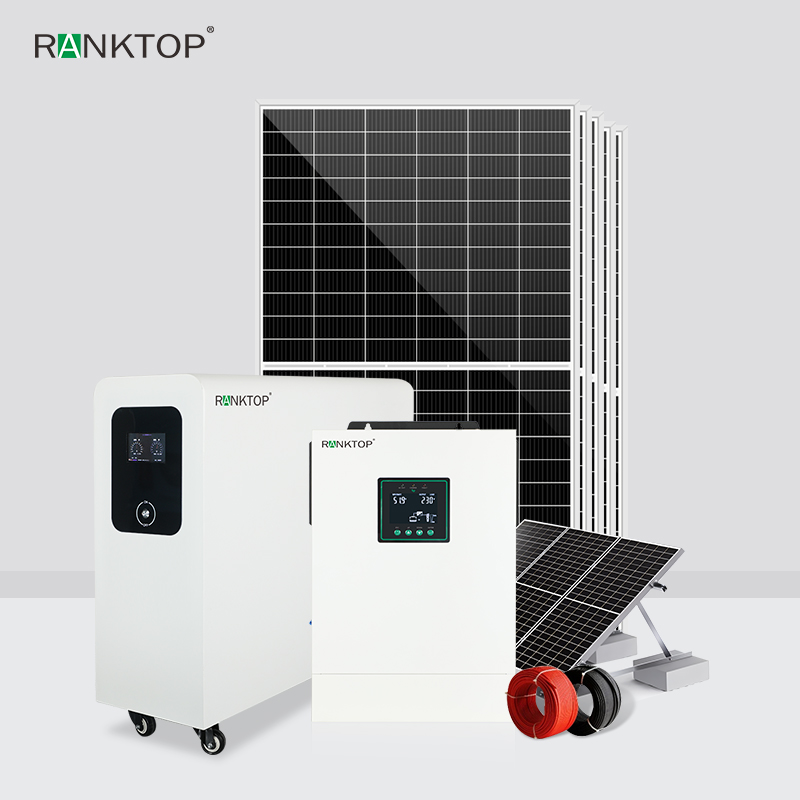

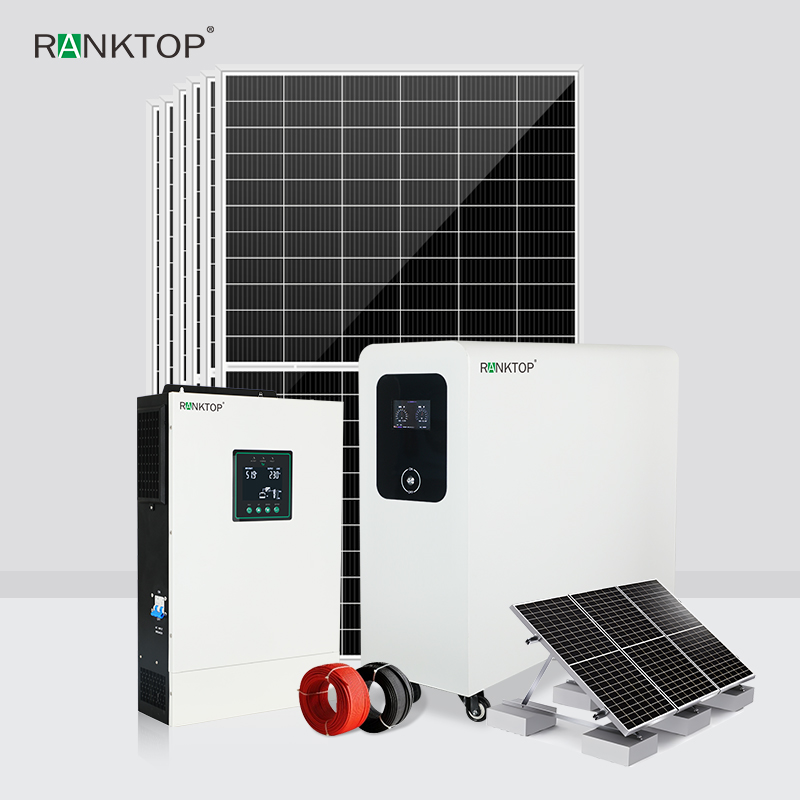

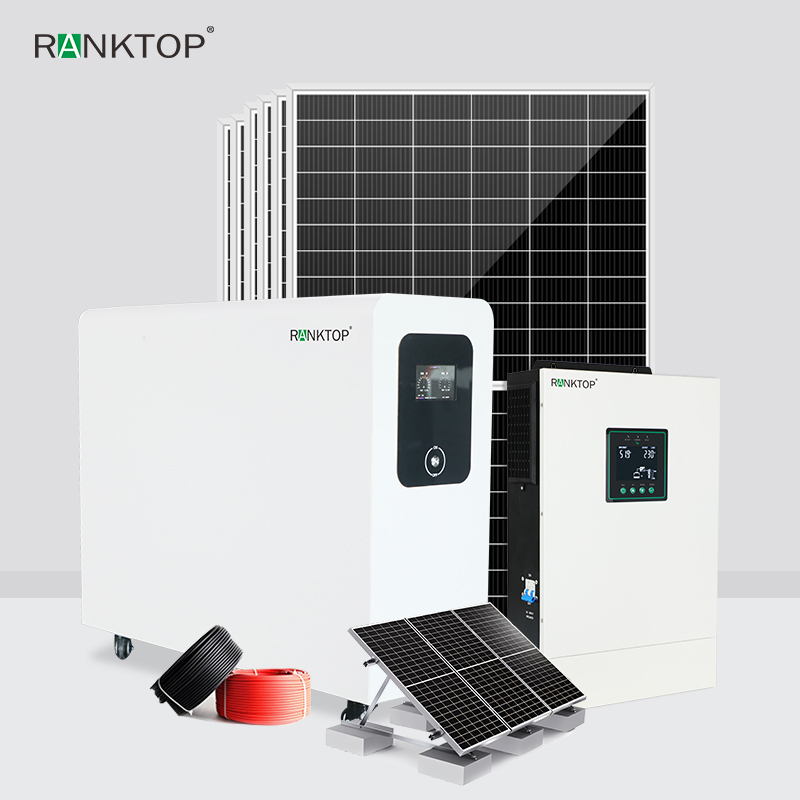

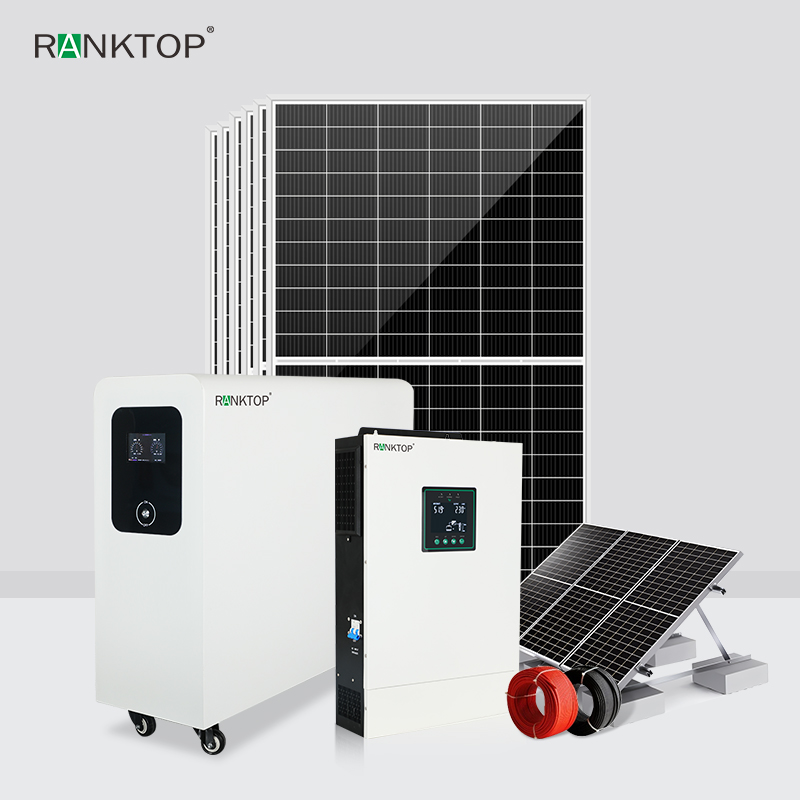

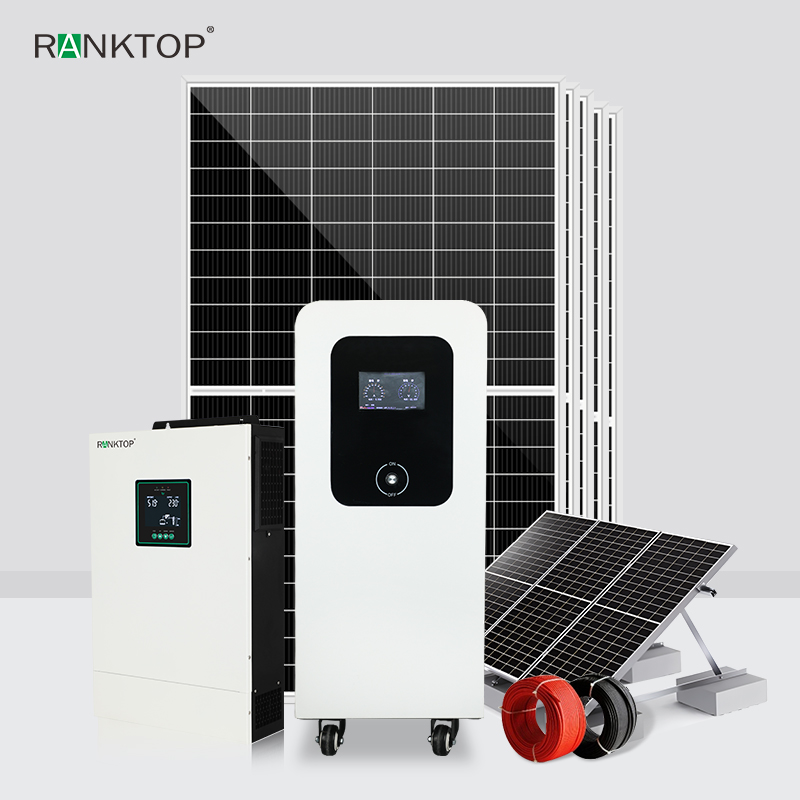

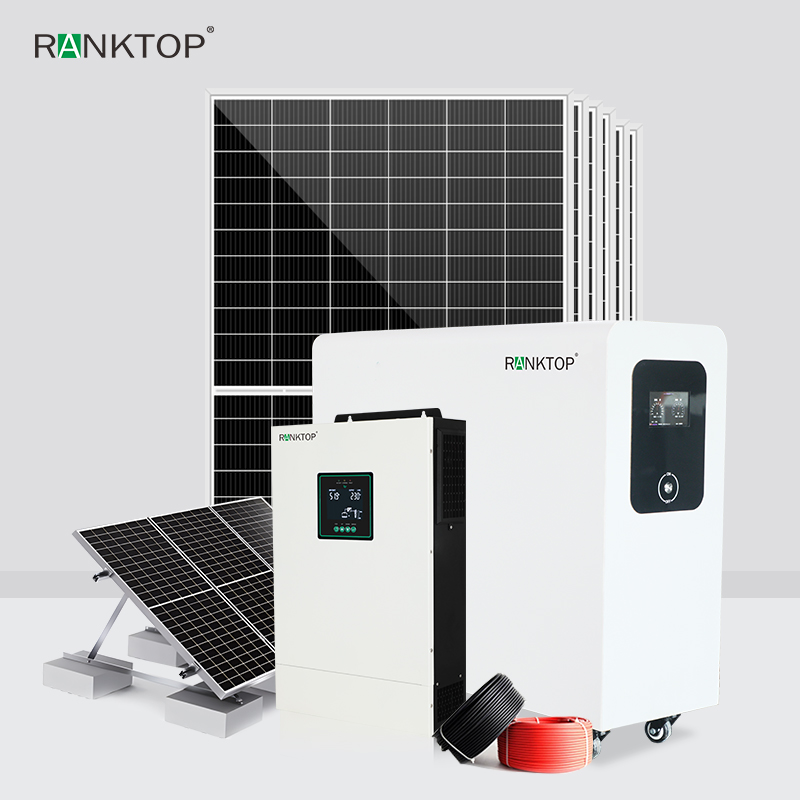

Hybrid Solar Power System Home 8 Kw Photovoltaic Kit 10 Kw Solar Panel System

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 7 pcs In Series

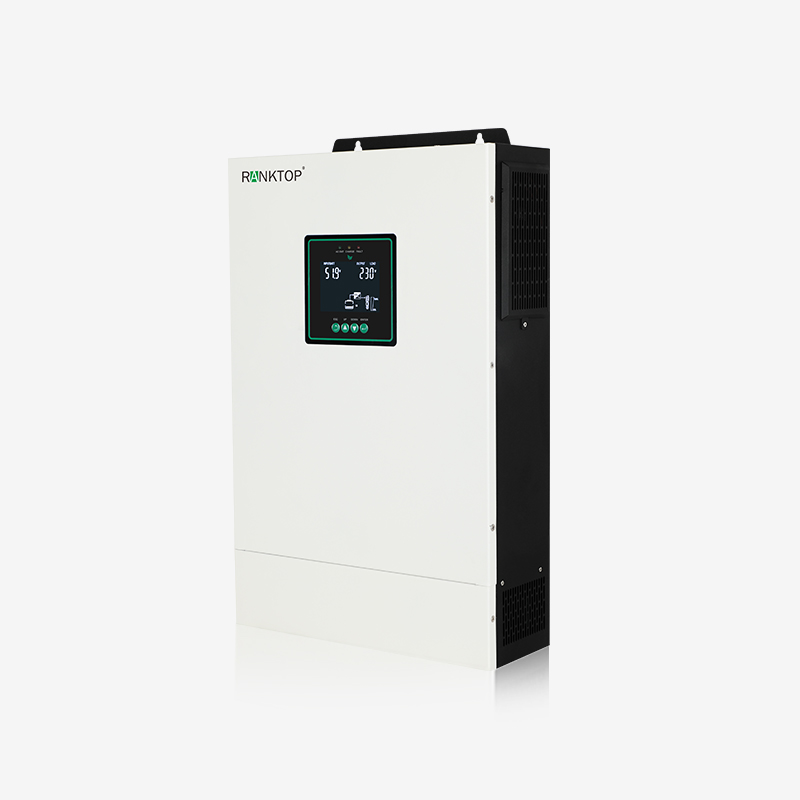

8KW Hybrid Inverter

Battery Voltage: 51.2VDC

Rated Power: 10000VA/8000W

Rated AC Output Voltage: 230VAC

Rated AC Input Voltage Range: 170-280VAC

Maximum AC Charging Current: 150A

Maximum PV Input Power:4500W+4500W

MPPT Input Voltage Range: 90-450VDC

Maximum PV Input Current: 22A+22A

Maximum PV Charge Current: 150A

IP Grade: IP20

Max. Number Of  Parallel: 6 sets

Product Size: 576*368.6*133mm

Warranty: 3 Years

51.2V 280AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 280Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage:40.8V

Max. Cont. Charging/Discharging Current: 150A

Max. Instantaneous Charge/Discharge Current: 200A

Max. Number Of  Parallel: 10 sets

Cycle Life: ≥6000

Product Size: 860*290*738mm

Weight: 60kg

Warranty: 5 years

Attachment

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm2 PV Wire, Red, 20m

4mm2 PV Wire, Black, 20m

4mm2 PV Wire, Black, 2m

25mm2 PV Wire, Red, 5m

25mm2 PV Wire, Black, 5m

THON Series Solar Storage Inverter: Advanced, All-in-One Energy Solution

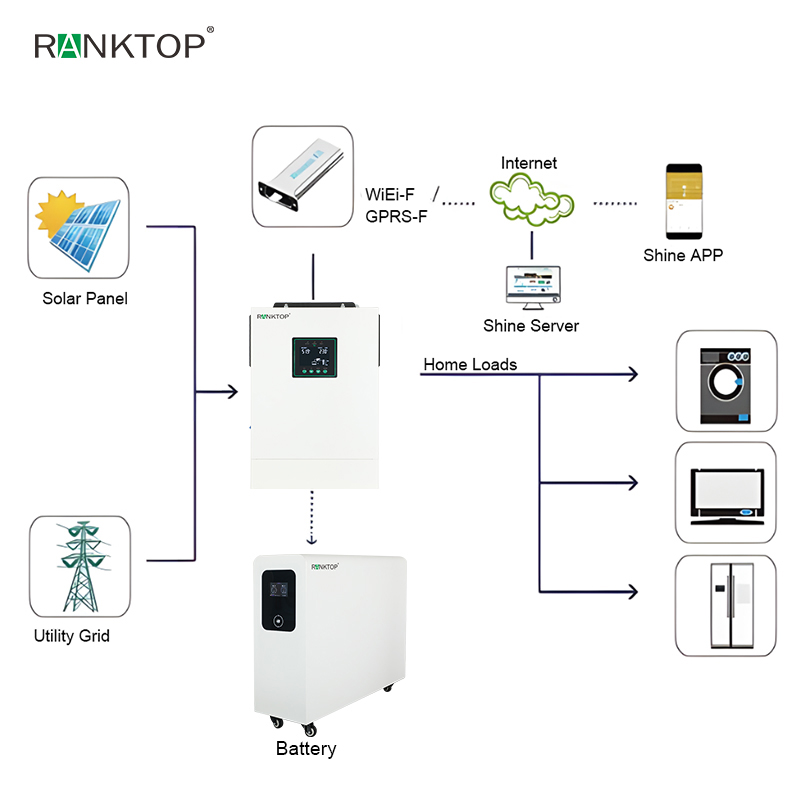

The THON Series is a cutting-edge solar storage inverter that seamlessly integrates solar energy storage, mains charging, and pure sine wave AC output. Powered by DSP control and advanced algorithms, it delivers high response speed, exceptional reliability, and meets rigorous industrial standards. With four charging modes—solar-only, mains priority, solar priority, and solar & mains combined—the THON Series offers unmatched flexibility to meet diverse energy needs.

The solar charge module features the latest optimized MPPT tracking technology, ensuring maximum energy harvest from solar panels in any environment, even with a wide MPPT voltage range. The AC-DC charge module utilizes advanced control algorithms for precise voltage and current regulation, enabling stable and reliable battery charging with a wide AC input range and comprehensive protection features.

The DC-AC inverter module is built on a fully digital intelligent design, incorporating advanced SPWM technology to deliver pure sine wave output, making it compatible with household appliances, electric tools, industrial equipment, and more. The segment LCD display provides real-time system data and status updates, while comprehensive electronic protection ensures the safety and stability of the entire system.

Whether for residential, commercial, or industrial use, the THON Series is your ultimate solution for efficient, reliable, and sustainable energy management. Upgrade to the THON Series and experience the future of solar energy storage today!
