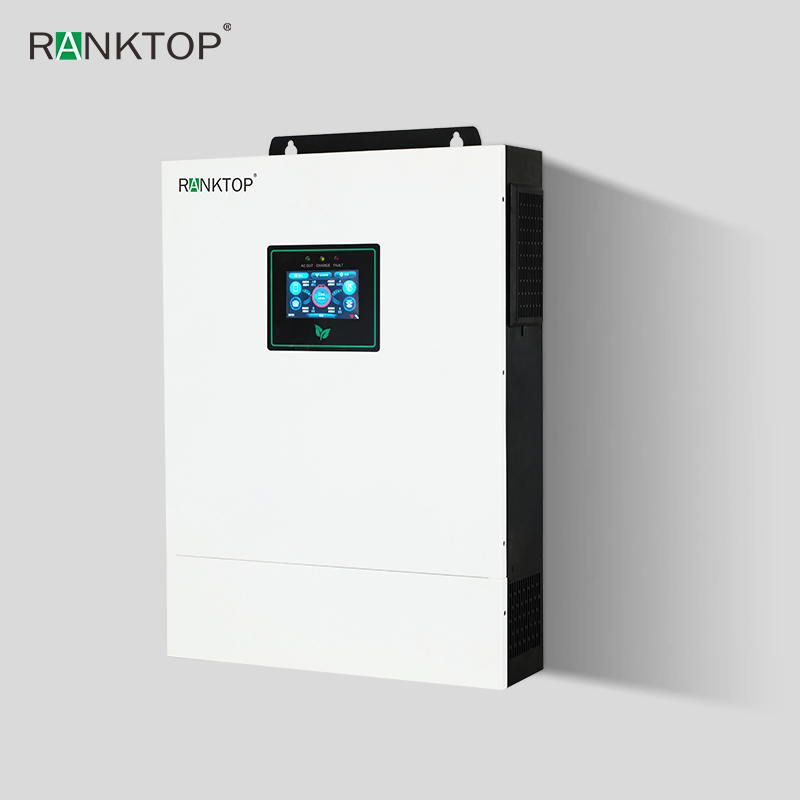

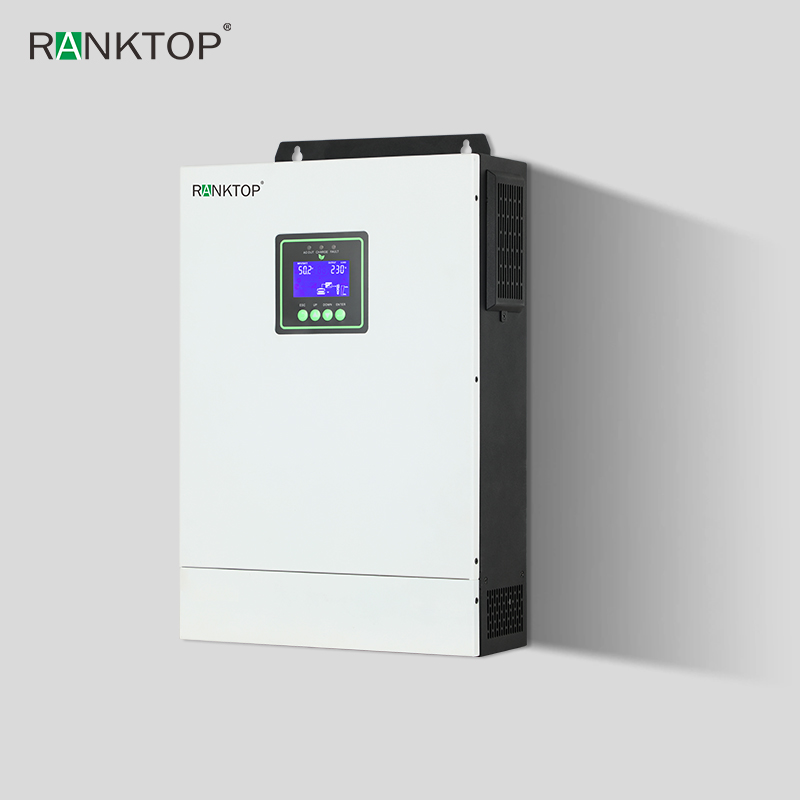

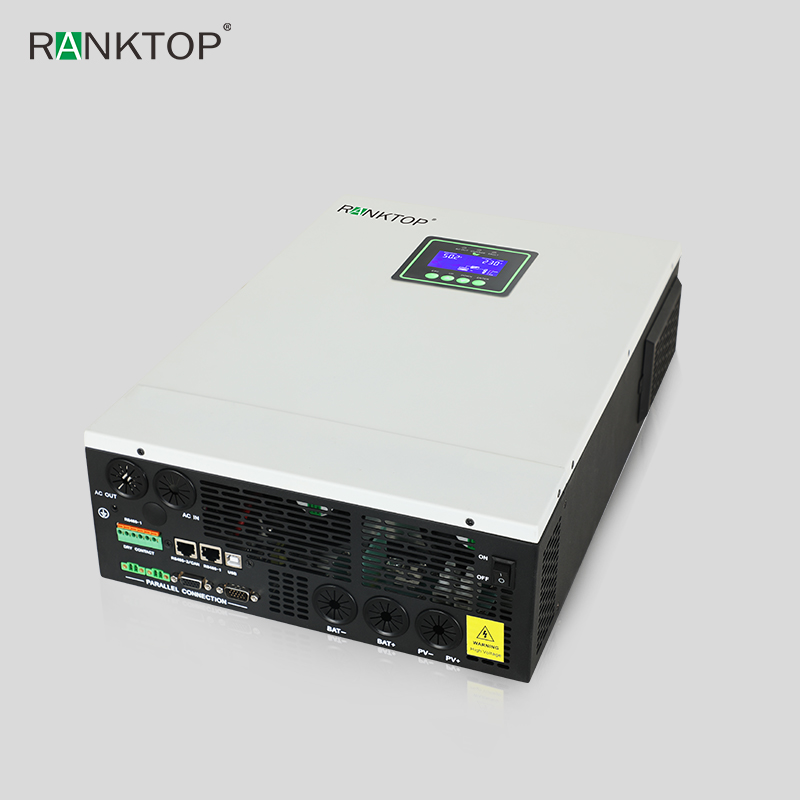

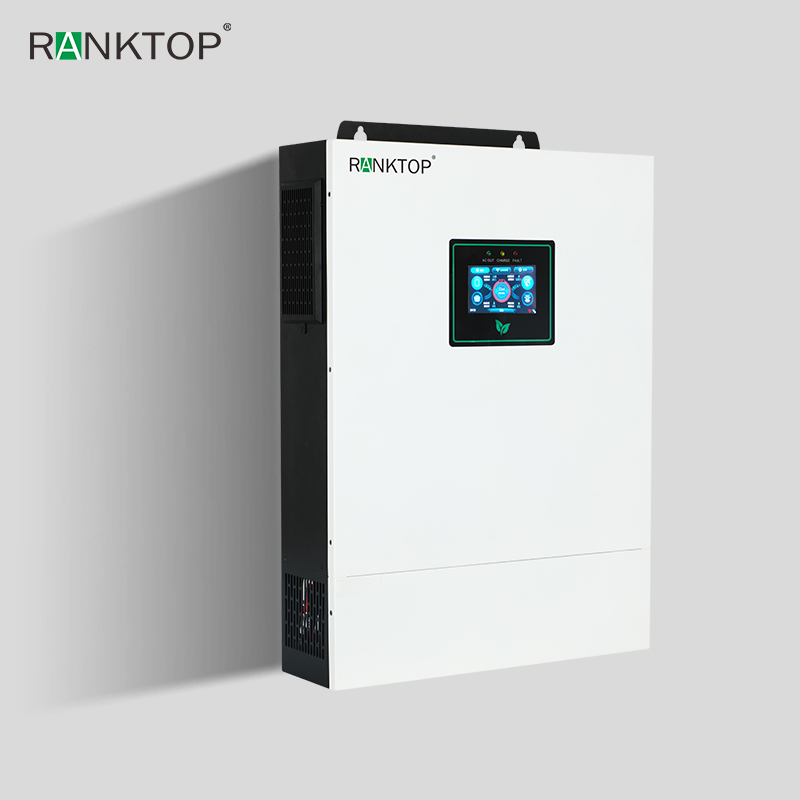

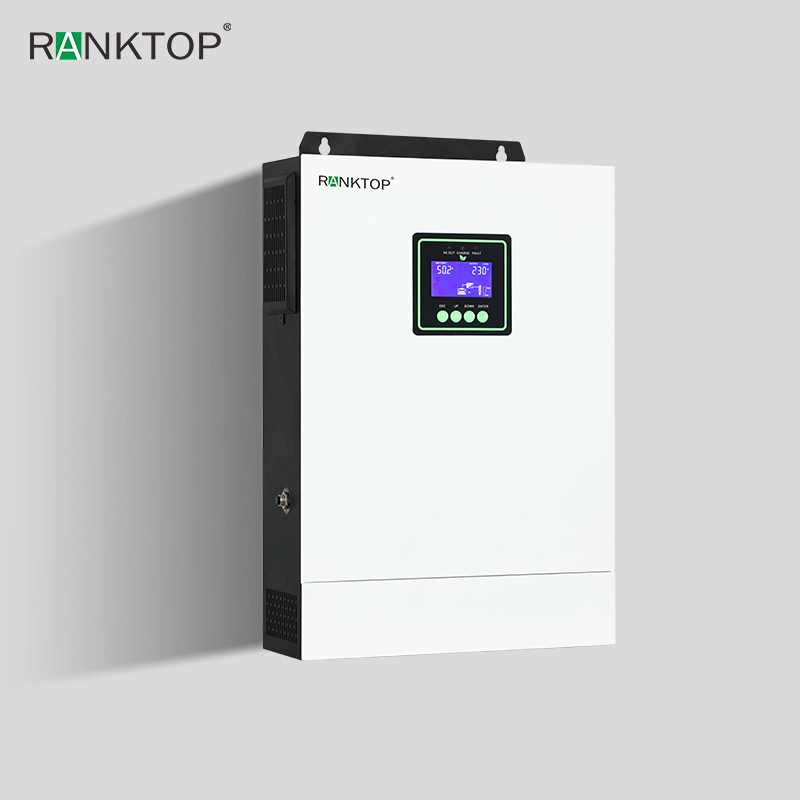

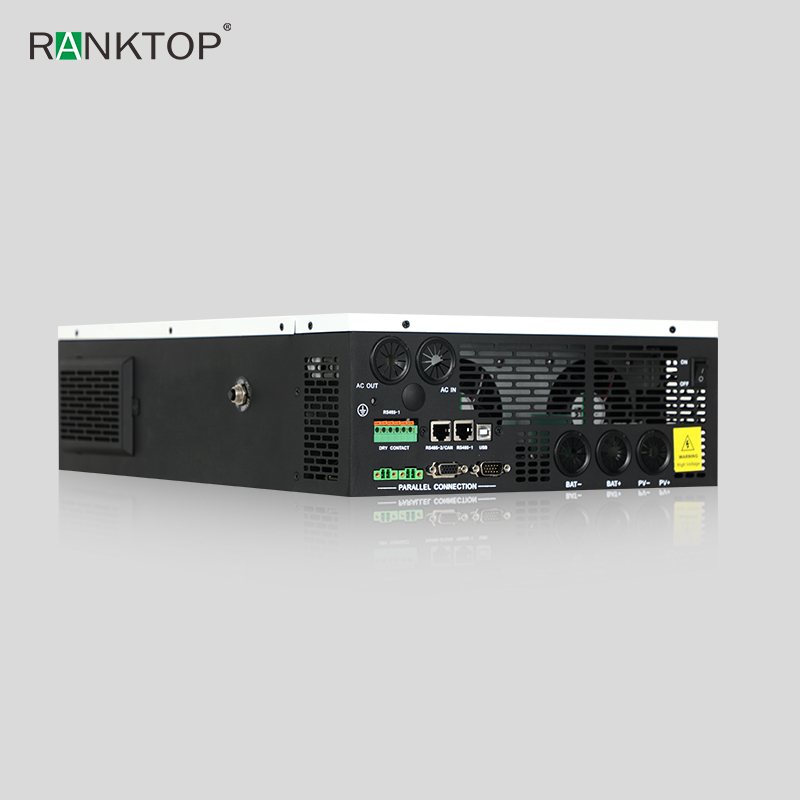

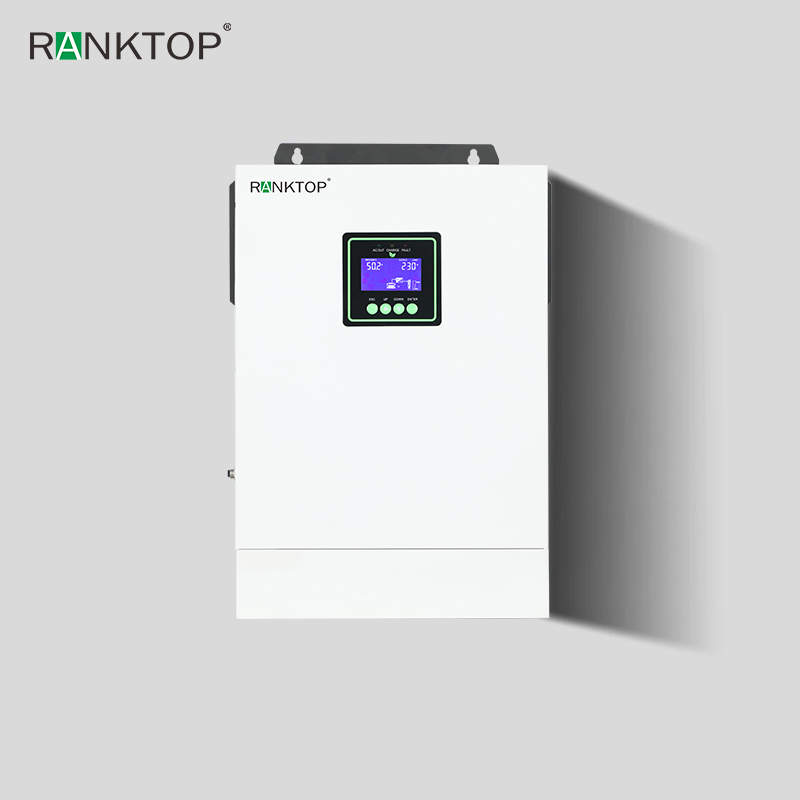

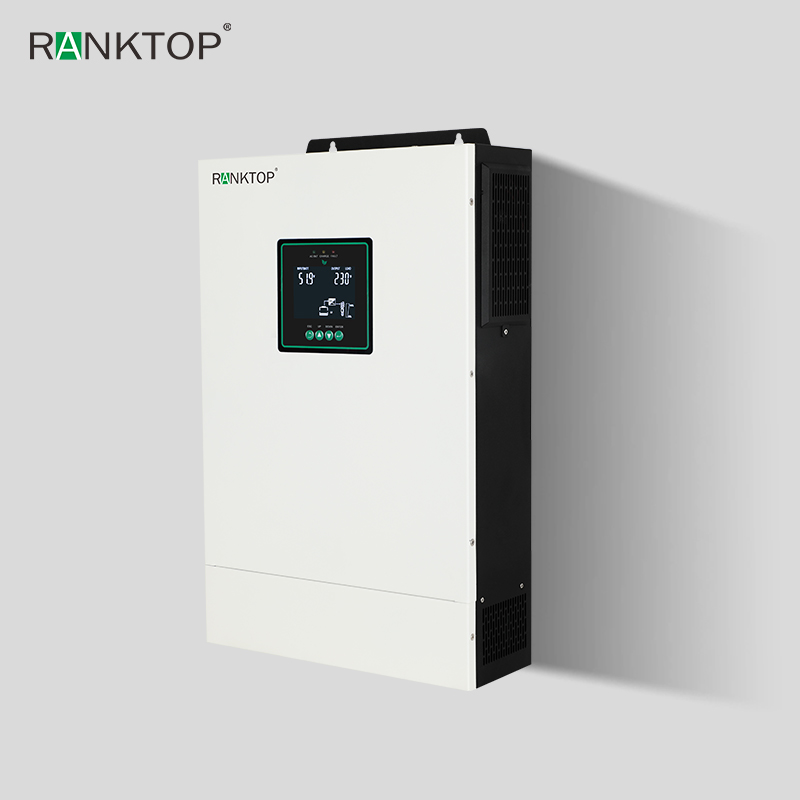

Off Grid Solar Hybrid Inverter With MPPT Pure Sine Wave Inverter

5.6KW Hybrid Inverter

* Model: THON-5.6KW-01P

* Battery Voltage: 51.2VDC

* Rated Power: 5600VA/5600W

* Rated AC Output Voltage: 230VAC

* Rated AC Output Current: 24.3A

* Battery Input Voltage Range:40~60VDC

* Maximum Battery Current: 125A

* Rated AC Input Voltage Range: 170-280VAC

* Maximum AC Charging Current: 60A

* Maximum PV Input Power:5600W

* MPPT Input Voltage Range: 120-450VDC

* Maximum PV Input Current: 22A

* Maximum PV Charge Current: 100A

* IP Grade: IP20

* Max. Number Of  Parallel: 6 sets

* Product Size: 470*318.7*117.5mm

* Warranty: 3 Years

8KW Hybrid Inverter

* Model: THON-8KW-02P

* Battery Voltage: 51.2VDC

* Rated Power: 10000VA/8000W

* Rated AC Output Voltage: 230VAC

* Rated AC Output Current: 35A

* Battery Input Voltage Range: 40~60VDC

* Maximum Battery Current: 153A

* Rated AC Input Voltage Range: 170-280VAC

* Maximum AC Charging Current: 150A

* Maximum PV Input Power:4500W+4500W

* MPPT Input Voltage Range: 90-450VDC

* Maximum PV Input Current: 22A+22A

* Maximum PV Charge Current: 150A

* IP Grade: IP20

* Max. Number Of  Parallel: 6 sets

* Product Size: 576*368.6*133mm

* Warranty: 3 Years

10KW Hybrid Inverter

* Model: THON-10KW-01P

* Battery Voltage: 51.2VDC

* Rated Power: 10000VA/10000W

* Rated AC Output Voltage: 230VAC

* Rated AC Output Current: 50A

* Battery Input Voltage Range:40~60VDC

* Maximum Battery Current: 260A

* Rated AC Input Voltage Range: 170-282VAC, * 50/60Hz

* Maximum AC Charging Current: 160A

* Maximum PV Input Power: 6000W*2

* MPPT Input Voltage Range: 90~500VDC

* Maximum PV Input Current: 22A*2

* Maximum PV Charge Current: 220A

* IP Grade: IP20

* Max. Number Of  Parallel: 6 sets

* Product Size: 651.9*468.6*137mm

* Warranty: 3 Years

12KW Hybrid Inverter

* Model：THON-12KW-01P

* Battery Voltage: 51.2VDC

* Rated Power: 12000VA/12000W

* Rated AC Output Voltage: 230VAC

* Rated AC Output Current: 50A

* Battery Input Voltage Range:40~60VDC

* Maximum Battery Current: 260A

* Rated AC Input Voltage Range: 170-282VAC, 50/60Hz

* Maximum AC Charging Current: 160A

* Maximum PV Input Power: 6000W*2

* MPPT Input Voltage Range: 90~500VDC

* Maximum PV Input Current: 22A*2

* Maximum PV Charge Current: 220A

* IP Grade: IP20

* Max. Number Of  Parallel: 6 sets

* Product Size: 651.9*468.6*137mm

* Warranty: 3 Years

On-Grid Solar Inverter and Micro Inverter Solar System

Experience reliable and clean AC power output with our Pure Sine Wave Inverter. Designed to meet your power quality and reliability needs, this inverter is perfect for residential and commercial applications.
KEY FEATURES:
1. Pure Sine Wave Output
2. Can Support WIFI/GPRS
3. MPPT Efficiency max 98%
4. Optional built-in MPPT/PWM Solar Charge Controller (30A-120A)
5. DC Start and Automatic Self-Diagnostic Function
6. Automatic Signal to Start Generator
7. High Efficiency Design for Optimized Battery Performance
8. Selectable Charging Current for Versatile Applications
9. AC Start-up Voltage Auto Restart Function
