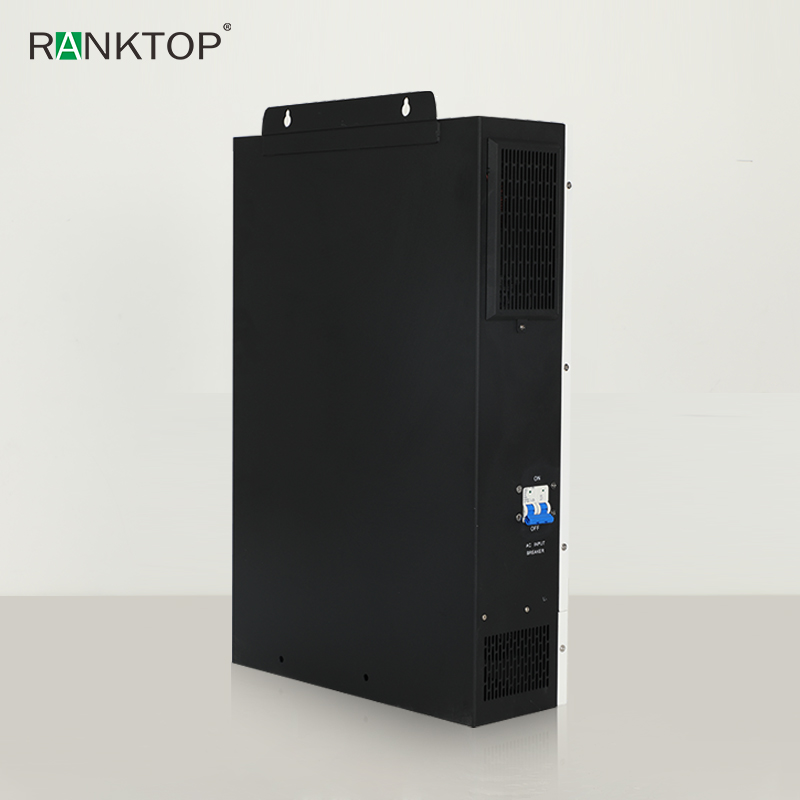

All in one high quality off grid inverter hybrid 5.6kw 8kw 10kw 11kw Hybrid Inverter
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week
5.6KW Hybrid Inverter
Model:THON-5.6KW-01P
Battery Voltage: 51.2VDC
Rated Power: 5600VA/5600W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 24.3A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 125A
Rated AC Input Voltage Range: 170-280VAC
Maximum AC Charging Current: 60A
Maximum PV Input Power:5600W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A
Maximum PV Charge Current: 100A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 470*318.7*117.5mm
Warranty: 3 Years
8KW Hybrid Inverter
Model:THON-8KW-02P
Battery Voltage: 51.2VDC
Rated Power: 10000VA/8000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 35A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 153A
Rated AC Input Voltage Range: 170-280VAC
Maximum AC Charging Current: 150A
Maximum PV Input Power:4500W+4500W
MPPT Input Voltage Range: 90-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*368.6*133mm
Warranty: 3 Years
10KW Hybrid Inverter
Model:THON-10KW-01P
Battery Voltage: 51.2VDC
Rated Power: 10000VA/10000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 50A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 260A
Rated AC Input Voltage Range: 170-282VAC, 50/60Hz
Maximum AC Charging Current: 160A
Maximum PV Input Power: 6000W*2
MPPT Input Voltage Range: 90~500VDC
Maximum PV Input Current: 22A*2
Maximum PV Charge Current: 220A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 651.9*468.6*137mm
Warranty: 3 Years
12KW Hybrid Inverter
Model:THON-12KW-01P
Battery Voltage: 51.2VDC
Rated Power: 12000VA/12000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 50A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 260A
Rated AC Input Voltage Range: 170-282VAC, 50/60Hz
Maximum AC Charging Current: 160A
Maximum PV Input Power: 6000W*2
MPPT Input Voltage Range: 90~500VDC
Maximum PV Input Current: 22A*2
Maximum PV Charge Current: 220A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 651.9*468.6*137mm
Warranty: 3 Years
Product Advantage
The Hybrid Inverter is a versatile, high-efficiency power conversion device that integrates household inverter, AC/DC inverter, and solar power management functions. It converts solar-generated DC power into AC power for home use, provides backup power during grid outages, and supports both grid-connected and off-grid modes. Key features include sectional charge/discharge, anti-countercurrent grid-connected function, and compatibility with lithium batteries. It offers dual output modes (mains bypass and inverter output), 360° protection, and intelligent monitoring. Advanced technologies such as full digital voltage/current double closed-loop control and SPWM ensure pure sine wave output and efficient heat dissipation. The Hybrid Inverter is a reliable, efficient, and intelligent solution for modern home energy management, whether for residential solar systems or backup power needs.
