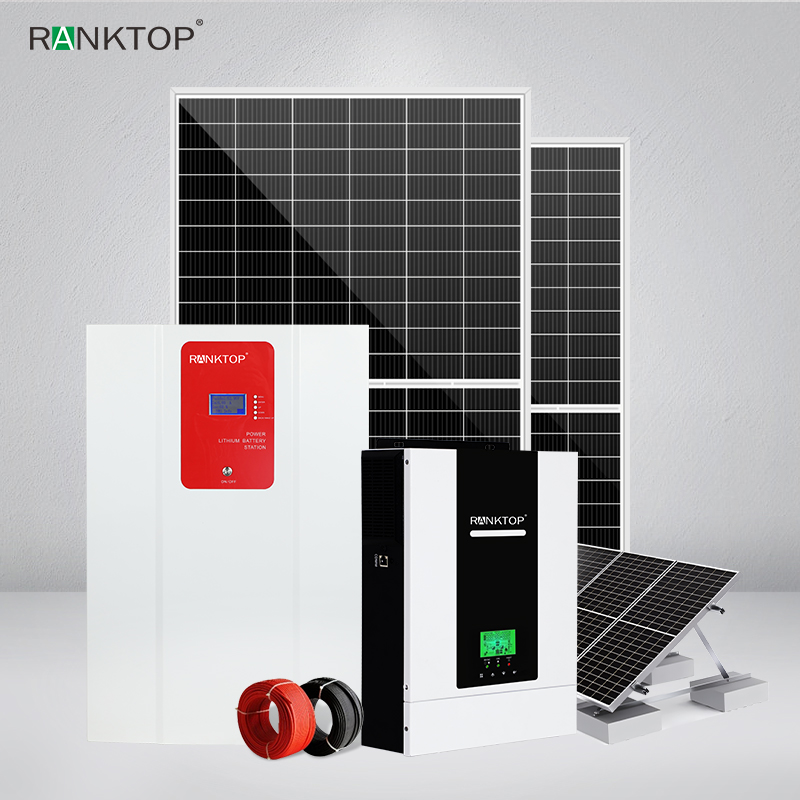

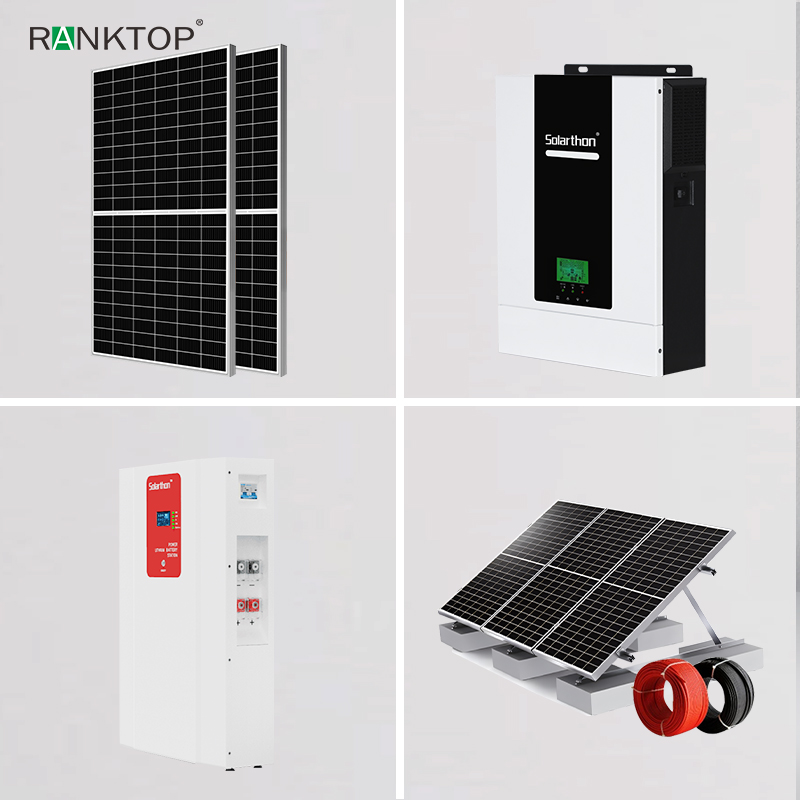

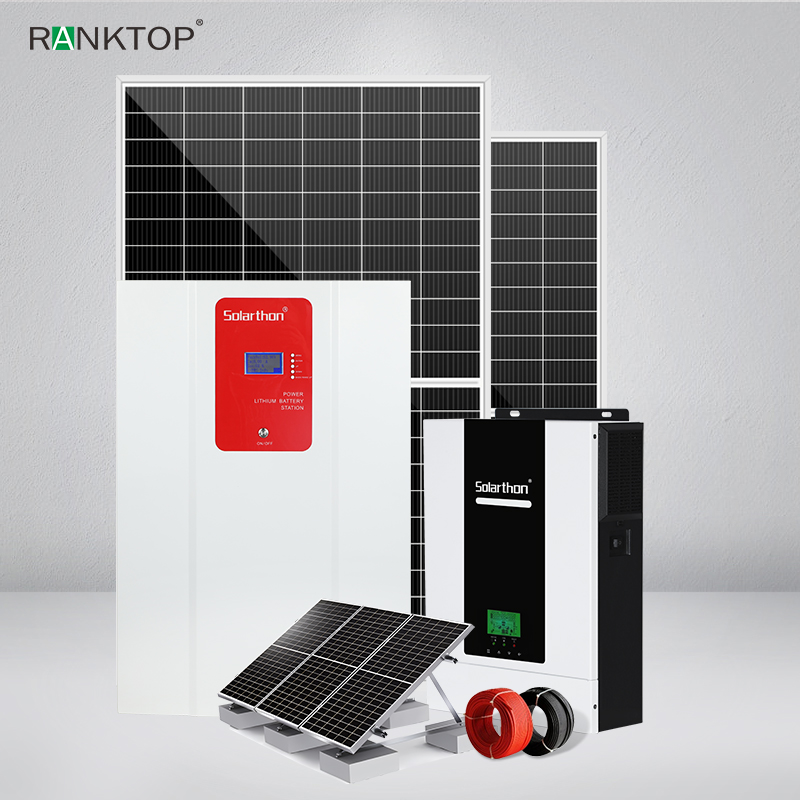

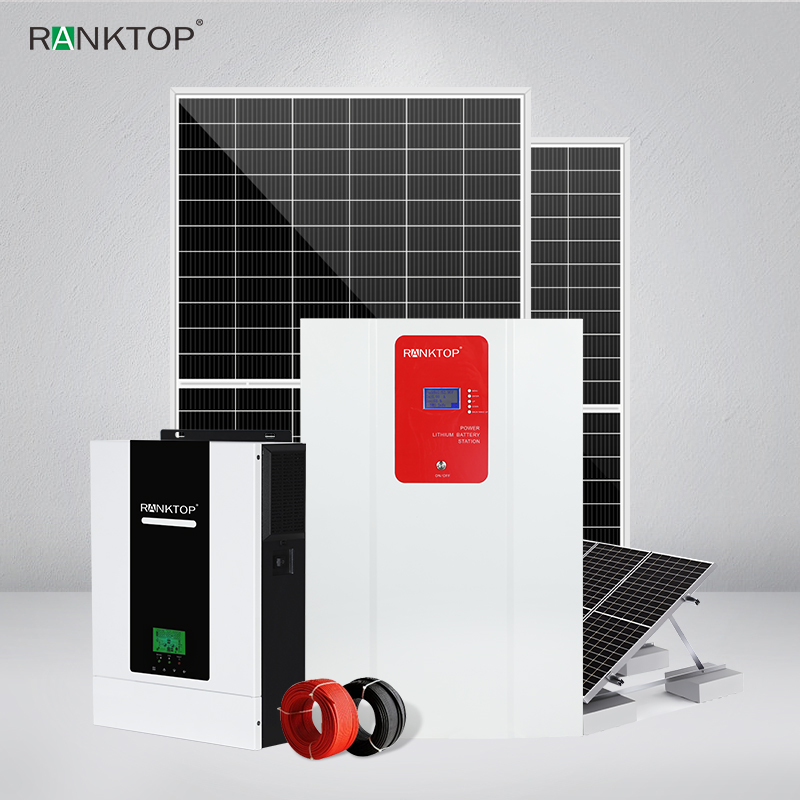

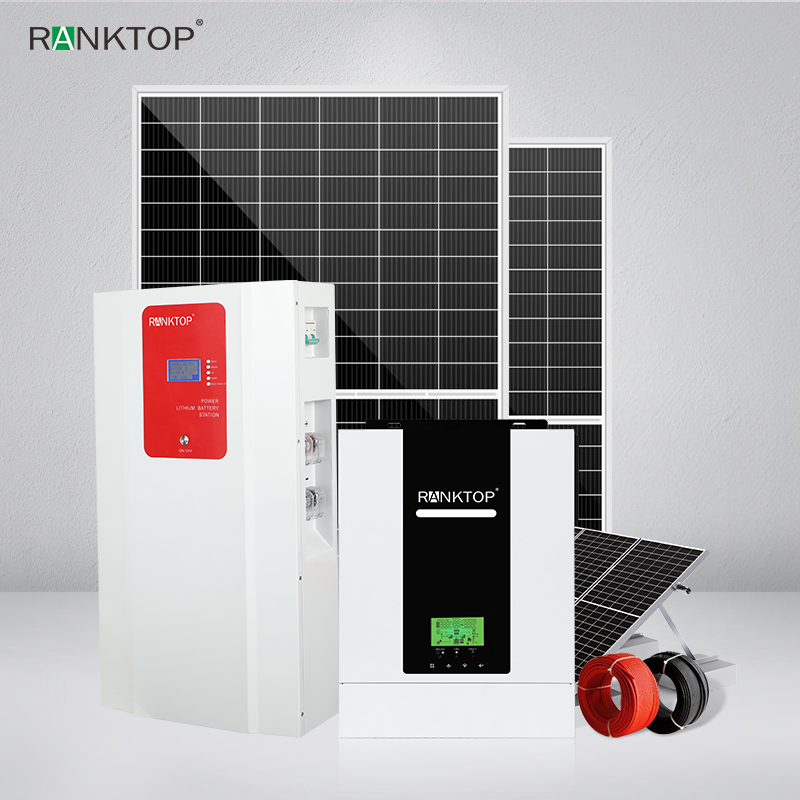

Complete solar system off grid solar inverter with battery Customized solar power systems

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

Robust protection design ensures reliable operation of your equipment even in extreme environments!Designed for harsh environments, integrating advanced protection technologies to ensure reliable power support, even under adverse weather conditions and unstable power sources. Whether for residential, commercial, or industrial applications, Ranktop has you covered.

hybrid PV solar inverter

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 5 pcs In Series

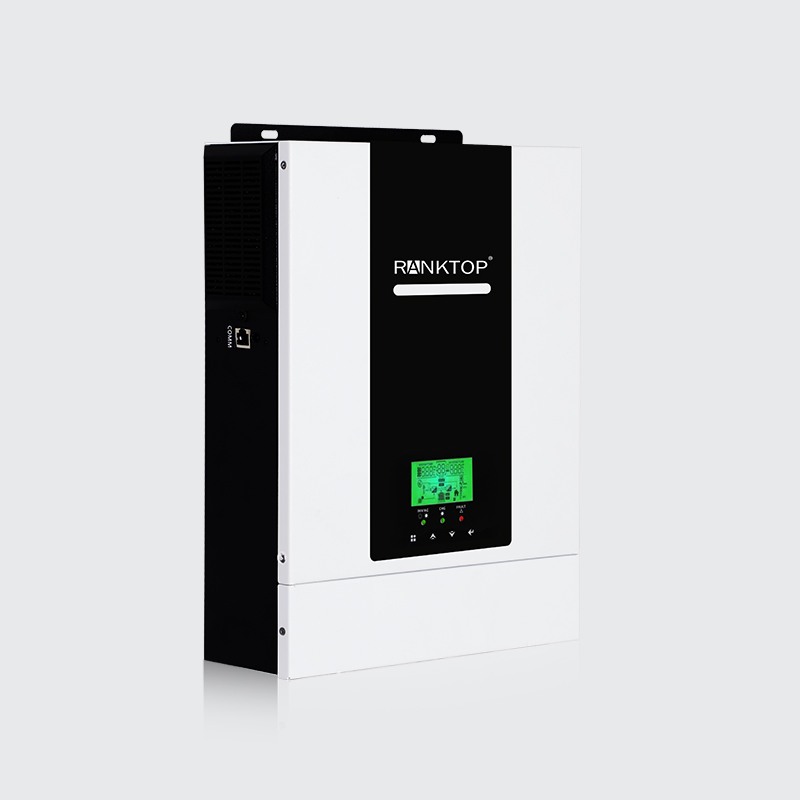

3KW All-In-One Solar Inverter

Rated Output Power: 3000W

Rated Output Voltage: 230VAC, 50Hz/60Hz

Maximum PV Input Voltage(Voc): 400VDC

MPPT Tracking Voltage Range: 30V-400VDC

Baterry Voltage: 24VDC

Maximum PV Array Power: 3000W

Maximum PV Charge Current: 80A

Rated AC Input Voltage: 230VAC, 50Hz/60Hz

Maximum AC Charge Current: 60A

Product Size: 273x357x95mm

Weight: 6.2kg

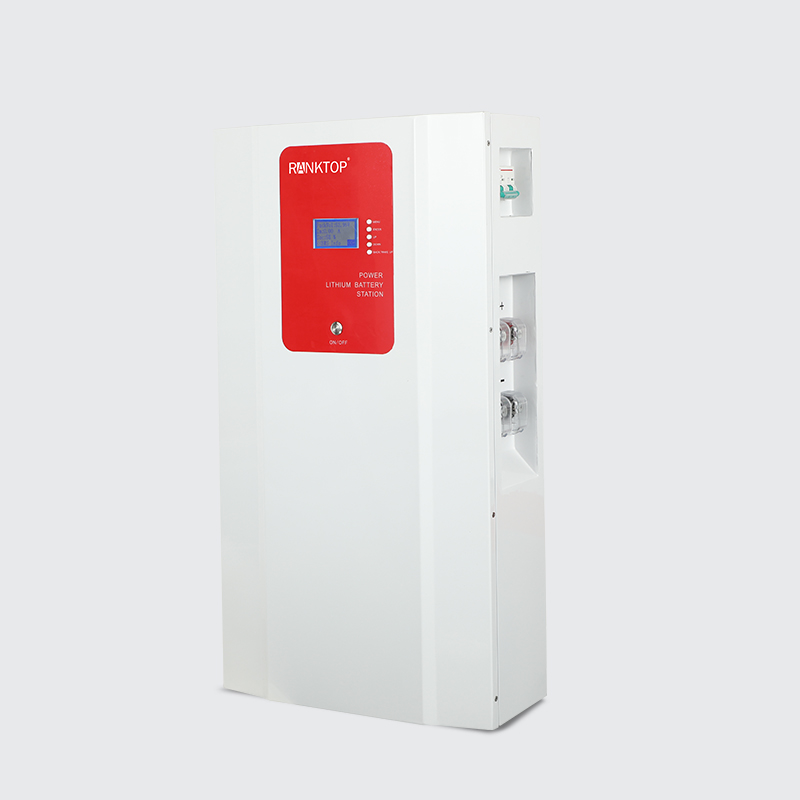

25.6V 200AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 25.6V

Nominal Capacity: 200Ah

Charging Cut-off Voltage: 29.2V

Discharging Cut-off Voltage: 21.6V

Max. Cont. Charging/Discharging Current: 100A

Max. Instantaneous Charge/Discharge Current: 200A

Max. Number Of Parallel: 6 sets

Cycle Life: ≥6000

Product Size: 720*355*167mm

Weight: 30kg

Warranty: 5 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

25mm² PV Wire, Red, 5m

25mm² PV Wire, Black, 5m

Product Advantage

The latest Ranktop All-In-One Solar Inverter incorporates advanced surge protection, ensuring stable operation even in complex power environments.

By connecting a power filter to the power line, it effectively filters out specific frequency power signals or eliminates interference frequencies, significantly improving power quality. The strong lightning protection feature ensures that the device is safeguarded from lightning-induced current surges during extreme weather conditions, providing comprehensive security.

These optimized designs not only enhance system durability but also ensure efficient power output, making it ideal for applications requiring high stability and anti-interference capabilities.

Experience the Future of Energy Storage!
Upgrade to our Battery Pack Energy Storage System and take control of your energy needs. Whether you're looking to maximize your solar energy usage, ensure backup power, or achieve energy independence, our LiFePO4 battery pack is the perfect solution.

Order Now and Power Your World with Clean, Reliable Energy!
