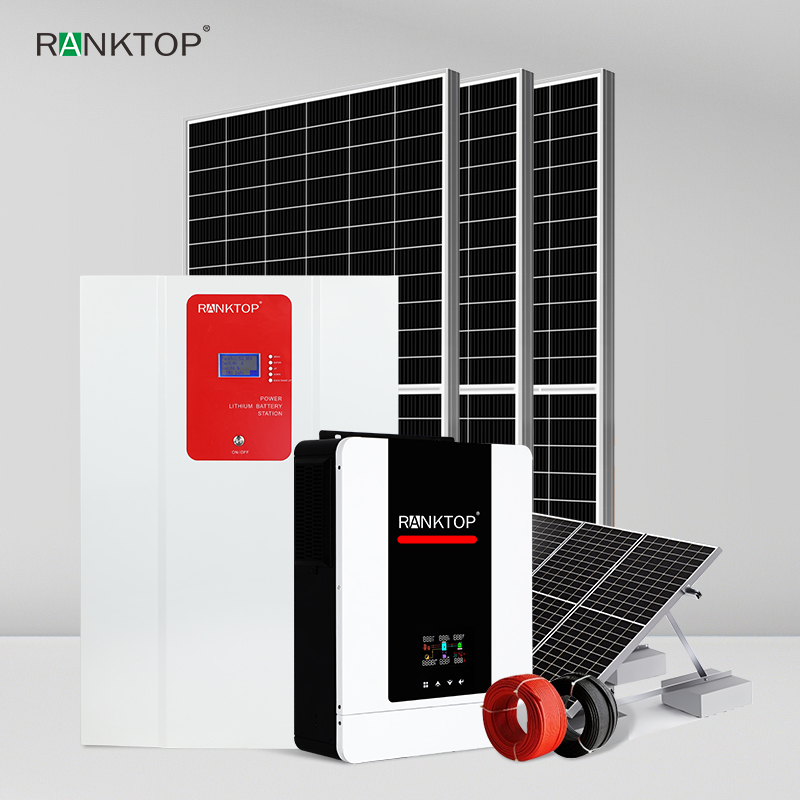

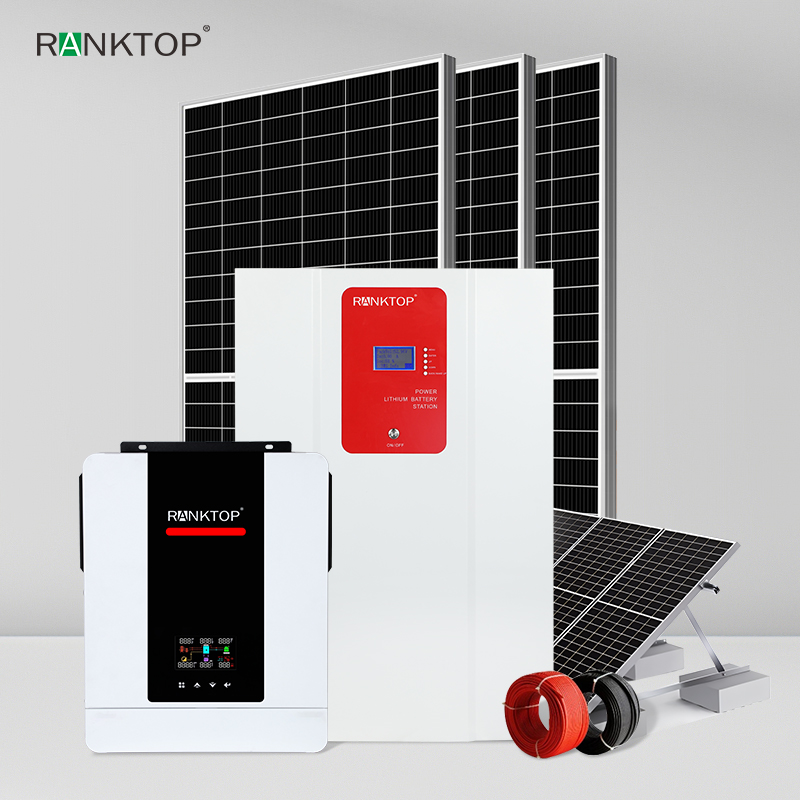

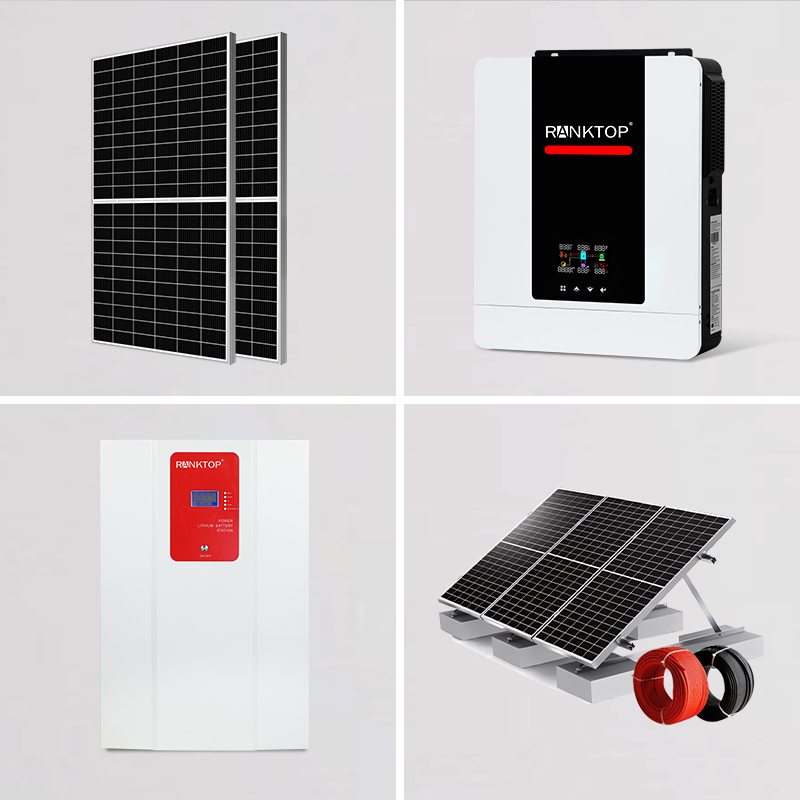

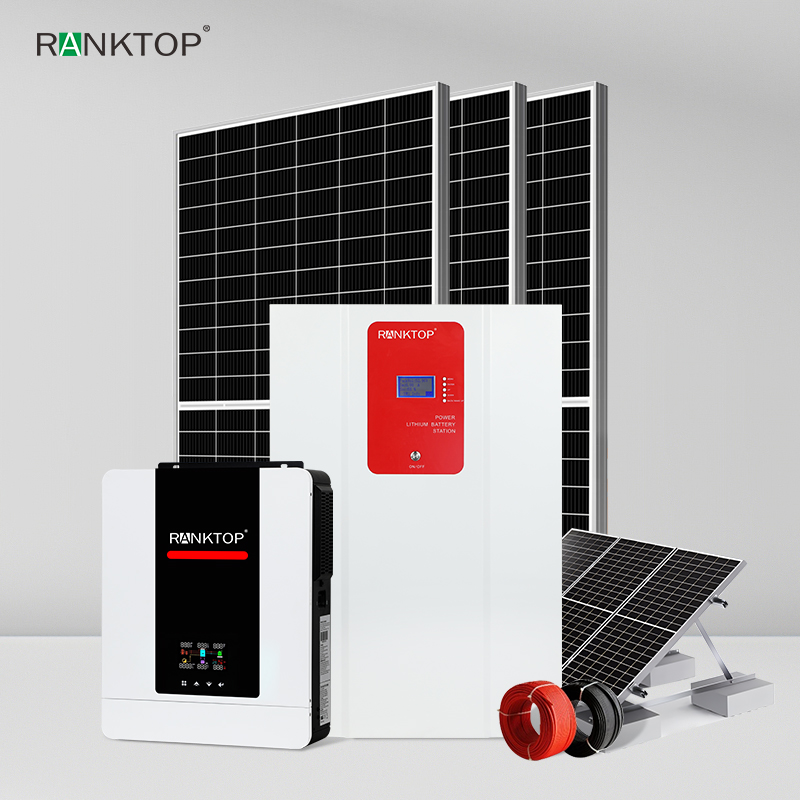

Home Solar Power System Grid Tied solar Panels With Battery And inverter 6.2kw Solar Panel System

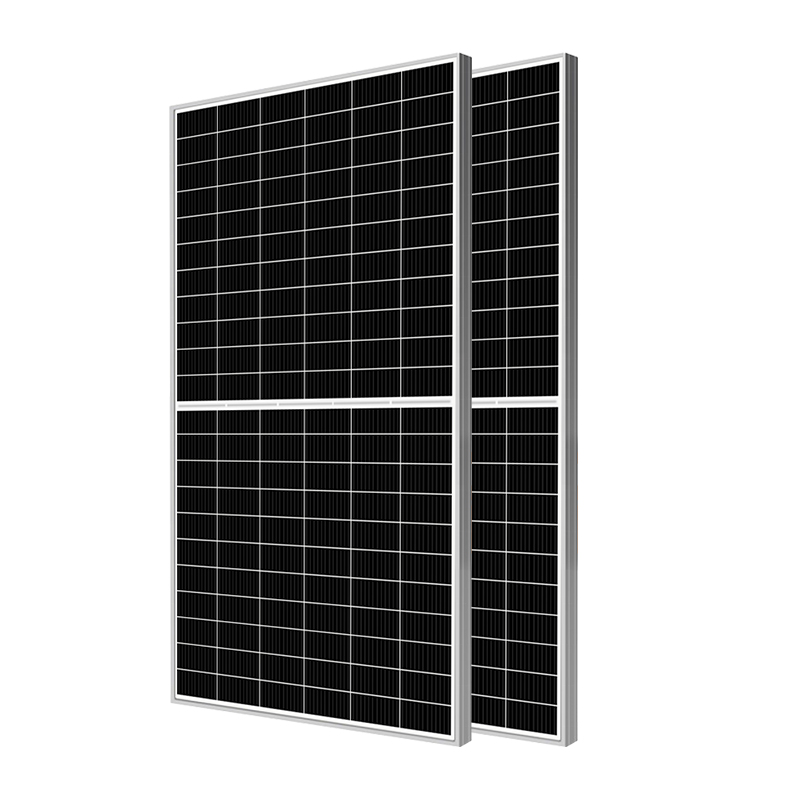

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 9 pcs In Series

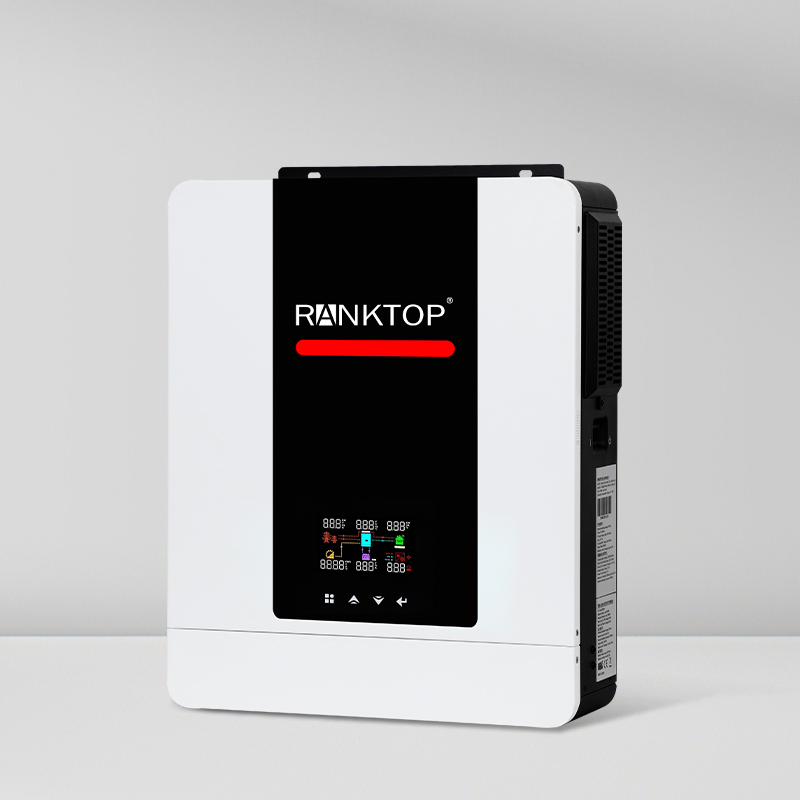

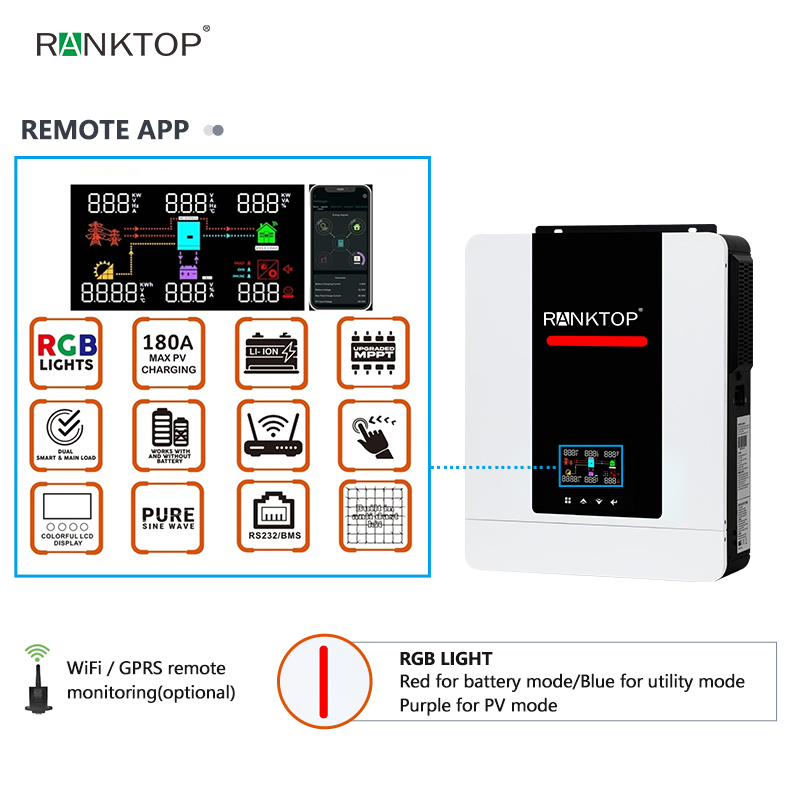

6.2KW Solar Inverter (On/Off Grid)

Rated Output Power: 6200W

Rated Output Voltage: 230VAC, 50Hz/60Hz

Maximum Main Load: 6200W

Maximum Second Load: 2066W

Max. PV Input Voltage(Voc): 500VDC

MPPT Tracking Voltage Range: 60V-450VDC

Max. PV Charge Current: 120A

Baterry Voltage: 48VDC

AC Input Voltage: 170~280VAC, 50Hz/60Hz

Max. AC Charge Current: 100A

Product Size: 310x420x110mm

Weight: 8.7kg

Warranty: 3 Years

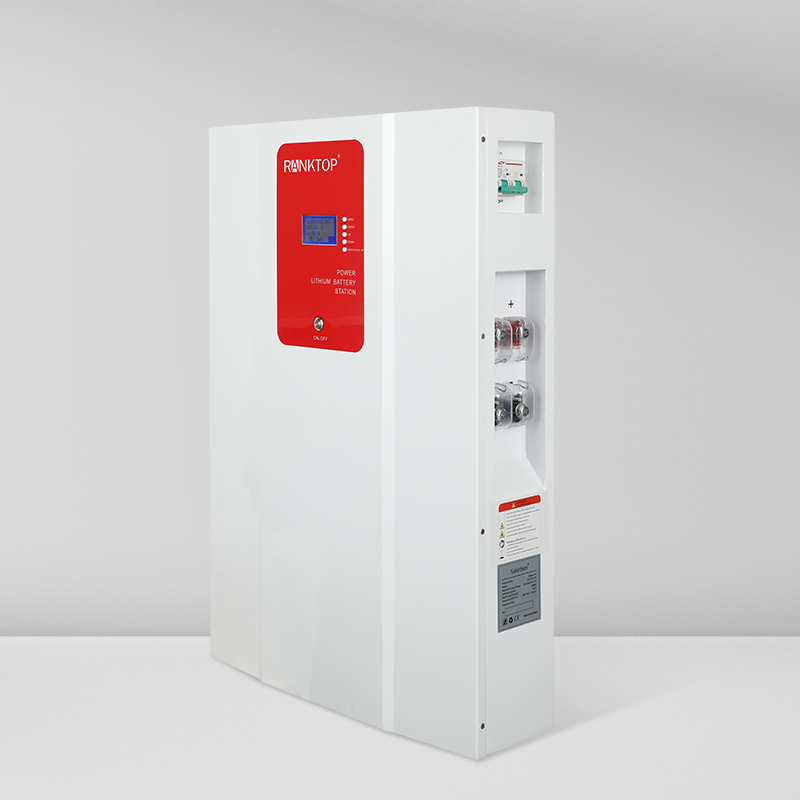

51.2V 200AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 200Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage:40.8V

Max. Cont. Charging Current: 184A

Max. Cont. Discharging Current: 184A

Cycle Life:≥6000

Product Size: 800*551*175mm

Weight: 79kg

Warranty: 5 years

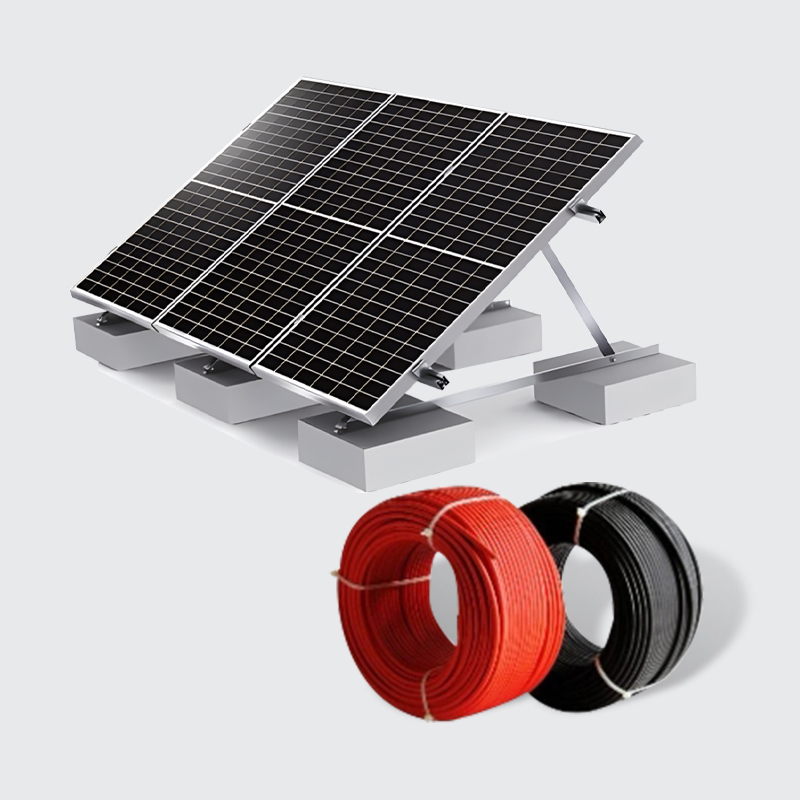

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2



4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

4mm² PV Wire, Black, 2m

25mm² PV Wire, Red, 5m

25mm² PV Wire, Black, 5m

Complete Home Solar System Solution: Reliable, Efficient, and Sustainable Energy

Our Complete Home Solar System Solution is an all-in-one energy package designed to power your home with clean, renewable energy. This system includes high-efficiency solar panels, a compact energy storage unit, and an MPPT Hybrid Inverter with Pure Sine Wave Inverter technology, ensuring reliable and stable power for residential use. Whether you're looking to reduce electricity bills, achieve energy independence, or minimize your carbon footprint, this system is perfect for you. Easy to install and adaptable to various home types, it provides uninterrupted energy around the clock. Suitable for residential, commercial, and off-grid applications, our solar system offers cost savings, sustainability, and long-lasting performance. Upgrade to our solar solution today and take control of your energy future!

What is a hybrid system？

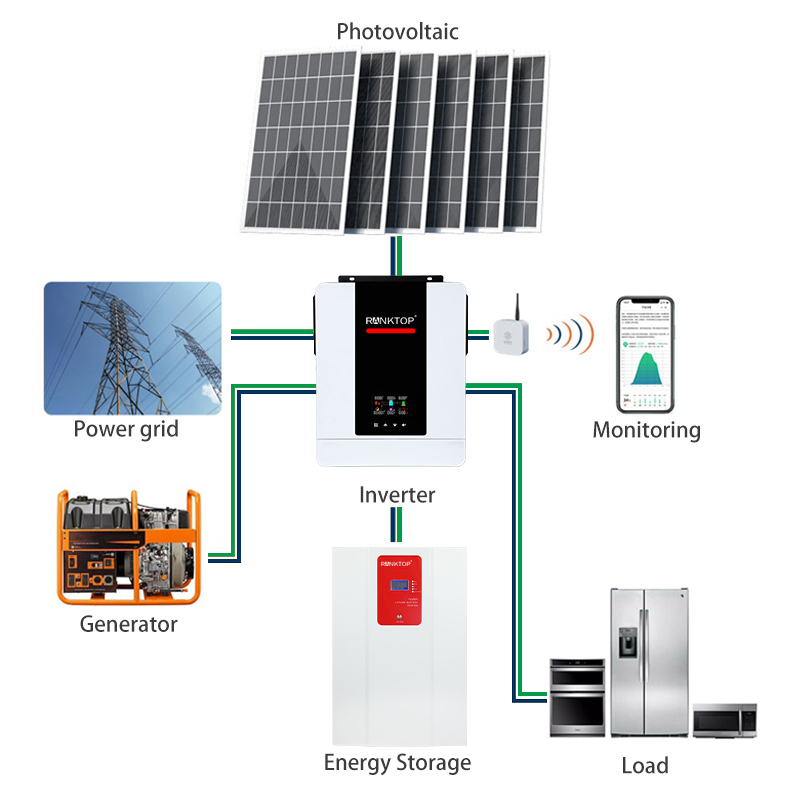

The grid-connected energy storage system refers to the power generation and energy storage system that is integrated into the grid, and the generated electricity may be used for its own use, and the surplus is supplied to other users in the grid. The entire system is a power generation system including photovoltaic module arrays, photovoltaic controllers, battery packs, battery management systems (BMS), inverters, and corresponding energy storage power station joint control and dispatching systems.

Applications:

• Residential Use: Power your home with clean, renewable energy and reduce electricity bills.

• Commercial Use: Provide reliable energy for offices, shops, and small businesses.

• Remote Locations: Perfect for off-grid cabins, farms, and rural areas without access to the grid.

• Emergency Backup: Ensure uninterrupted power during outages or natural disasters.
