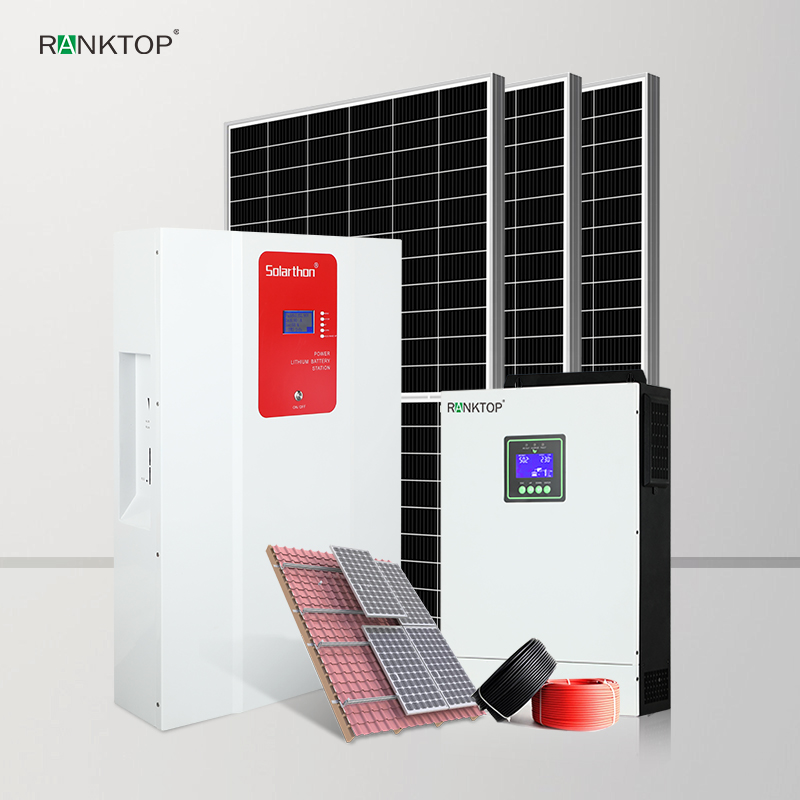

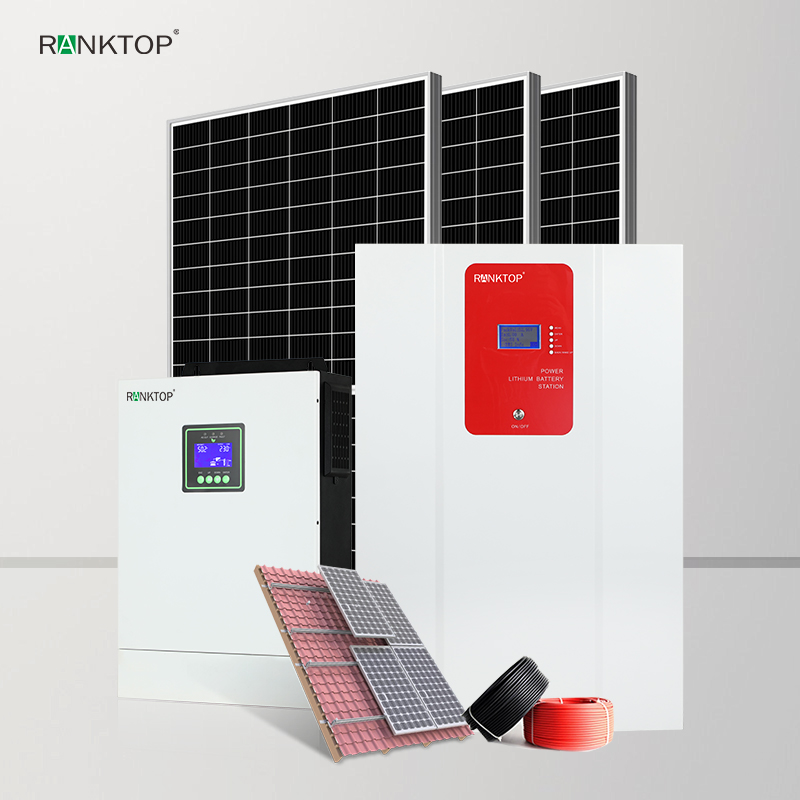

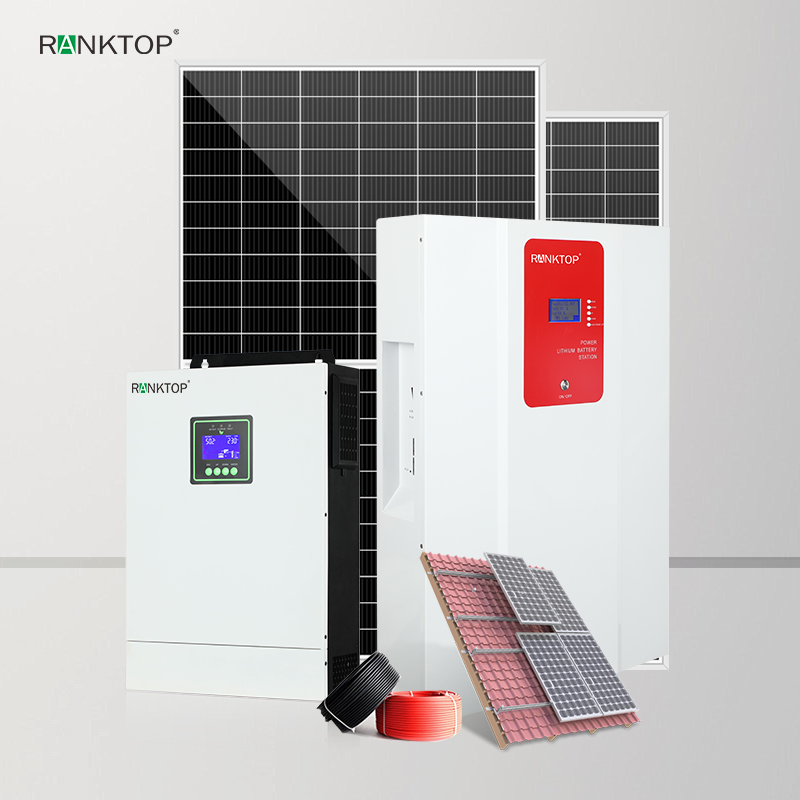

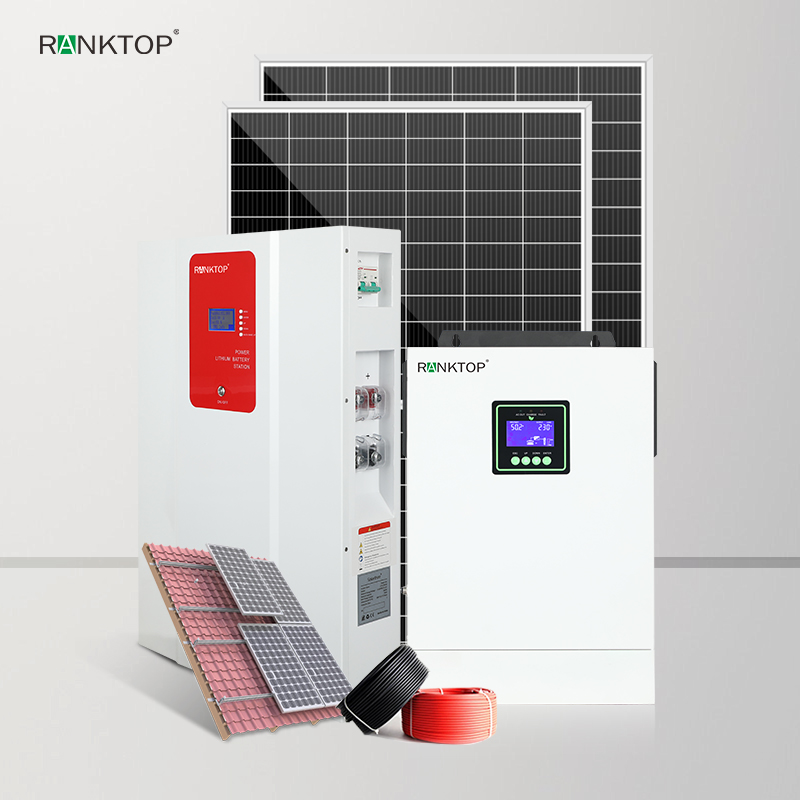

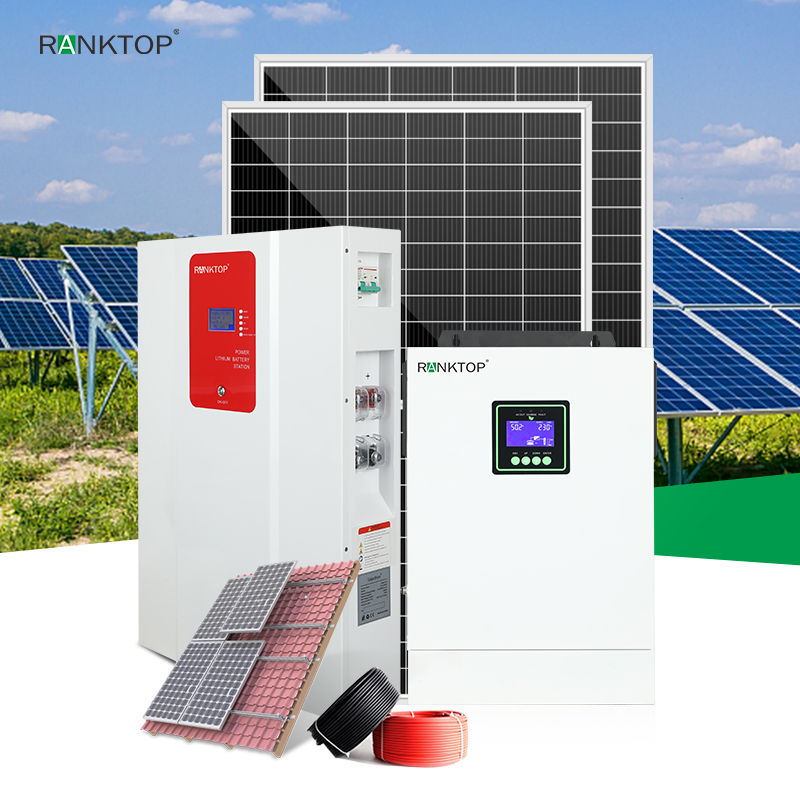

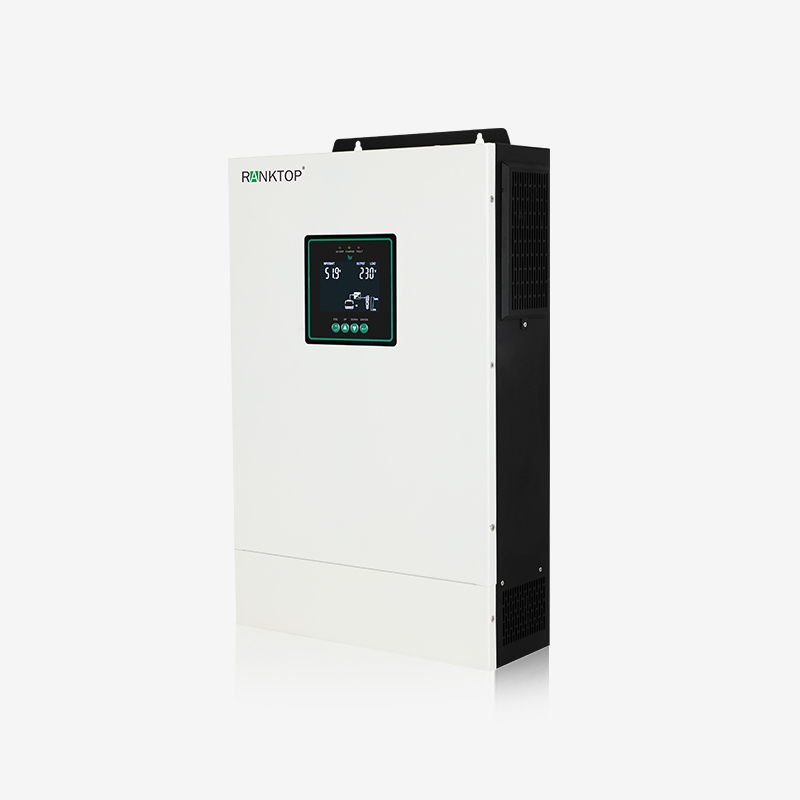

11kW Solar Inverter for High-Efficiency Solar Power Systems

Brand RANKTOP
Product origin ZhongShan
Delivery time 5-15 Days
Supply capacity 5000/Week

Our latest hybrid system is redefining commercial and industrial energy solutions: • Adaptable for various scenarios, including micro-grids • Robust off-grid performance overload capacity • Enhanced DC capabilities for maximized solar input • Durable design with IP20 protection, no derating up to 50°C • User-friendly remote monitoring for seamless operation

Renewable Energy Inverter

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 7 pcs In Series

8.2KW Solar Inverter (On/Off Grid)

Rated Output Power: 8200W

Rated Output Voltage: 230VAC, 50Hz/60Hz

Maximum Main Load: 8200W

Maximum Second Load: 2733W

Max. PV Input Current: 18A/18A

Max. PV Input Voltage(Voc): 500VDC

MPPT Tracking Voltage Range: 90V-450VDC

Max. PV Charge Current: 160A

Baterry Voltage: 48VDC

AC Input Voltage: 170~280VAC, 50Hz/60Hz

Max. AC Charge Current: 140A

Product Size: 390x530x130mm

Weight: 14.2kg

Warranty: 3 Years

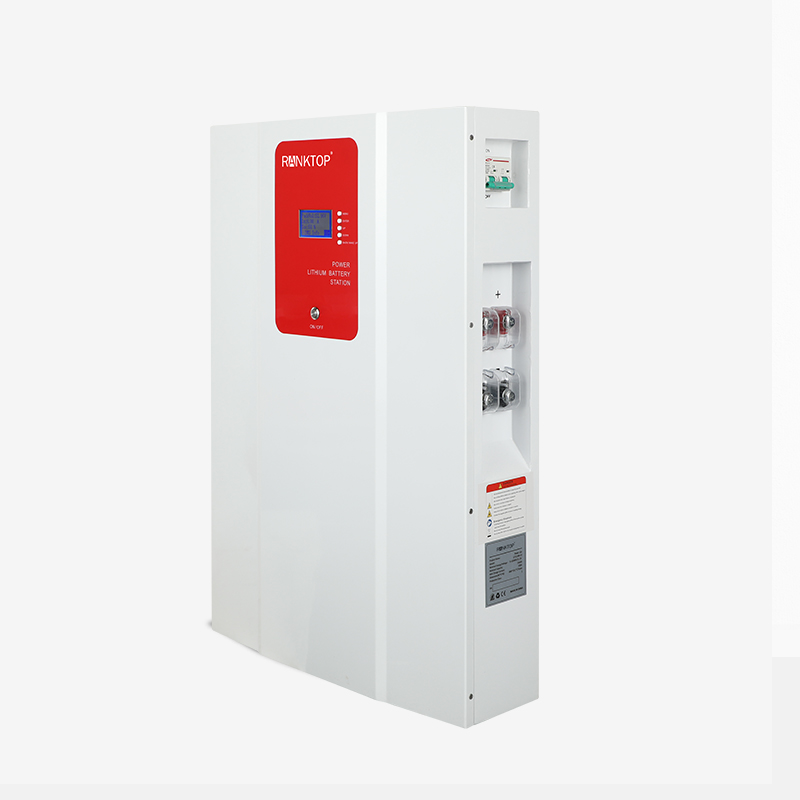

51.2V 150AH Battery Pack

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Nominal Capacity: 150Ah

Charging Cut-off Voltage: 58.4V

Discharging Cut-off Voltage: 40.8V

Max. Cont. Charging/Discharging Current: 100A

Max. Instantaneous Charge/Discharge Current: 200A

Cycle Life: ≥6000

Max. Number Of Parallel: 6 sets

Product Size: 800*435*175mm

Weight: 60kg

Warranty: 5 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

4mm² PV Wire, Red, 20m

4mm² PV Wire, Black, 20m

35mm² PV Wire, Red, 5m

35mm² PV Wire, Black, 5m

Product Advantage

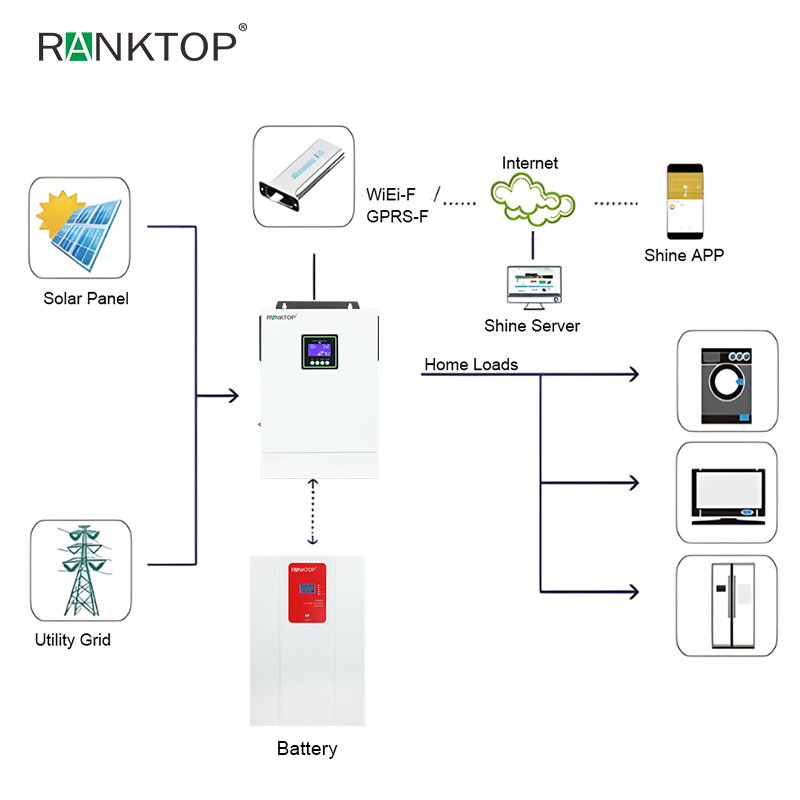

The Hybrid Solar Energy System, also known as an On&Off Grid Solar Energy System, is a versatile energy solution that combines the features and functions of both on-grid and off-grid systems. During sunny daytime hours, you can utilize electricity generated directly from solar panels. In the evening or on cloudy days, the system seamlessly switches to power stored in a battery bank. This flexibility is made possible by the Hybrid Off-Grid Inverter, which is a key component of the system. It ensures a continuous and reliable supply of electricity, making it an ideal choice for modern energy needs.Photovoltaic Inverter.Renewable Energy Inverter.

The 11kW Hybrid Inverter is a smart and efficient power solution designed to meet diverse energy requirements. It offers two output modes—mains bypass and inverter output—providing uninterrupted power supply. With four charging modes, including Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging, users can optimize energy usage based on their specific needs and environmental conditions. The inverter also features a power-saving mode to minimize no-load loss, enhancing overall efficiency. Additionally, it supports lithium battery activation through PV solar or mains, offering compatibility with both lead-acid and lithium batteries for maximum flexibility. Safety and reliability are prioritized, with comprehensive protection against short circuits, over/under voltage, overload, and reverse polarity.Solar Power Inverter.

To ensure a seamless and reliable solar system installation, a complete set of accessories is available. This includes tool kits, durable panel brackets, high-quality cables, and efficient combiner boxes. These components are designed to provide secure and reliable performance, ensuring a tailored energy experience that meets your needs. Whether for residential or commercial use, the Hybrid Solar Energy System offers a smart and efficient way to integrate renewable energy into your lifestyle.Solar Power Inverter.Photovoltaic Inverter.
