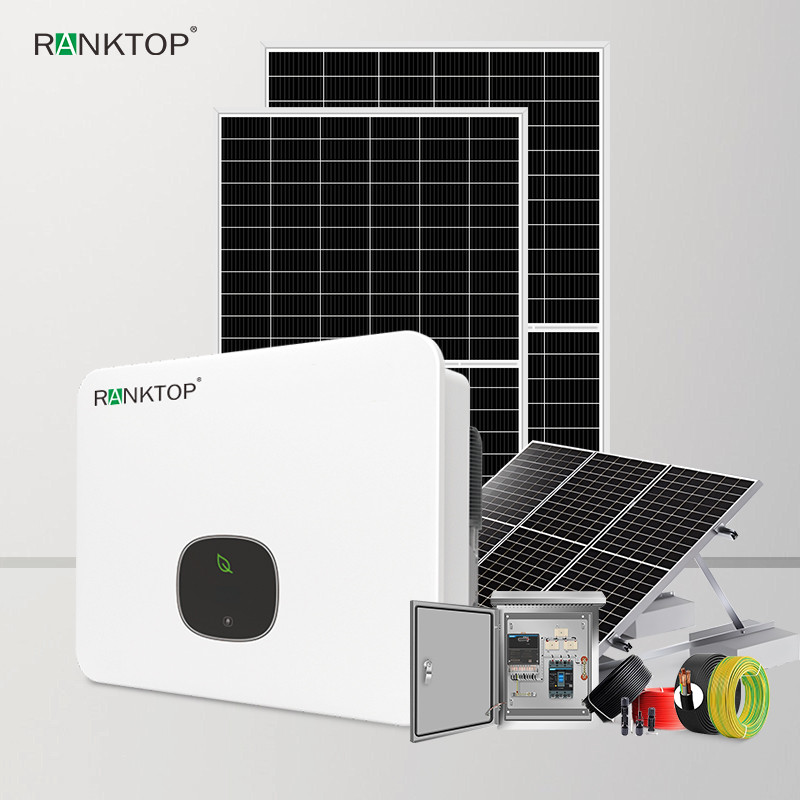

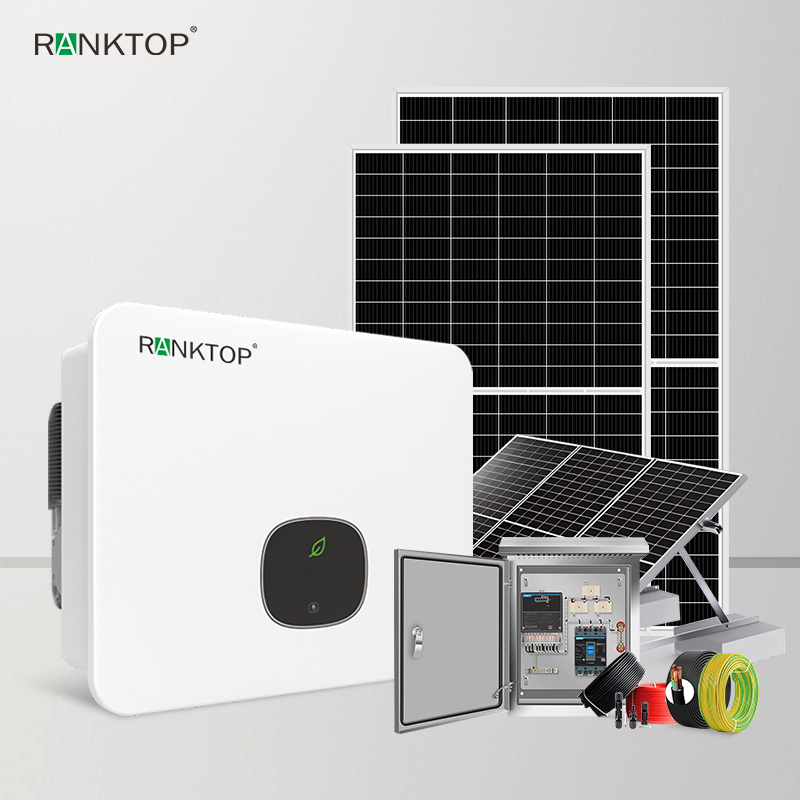

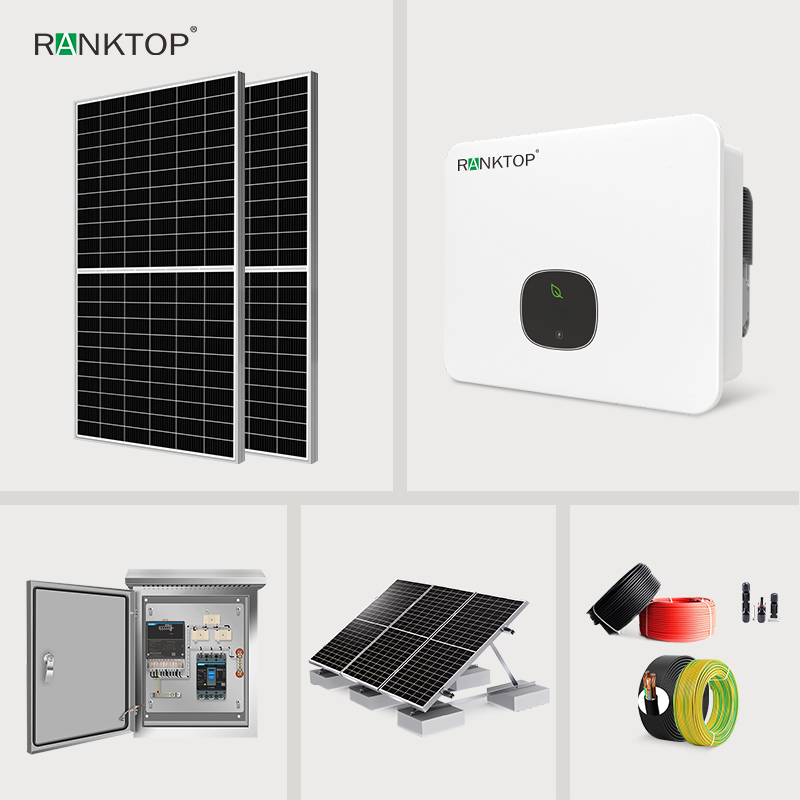

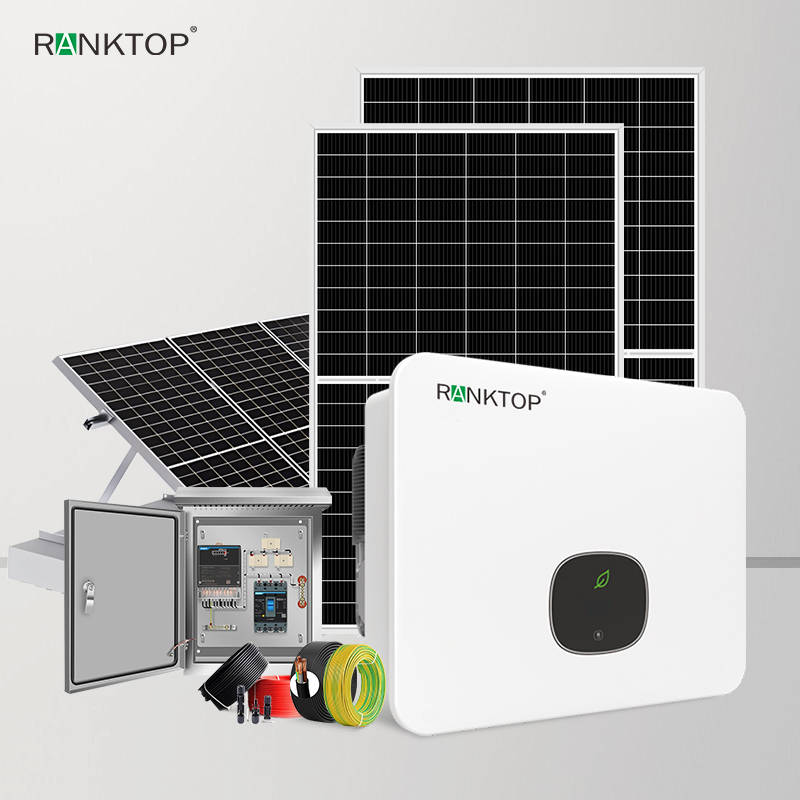

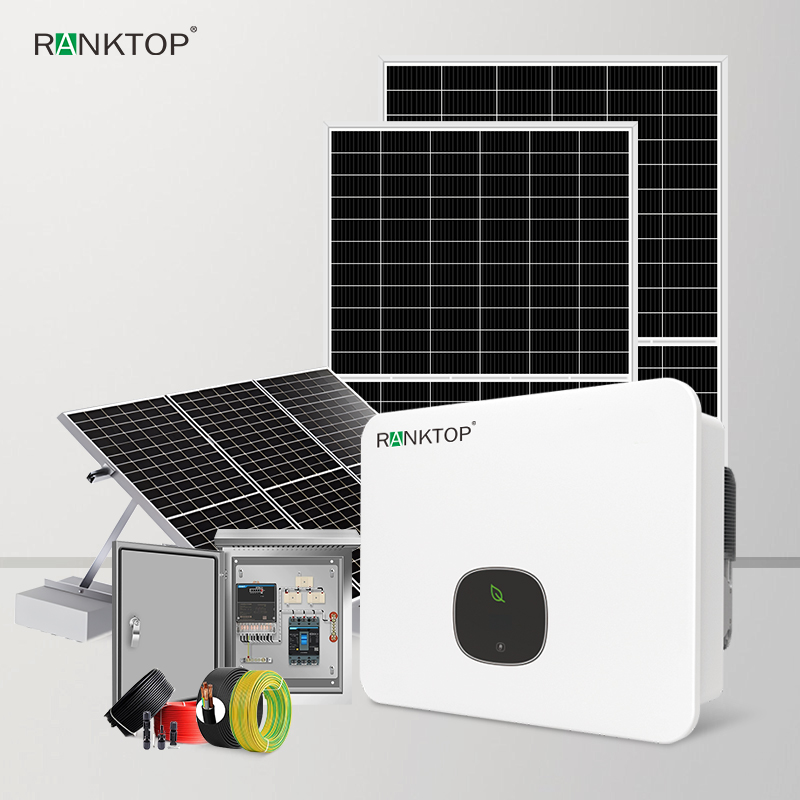

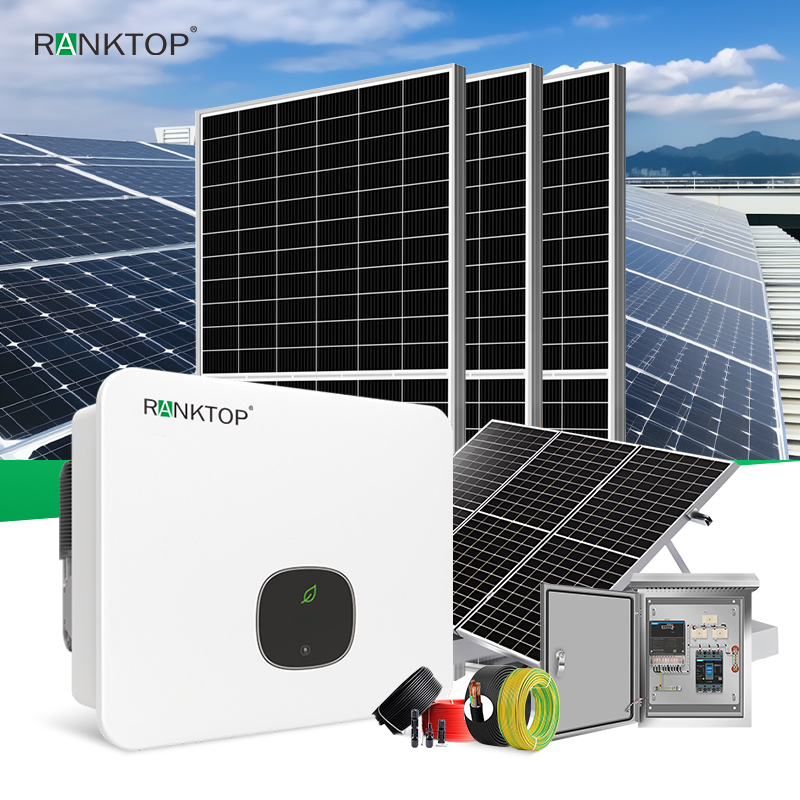

50kw Home Solar Storage System Module Kit Set PV Power Solar Energy on Grid Solar Generator System

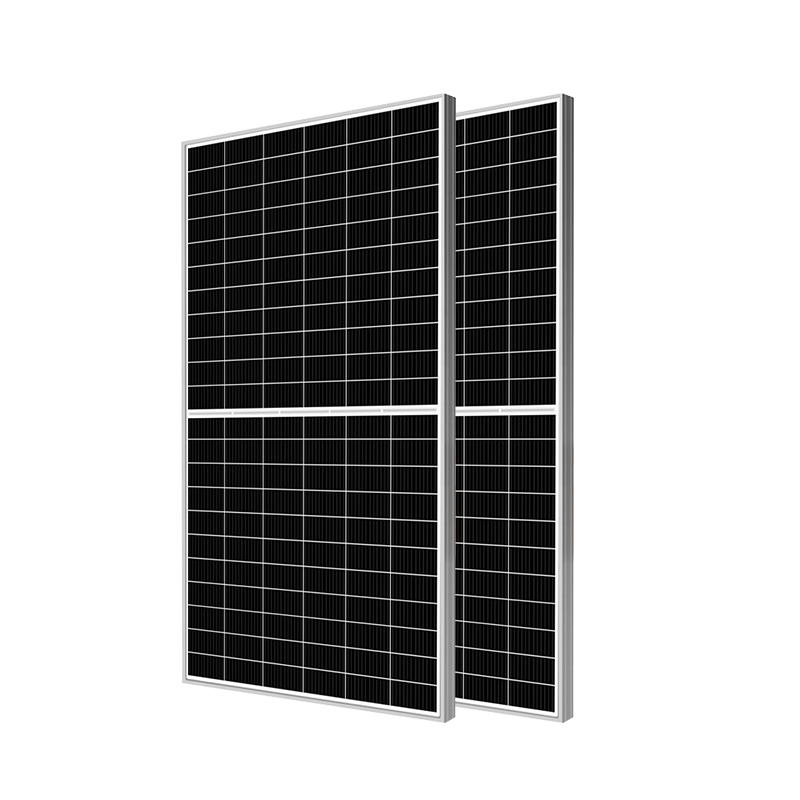

550W mono Half Cell PERC solar panel

Vmp: 41.95V  Voc: 49.8V  Imp 13.11A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 15 pcs In Series

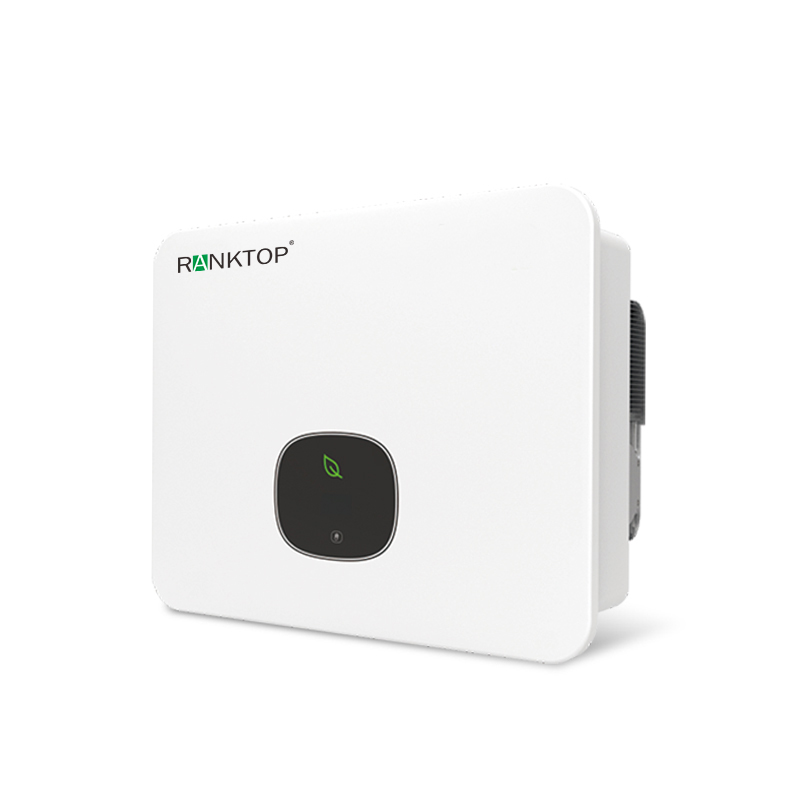

50KW On Grid Solar Inverter

Rated Output Power: 50KW

Rated Output Voltage: 400VAC, 50Hz/60Hz

MPPT Number/Road: 4/2

MPPT Rated Voltage: 600V

MPPT Voltage Range: 200~1000V

Max. Input Current Of Each MPPT: 32A

Max. Efficiency: 98.8%

Protection Class: IP66

Size: 580x435x230mm

Weight: 37kg

Warranty: 5 Years

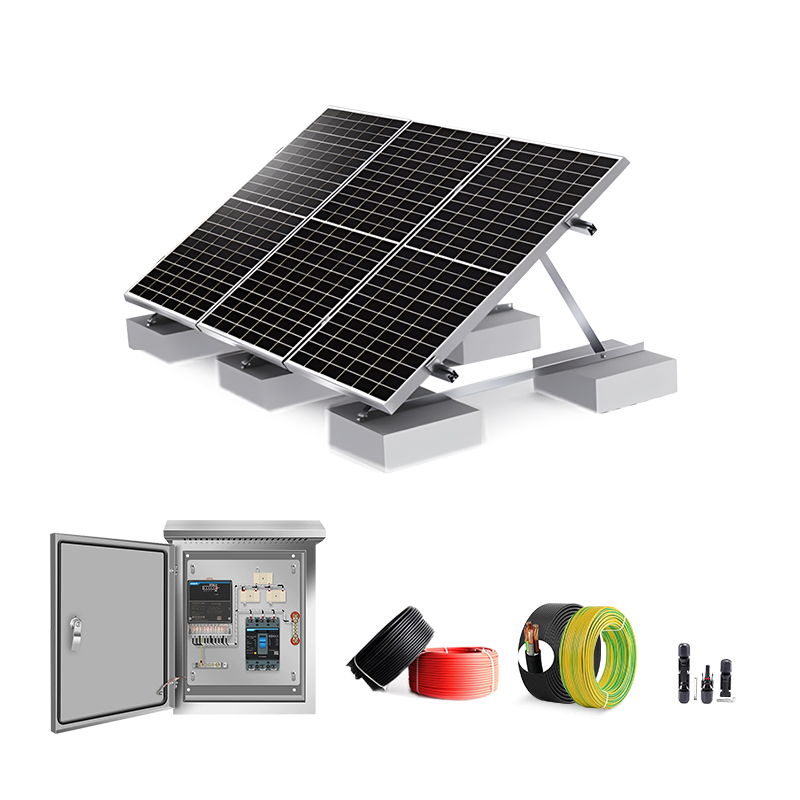

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m2

AC Distribution Box/Cabinet

Reliable Thunderstorm& Surge Protection & Breaker

Protection Class: IP65

Size: 540x400x140mm

Weight: 8kg

4mm² PV Wire: 100m, Red

4mm² PV Wire: 100m, Black

MC4 Connector, Male Plug

MC4 Connector, Female Plug

AC Cable: 4*25mm², 10m

BVR-6mm² AC Wire: 100m

BVR-10mm² AC Wire: 10m

Introducing the latest On-Grid Solar Inverter Solutions for your rooftop solar PV system at home—the MIC, MIN, and MOD series. These inverters feature a beautiful and compact design, making them both visually appealing and highly functional. Unlike some other inverters, they come equipped with an easy-to-use touch button and OLED display, Home Solar Storage System ,Home Energy Storage System,allowing you to quickly monitor your system’s performance and see what it has been generating.The MIC, MIN, and MOD series offer high efficiency levels, with some models reaching up to 99.5% efficiency.They also boast a high appearance level, fitting seamlessly into modern home electrochemistry setups.on Grid Solar Generator System,Home Solar Storage System ,Home Energy Storage System, Complete Hybrid Power Energy Storage, inverter with energy storage system.
