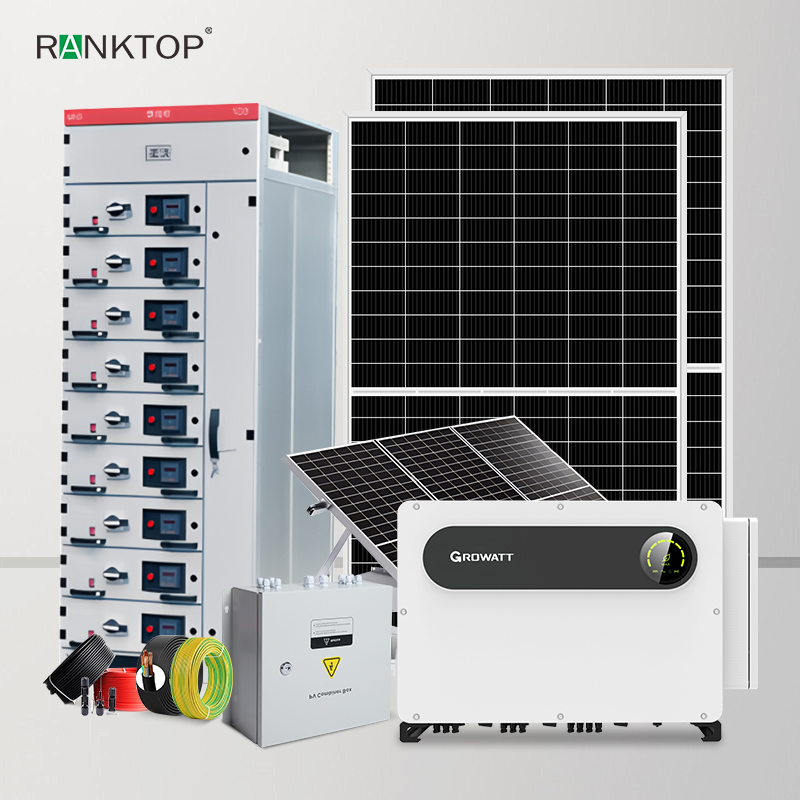

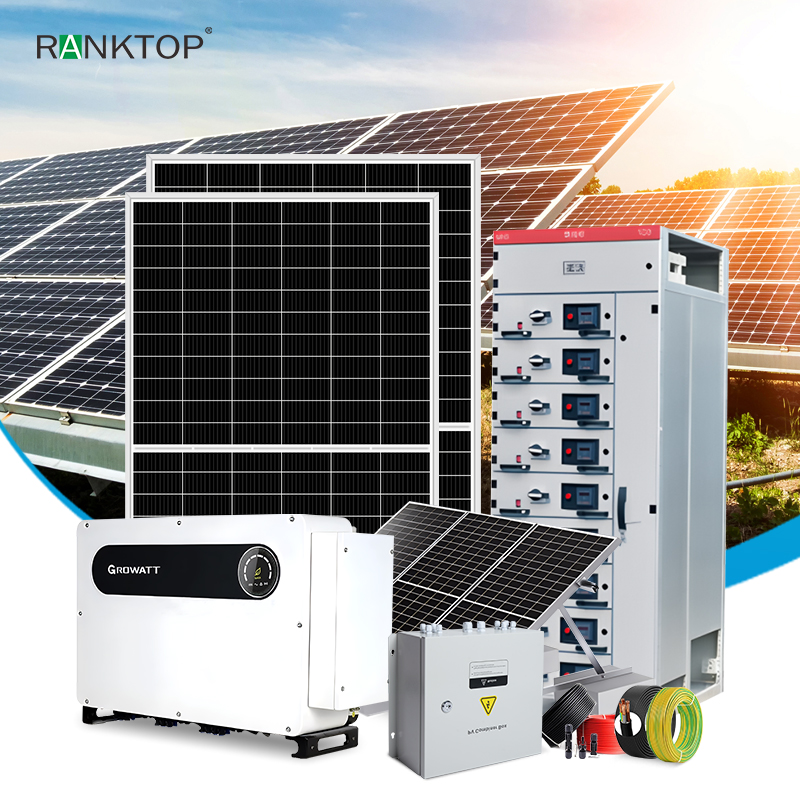

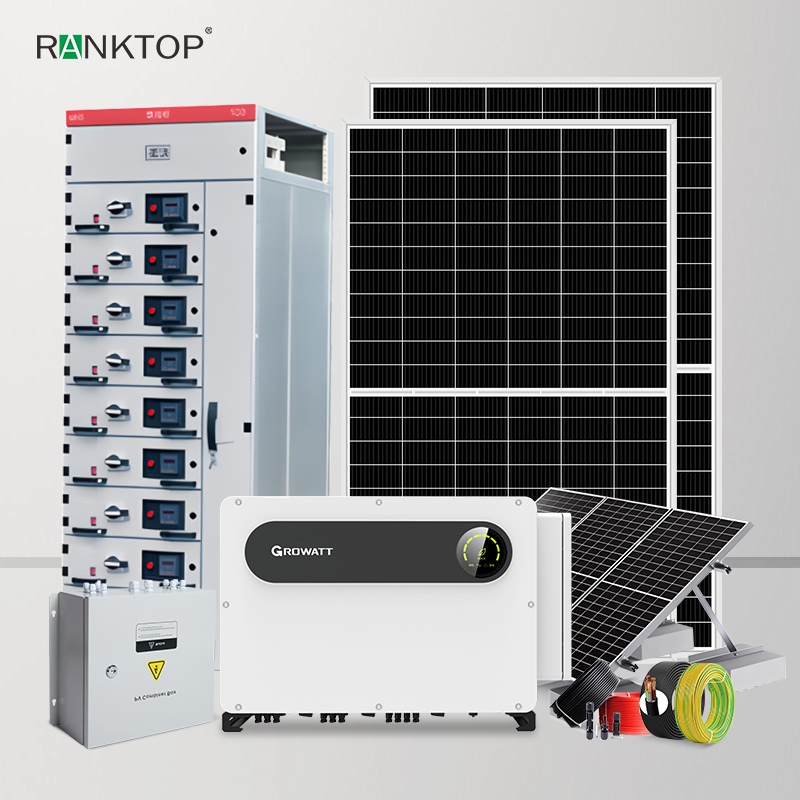

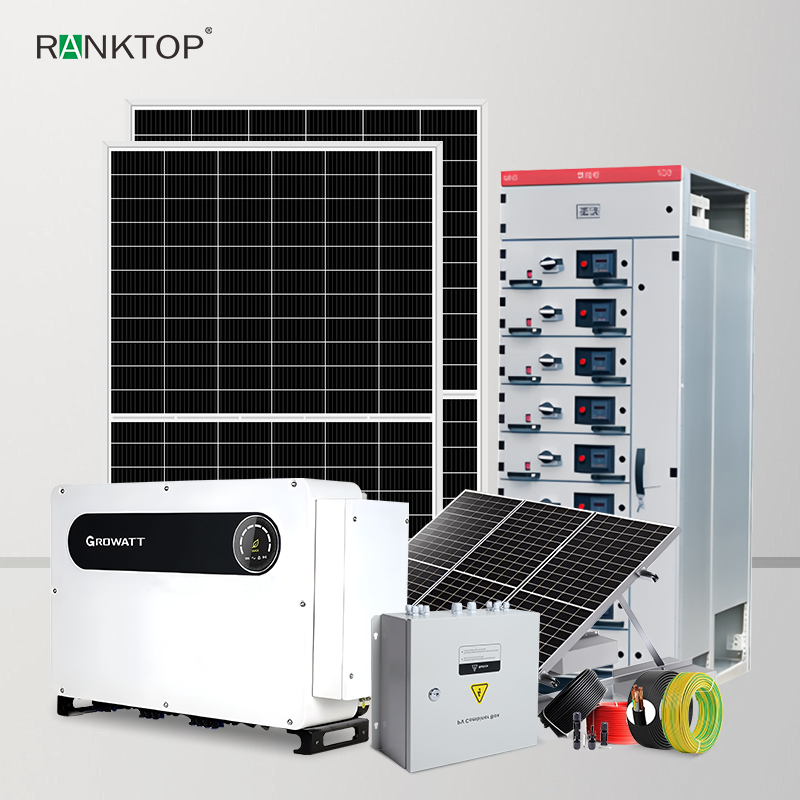

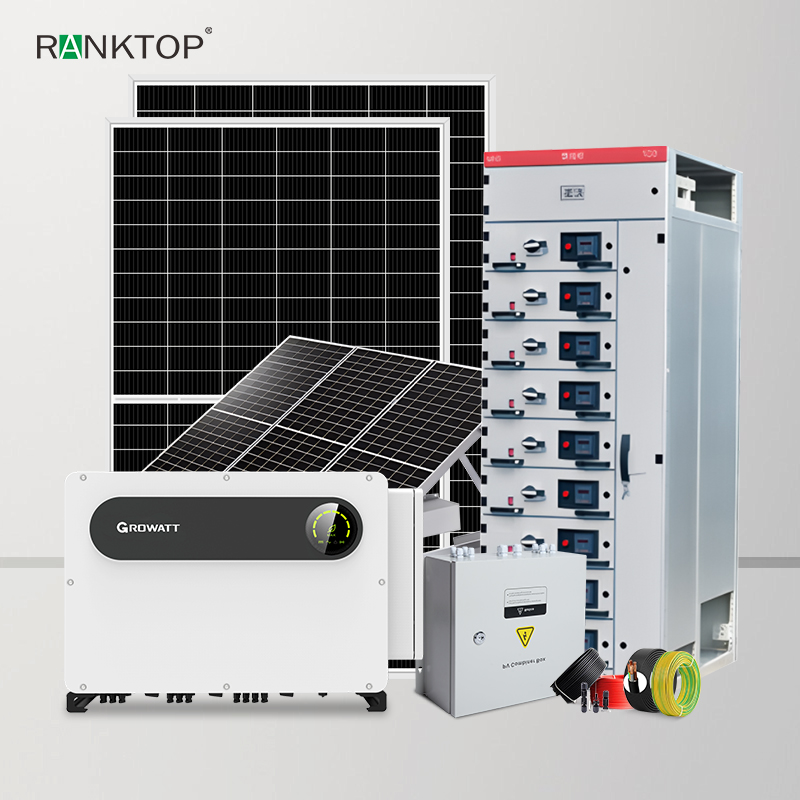

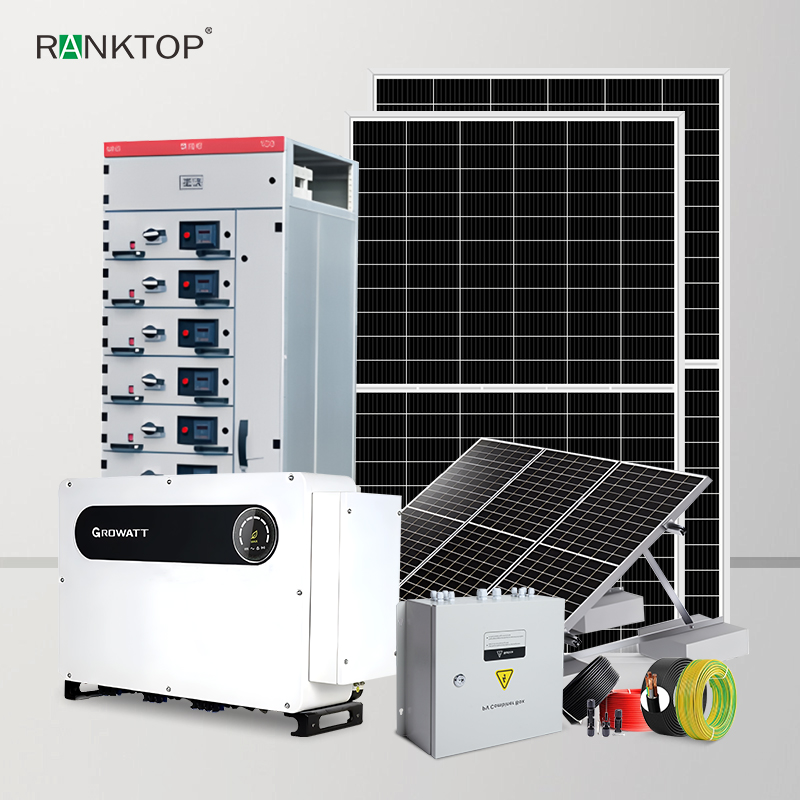

Hot Sale Solar Inverter MPPT Wholesale Price Solar Kits for Homes

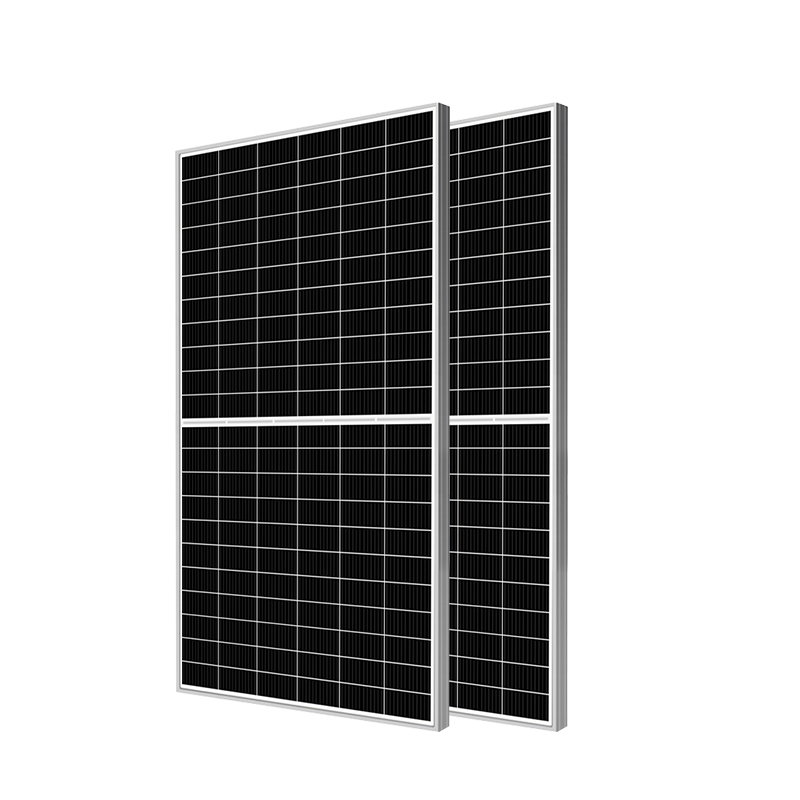

550W mono Half Cell PERC solar panel

Vmp: 41V  Voc: 49.2V  Imp 13.45A

Size: 2279*1134*35mm

weight: 28.3kg

25 years life span

Linear performance: 25 years 80 % ; 10 years 90%

Connection: 18 pcs in series

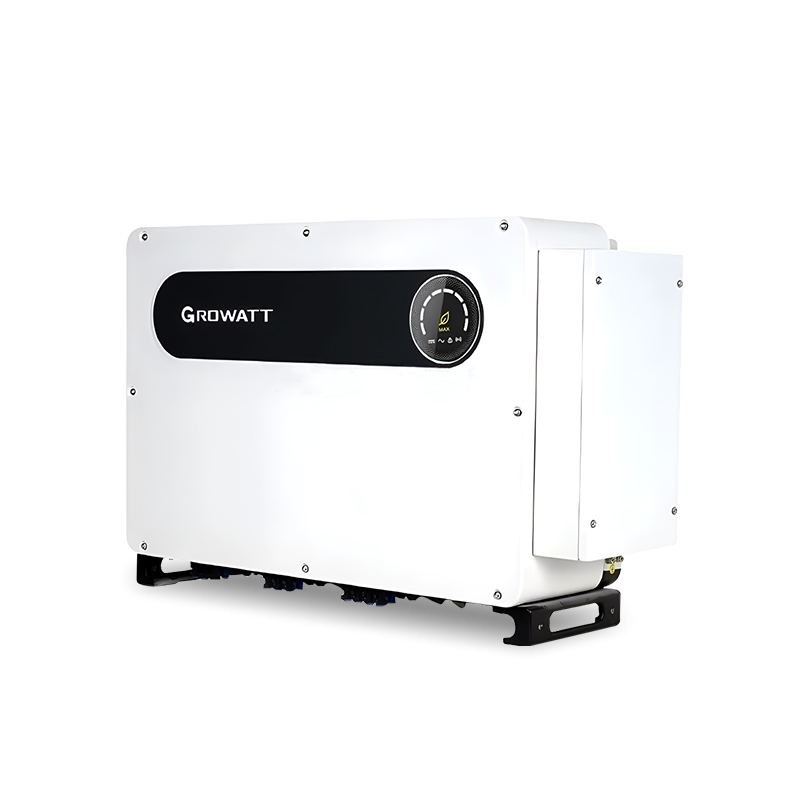

125KW On Grid Solar Inverter

Rated Output Power: 125KW

Rated Output Voltage: 400VAC, 50Hz/60Hz

MPPT Number/Road: 8/2

MPPT Rated Voltage: 600V

MPPT Voltage Range: 200~1000V

Max. Input Current Of Each MPPT: 32A

Max. Efficiency: 98.7%

Protection Class: IP66

Size: 970x640x345mm

Weight: 84kg

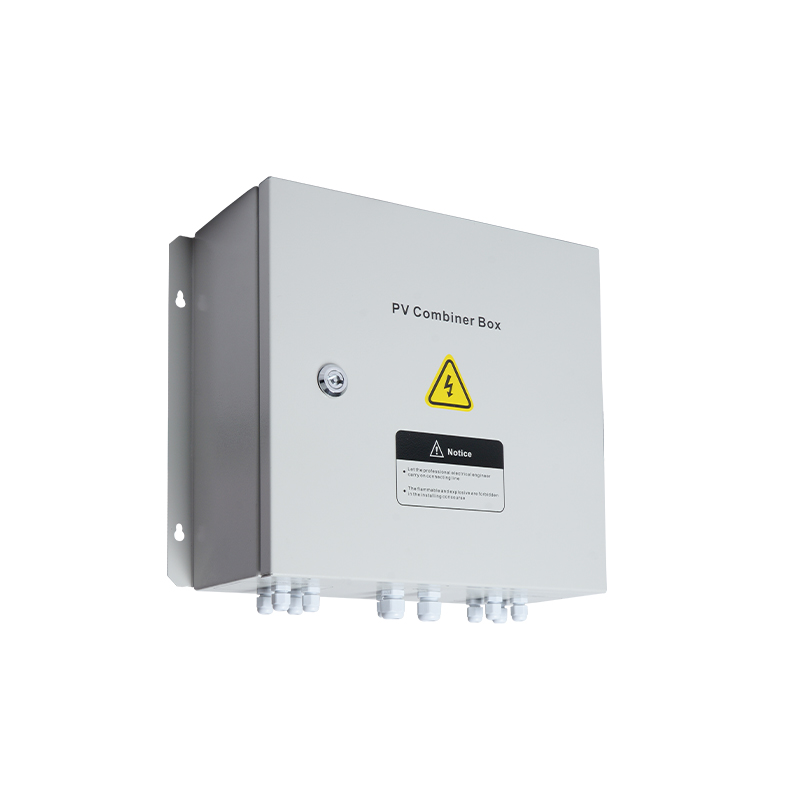

13 In 13 Out PV Lightning Arrester Box

Simplify Wiring Between PV Array And Controller;

Reliable Thunderstorm& Surge Protection

Product Size: 700x500x220mm

Weight: 10.8kg

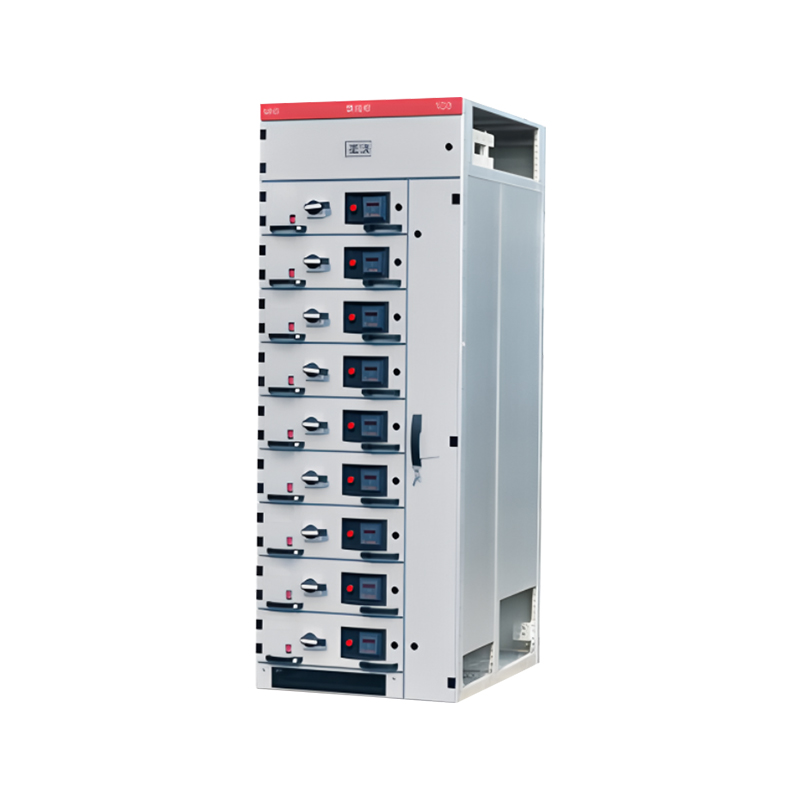

AC Distribution cabinet

Breaker：250A, 8pcs

Size: 600x2200x1000mm

Weight: 480kg

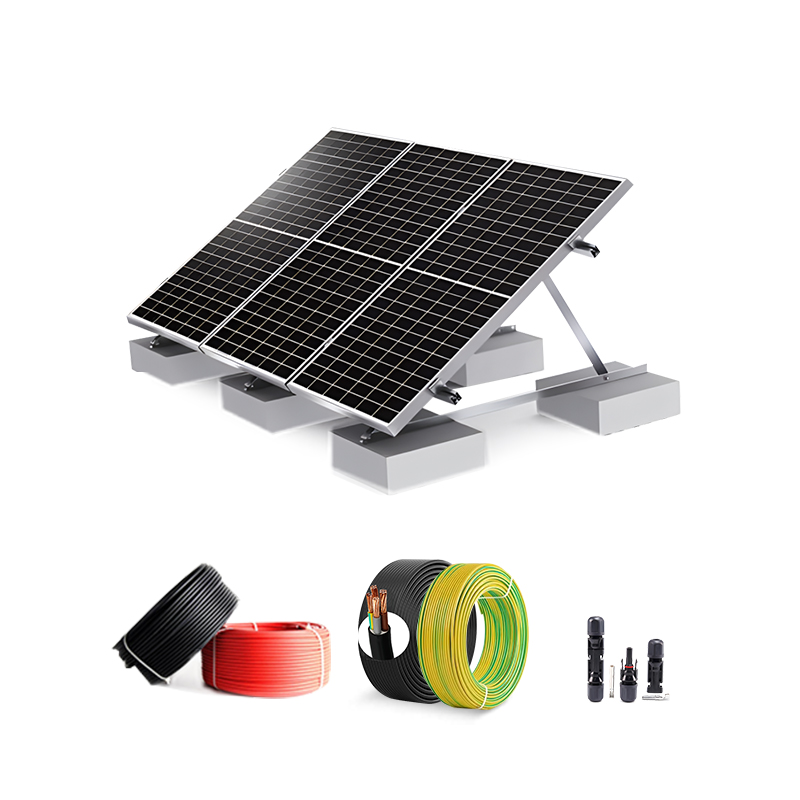

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel

wind load: 55m/s,snow load:1.5kn/m²

4mm² PV cable: 100m, Red

4mm²PV cable: 100m, Black

MC4 Connector, Male Plug

MC4 Connector, Female Plug

AC Cable: 4*120mm²,100m

AC Cable: 4*240mm², 100m

BVR-6mm² AC Wire: 100m

BVR-10mm² AC Wire: 100m

1>The PV panels gather solar to generate DC power to inverter.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration. 2>With input current detection circuit, it can monitor all the PV panels' working status and use MPPT to track the maximum power point.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration. 3>With inverter circuit change DC power to AC power, and feed power back to grid per grid reuqirement.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration. 4>With output isolation relay can isolate AC output and grid, if anything goes wrong on either inverter side or grid side, isolation relay can disconnect inverter immediately.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration.

High Efficiency and Reliability: The solar inverter boasts an impressive inverter efficiency of  98.7% , ensuring maximum energy conversion from solar power to grid power. This reliability is further enhanced by its robust design, with a protection degree of IP66, capable of withstanding harsh environmental conditions.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration.

Wide Compatibility and Flexibility: This inverter supports a wide range of input voltage and output frequency options, making it suitable for various solar panel systems and grid connections.

Advanced Communication and Monitoring: The solar inverter features RS485 or Wi-Fi communication, allowing users to monitor and control their solar power system remotely, ensuring seamless integration with existing infrastructure.Grid-Tied Solar Inverter, Solar PV Inverter, solar inverter hybrid ,Smart Grid Integration ,Energy Storage Integration.

Durable and Compact Design: With a compact size of 970/640/345mm and a weight of 84kg, this inverter is designed to be space-efficient and easy to install, while its operating temperature range of -30°C to +60°C ensures reliable performance in various environments.

Compliance and Warranty: The Growatt solar inverter meets stringent safety and quality standards, certified by CE and TUV, and backed by a comprehensive 5/10-year warranty, providing users with peace of mind and long-term protection.Solar PV Inverter.
