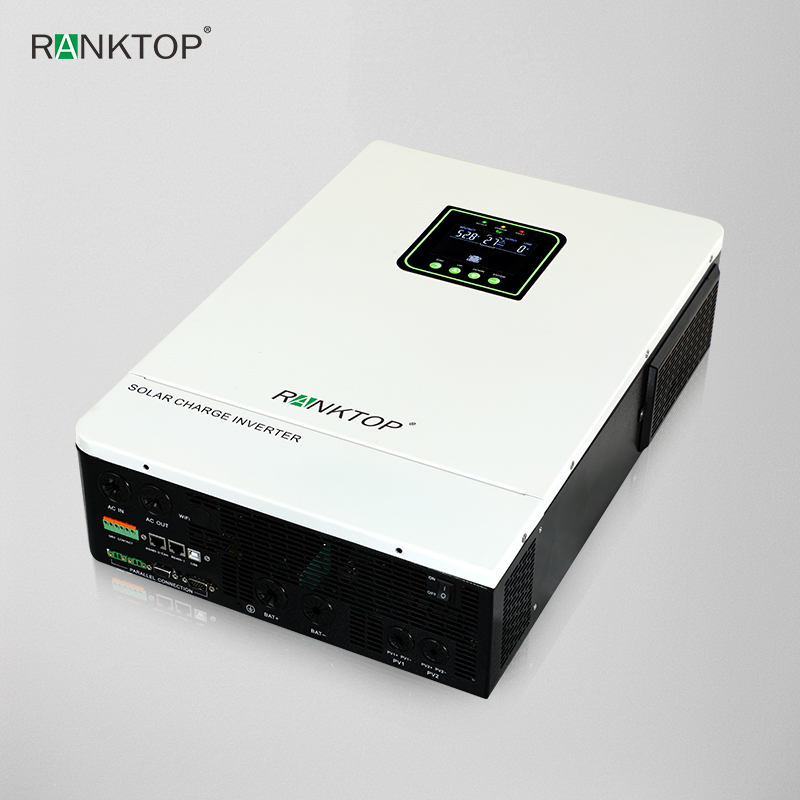

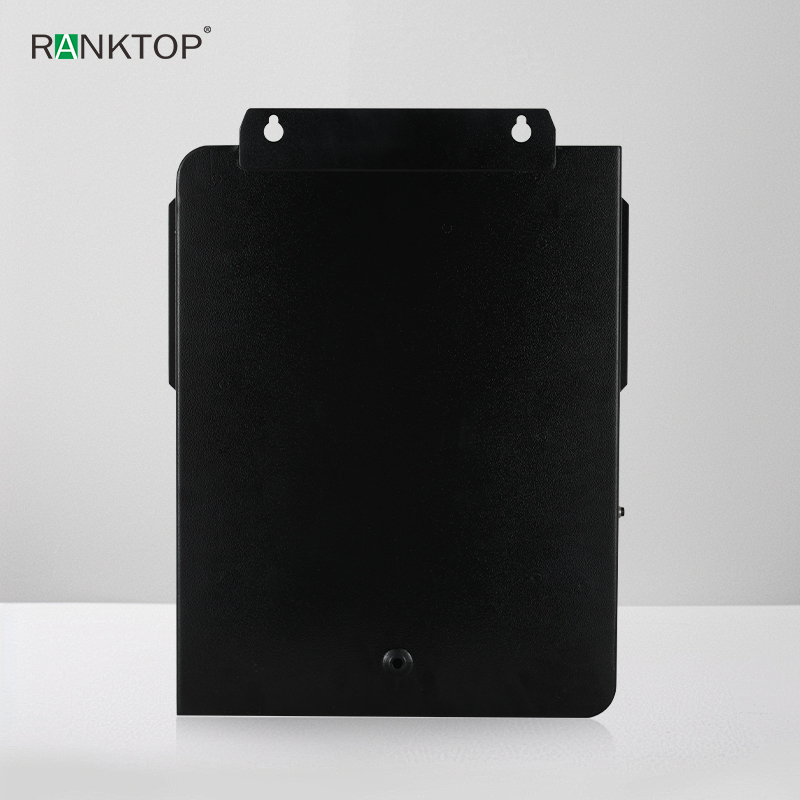

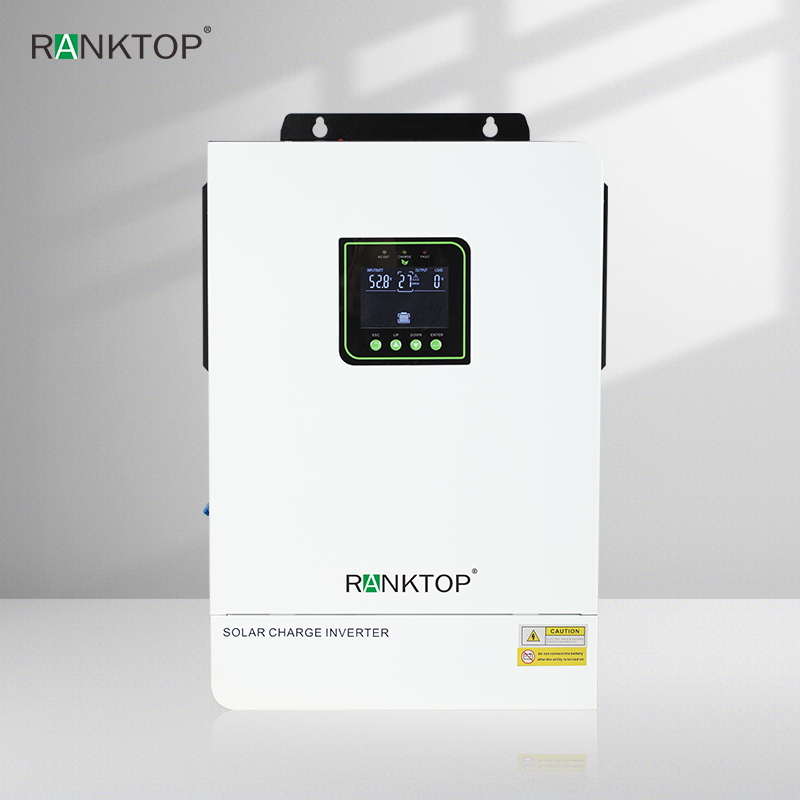

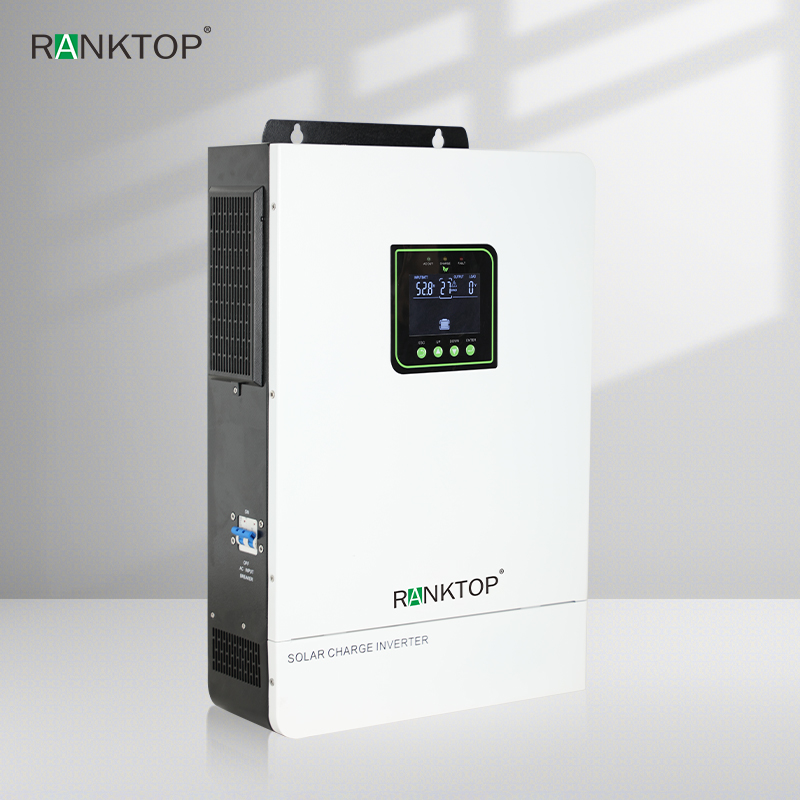

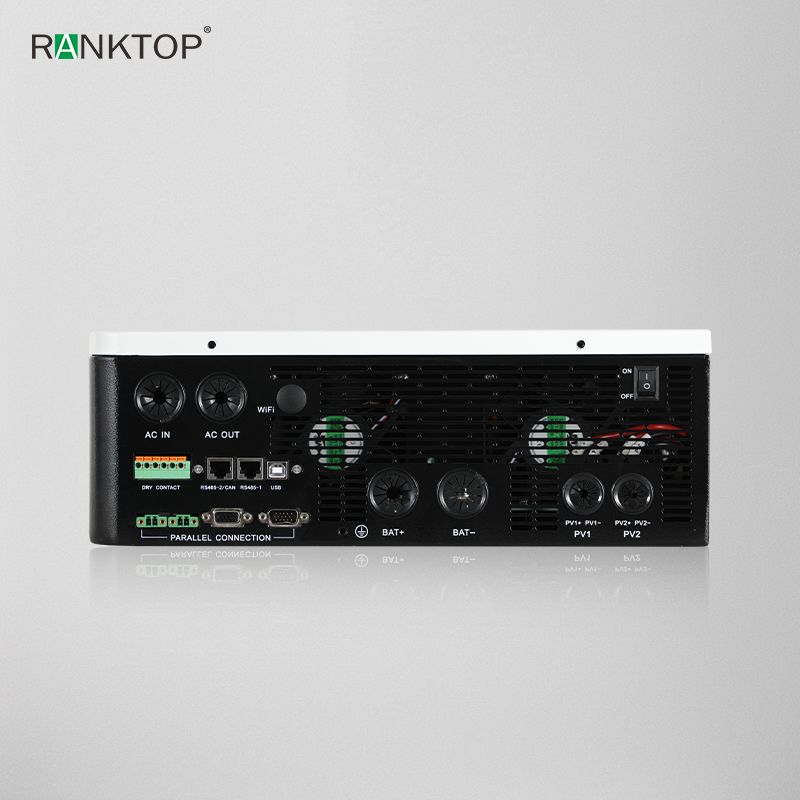

OEM off Grid Hybrid Solar Inverter Pure Sine Wave Power Inverter for Home Solar Photovoltaic Energy System
- RANKTOP
- ZhongShan
- 5-15 Days
- 5000/Week
6.2KW Hybrid Inverter
Model: THON-6.2KW-10P
Battery Voltage: 51.2VDC
Rated Power: 6200W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 26.9A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 135A
Rated AC Input Voltage Range: 170-280VAC, 50/60Hz
Maximum AC Charging Current: 80A
Maximum PV Input Power:6000W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A
Maximum PV Charge Current: 100A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 446*326*117.5mm
Warranty: 3 Years Net weight: 9.5KG
8KW Hybrid Inverter
Model: THON-8KW-10P
Battery Voltage: 51.2VDC
Rated Power: 8000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 35A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 183A
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 150A
Maximum PV Input Power:5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*388.5*133mm
Warranty: 3 Years Net weight: 18.10KG
10KW Hybrid Inverter
Model:THON-10KW-10P
Battery Voltage: 51.2VDC
Rated Power: 10000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 43.5A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 230A
Rated AC Input Voltage Range: 170-280VAC, 50/60Hz
Maximum AC Charging Current: 150A
Maximum PV Input Power: 5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*388.5*133mm
Warranty: 3 Years Net weight: 18.10KG
11KW Hybrid Inverter
Model: THON-11KW-10P
Battery Voltage: 51.2VDC
Rated Power: 11000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 48A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 250A
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 150A
Maximum PV Input Power: 5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*388.5*133mm
Warranty: 3 Years Net weight: 18.10KG
Product Advantage
THON This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user- configurable and easy accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
This inverter can power all kinds of appliances in home or office environment including motor-type appliances such as tube light, fan, refrigerato and air conditioner and so on.
Supplier Highlights: This supplier operates as both a manufacturer and trading company, primarily exporting products to countries such as the Philippines, Africa (particularly South Kenya), Australia, and Malaysia. They offer flexible customization services, including full customization, design-based customization, and sample customization, supported by private molds and product certifications. Their customer satisfaction rate stands at 98.7%.
